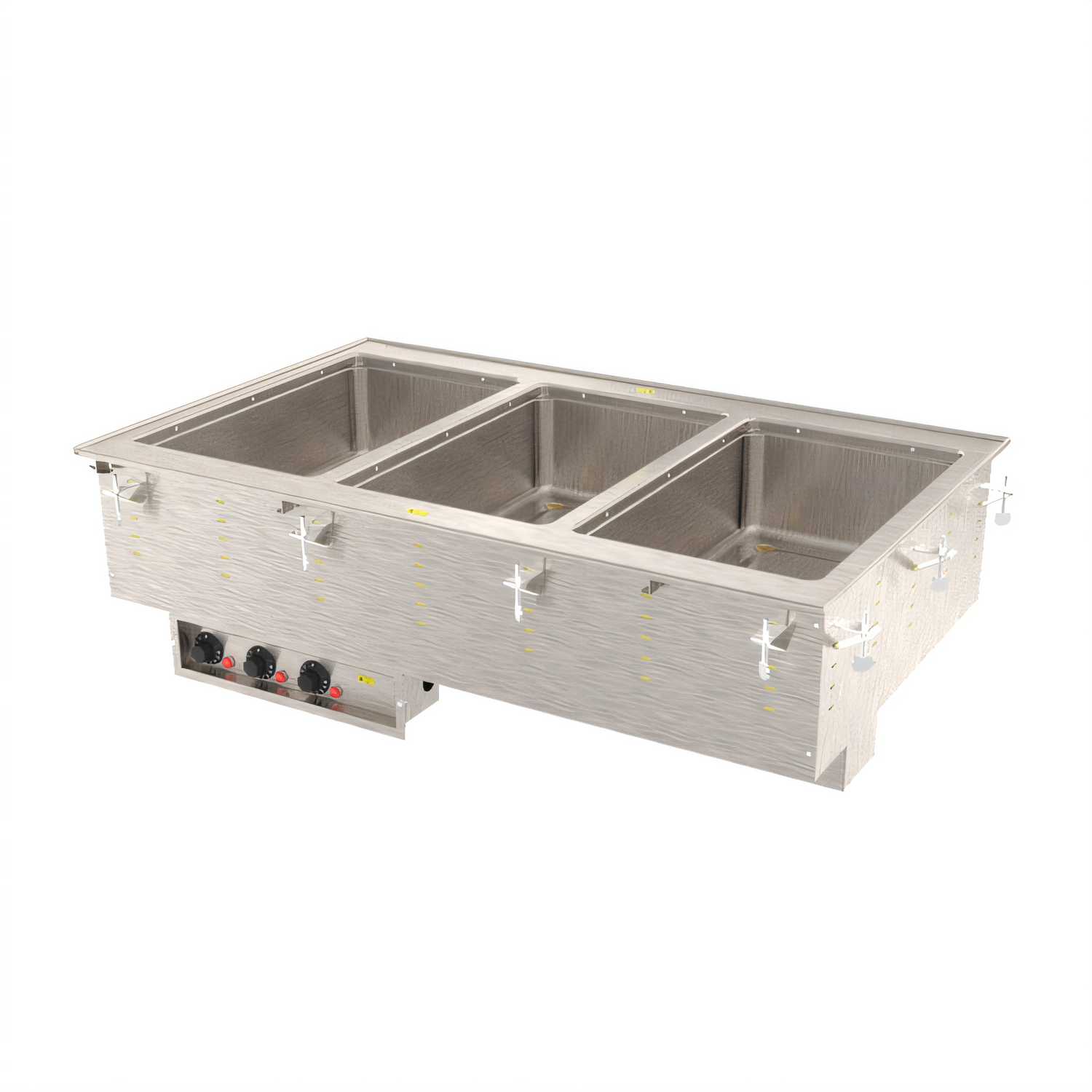

Vollrath 3-Well Drop-In Electric Hot Food Well, 12 x 20 Inch Insulated Marine-Grade 316 Stainless Steel Wells, 120V

Thermostatic controls, wet operation only, standard drain

Keep three full-size pans hot and ready with a durable drop-in well built for wet operation and independent thermostatic control.

  • Three insulated 12 x 20 inch wells are built from corrosion-resistant 316 marine-grade stainless steel.
  • Wet-operation design helps maintain even serving temperatures with moist heat.
  • Individual thermostatic controls and power indicator lights let you manage each well independently.
  • Includes a cord with plug, mounting clips, and a drip-free flange for easier installation.
  • Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
  • 120V, 3 kW power with a NEMA 5-50P plug simplifies hookup.

Overall Dimensions:

41.5"W x 26.0"D x 15.0"H

Product Weight:

118.0 lb

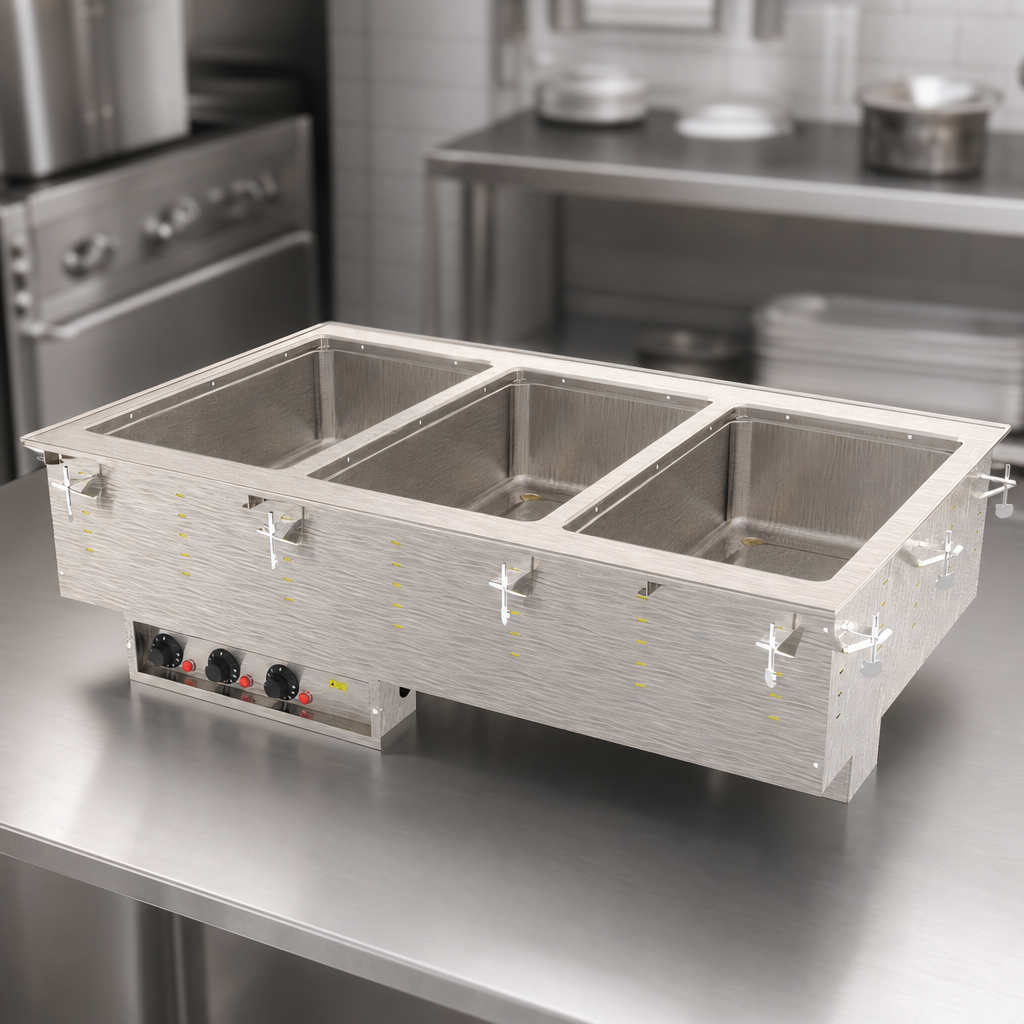

Marine-Grade 316 Stainless Steel Wells

Three individual 12 x 20 inch insulated wells are formed from 20-gauge 316 stainless steel for corrosion resistance and durability.

Wet Operation Only

Designed for moist heat holding; water is required for even heating of the food product.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light for independent temperature management.

Drop-In Top-Mount Installation

Designed for top-mount installation and includes standard mounting clips plus a gasket for the under-drip edge.

Drip-Free Drain Design

Features a drip-free flange and individual drain shutoffs to help keep cleanup and maintenance simple.

Cord and Plug Included

Supplied with a cord and NEMA 5-50P plug, so hard-wiring is not required.

Accepts Full-Size and Fractional Pans

Holds full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Service-Friendly Construction

A removable bottom panel provides access for service, and the control panel is tethered for flexible mounting locations.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 120 Volts
Amps 25 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-50P
Cord Length 6 Feet
Drain Connection Size 1-1/2 Inches MPT
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 118 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is wet operation only, and water is required for even heating.
No. It includes a cord and plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended for fractional pans.
The required cutout is 40-3/4 x 25-1/4 inches with a 7/8-inch corner radius.
HD wells have a two-year warranty against defects in materials and workmanship.
