Vollrath  |  SKU: 3640411

Vollrath 3640411 Steam Tables & Food Wells

$2,601.35
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

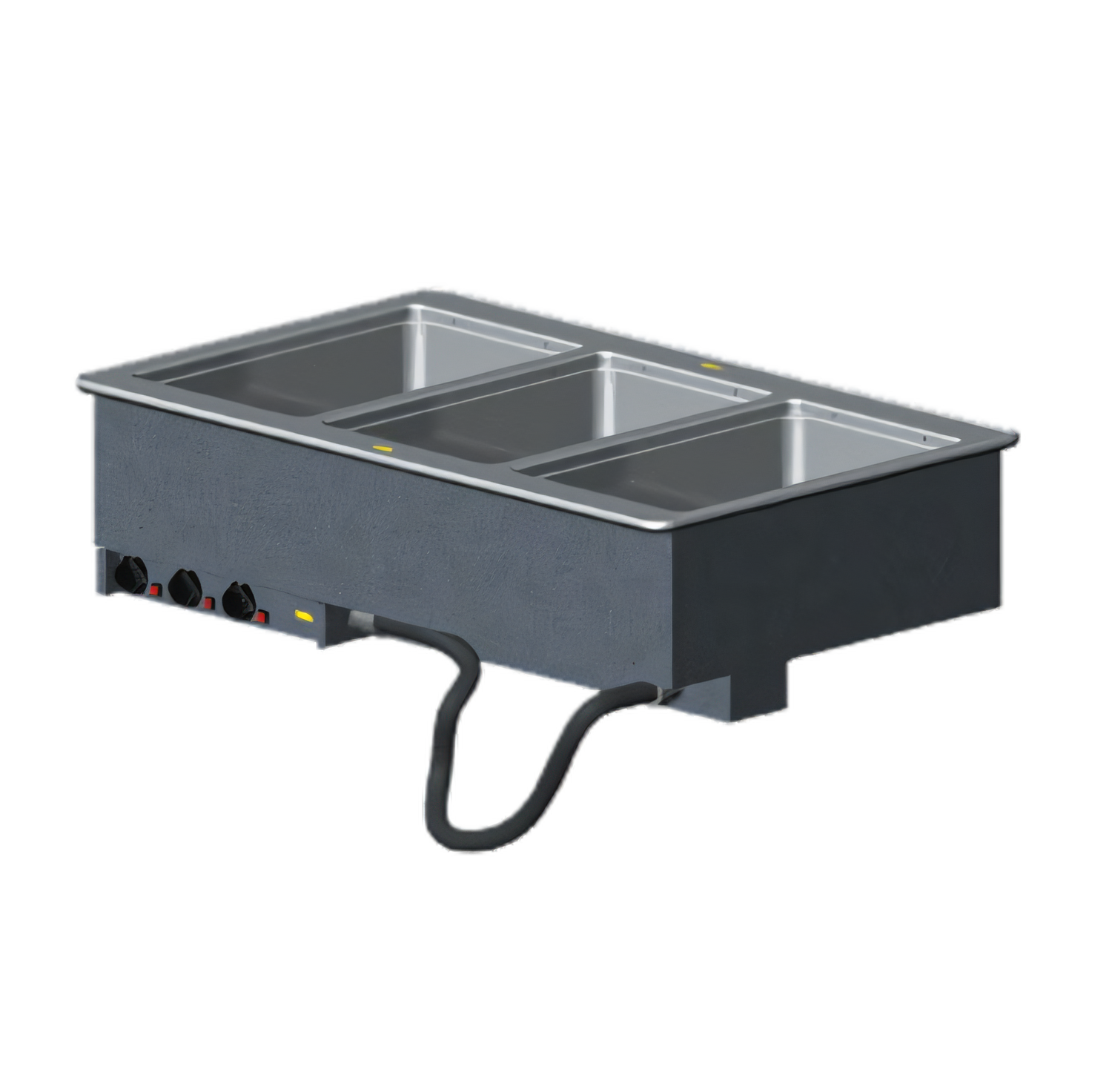

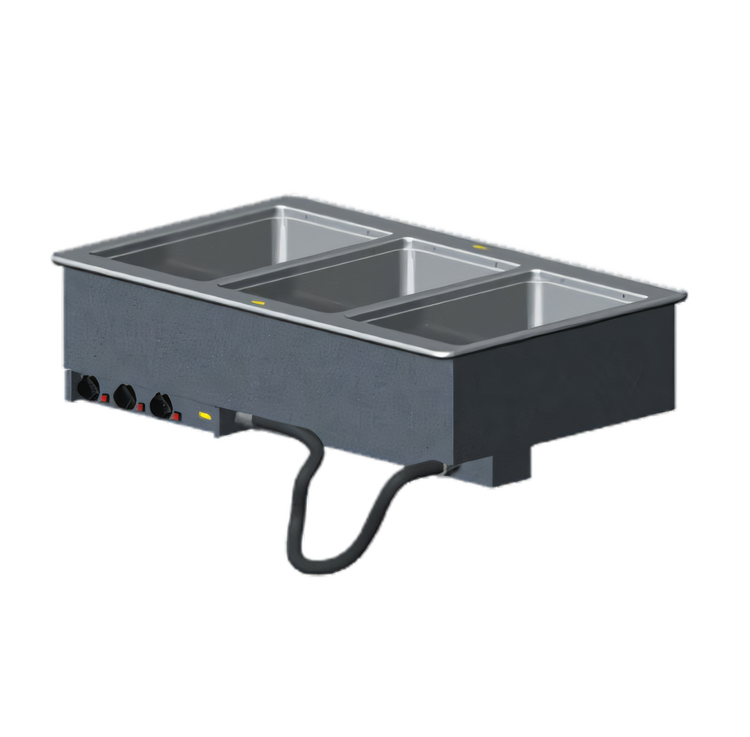

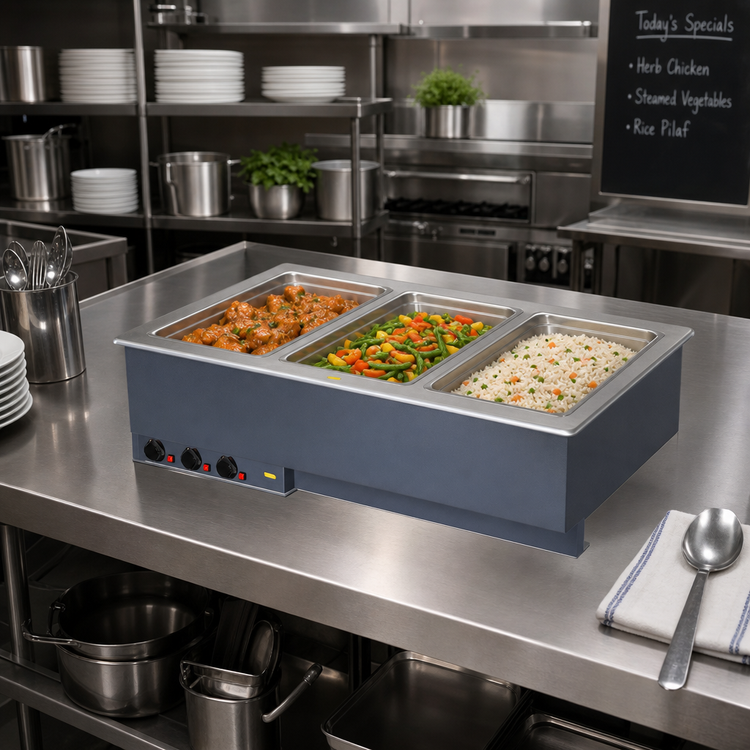

Vollrath 3-Well Drop-In Hot Food Well – 120 V, Thermostatic

1,000 W per well • Model 3640411 • Made in USA

Keep entrées, sides and sauces at safe, appetizing temperatures with this NSF-listed Vollrath three-well hot module. Designed for fast top-mount installation, it ships ready to plug in— no hard-wiring required.

Key features

  • (3) independent 12" × 20" wells accept full-size or fractional pans up to 6" deep.
  • 20 ga 300-series stainless wells and 18 ga stainless flange resist dents and corrosion.
  • Individual thermostatic controls with power lights let you dial in each menu item.

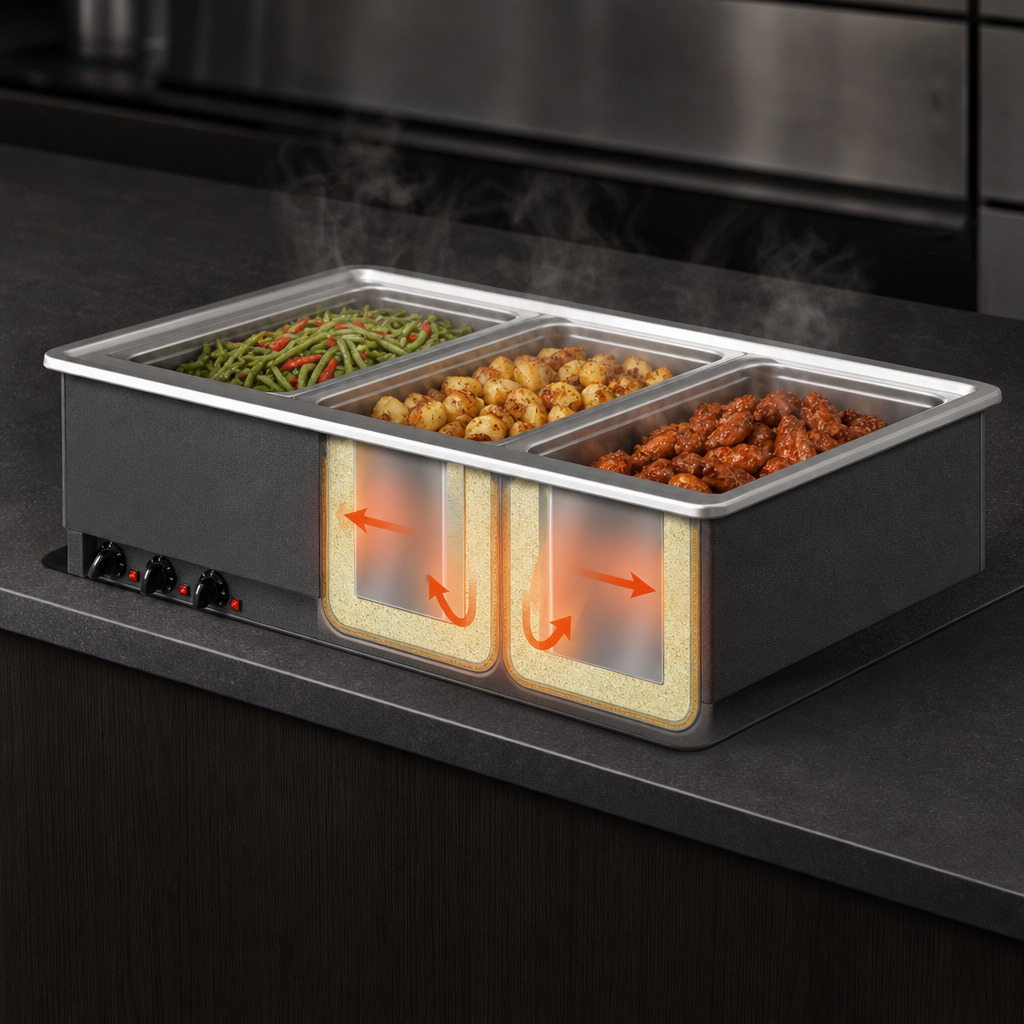

  • Full insulation—including between wells—boosts efficiency and keeps countertops cool.
  • Wet-operation design for even heat; each well has its own ½" drain with ball-valve shut-off.
  • Zero-clearance sides save space; mounting clips for counters up to 3" (7.6 cm) thick included.
  • 4-ft tethered stainless control panel installs where it’s most convenient for staff.
  • NSF 4 & cULus listed for commercial use.
Wet operation only — Always add water before turning the unit on. Running the wells dry may damage the elements and void the warranty.

Specifications

Number of wells 3 full size (12" × 20")
Well material / gauge 300-series stainless, 20 ga
Top flange 18 ga stainless with drip-free edge & gasket
Exterior housing 18 ga galvanized steel
Overall dimensions 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm)
Counter cut-out 40 ¾" W × 25 ¼" D; 7/8" (2.2 cm) corner radius
Controls 3 × thermostatic dials, panel mounted, with indicator lights
Heat output 1,000 W per well (3,000 W total)
Electrical 120 V / 60 Hz / 1-ph, 25 A
Power cord 6 ft (1.8 m) with NEMA 5-50P plug
Drain ½" NPT per well, individual ball valves
Certifications NSF 4, cULus
Country of origin USA
Warranty 1-year limited – see VollrathFoodservice.com for details

Drop-in units are custom-built and cannot be cancelled or returned once ordered.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

118.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Insulated or Non-Insulated

insulated

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
