Description

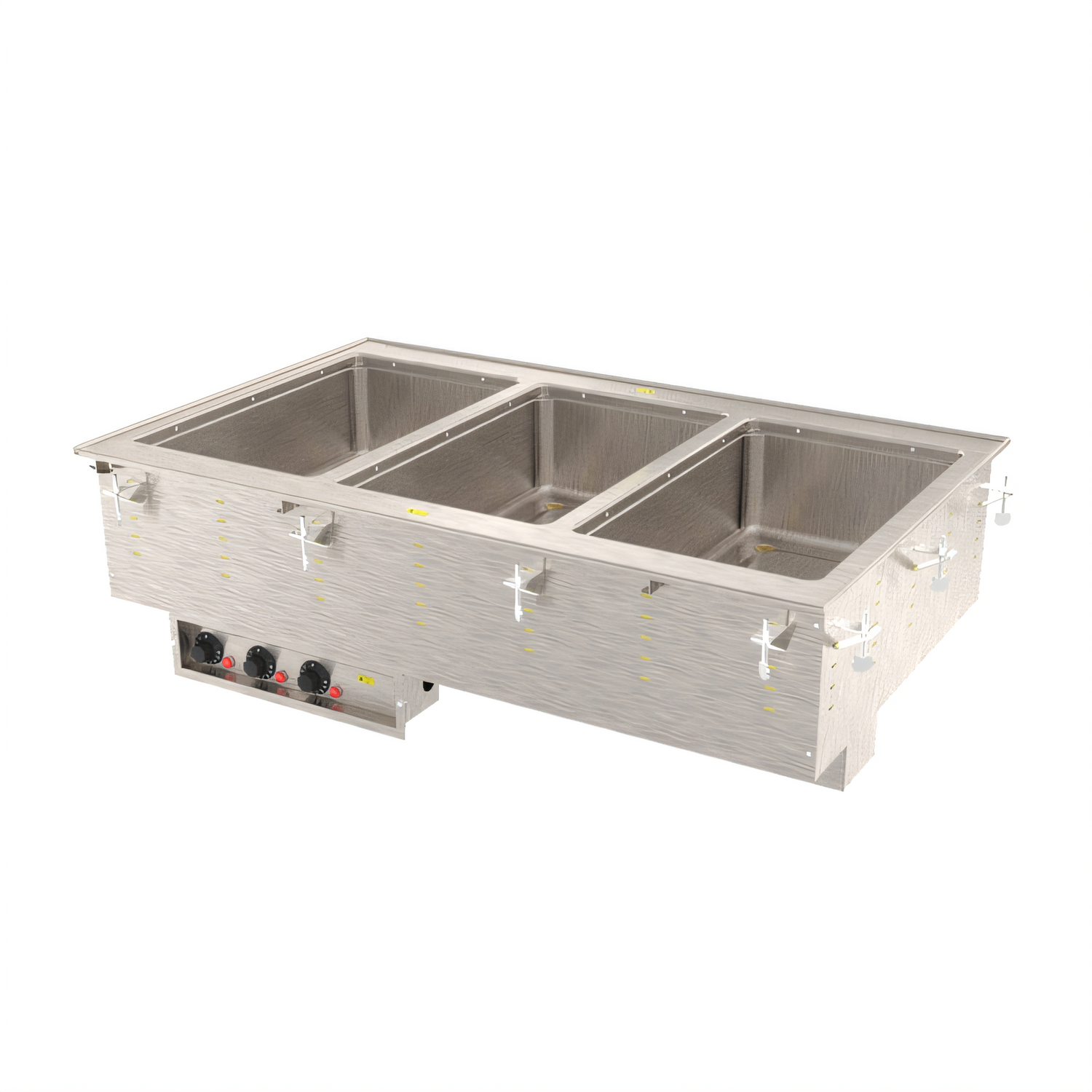

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well – Thermostatic, 120 V

41-1/2" W × 26" D | 1,875 W total output

Hold three full-size hotel pans of soup, vegetables, entrées and more at safe serving temperatures with this heavy-duty drop-in from Vollrath. Built from corrosion-resistant 316 marine-grade stainless steel and equipped with individual thermostatic controls, the unit delivers dependable, even heat in high-moisture or coastal environments—no hard-wiring required.

Key Features

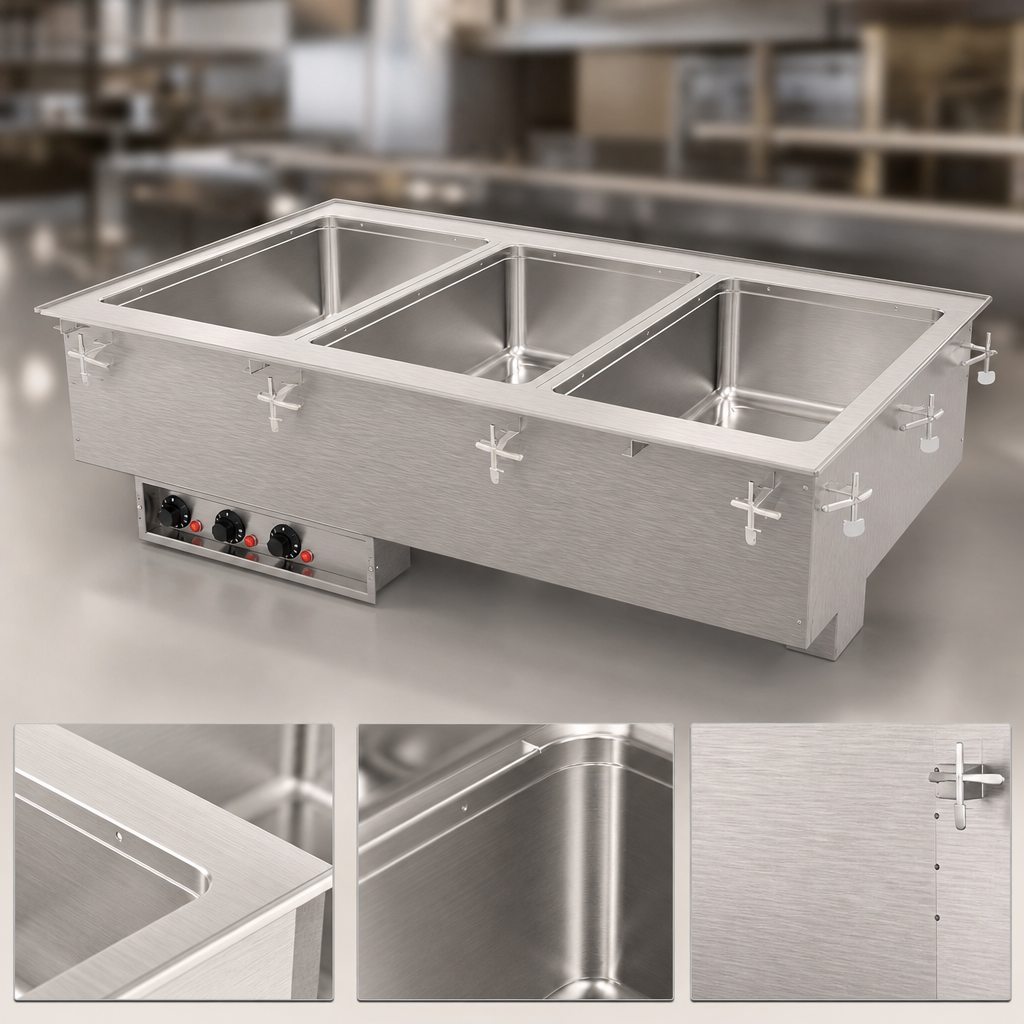

  • (3) independent 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance.
  • Wet-operation design; water bath ensures gentle, uniform heat and protects foods from scorching.
  • Individual thermostatic controls with power indicator lights for precise temperature management.
  • Fully insulated on all sides—including between wells—for reduced energy loss.
  • Removable bottom service panels speed up cleaning and maintenance.
  • ½" drains with dedicated ball valves and a drip-free top flange keep your counter clean.
  • 18-gauge stainless steel top and all-stainless exterior housing stand up to constant commercial use.
  • Ships ready to install: zero-clearance design, positioning clips for counters up to 3" thick and a 6' cord with NEMA 5-20P plug.
  • Accepts full-size or fractional pans up to 6" deep (use adapter bars when using fractional pans).
  • NSF listed, cULus certified and proudly Made in the USA.

Specifications

Number of wells 3 (full-size, 12" × 20")
Operation Wet heat only
Control type Individual thermostatic knobs with indicator lights
Total wattage 1,875 W (625 W per well)
Electrical 120 V / 60 Hz / 1-phase, 15.6 A
Plug NEMA 5-20P (6' cord included)
Overall dimensions 41-1/2" W × 26" D × 15" H
Counter cut-out 40-3/4" W × 25-1/4" D, 7/8" corner radius
Drain ½" individual drains with shut-off valves
Construction 20-ga. 316 SS wells; 18-ga. stainless top & housing
Warranty 2-year parts & labor (see Vollrath warranty policy)
Important: This unit is designed for wet operation only. Always keep water in each well while heating to maintain even temperatures and prevent damage.

Made-to-order drop-ins are non-returnable. Refer to VollrathFoodservice.com for complete warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

128.0lbs

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
