Vollrath  |  SKU: 3640410

Vollrath 3640410 Steam Tables & Food Wells

$2,601.35
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

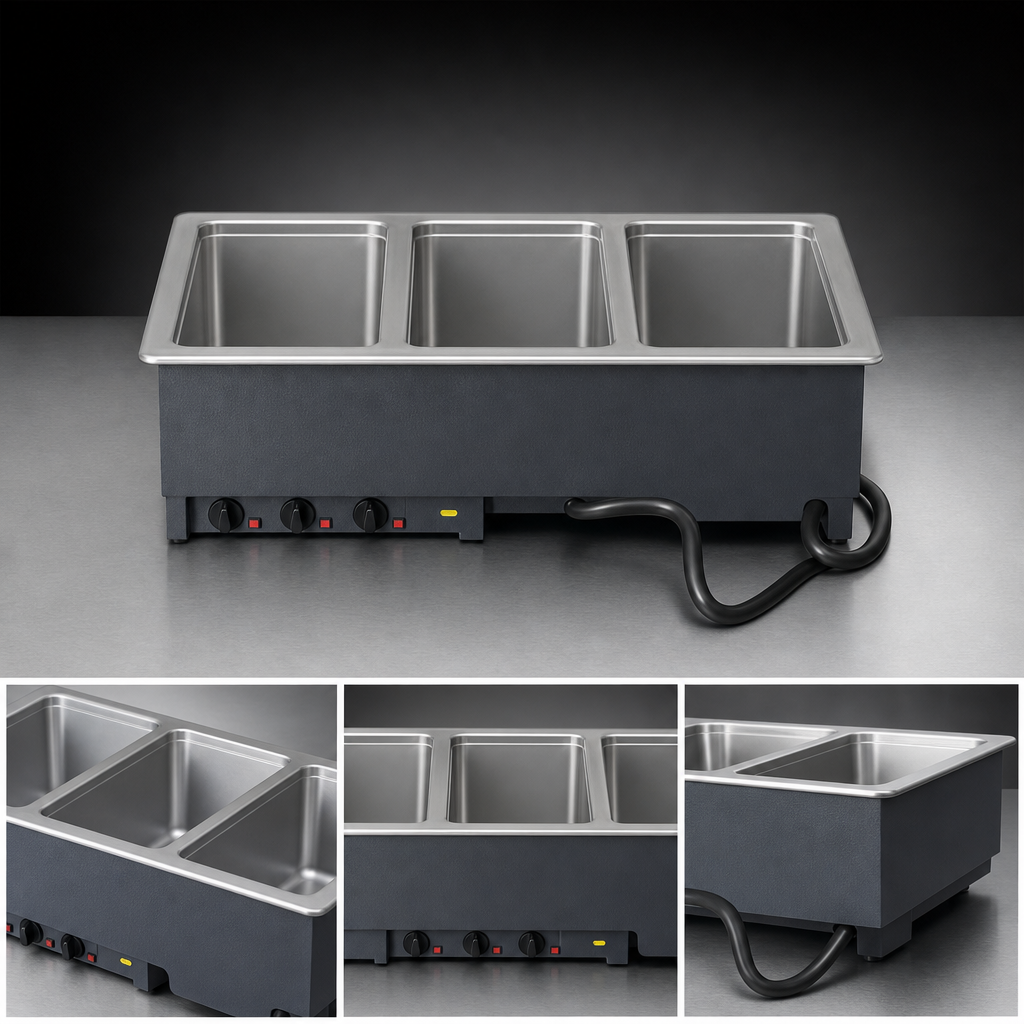

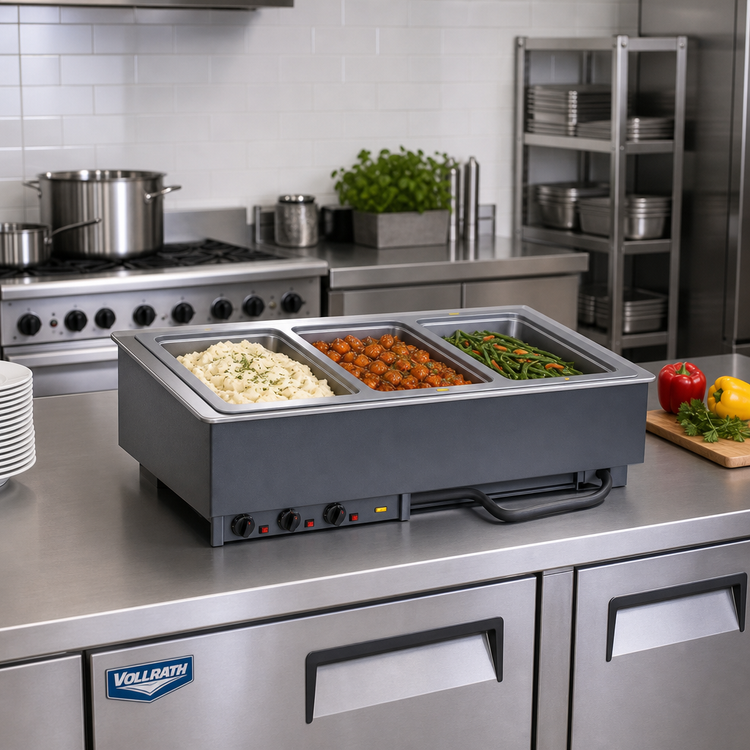

Vollrath 3-Well Drop-In Hot Food Well – 120 V Thermostatic

Model 3640410 • 625 W per well • Wet operation only

Deliver perfectly held entrées, sides, and sauces without sacrificing counter space. Vollrath’s three-well drop-in module installs quickly, gives each pan its own thermostat, and keeps your serving line hot, fresh, and worry-free.

Key Features

  • (3) individual 12" × 20" wells formed from seamless 20-gauge stainless steel.
  • Thermostatic dial for each well with bright power indicator light.
  • Full-perimeter, drip-free 18-ga stainless top contains spills and adds strength.
  • High-density fiberglass insulation on all sides, between wells, and below elements—zero-clearance installation.
  • ½" stainless-steel drains with ball-valve shut-off for every well.
  • 6 ft (1.8 m) cord with NEMA 5-20P plug—no hard-wiring required.
  • Positioning & mounting clips supplied for counters up to 3" thick.
  • NSF 4 & cULus listed; proudly made in Sheboygan, Wisconsin, USA.

Specifications

Item # 3640410 (standard drain)
Capacity Three full-size steam table pans (up to 6" deep)
Operation Wet only, individual thermostatic controls
Total Wattage 1,875 W (625 W × 3)
Electrical 120 V / 60 Hz / 1-ph, 15.6 A, NEMA 5-20P
Overall Size 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm)
Cutout Size 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) with 7/8" radius corners
Top / Wells 18-ga stainless top / 20-ga stainless wells
Exterior Housing 18-ga galvanized steel
Drain Connection ½" MPT per well

Installation Tips

  • Provide a dedicated 20 A, 120 V circuit.
  • Fill wells with hot water before turning the unit on; maintain water level during service.
  • Adaptor bars (sold separately) are recommended when using fractional pans.
Important: This unit is engineered for wet operation only. Operating without water will damage the heating elements and void the warranty.

Warranty

One-year parts & labor coverage. For complete details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

128.0lbs

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Wet or Dry operation

wet

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
