Vollrath  |  SKU: 3640401HD

Vollrath 3640401HD Steam Tables & Food Wells

$2,758.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

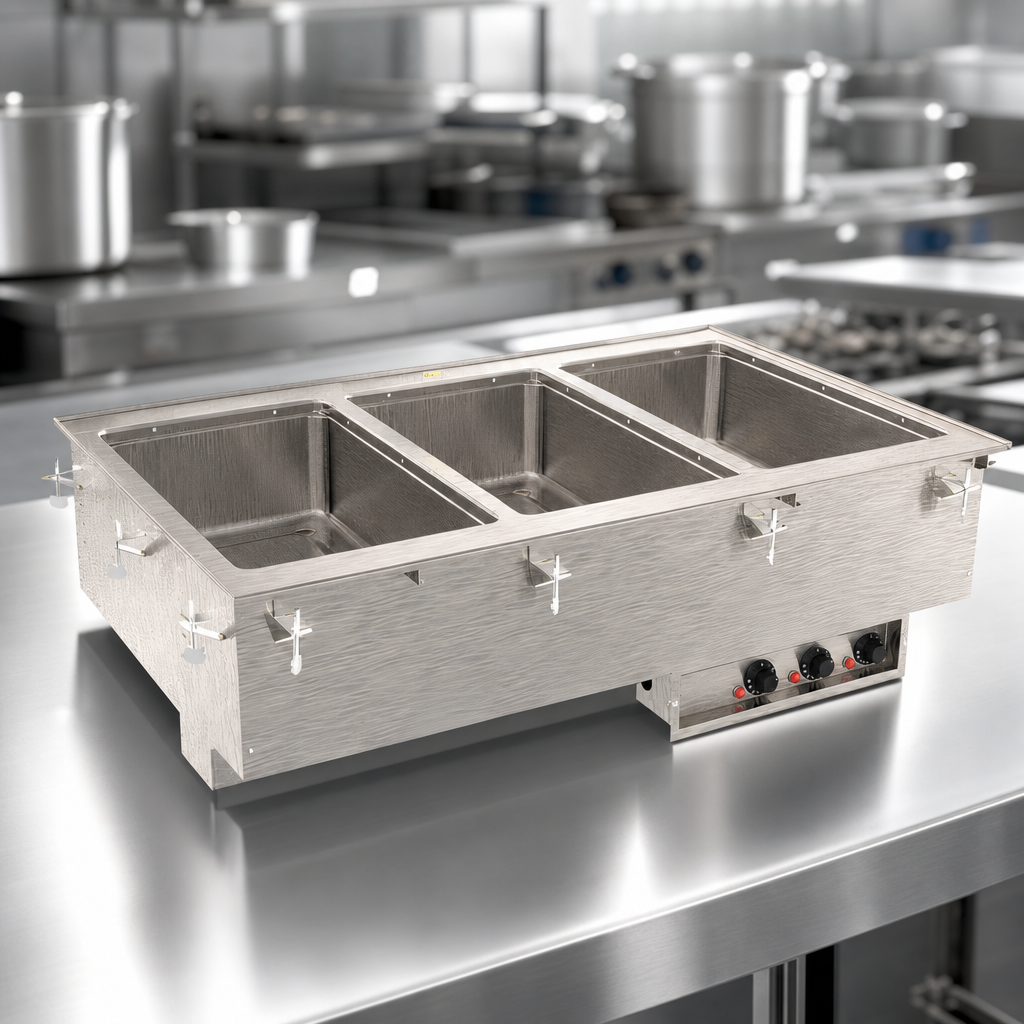

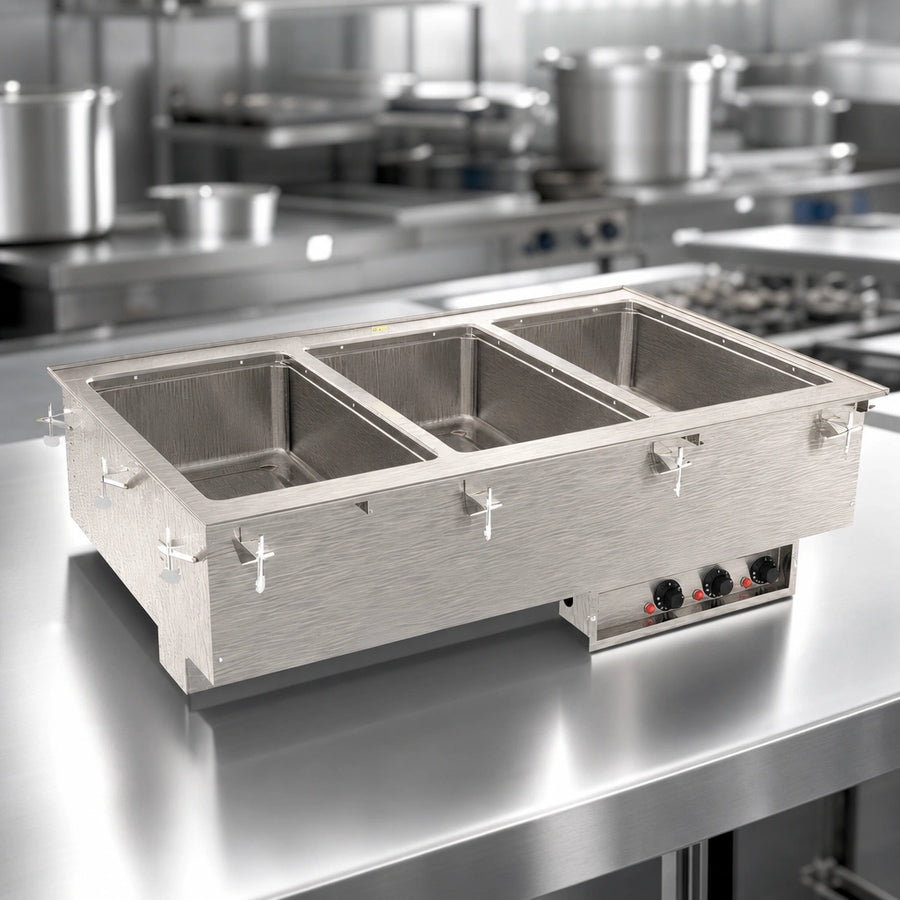

Vollrath 3-Well Modular Hot Drop-In with Marine-Grade Wells, 120 V

Model 3640401HD | 1000 W per well | Infinite controls

Built for busy serving lines and corrosive environments, this Vollrath drop-in keeps three full-size pans at safe, appetizing temperatures while fitting flush inside your counter with zero-clearance installation—no hard-wiring required.

Key advantages

  • Three independent 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel for unmatched corrosion resistance.
  • Wet-operation only design delivers even, gentle heat that protects product quality.
  • Individual infinite control knobs with bright power indicators let you dial in the perfect holding temperature for each menu item.
  • Fully insulated—including between wells—to maximize efficiency and keep surrounding surfaces cooler.
  • Drip-free perimeter flange safeguards your countertop and simplifies clean-up.
  • ½" MPT drains with dedicated ball valves for fast, mess-free well emptying; gasket included for under-counter edge.
  • Ships with mounting clips for counters up to 3" thick and a 6 ft cord with NEMA 5-50P plug—plug in, fill with water and serve.
  • Made in the USA and certified to NSF 4 & cULus standards for peace of mind.

Ideal for

  • Buffet & cafeteria service lines
  • Hotel breakfast areas
  • C-stores and delis
  • Marine or coastal operations where salt corrosion is a concern

Technical specifications

Overall dimensions (W × D × H) 41 ½" × 26" × 15" (105.4 × 66 × 38.1 cm)
Counter cutout 40 ¾" × 25 ¼" (103.5 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Well capacity (3) full-size pans up to 6" (15.2 cm) deep  •  Adapter bars recommended for fractional pans
Construction 18-ga stainless top, 20-ga 316 stainless wells, stainless exterior housing
Heat source Wet operation only • 1,000 W per well • 3,000 W total
Controls 3 × infinite dial controls with indicator lights (remote panel, 4' tether)
Electrical 120 V / 60 Hz / 1-ph • 25 A • 6 ft cord with NEMA 5-50P
Drain Individual ½" MPT drains with ball-valve shut-offs (optional 1" manifold kit)
Certifications NSF 4, cULus, Made in USA
Warranty 2-year parts & labor (see VollrathFoodservice.com for full policy)
Important: Operate with water in each well at all times. Dry use can damage the unit and void the warranty.

Mounting hardware included. Adapter bars and sheet-pan adapter (Item 19186) sold separately.

Modular drop-ins are built to order and cannot be canceled or returned.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

133.0lbs

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
