Vollrath  |  SKU: 3640401

Vollrath 3640401 Steam Tables & Food Wells

$2,318.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

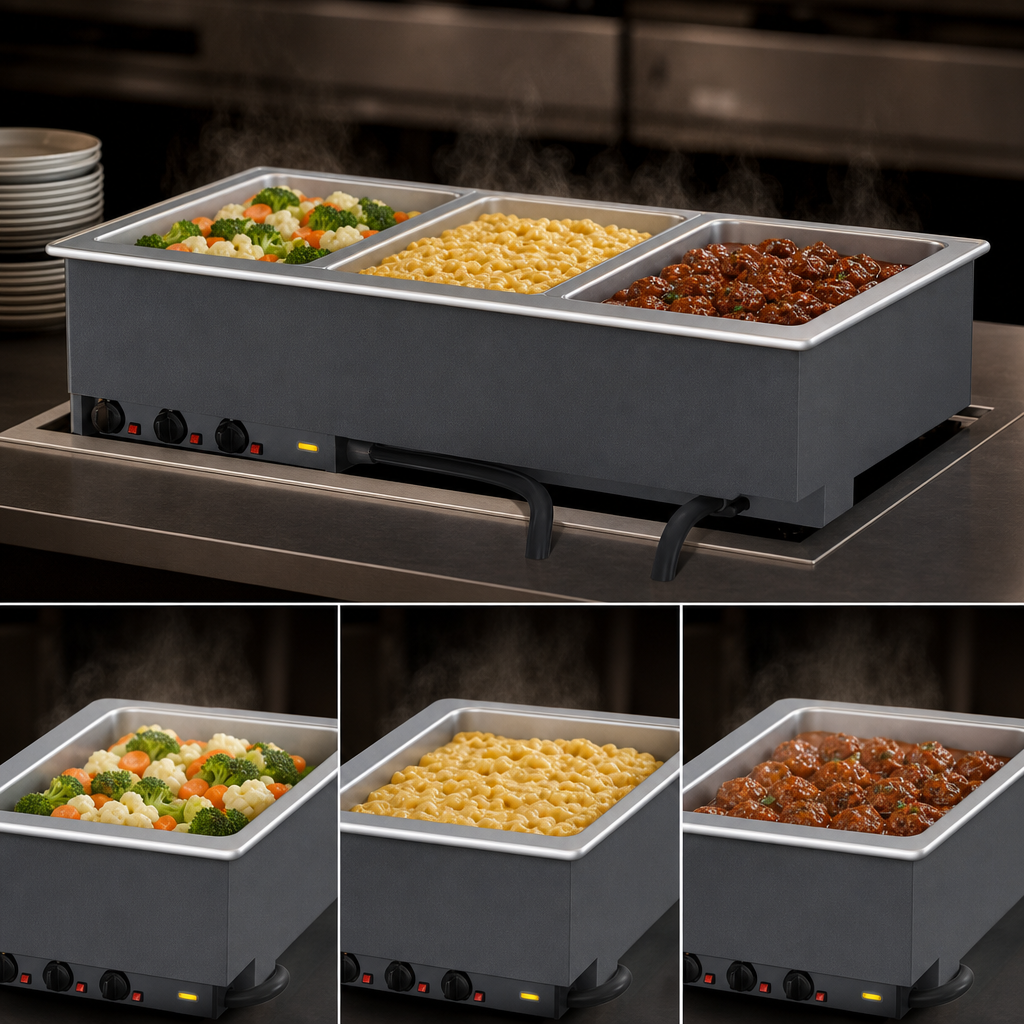

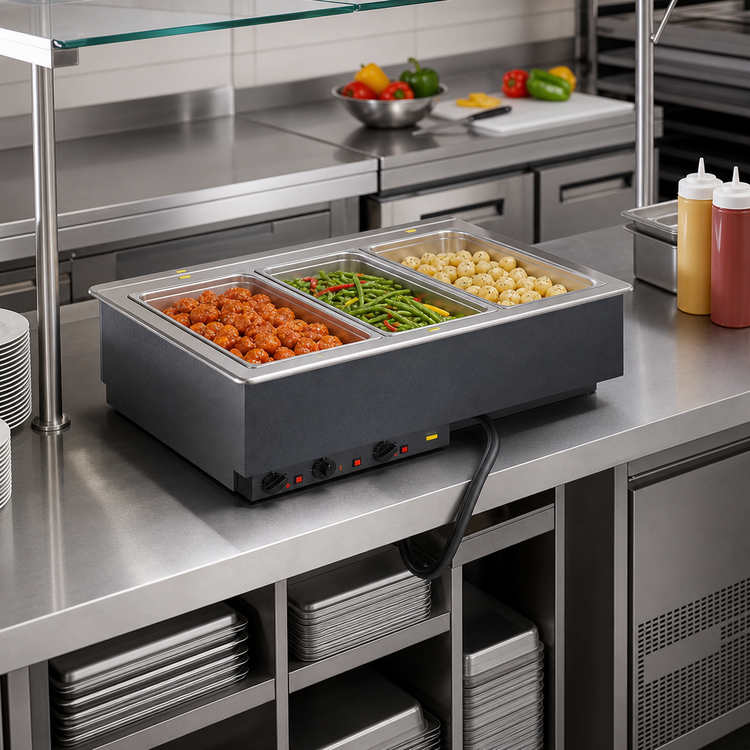

Vollrath 3-Well Hot Drop-In Module – 120 V, Infinite Controls

Model 3640401 | 1000 W per well | Standard drain

Keep entrées and sides at perfect serving temperatures without sacrificing counter space. This USA-made Vollrath drop-in features three individually heated wells, effortless top-mount installation and the durability food-service pros demand.

Key features
  • Three insulated 12 × 20 in. wells — 1000 W each for rapid, even heat
  • Wet operation only; complies with NSF 4 hot-holding standards
  • Remote stainless-steel control panel with infinite switches & power indicator lights
  • ½ in. MPT drains with individual ball-valve shutoffs for every well
  • Drip-free 18 ga stainless top flange with factory-installed gasket
  • Zero-clearance, top-mount design installs from above with included mounting clips (up to 3 in. counter thickness)
  • 6 ft cord and NEMA 5-50P plug — no hard-wiring required
  • Accepts full-size or fractional pans up to 6 in. deep; adapter bars (item 19186) available
  • NSF & cULus listed | Made in Sheboygan, Wisconsin
Specifications
Number / size of wells 3 × full-size (12 × 20 in.)
Operation Wet only
Controls Individual infinite switches with power lights
Heating power 1000 W per well (3000 W total)
Voltage / phase 120 V / 60 Hz / 1-ph
Amperage 25 A
Plug NEMA 5-50P (factory installed)
Overall dimensions 41 ½ in. W × 26 in. D × 15 in. H
Countertop cut-out 40 ¾ in. W × 25 ¼ in. D
Requires 7/8 in. corner radius
Construction Wells: 20 ga 300-series SS • Top: 18 ga SS • Exterior housing: 18 ga galvanized steel
Drain connections ½ in. MPT per well with individual shutoffs
Certifications NSF, cULus
Country of origin USA
Installation notes
  • Indoor use only; ambient room conditions affect performance.
  • Provide access below counter for drain plumbing.
  • Do not modify cord or plug — this voids warranty.
Important: Unit must be operated with water in each well. Running dry can damage the elements and void the warranty.

Modular drop-ins are built to order and cannot be cancelled or returned.

For complete warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

133.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
