Vollrath  |  SKU: 36400HD

Vollrath 36400HD Steam Tables & Food Wells

$2,057.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

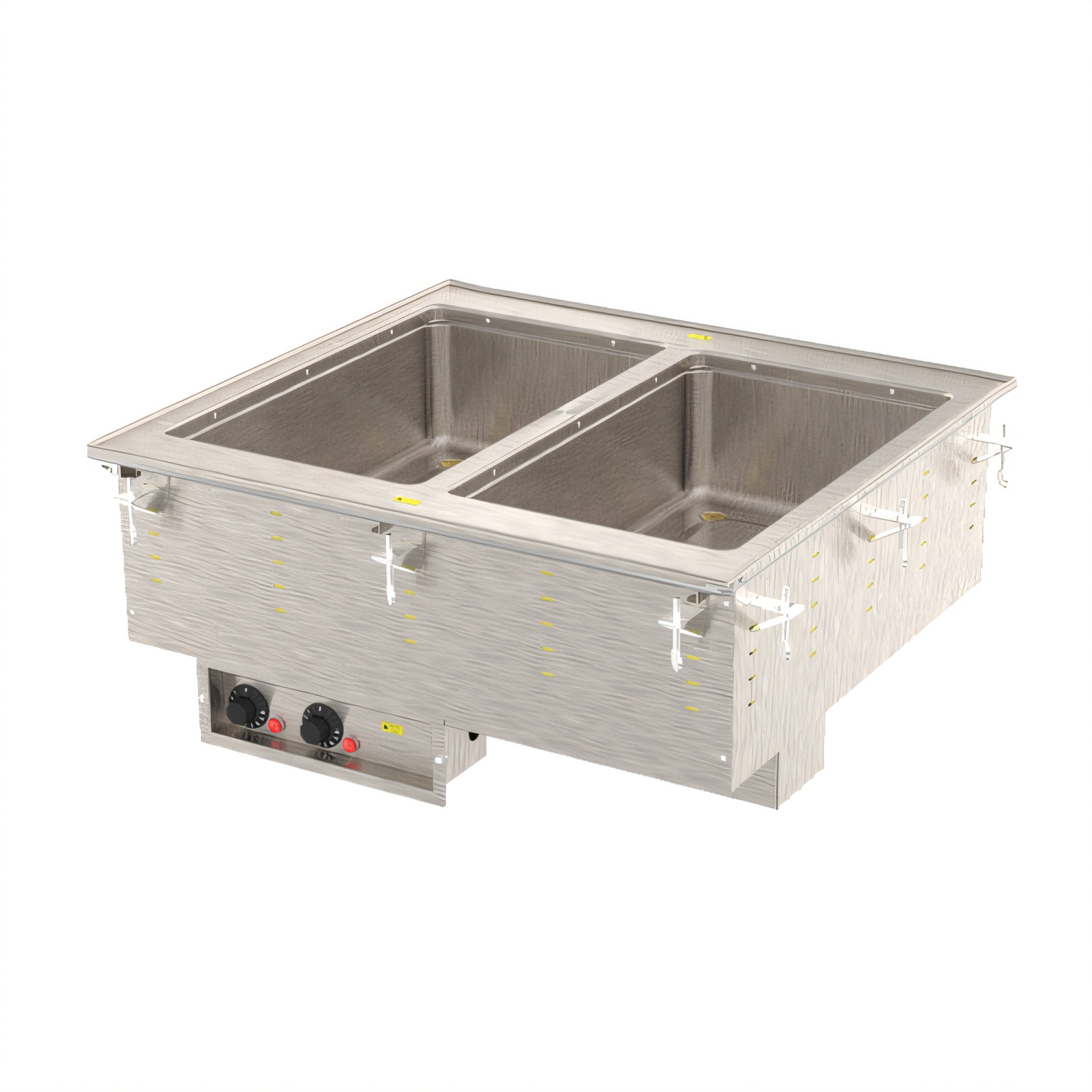

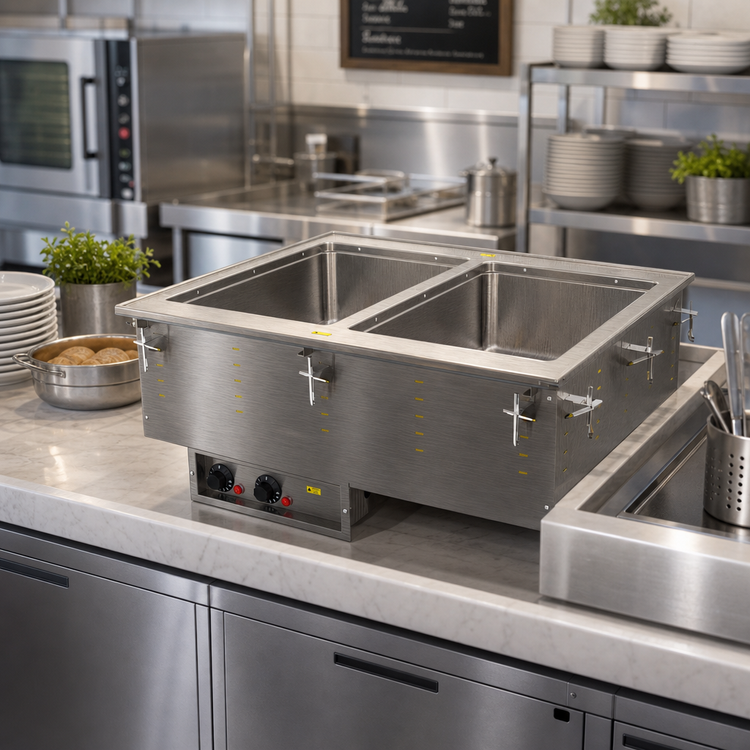

Vollrath 2-Well Marine-Grade Drop-In Hot Food Well – 208 V

Model 36400HD • Infinite Controls • Made in USA

Keep entrées, sides and sauces at perfect serving temperatures with Vollrath’s heavy-duty 2-well hot drop-in. Built from 316 marine-grade stainless steel, this wet-only unit stands up to high-salt, high-moisture environments while delivering consistent, energy-efficient heat service after service.

Why you’ll love it

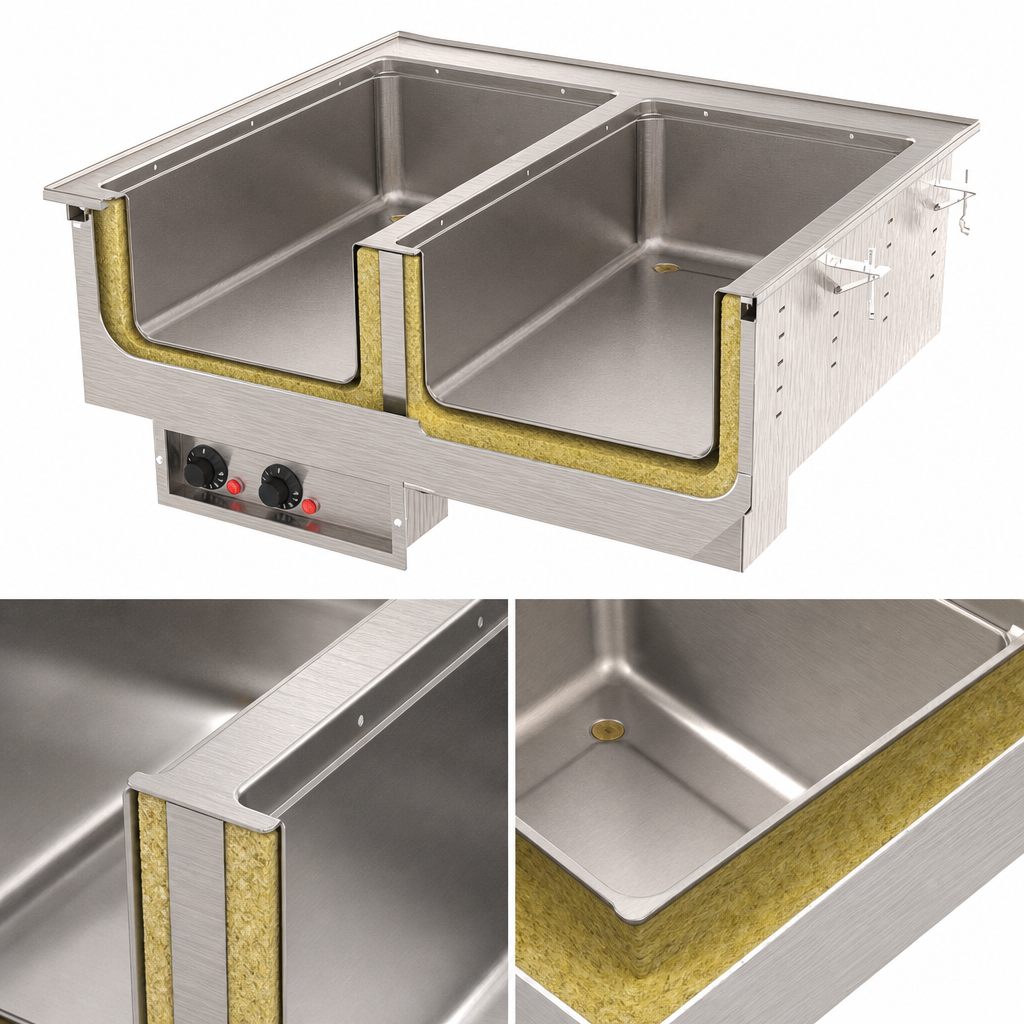

  • Two independent 12 × 20 in. wells (625 W each) with foam insulation for even, efficient heat.
  • SAE Type-316 marine-grade, 20-gauge stainless wells resist pitting and corrosion.
  • Drip-free full-perimeter flange keeps condensation and spills off your counter.
  • Individual infinite dial controls with power indicator lights simplify operation.
  • ½ in. ball-valve shut-offs on each well for quick, mess-free draining.
  • 6 ft (1.8 m) cord with NEMA 6-15P plug – no hard-wiring required.
  • Mounting clips & gasket included for zero-clearance, top-mount installation on counters up to 3 in. thick.
  • Accepts full-size or fractional pans up to 6 in. (15.2 cm) deep.
  • NSF & cULus listed for safe, reliable commercial use.
Wet operation only: Add water to each well before turning the unit on. Operating dry may damage the heating elements and void the warranty.

Product specifications

Number of wells 2 (individually heated & drained)
Well size 12 × 20 in. pans, up to 6 in. deep
Construction 20-ga 316 marine-grade wells, 18-ga stainless top, stainless exterior housing
Heating style Wet bath, infinite control
Total wattage / per well 1,250 W total (625 W × 2)
Electrical 208 V / 60 Hz / 1-ph • 6.0 A • 6-ft cord with NEMA 6-15P
External dimensions 28 ¼ W × 26 D × 15 H in. (71.8 × 66 × 38.1 cm)
Counter cut-out 27 ½ W × 25 ¼ D in. (69.9 × 64.1 cm) • ⅞ in. corner radius
Drain connections ½ in. MPT on each well
Certifications NSF 4, cULus
Warranty 2 years parts & labor (see VollrathFoodservice.com for details)

Installation & use

  • Indoor, zero-clearance installation only.
  • Provide access below the counter for drain connections and service.
  • Room temperature & HVAC can affect holding performance; keep the serving line out of direct airflow when possible.
  • Use adapter bars when running fractional pans for best heat distribution.

What’s included

  • Vollrath 2-well marine-grade drop-in hot well
  • Remote stainless steel control panel (4 ft tethered cable)
  • Mounting/positioning clips & gasket
  • Owner’s manual & warranty information

Drop-in units are built to order and cannot be canceled or returned.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

98.0lbs

Construction

stainless steel construction

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
