Vollrath  |  SKU: 3640081HD

Vollrath 3640081HD Steam Tables & Food Wells

$3,072.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

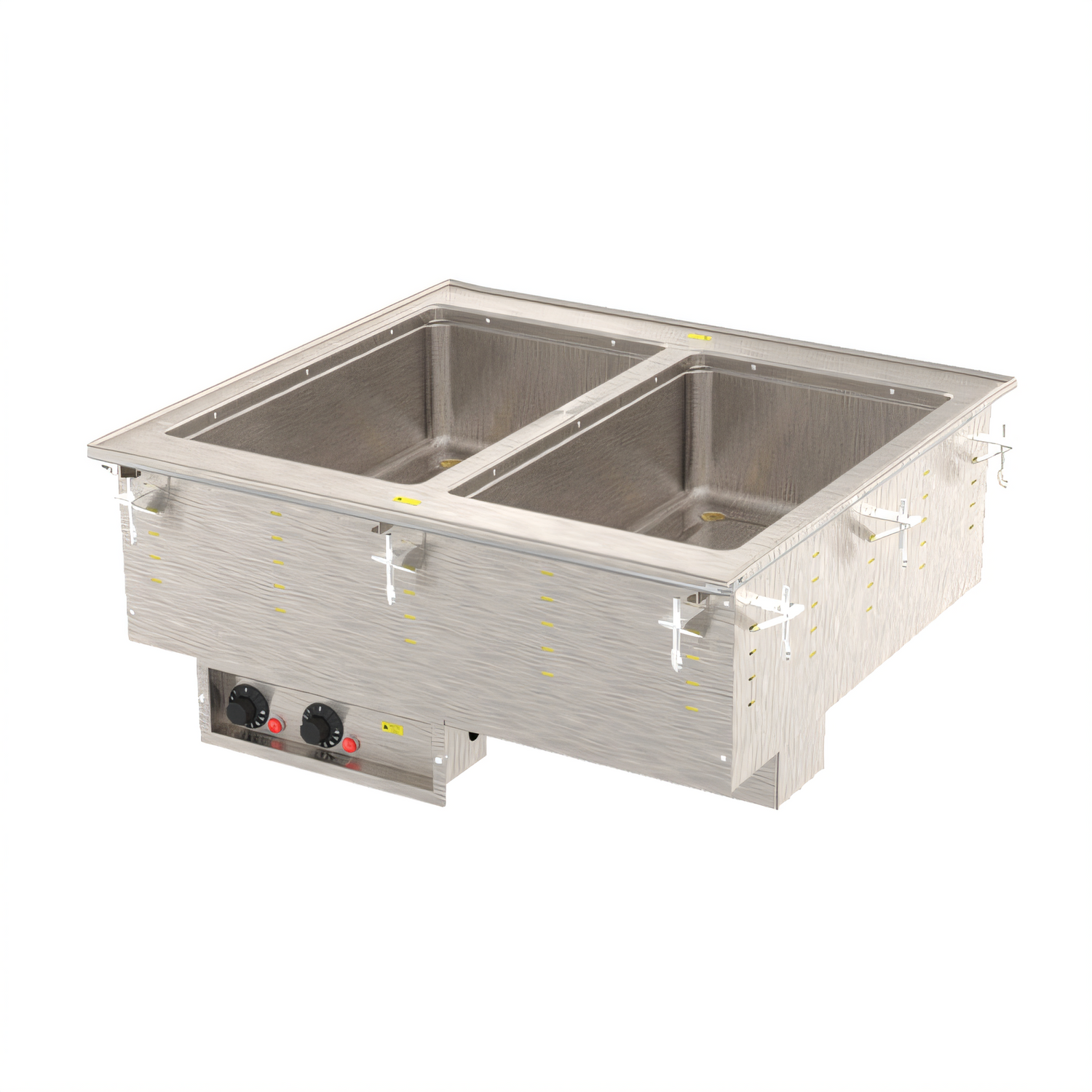

Two-Well Modular Hot Drop-In with Marine-Grade Wells

Vollrath Heavy-Duty Series • Auto-Fill • Thermostatic • 208-240 V / 1-Ph

Designed for high-volume steam-table lines, this Made-in-USA drop-in keeps two full-size pans of food at safe serving temperatures while simplifying installation and daily operation. 316 marine-grade stainless steel wells, built-in auto-fill, and individual thermostatic controls deliver dependable performance shift after shift.

Key Features

  • Two independent 12 × 20 in. (full-size) wells — 1000 W each, 2000 W total

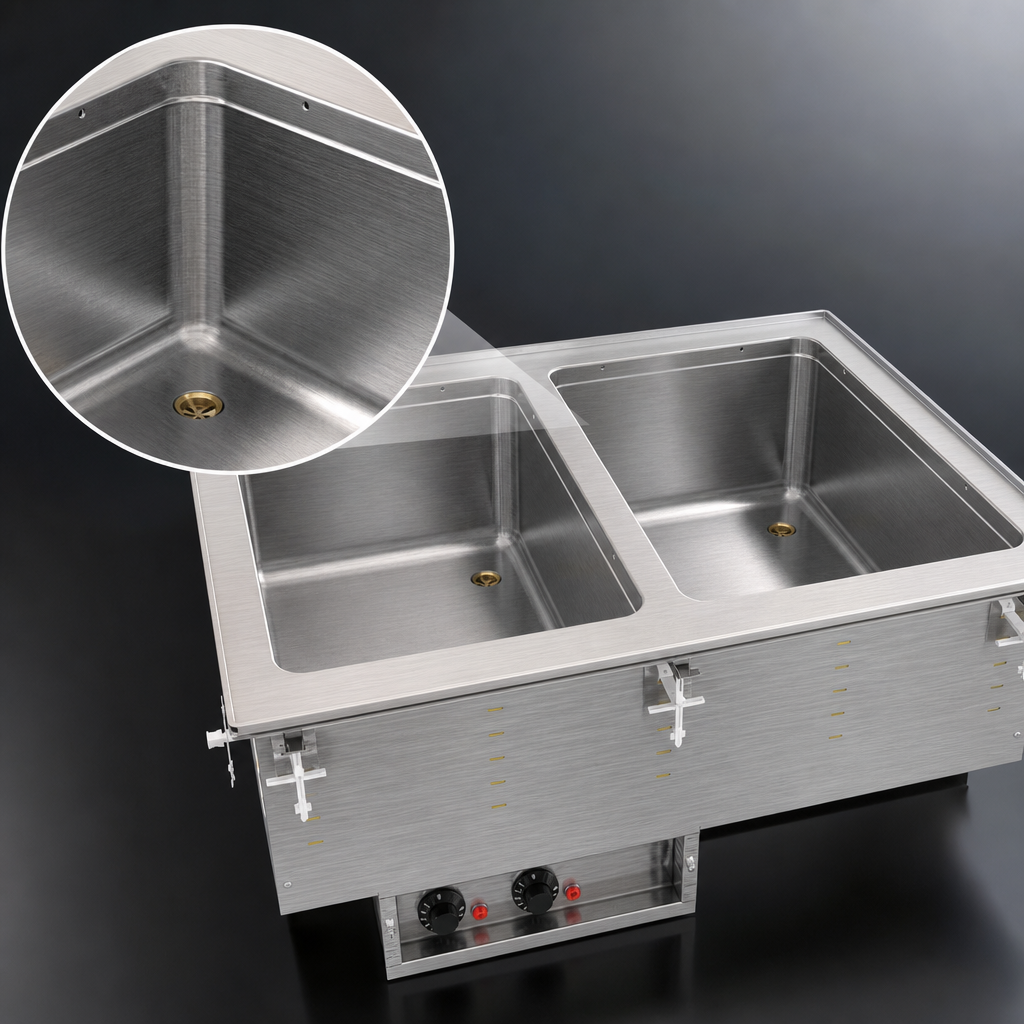

  • Drawn 20-gauge SAE 316 marine-grade stainless steel for superior corrosion resistance
  • Wet operation only with integrated auto-fill to maintain water level automatically
  • Individual thermostatic controls with power indicator lights on a stainless panel (4 ft tether for flexible mounting)
  • 1 in. copper manifold drain with individual well ball valves plus master shut-off
  • Full-perimeter drip-free flange contains spills & condensation inside the counter cut-out
  • Insulated on all sides – including between wells – for energy-efficient holding
  • Accepts full-size & fractional pans up to 6 in. deep (adapter bars recommended for fractional pans)
  • Zero-clearance, top-mount installation; includes positioning clips for counters up to 3 in. thick
  • 6 ft cord with NEMA 6-15P plug — no hard-wiring required
  • NSF & cULus listed; backed by Vollrath’s 2-year HD well warranty

Specifications

Wells (Qty × Size) 2 × 12 in. × 20 in. full-size
Operation Wet only, automatic water fill
Controls Individual thermostatic dials with indicator lights
Total Power 2000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-Ph • 7.2 – 8.3 A • NEMA 6-15P
Overall Dimensions 28 ¼ in. W × 26 in. D × 21 ½ in. H
Counter Cut-Out 27 ½ in. W × 25 ¼ in. D • 7⁄8 in. corner radius required
Top / Exterior 18-gauge stainless steel top, stainless steel housing
Drain 1 in. copper manifold with individual well shut-offs & master valve
Certifications NSF, cULus
Origin & Warranty Made in the USA • 2-year limited warranty on HD wells (see Vollrath Foodservice.com)
Important: This unit is engineered for moist-heat holding. Operate with water in each well to ensure even heating and to meet NSF performance standards.

For full warranty details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

117.0lbs

Style

individual pans

Construction

stainless steel construction

Drain

with drain

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
