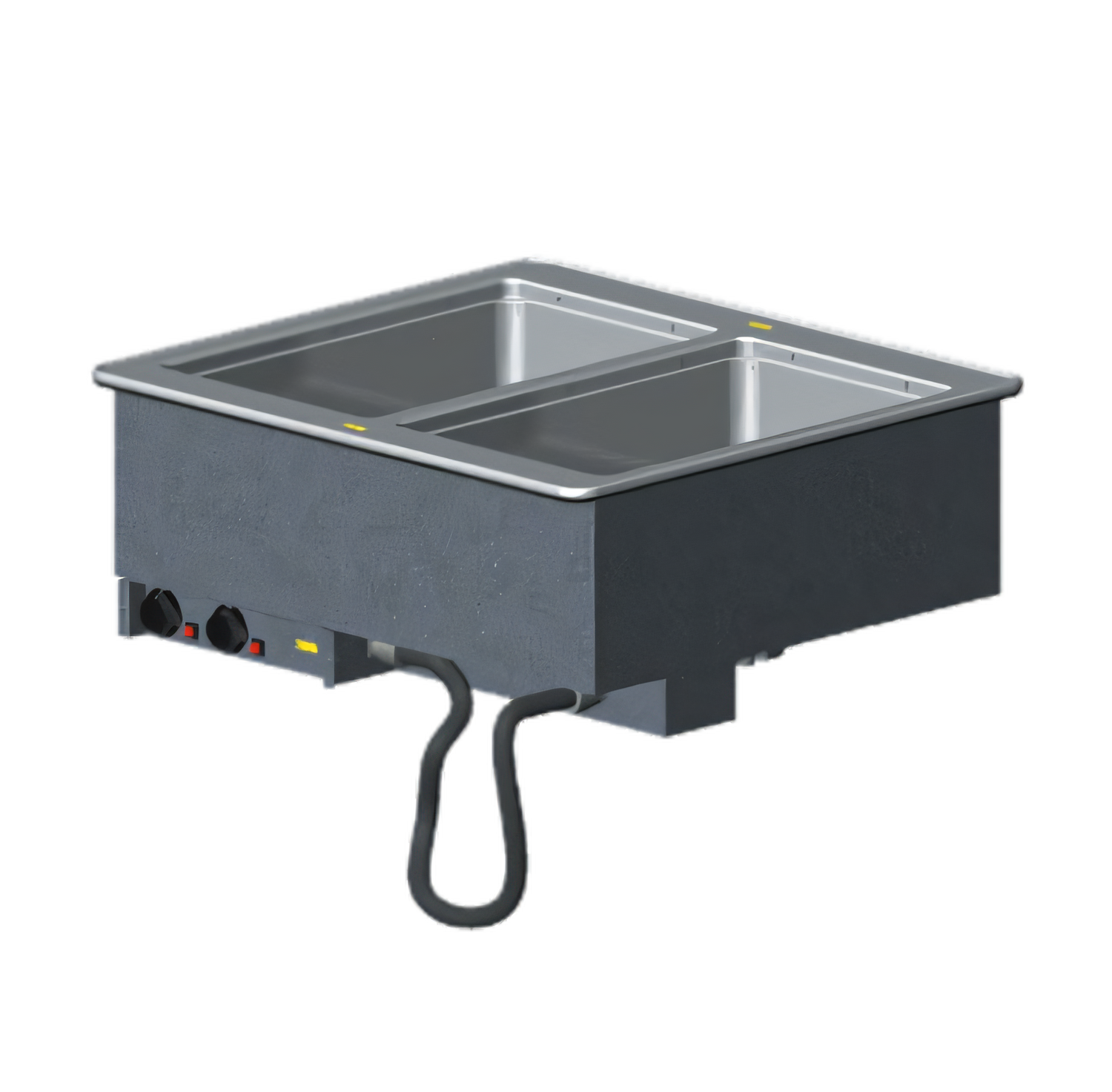

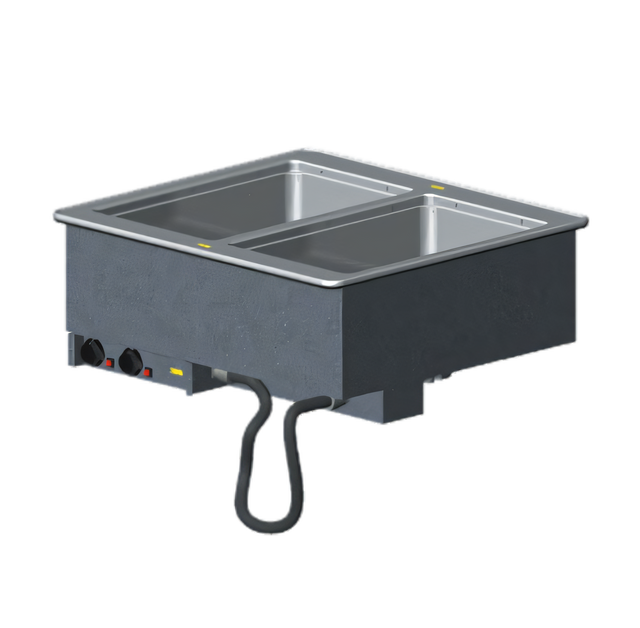

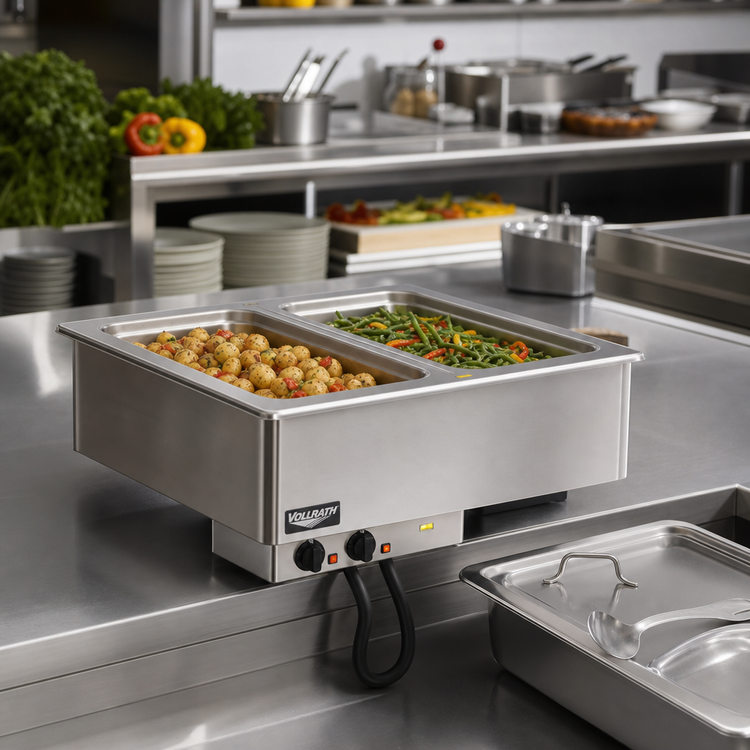

Vollrath Two-Well Drop-In Electric Hot Food Well Unit with Auto-Fill and Thermostatic Controls

For Two Full-Size 12 x 20 Inch Pans, Wet Operation Only, 208-240V, 2 kW

Keep two full-size pans hot and ready with insulated wet wells, auto-fill convenience, and separate thermostatic control.

  • Fits two full-size 12 x 20 inch pans in insulated drop-in wells.
  • Auto-fill wet operation helps maintain water level for even, consistent heat.
  • Individual thermostatic controls let you manage each well separately.
  • 1 inch copper manifold drain with individual shutoffs simplifies draining and cleanup.
  • Includes a 6 foot cord with NEMA 6-15P plug; no hard-wiring required.
  • Mounting clips and a drip-free flange support a secure, cleaner installation.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

117.0 lb

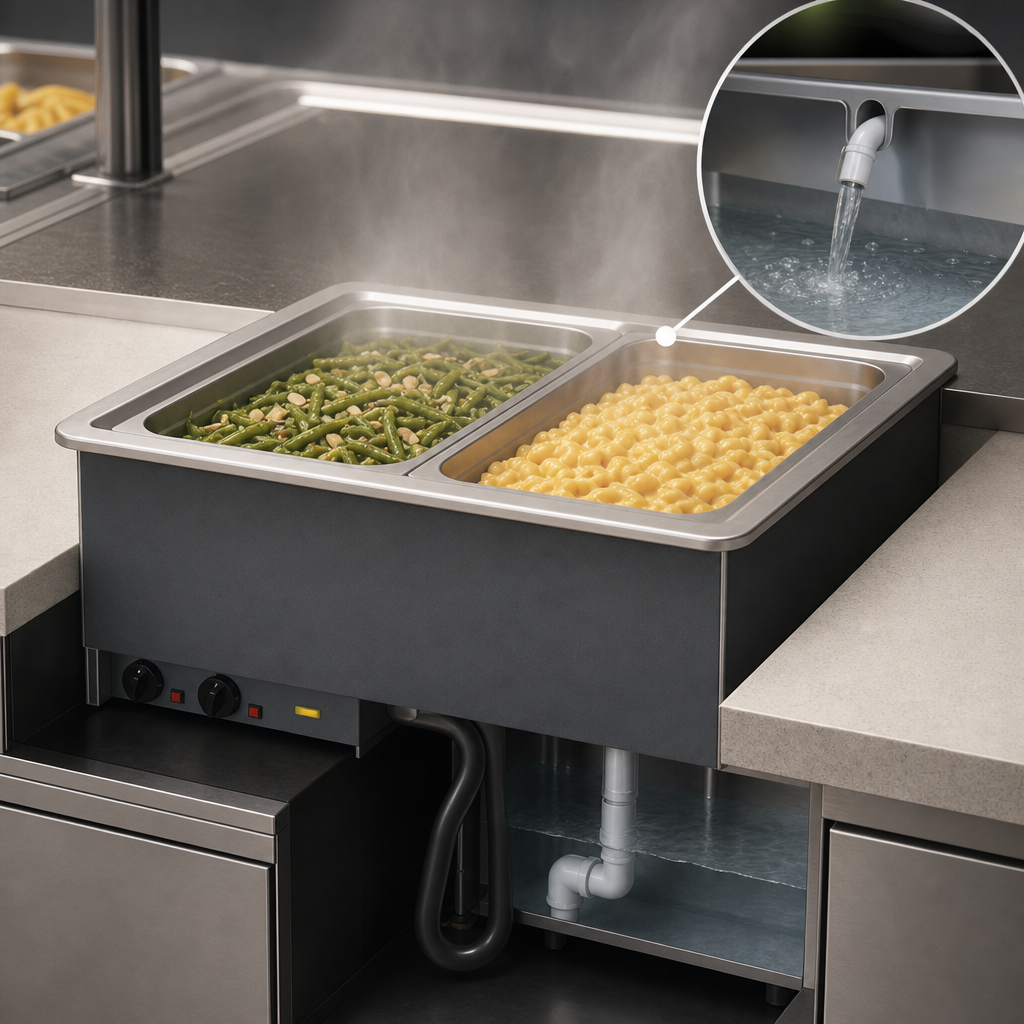

Auto-Fill Wet Operation

Auto-fill control helps maintain the proper water level for moist heat performance.

Individual Thermostatic Control Panel

Each well has its own thermostatic control mounted in the remote panel, plus a power indicator light.

Insulated Stainless Steel Wells

Insulated wells help retain heat and improve efficiency during service.

Manifold Drain with Shutoffs

A 1 inch copper manifold drain includes individual well shutoffs and a master manifold shutoff.

Plug-In Electrical Connection

Supplied with a 6 foot cord and NEMA 6-15P plug, so hard-wiring is not required.

Drop-In Mounting Hardware

Includes standard mounting clips and a gasket for top-mount installation.

Full-Size Pan Compatibility

Accepts two full-size 12 x 20 inch pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Drip-Free Flange

The flange design helps reduce drips under the counter during use.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Auto-Fill Yes
Wet Operation Wet Only
Insulation Insulated
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Voltage 208-240 Volts
Watts 2 kW
Amps 7.2-8.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Country of Origin USA
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 117 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a cord and plug and does not require hard-wiring.
Wet operation only. The documentation notes that water is required for even heating.
It accepts two full-size 12 x 20 inch pans up to 6 inches deep, and adapter bars are recommended for fractional pans.
It is rated for 208-240V, 60 Hz, single-phase power, draws 7.2-8.3 amps, and uses a NEMA 6-15P plug.
It includes a 1 inch copper manifold drain with individual well shutoffs, a master manifold shutoff, mounting clips, and a gasket for installation.
Yes. The documentation lists it as a zero-clearance installation and specifies indoor use only.
