Vollrath 3640080HD Steam Tables & Food Wells
Description

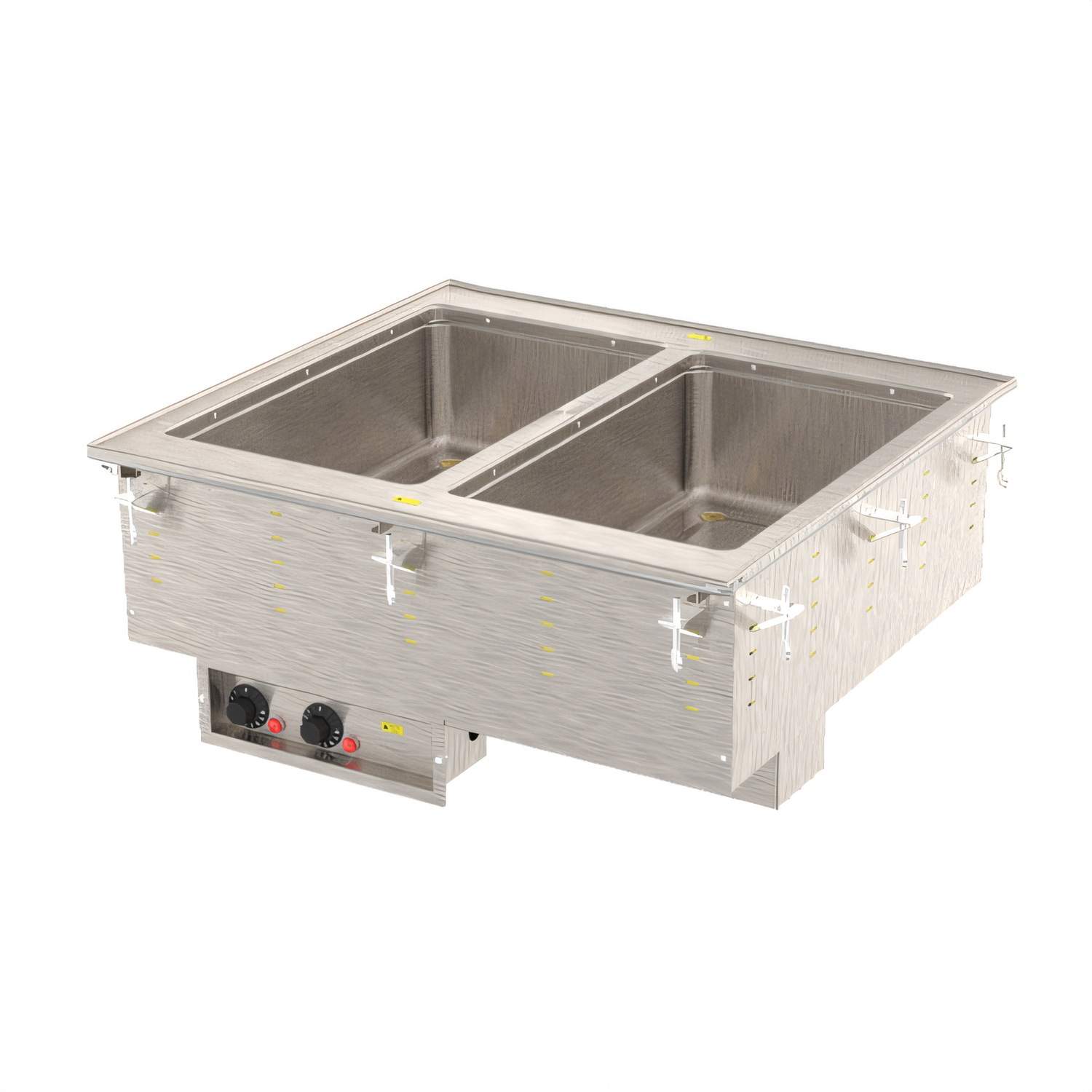

Vollrath 2-Well Marine-Grade Drop-In Hot Food Well – Auto-Fill, 208 V
28-1/4" W x 26" D cut-in electric hot well, thermostatic, 625 W per wellBuilt for the busiest commercial kitchens, this Vollrath two-well modular drop-in keeps soups, sauces and entrées at safe serving temperatures without the headaches of hard-wiring or constant refilling. 316 marine-grade stainless-steel wells resist corrosion, the integral auto-fill maintains water levels, and individual thermostats give you precise control over each well.
Key Features
- Two independent 12" × 20" wells – 20 ga 316 marine-grade stainless steel for superior corrosion resistance.

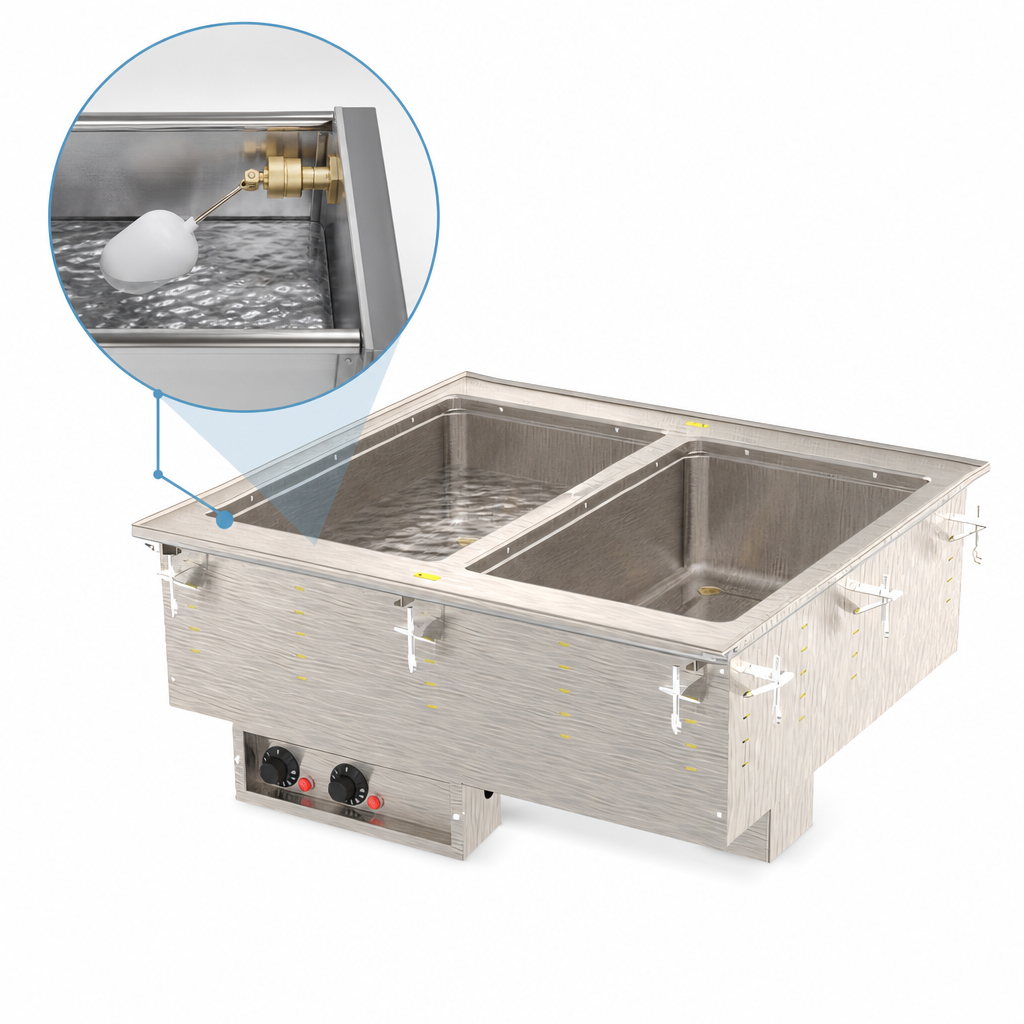

- Wet operation only with factory-installed auto-fill; maintains optimum water level automatically.
- Individual thermostatic controls with power indicator lights on a remote stainless panel (4' tether for flexible mounting).
- Full-perimeter drip-free flange contains condensation and spills.
- 1" copper manifold drain with master shut-off plus ½" ball valves at each well for quick, mess-free draining.
- 18 ga stainless-steel top and fully insulated stainless exterior housing.
- Ships ready to plug in – 6' cord with NEMA 6-15P; draws only 6 A at 208 V (no hard wiring required).
- Accepts full-size or fractional steam pans up to 6" deep (use adapter bars for fractional pans).
- Includes mounting/positioning clips for counters up to 3" (7.6 cm) thick—zero-clearance installation.
- NSF 4 & cULus listed; Made in the USA.
Specifications
| Wells / Capacity | (2) full-size 12" × 20" pans, 6" max depth |
|---|---|
| Construction | 316 marine-grade stainless wells (20 ga); 18 ga stainless top & housing |
| Operation | Wet only – auto-fill water system |
| Controls | (2) independent thermostatic knobs with power lights |
| Heating Power | 1 250 W total (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase, 6.0 A, 6' cord with NEMA 6-15P |
| Drain | 1" copper manifold, individual ½" ball valves + manifold shut-off |
| Overall Dimensions | 28-1/4" W × 26" D × 21-1/2" H (71.8 × 66 × 54.6 cm) |
| Counter Cut-out | 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm) – 7/8" corner radius required |
| Certifications | NSF 4, cULus |
| Origin / Warranty | Made in USA / 2-year parts & labor (HD wells) See full policy |
Looking for a sheet-pan adapter or fractional pan bars? Ask your Vollrath representative about accessory item #19186 and adapter bars sized for this model.
