Vollrath 3640080 Steam Tables & Food Wells

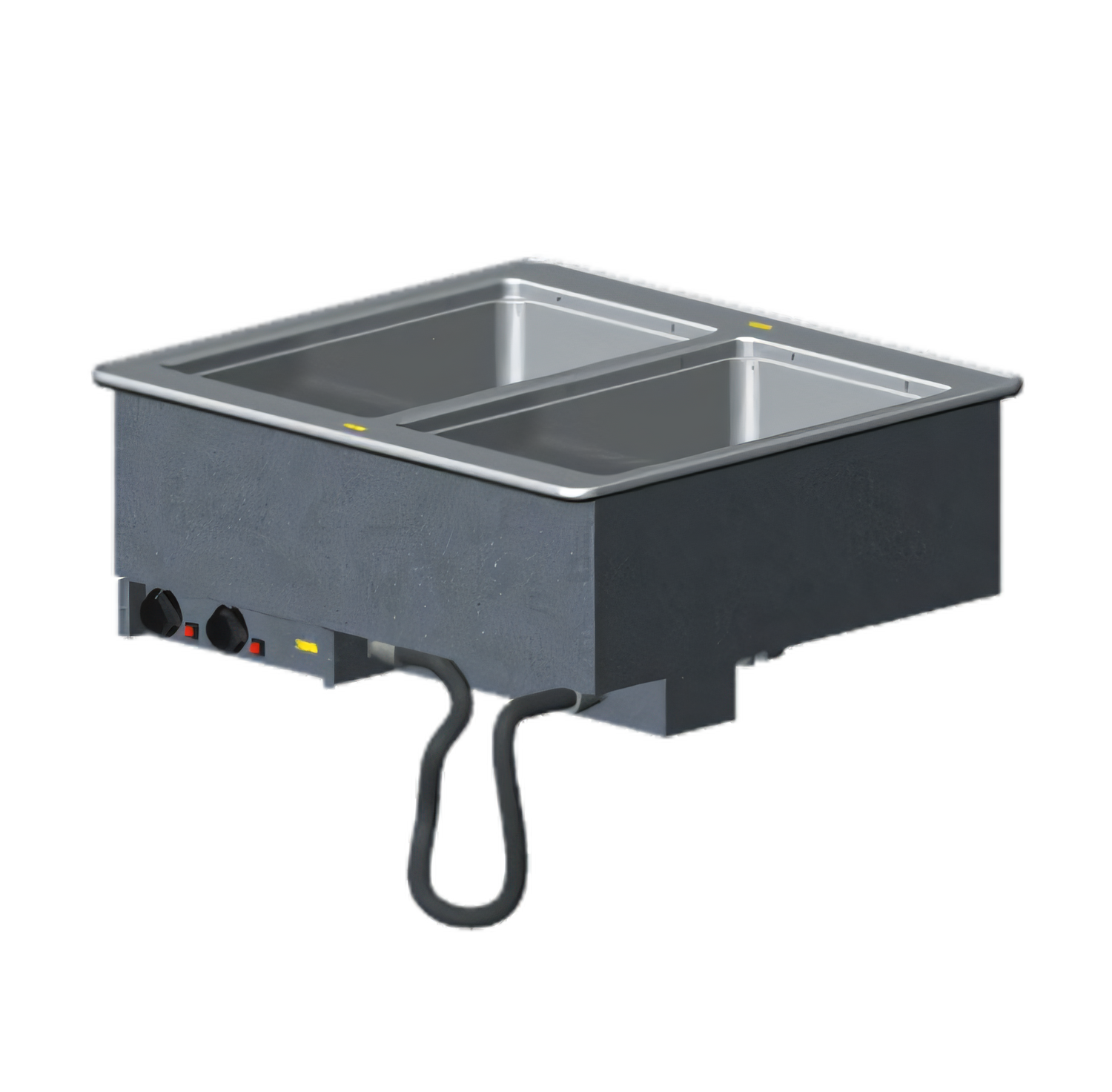

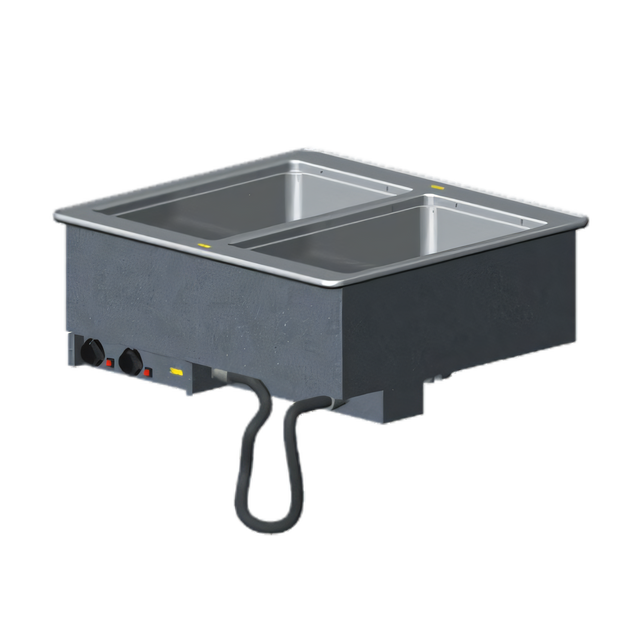

Vollrath 2-Well Drop-In Hot Food Well with Auto-Fill, 208 V

Keep soups, sauces and entrées at safe, appetizing temperatures with this U.S-made Vollrath two-well drop-in warmer. Designed for wet operation only, it combines automatic water fill, independent thermostatic controls and a space-saving plug-and-play design—perfect for permanent serving lines, kiosks and buffet counters.

Key benefits

• (2) individual 12 × 20 in (full-size) wells—625 W each, fully insulated on every side
• Auto-fill system maintains water level automatically for consistent heat and less labor
• Independent thermostatic controls with power indicator lights for precise holding
• Drip-free 18 ga stainless-steel top flange contains spills and condensation
• 1 in copper manifold drain with individual ball valves plus master shut-off for fast, mess-free emptying
• Rugged 20 ga stainless wells & galvanized exterior housing—built for daily commercial use
• Ships with gasket & mounting clips for zero-clearance, top-mount installation on counters up to 3 in thick
• Accepts pans up to 6 in deep; adapter bars recommended for fractional pans
• 6 ft cord with NEMA 6-15P plug—no hard-wiring required
• NSF & cULus listed; Made in the USA

Technical specifications

Installation & use tips

• For even heating, keep wells filled with water at all times during operation.
• Allow 6 in (15 cm) beneath the unit for plumbing the 1 in manifold drain.
• Zero-clearance design lets you place equipment or cabinetry directly next to the unit.
• Optional sheet-pan adapter (Vollrath #19186) lets you hold a 18 × 26 in pan.

Drop-in units are built to order and cannot be canceled or returned once the order is in production.
