Vollrath | SKU:
3640071HD
Vollrath 3640071HD Steam Tables & Food Wells
$2,443.80
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640071HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640071HD Steam Tables & Food Wells
$2,443.80
Unit price
/
Unavailable
Description

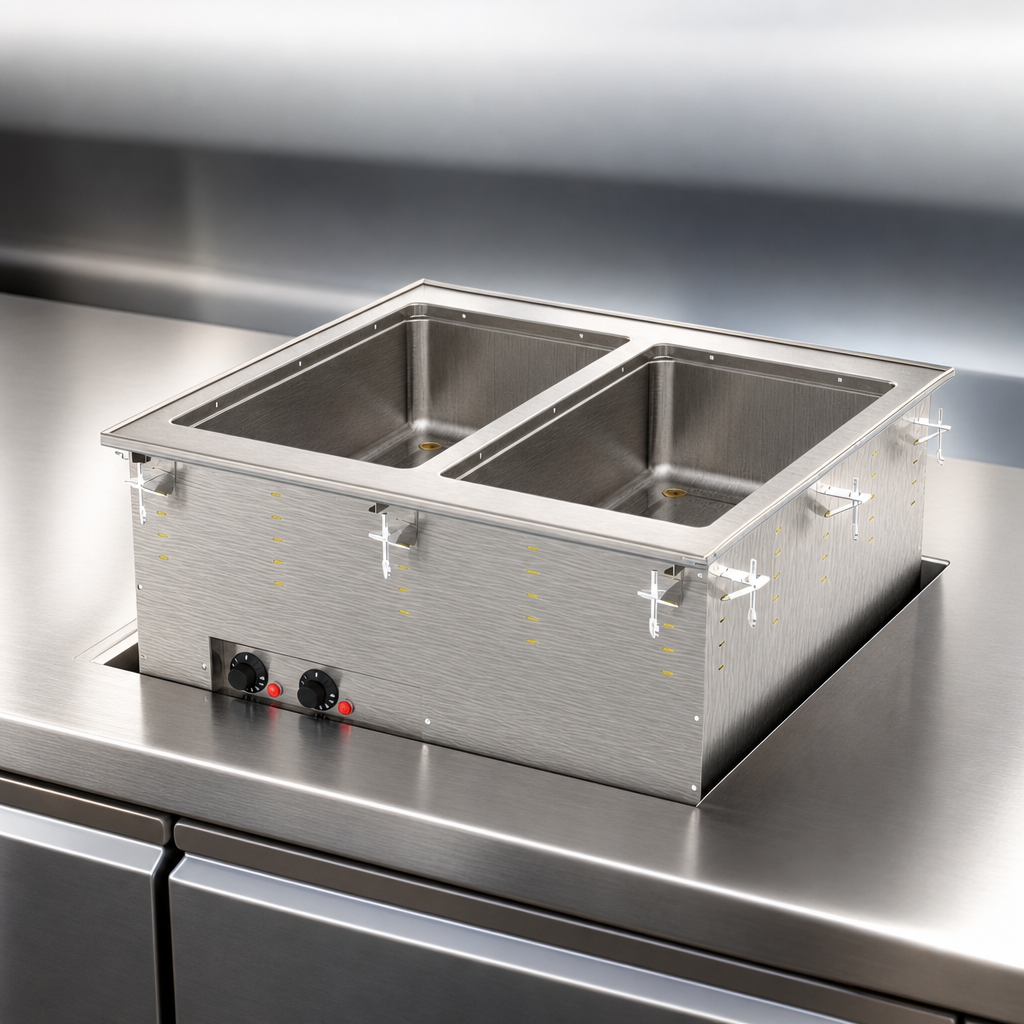

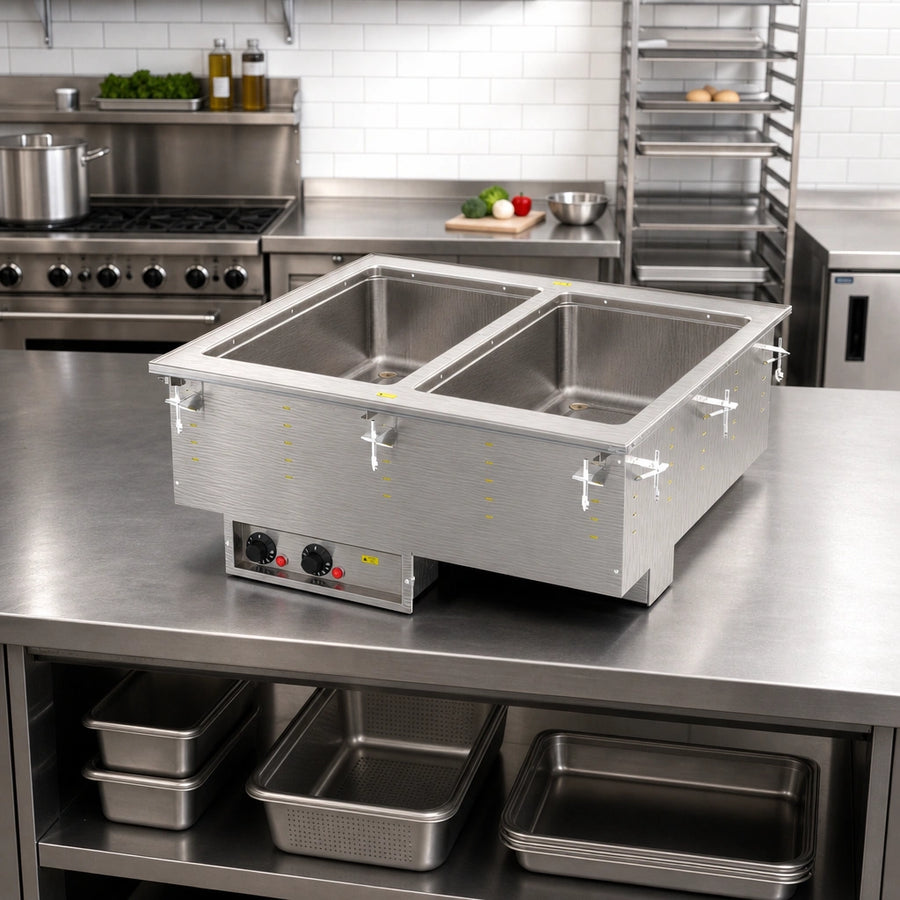

Vollrath Two-Well Modular Drop-In Hot Food Well – Marine-Grade
Thermostatic • 208-240 V • NEMA 6-15PBuilt for demanding commercial kitchens, this Vollrath drop-in unit delivers reliable wet-well holding in a compact, plug-and-play package. Two independent marine-grade wells keep entrées and sides at perfect serving temperature while the drip-free flange protects your countertop from spills and condensation.
Key benefits
- Two individual 12" x 20" wells formed from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance.
- Wet operation only—provides even heat distribution and maintains product quality.
- Independent thermostatic controls with power-indicator lights for precise temperature management of each well.
- Full-perimeter drip edge and fully insulated cabinet (including between wells) retain heat and contain mess.
- 1" copper manifold drain with individual shut-offs plus master shut-off simplifies cleaning and change-outs.
- 18-gauge stainless steel top and rugged exterior housing stand up to years of heavy use.
- Simple installation—includes positioning clips and a factory-installed 6 ft cord; no hard-wiring required.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- NSF & cULus listed; proudly made in the USA.
At-a-glance specs
| Number of wells | 2 (individually controlled) |
|---|---|
| Well construction | 20 ga / 316 marine-grade stainless steel |
| Operation | Wet only |
| Controls | Thermostatic, panel-mounted (4 ft tether) with indicator lights |
| Total power | 2,000 W (1,000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph, 7.2 – 8.3 A, cord & NEMA 6-15P plug |
| Drain | 1" copper manifold with individual ball valves & master shut-off |
| Overall dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 27-1/2" W × 25-1/4" D • 7/8" corner radius |
| Included | Positioning/mounting clips, bottom service panels, gasket |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Important: This unit is designed for wet operation only. Running the wells dry may damage the equipment and void the warranty.
Two-year limited warranty. See the full policy at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
113.0lbs
Insulated or Non-Insulated
insulated
Style
individual pans
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
