Vollrath  |  SKU: 3640071

Vollrath 3640071 Steam Tables & Food Wells

$2,072.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

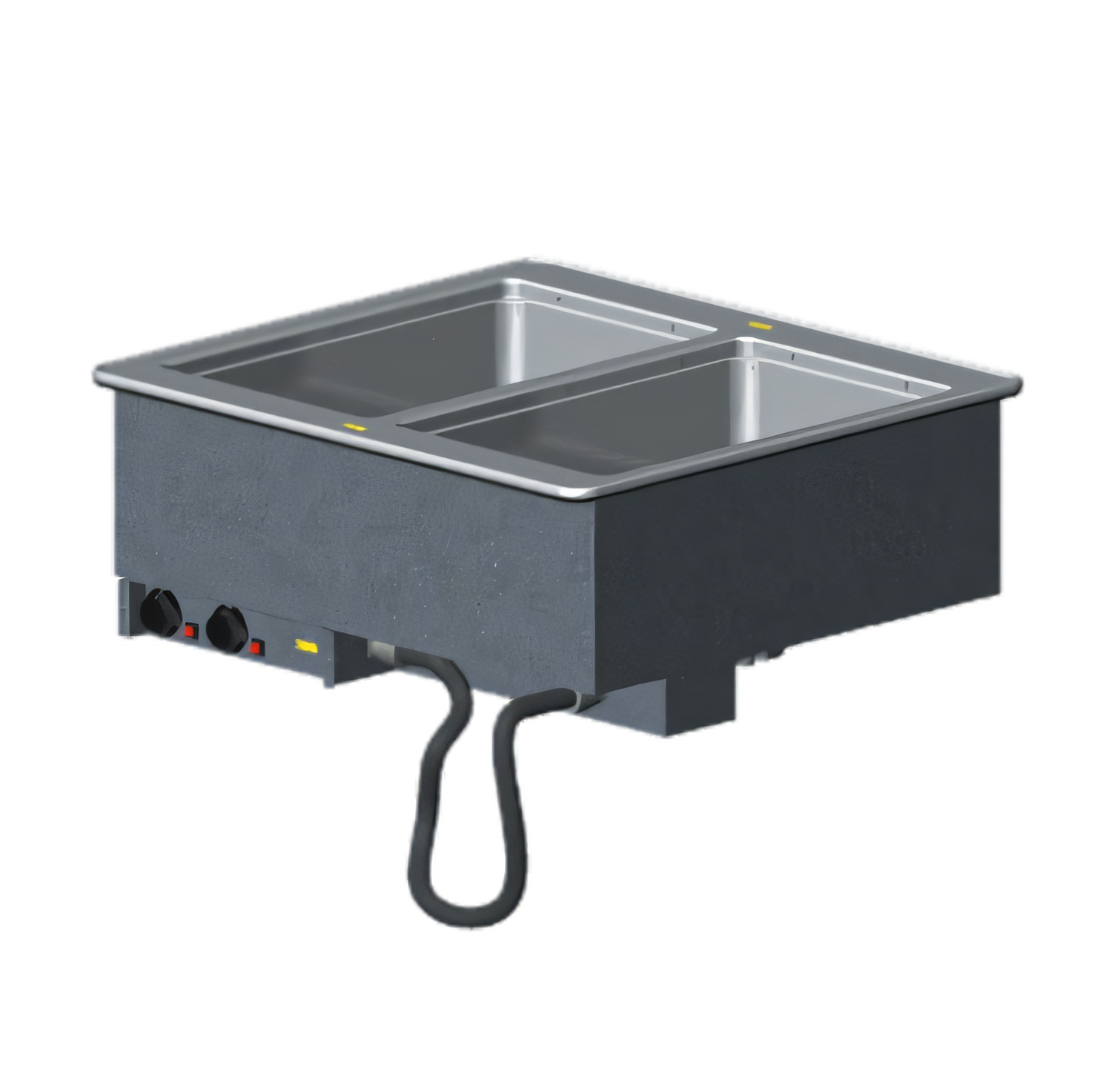

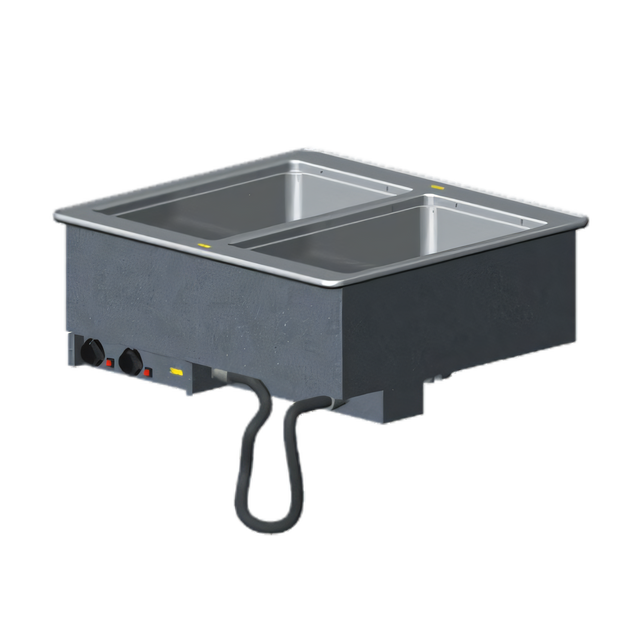

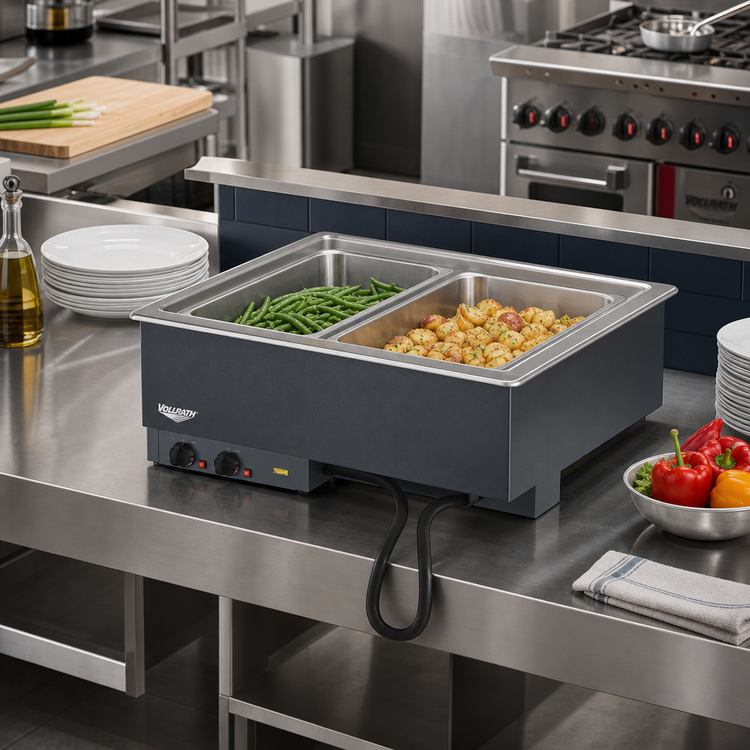

Vollrath Two-Well Hot Drop-In Unit

Thermostatic • Manifold Drain • 208-240 V • Model 3640011

Built for high-volume kitchens that demand accuracy and uptime, this US-made Vollrath drop-in keeps two full-size steam-table pans at safe serving temperatures—all while sitting flush with your counter for a polished, professional install. Just mount, plug and add water; no hard-wiring required.

Why You’ll Love It

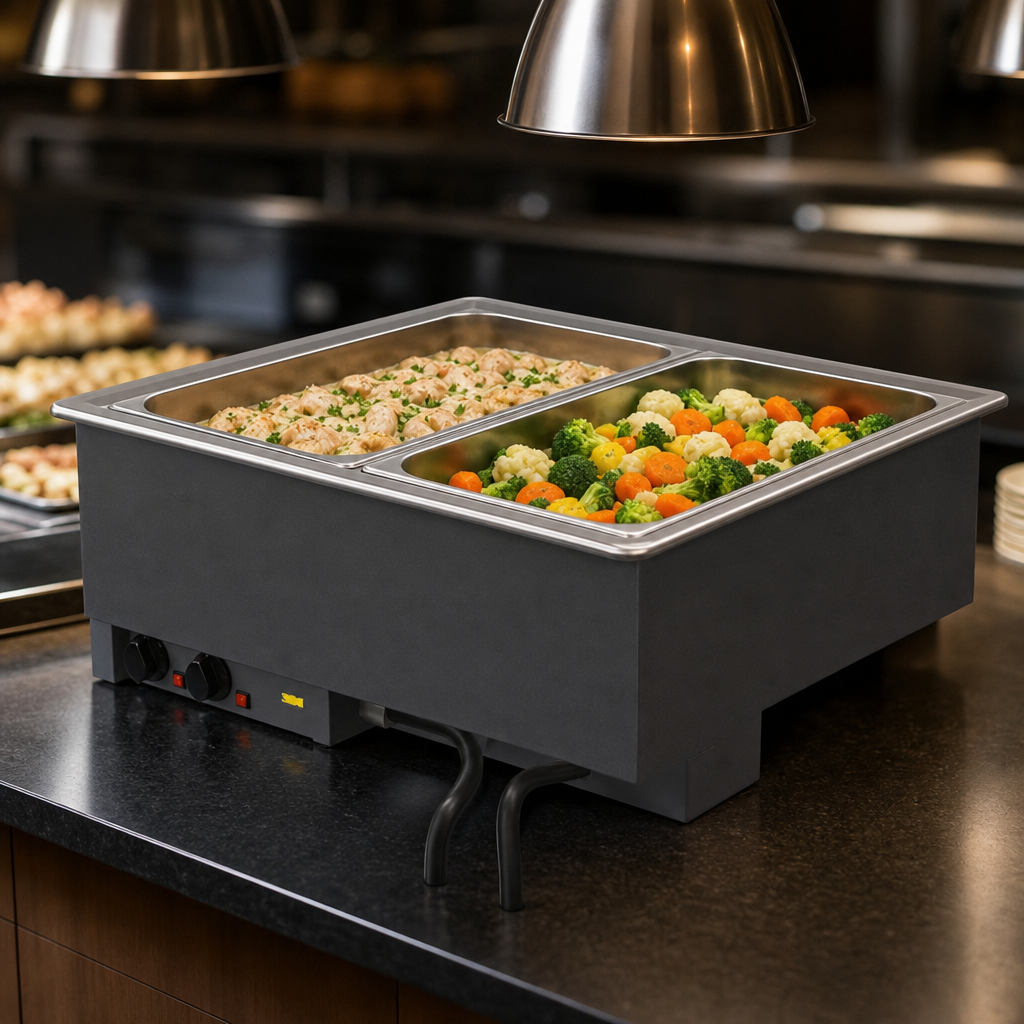

  • Two independent 12" × 20" (full-size) wells—each 1000 W—for a total of 2000 W of heating power.
  • Wet-operation only design delivers even, gentle heat that protects product quality and meets NSF 4 standards.
  • Precision thermostatic controls (one per well) with bright power indicator lights on a 4 ft remote panel.
  • 1" copper manifold drain with individual well shut-off valves and a master shut-off for fast, mess-free emptying.
  • Drip-free, full-perimeter flange contains condensation and spills, keeping counters clean.
  • Fully insulated 20-ga 300-series stainless wells and sides boost efficiency and protect surrounding cabinetry.
  • Rugged 18-ga stainless top and galvanized exterior housing stand up to daily commercial use.
  • Ships with 6' cord and NEMA 6-15P plug—ready to run on 208-240 V single-phase power (7.2-8.3 A).
  • Includes mounting clips for counters up to 3" thick; zero-clearance installation.
  • NSF & cULus listed and proudly Made in the USA.

Technical Specifications

Wells / Pan Size 2 × 12" × 20" full-size pans (accepts fractional pans up to 6" deep)
Operation Wet only (water required)
Controls Individual thermostatic knobs with power lights (remote panel, 4 ft tether)
Total Wattage 2000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph, 7.2-8.3 A, NEMA 6-15P
Overall Dimensions 28-1/4" W × 26" D × 21-1/2" H (71.8 × 66 × 54.6 cm)
Counter Cut-Out 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm), 7/8" corner radius
Drain 1" copper manifold with individual and master shut-off valves
Construction 18-ga stainless top; 20-ga 300-series stainless wells; galvanized exterior
Certifications NSF, cULus
Warranty 1-year parts & labor (see Vollrath policy for details)
Important: This drop-in is designed for moist heat only; always operate with water in each well to ensure even heating and to maintain NSF compliance. Vollrath drop-ins are custom-built to order and cannot be canceled or returned.

Full warranty terms are available at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

113.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
