Vollrath  |  SKU: 3640070HD

Vollrath 3640070HD Steam Tables & Food Wells

$2,443.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

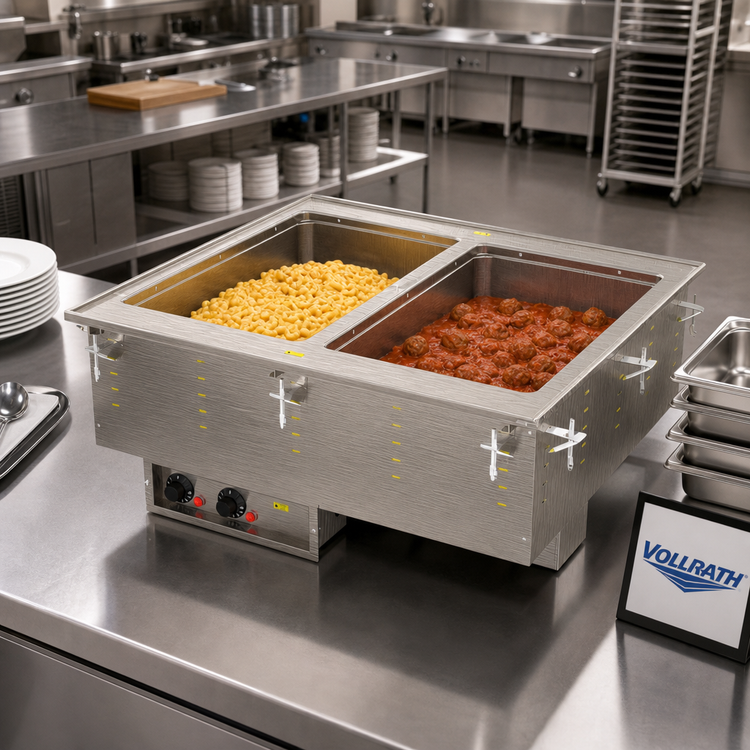

Vollrath Two-Well Marine-Grade Hot Drop-In – 208 V Thermostatic

Model 3640010HD · 1250 W · NSF & cULus Listed

Give your buffet, cafeteria or serving line a long-lasting heat holding solution. Vollrath’s USA-made marine-grade drop-in features two individually-controlled wells that keep soups, sides and entrées at safe, appetizing temperatures while resisting the harshest acidic or salty foods.

Why you’ll love it

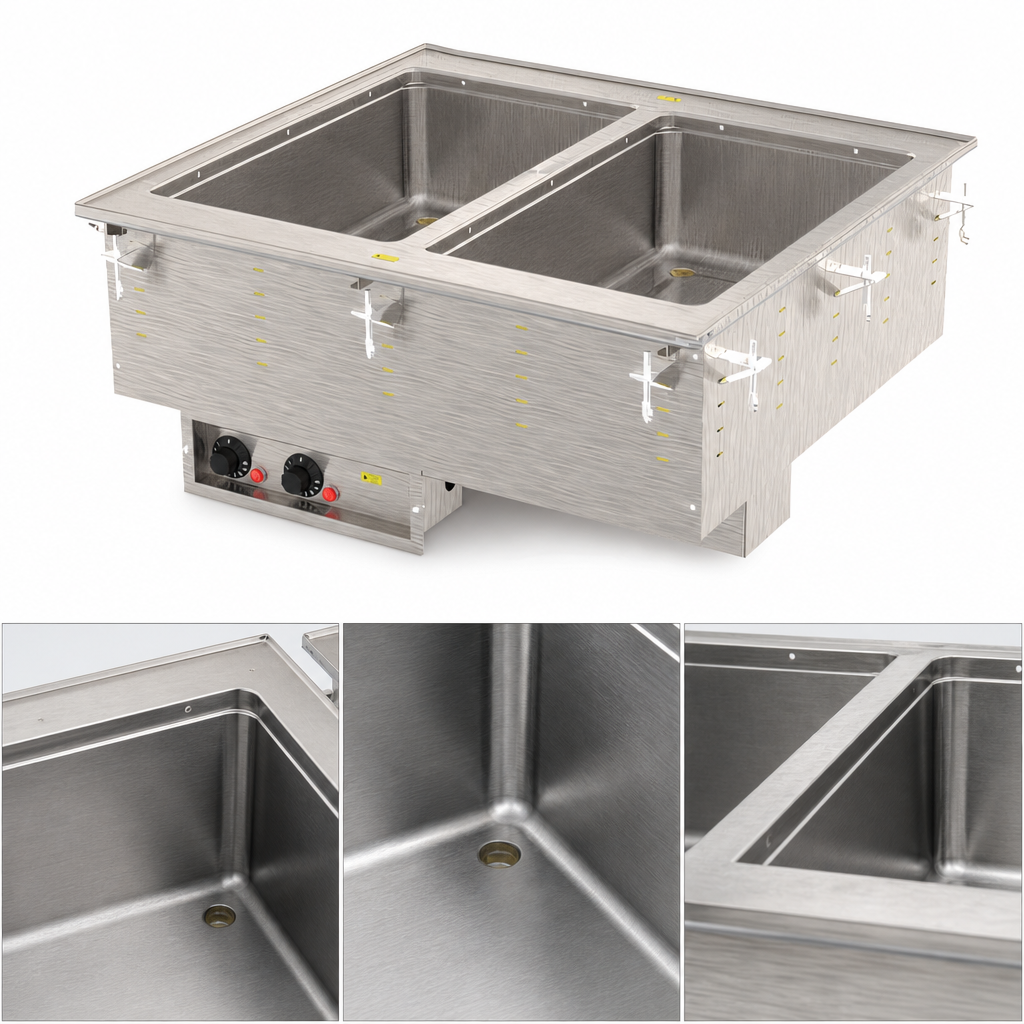

  • Two 12 × 20 in. wells formed from 20-ga 316 marine-grade stainless steel for maximum corrosion resistance.
  • Thermostatic controls with power-on indicator lights—set and hold precise temperatures for each well independently.
  • Wet operation only with a full-perimeter drip-free flange to capture condensation and spills.
  • 1 in. copper manifold drain with individual ball-valve shutoffs plus a master shutoff for fast, mess-free cleaning.
  • Fully insulated on all sides, including between wells, for even heating and energy savings.
  • Ships ready to install—6 ft (1.8 m) cord with NEMA 6-15P; no hard-wiring required.
  • Zero-clearance design with heavy-duty mounting clips for counters up to 3 in. (7.6 cm) thick.
  • Accepts full-size or fractional steam pans up to 6 in. (15.2 cm) deep (use adapter bars with fractional pans).

Specifications

Wells 2 × 12 × 20 in. (full-size), wet operation only
Wattage 1,250 W total  (625 W per well)
Electrical 208 V / 60 Hz / 1-ph, 6.0 A, NEMA 6-15P
Overall Dimensions 28 1⁄4 in. W × 26 in. D × 21 1⁄2 in. H  (71.8 × 66 × 54.6 cm)
Counter Cut-out 27 1⁄2 in. W × 25 1⁄4 in. D (69.9 × 64.1 cm) with 7⁄8 in. corner radius
Top / Exterior 18-ga stainless steel top; stainless steel insulated housing
Drain 1 in. copper manifold with individual and master shutoffs
Certifications NSF 4, cULus
Origin Made in USA
Warranty 2-year limited on marine-grade wells (see Vollrath for full details)

Accessories

  • Sheet-pan adapter – Item # 19186 (sold separately)
Important: Unit meets NSF 4 performance standards only when each well is operated with water. Always fill to the recommended level before energizing.

Drop-ins are built to order and cannot be canceled or returned. Indoor use only; room temperature and HVAC conditions can affect performance.

For complete warranty information, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

110.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
