Vollrath  |  SKU: 3640070

Vollrath 3640070 Steam Tables & Food Wells

$2,132.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

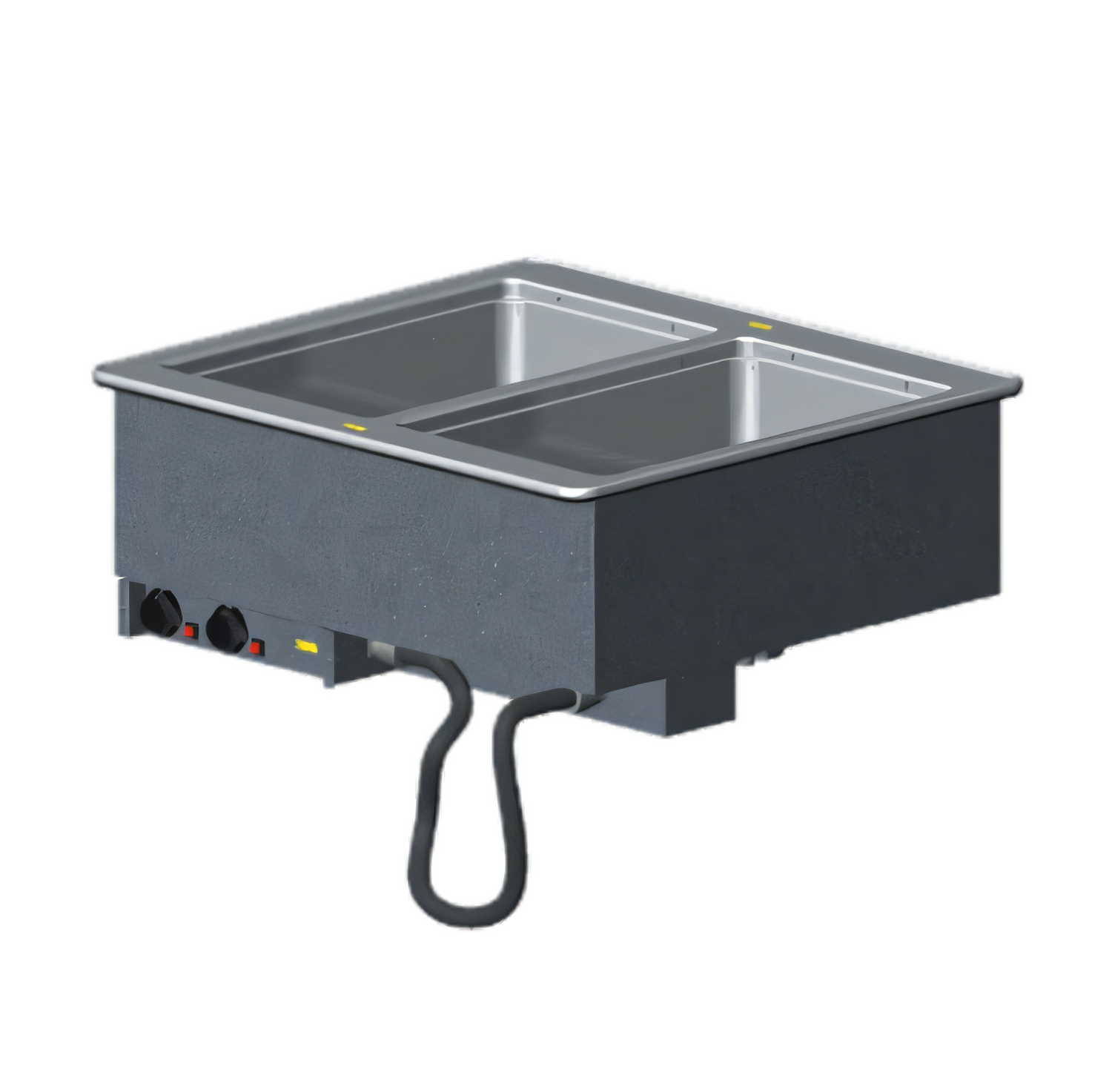

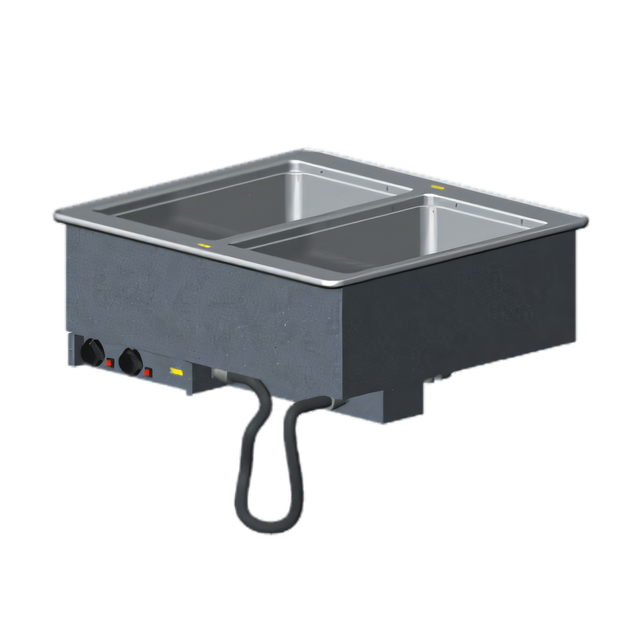

Vollrath 2-Well Drop-In Hot Food Unit – 208 V, Manifold Drain

625 W per well • Thermostatic controls • NSF & cULus Listed • Made in USA

Designed for high-volume kitchens that demand reliability and quick installation, this Vollrath two-well hot module keeps your menu items at safe, appetizing temperatures throughout service. Simply drop it into the counter cut-out, fill with water, plug it in and you’re ready to serve.

Why You’ll Love It

  • Full-size capacity – two individual 12" × 20" wells accept pans up to 6" deep.
  • Precise holding – independent thermostatic controls with power-on indicator lights for each well.
  • Wet operation only – meets NSF 4 performance for even, moisture-rich heat.
  • Energy-efficient – 20-gauge stainless wells are fully insulated on all sides, including between wells.
  • Drip-free flange – full-perimeter edge contains spills and condensation, protecting your counter surface.
  • 1" copper manifold drain with individual ball valves and master shut-off for fast, mess-free cleanup.
  • No hard-wiring – 6' power cord with NEMA 6-15P plug (208 V) simplifies installation.
  • 18-gauge stainless top & galvanized exterior housing stand up to daily commercial use.
  • Includes positioning clips for counters up to 3" thick; zero-clearance design fits tight layouts.
  • 4' tethered stainless control panel allows flexible mounting where staff can easily reach it.

Specifications

Model / Item No. 3640070 (or equivalent)
Operation Wet only
Wells (qty × size) (2) full-size 12" × 20" x 6" deep, 20 ga stainless
Overall dimensions 28-1/4" W × 26" D × 21-1/2" H
Counter cut-out 27-1/2" W × 25-1/4" D, 7/8" corner radius required
Construction 18 ga stainless top, 18 ga galvanized exterior housing
Insulation All non-exposed sides, including between wells
Controls 2 × independent thermostatic dials with indicator lights
Drain 1" copper manifold, individual well shut-offs + master shut-off
Electrical 208 V / 60 Hz / 1-phase, 6.0 A, 1 250 W total (625 W per well)
Power connection 6' cord with NEMA 6-15P plug
Certifications NSF 4, cULus
Country of origin USA

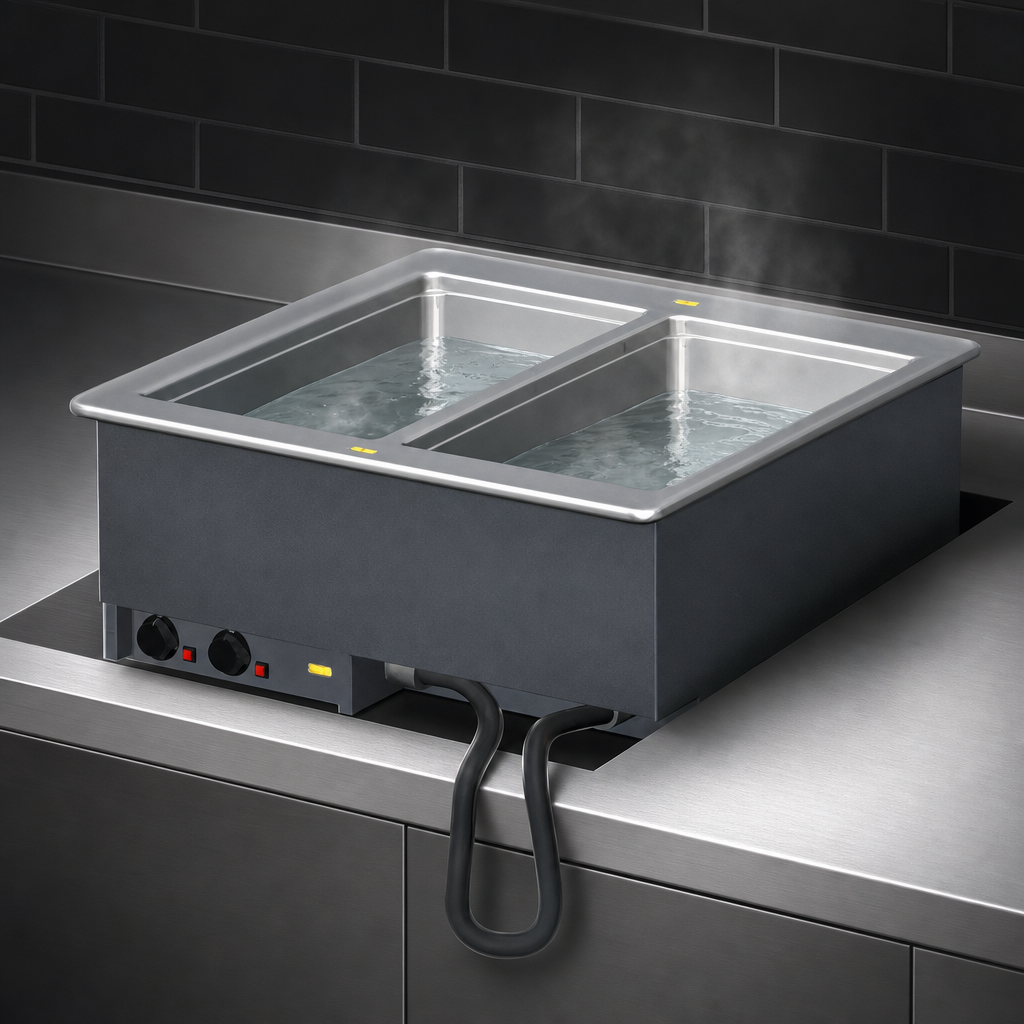

Important: This drop-in is engineered for wet operation only. Fill each well with water before turning the unit on to ensure even heat distribution and to comply with NSF 4 standards.

Modular drop-ins are built to order and cannot be canceled or returned. Refer to vollrathfoodservice.com for full warranty policy details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

110.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
