Vollrath

Vollrath Two-Well Modular Drop-In Electric Hot Food Well with Auto-Fill and Infinite Controls, 208-240V

SKU: 3640061HD
$3,541.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Two-Well Modular Drop-In Electric Hot Food Well with Auto-Fill and Infinite Controls, 208-240V

Wet Operation Only, Full-Size 12 x 20 Inch Wells, Plug-In Installation

Keep two full-size pans hot and ready with insulated marine-grade wells, wet-operation auto-fill, and individual infinite controls.

  • Holds two full-size 12 x 20 inch pans in insulated marine-grade 316 stainless wells.
  • Wet-operation, auto-fill design supports moist-heat food holding.
  • Individual infinite controls and power indicator lights let you manage each well separately.
  • Plug-in power connection with included NEMA 6-15P cord eliminates hard-wiring.
  • 1-inch copper manifold drain includes individual well shutoffs and a master shutoff.
  • Accepts fractional pans up to 6 inches deep; adapter bars are recommended.
  • Includes mounting clips and a drip-free flange for easier, cleaner installation.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

116.0 lb

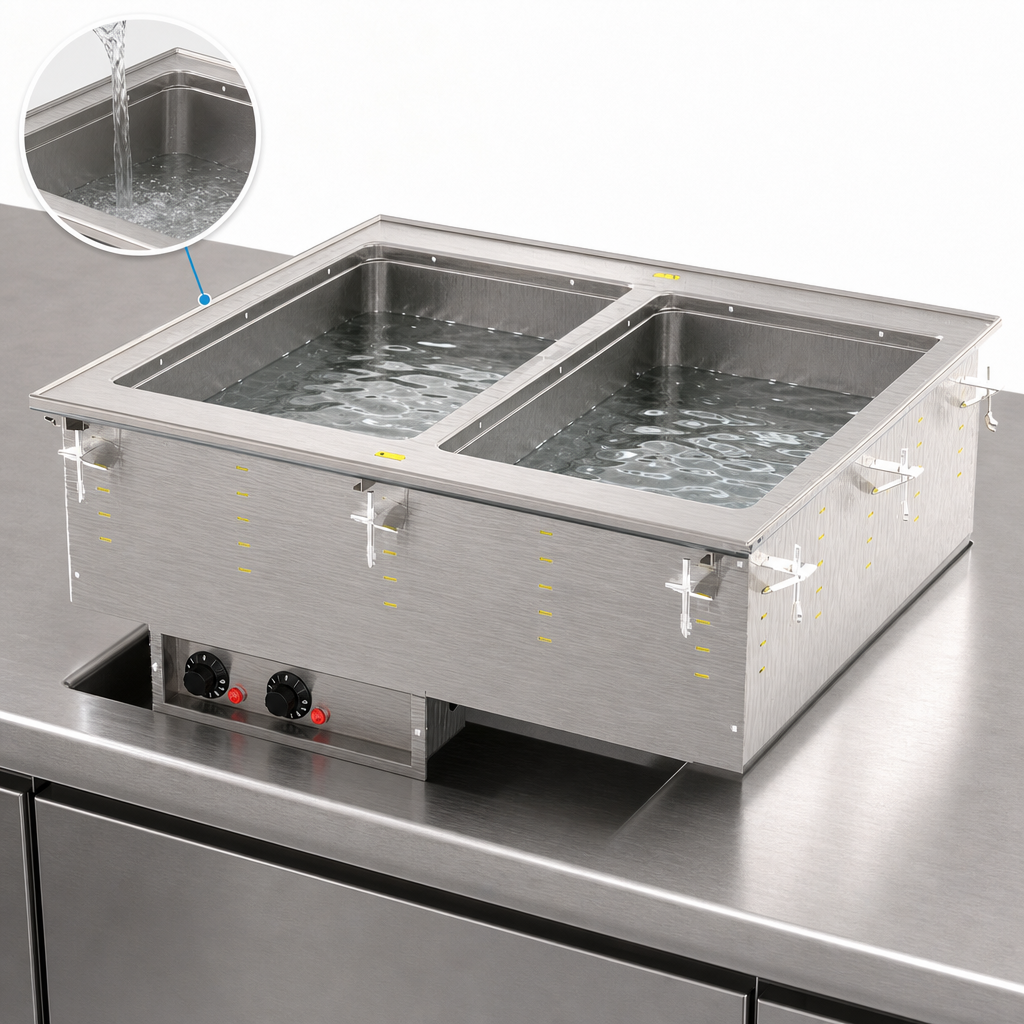

Auto-Fill Wet Operation

Designed for wet operation only; water is required for even heating and the unit includes auto-fill control.

Marine-Grade 316 Stainless Wells

Drawn wells are made from SAE Type-316 stainless steel for durability.

Insulated Construction

Insulated on all sides, including between each well, to help retain heat.

Individual Infinite Controls

Stainless steel control panel includes individual infinite controls and a power indicator light for each well.

Plug-In Electrical Connection

Includes a 6-foot cord with NEMA 6-15P plug and does not require hard-wiring.

Manifold Drain System

1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.

Flexible Remote Control Panel

Control panel has a 4-foot tethered connection for flexible mounting locations.

Standard Mounting Clips

Includes mounting clips for counters up to 3 inches thick.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Cutout Requirements

Requires a 27-1/2 x 25-1/4 inch cutout with a 7/8 inch corner radius.

Drip-Free Flange

Helps reduce mess around the opening.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Compartments 2
Controls Infinite
Voltage 208-240 Volts
Amps 7.2-8.3 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Material Stainless Steel
Interior Finish 316 Stainless Steel
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 116 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for wet operation only, and water is required for even heating.
No. It includes a cord with a NEMA 6-15P plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep, and adapter bars are recommended for fractional pans.
The required cutout size is 27-1/2 x 25-1/4 inches, and a 7/8 inch corner radius is required.
It uses a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.
