Vollrath  |  SKU: 3640061

Vollrath 3640061 Steam Tables & Food Wells

$2,624.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

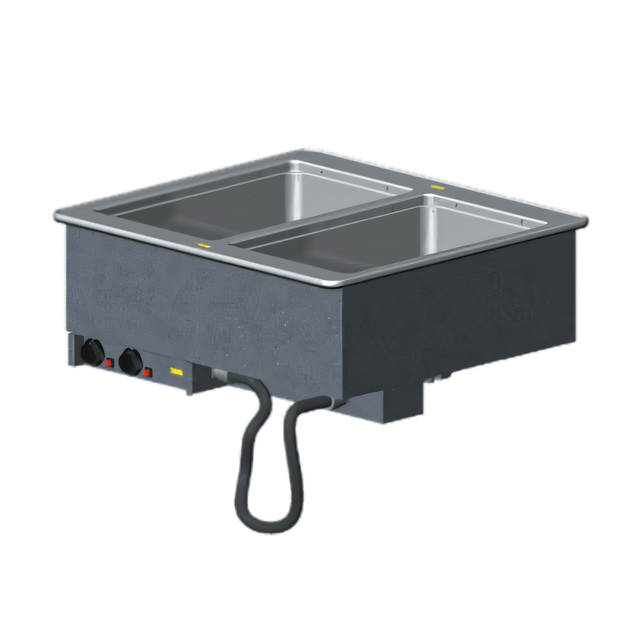

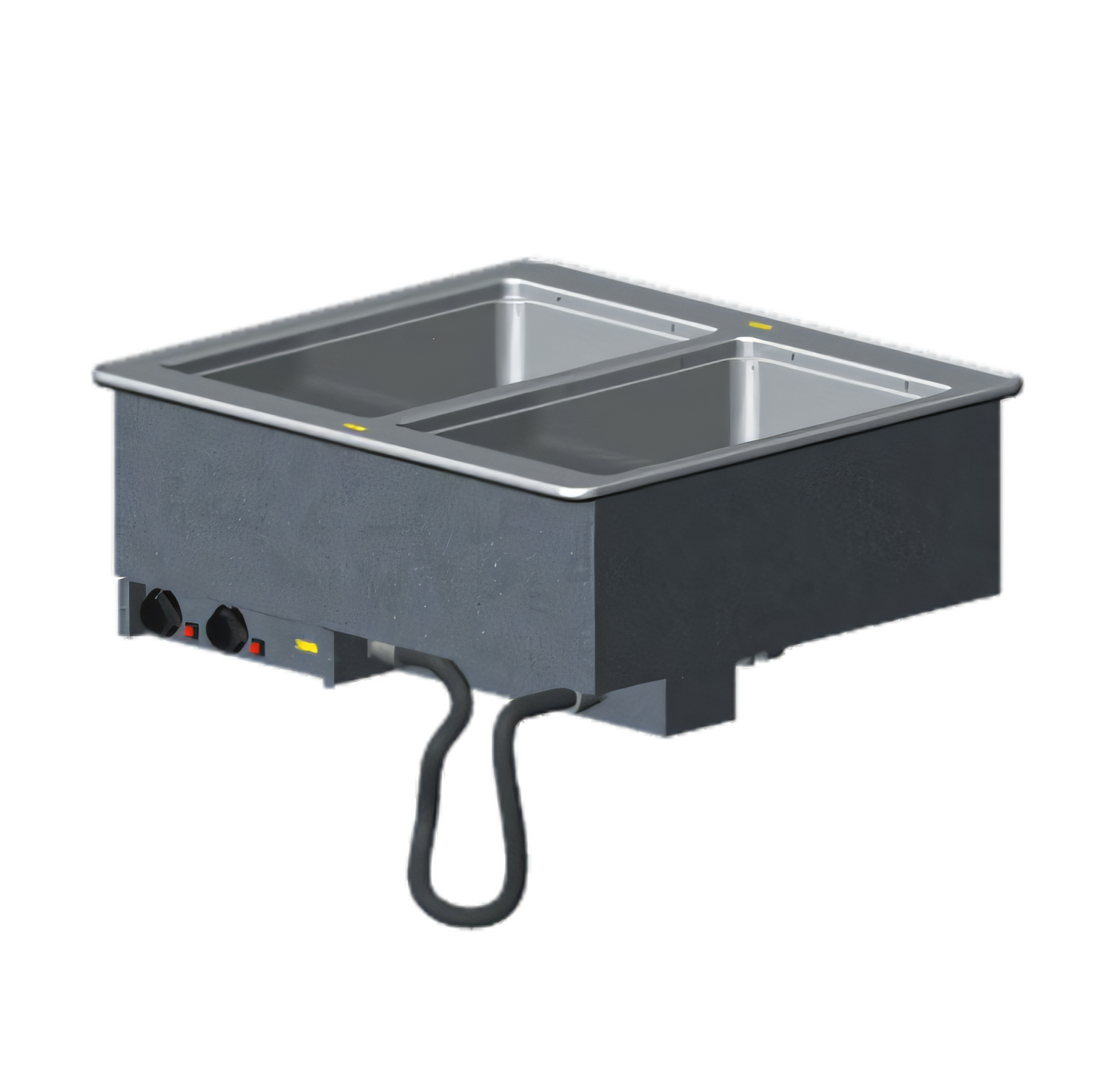

Vollrath Two-Well Drop-In Hot Food Well – 208-240 V, Auto-Fill

Model 3640061 | Manifold Drain • Infinite Controls

Built for serious commercial kitchens, this Vollrath drop-in keeps entrées, sides and sauces at safe serving temperatures without the headaches of hard-wiring or constant monitoring. Simply drop it into your counter, plug it in and let the auto-fill system do the rest.

Key Benefits

  • Dual 12" × 20" wells accept full-size or fractional pans up to 6" deep.
  • Auto-fill maintains proper water level for consistent, even heat.
  • Independent infinite controls with power lights let you fine-tune each well.

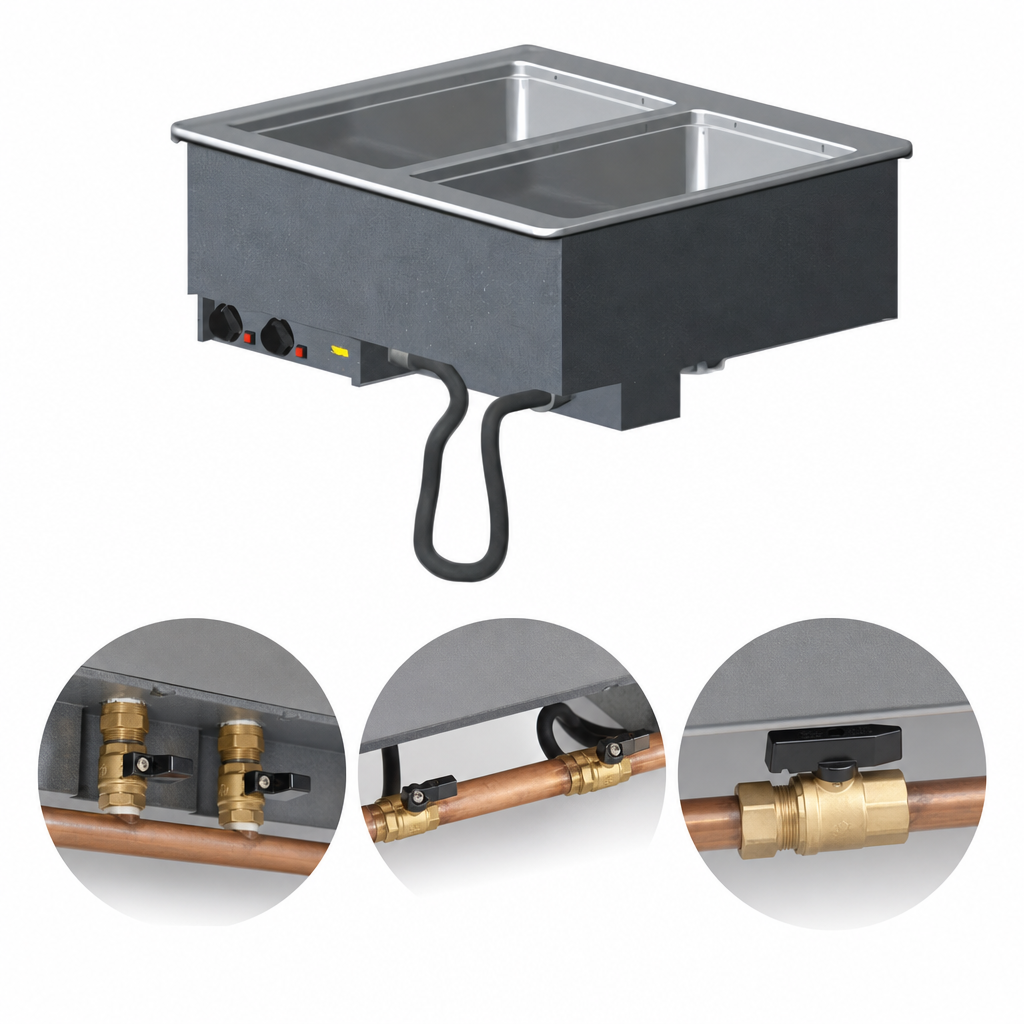

  • 1" copper manifold drain with individual ball valves plus master shut-off empties wells fast & clean.
  • 18 ga stainless top flange with full-perimeter drip edge contains spills and condensation.
  • 20 ga 300-series stainless wells are insulated on all sides—including between wells—for maximum efficiency.
  • 6' (1.8 m) power cord with NEMA 6-15P plug; no hard-wiring required.
  • Zero-clearance, drop-in design with mounting clips for counters up to 3" (7.6 cm) thick.
  • NSF 4 and cULus listed; proudly Made in the USA.

Technical Specifications

Number of wells 2 (full-size)
Well dimensions 12" W × 20" D × 6" H (30.5 × 50.8 × 15.2 cm) each
Overall dimensions 28-1/4" W × 26" D × 21-1/2" H (71.8 × 66 × 54.6 cm)
Counter cut-out 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm) – 7/8" corner radius
Construction 18 ga stainless top, 20 ga drawn stainless wells, 18 ga galvanized exterior housing
Operation Wet only (water required)
Controls Individual infinite temperature dials with indicator lights
Power 2,000 W total (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph • 7.2–8.3 A • NEMA 6-15P plug
Drain 1" copper manifold drain with individual well shut-offs & master shut-off
Certifications NSF 4, cULus
Warranty 1-year limited (see Vollrath warranty)
Country of origin USA

What’s Included

  • Two-well drop-in hot food unit with auto-fill assembly
  • Remote stainless steel control panel (4' tether)
  • Mounting/positioning clips
  • Factory-installed power cord & plug
Important: This unit must be filled with water before energizing and is intended for wet operation only. Orders for drop-ins cannot be cancelled or returned once processed.

For installation guides, full warranty details and replacement parts, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

116.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
