Vollrath 3640060HD Steam Tables & Food Wells
Description

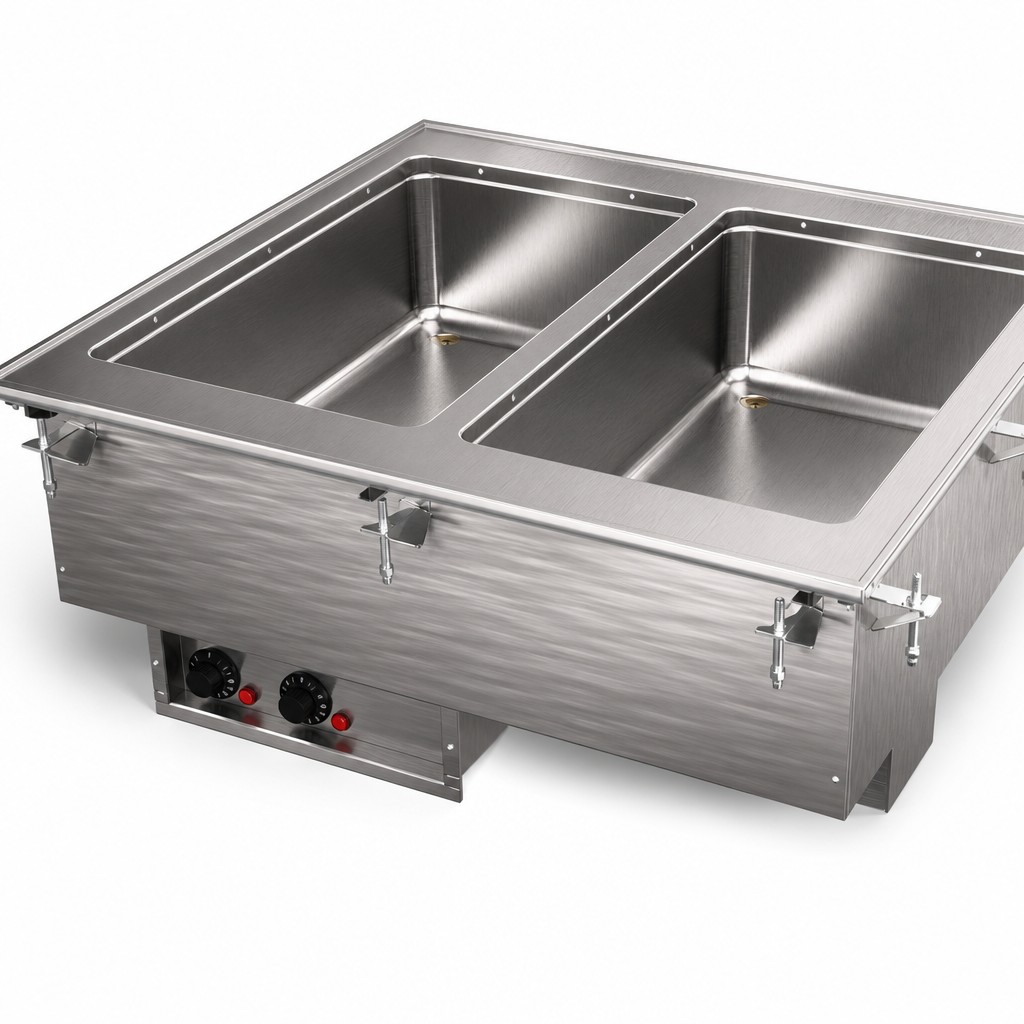

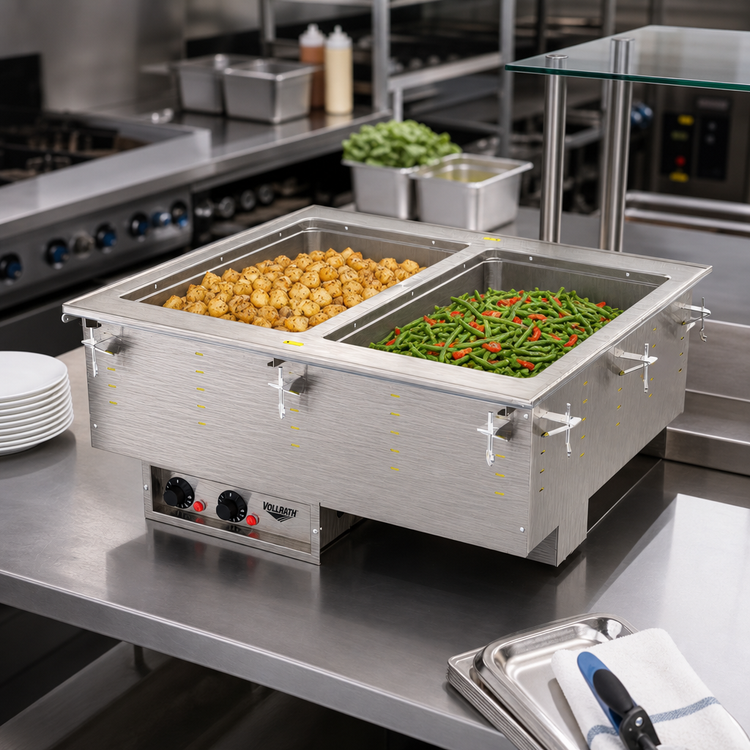

Vollrath 2-Well Marine-Grade Drop-In Hot Food Well with Auto-Fill – 208 V
Model 3640060HD • Infinite Controls • NSF & cULus ListedKeep soups, sauces and entrées at safe serving temperatures without the maintenance hassle. This Vollrath drop-in features two independently controlled, auto-fill marine-grade wells that install flush with your counter for a clean, professional look.
Why You’ll Love It
- Two 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel – built to resist corrosive food acids & chemicals.
- Auto-fill system maintains water level automatically for consistent, even heating.
- Individual infinite controls with power lights let you dial-in each well separately.
- Full-perimeter drip-free flange and insulated housing keep heat in and mess out.
- 1" copper manifold drain with individual shut-offs plus master shut-off speeds clean-up.
- Accepts full-size or fractional pans up to 6" deep; adapter bars available.
- Ships ready to plug in – 6' cord with NEMA 6-15P, no hardwiring required.
- Zero-clearance, top-mount design with included gasket & mounting clips for counters up to 3" thick.
- Made in the USA and backed by a 2-year limited warranty on marine-grade wells.
At-a-Glance Specs
| Wells | (2) 12" × 20" – wet operation only |
|---|---|
| Construction | 20-ga 316 stainless wells, 18-ga stainless top, stainless exterior housing |
| Total Wattage | 1,250 W (625 W per well) |
| Voltage / Phase | 208 V / 60 Hz / 1-ph |
| Amperage | 6.0 A |
| Plug | NEMA 6-15P (pre-wired 6' cord) |
| Overall Dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Counter Cut-Out | 27-1/2" W × 25-1/4" D 7/8" corner radius required |
| Controls | (2) Infinite dial controls in remote panel (4' tether), power indicator lights |
| Drain | 1" copper manifold, individual & master ball valves |
| Agency Listings | NSF 4, cULus |
| Origin | Made in USA |
Installation Notes
- Indoor use only; ambient room temperature & HVAC can affect holding performance.
- Zero side-clearance required.
- Must be operated with water to meet NSF 4 and ensure even heating.
Need help with adapter bars, sheet-pan inserts or replacement parts? Contact our team and we’ll make sure your new Vollrath hot well fits perfectly into service.
