Vollrath  |  SKU: 3640060

Vollrath 3640060 Steam Tables & Food Wells

$2,624.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

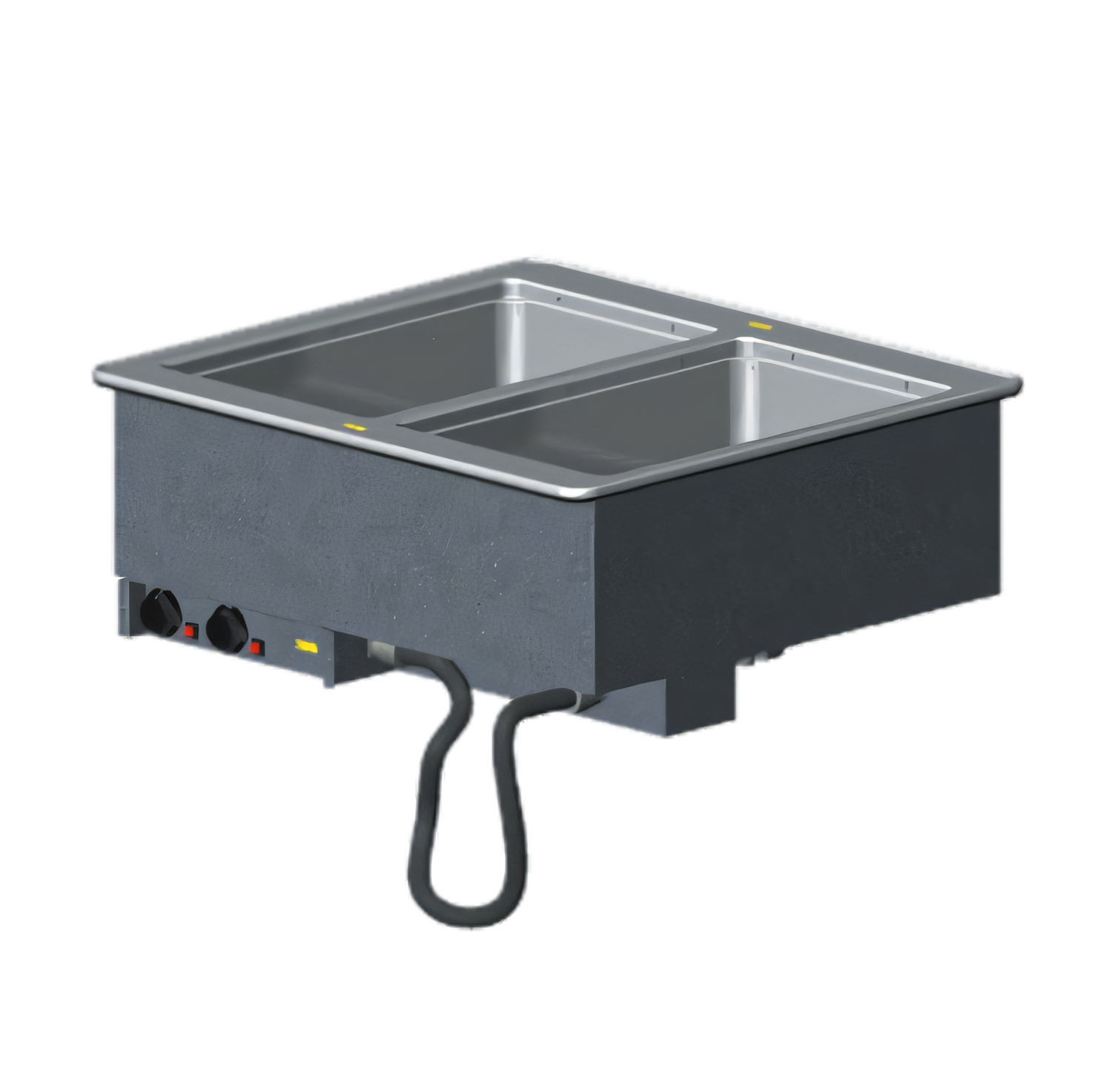

Vollrath Two-Well Hot Drop-In with Auto-Fill, 208 V

Item 3640060 – 625 W per well (1.25 kW total)

Built for high-volume kitchens that demand consistent holding temperatures and quick, no-mess water management, this made-in-USA module drops neatly into your counter and gets to work—no hard-wiring required.

Key Features & Benefits

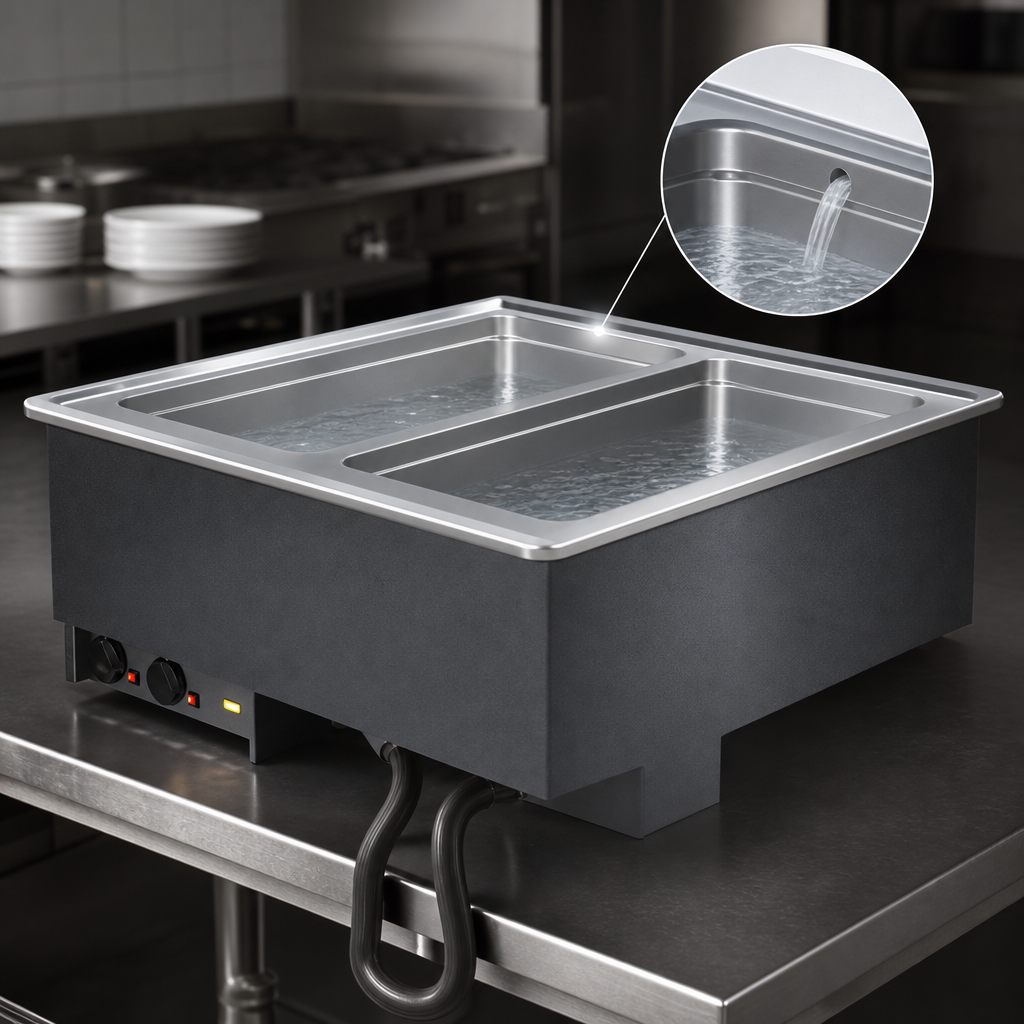

  • Auto-fill system maintains optimal water level for wet operation, extending element life and ensuring even heat.
  • Two individually insulated 12" × 20" drawn wells (20-gauge stainless steel) accept full-size or fractional pans up to 6" deep.
  • Independent infinite controls with power indicator lights let you dial in the perfect holding temperature for each menu item.
  • Full-perimeter 18-gauge stainless steel drip-free flange keeps condensation off the counter.
  • 1" copper manifold drain with ball valves on each well plus a master shutoff for fast, controlled draining.
  • Fully pre-wired 6' cord with NEMA 6-15P plug—simply drop-in, plug-in and serve.
  • 18-gauge galvanized exterior housing and complete fiberglass insulation boost efficiency and service life.
  • Includes positioning clips for counters up to 3" thick; zero-clearance design saves space.
  • NSF 4 and cULus listed; assembled in Sheboygan, Wisconsin, USA.

Specifications

Item number 3640060
Number of wells 2 (wet operation only, auto-fill)
Control type Individual infinite knobs (remote 4' stainless-steel panel)
Output 625 W per well  |  1,250 W total
Electrical 208 V / 60 Hz / 1-ph  |  6.0 A  |  NEMA 6-15P
Overall size 28-1/4" W × 26" D × 21-1/2" H (including manifold)
Counter cut-out 27-1/2" W × 25-1/4" D  |  7/8" corner radius
Well material 20-ga. 300-series stainless steel
Top flange 18-ga. stainless steel with full drip edge
Exterior housing 18-ga. galvanized steel
Drain connection 1" copper manifold with individual & master shutoffs
Certifications NSF 4, cULus
Origin Made in USA

Perfect For

  • Buffet and cafeteria service lines
  • Supermarket delis & convenience stores
  • Hotel breakfast bars
  • Mobile serving stations & kiosks
Important: Operate with water in each well at all times to meet NSF 4 performance standards and prevent element damage.

Drop-ins are manufactured to order and are not eligible for cancellation or return. For complete warranty details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

116.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
