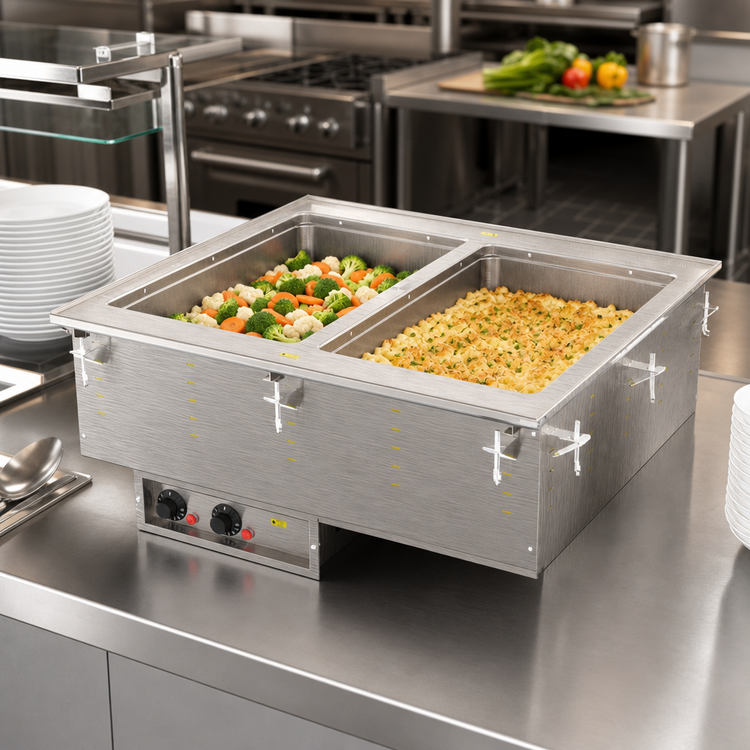

Vollrath Two-Well Drop-In Electric Hot Food Well, 2 Full-Size Pans, Manifold Drain, 208-240V

Infinite controls, wet operation, marine-grade 316 stainless steel wells

Keep hot foods at serving temperature with this insulated two-well drop-in hot well built for wet operation and easy plug-in installation.

  • Two insulated 12" x 20" wells hold full-size pans and support wet operation for even heating.
  • Individual infinite controls and power indicator lights let operators fine-tune each well separately.
  • Plug-in design with a NEMA 6-15P cord means no hard-wiring is required.
  • Marine-grade 316 stainless steel wells and stainless steel housing are built for demanding foodservice use.
  • Manifold drain, drip-free flange, and included mounting clips help streamline installation and cleanup.
  • Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended for fractional pans.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

108.0 lb

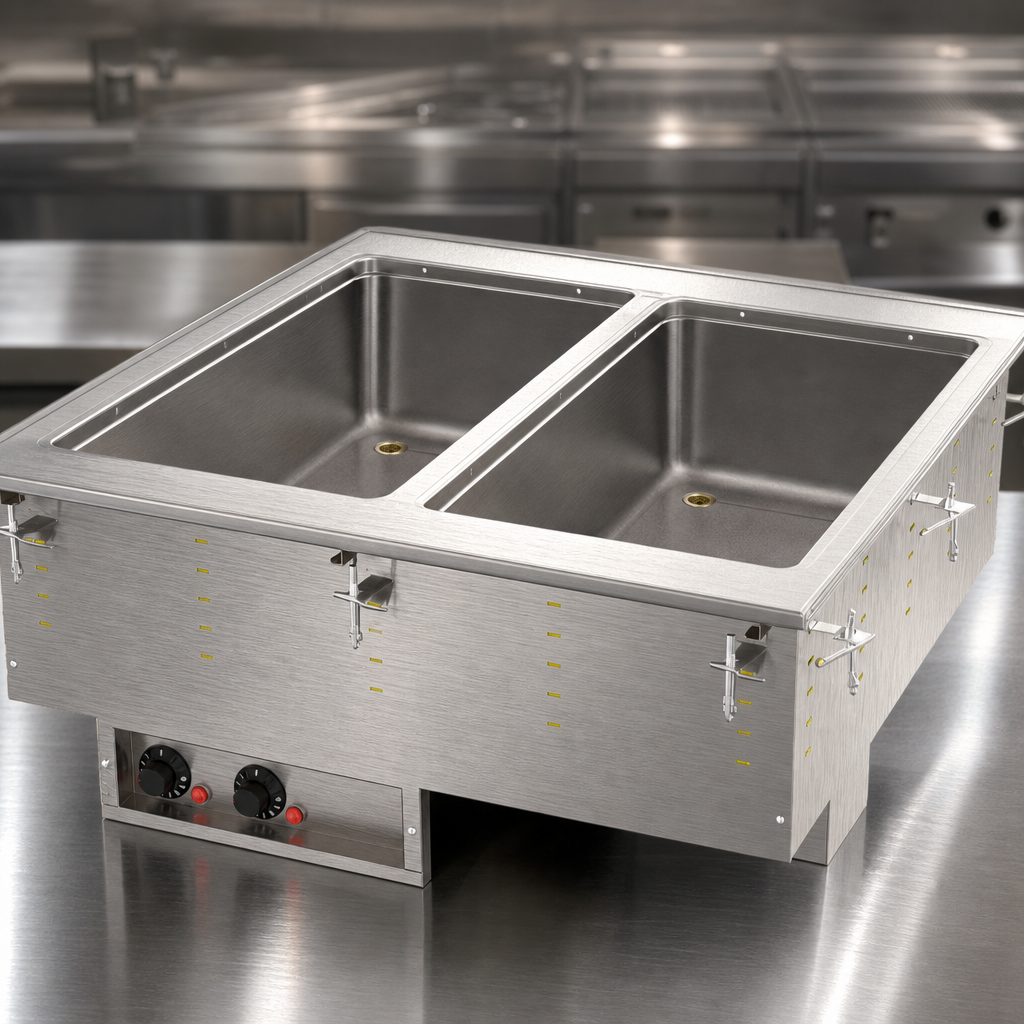

Marine-Grade 316 Stainless Steel Wells

Drawn wells are made from SAE Type-316 stainless steel for durability and corrosion resistance.

Insulated Wet-Operation Design

Insulation on all sides, including between wells, helps maintain serving temperatures; water is required for even heating.

Individual Infinite Controls

Each well has its own infinite control and power indicator light for precise temperature adjustment.

Plug-In Electrical Connection

Includes a 6-foot cord with a NEMA 6-15P plug and does not require hard-wiring.

Manifold Drain System

A 1-inch copper manifold drain with shutoff supports draining and cleanup.

Flexible Remote Control Panel

The stainless steel control panel has a 4-foot tethered connection for flexible mounting locations.

Easy Installation Hardware

Includes standard mounting clips for counters up to 3 inches thick and a gasket under the drip edge.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Operation Wet
Pan Capacity 2 Full-Size 12 x 20-Inch Pans
Drain Type Manifold
Material Stainless Steel
Interior Finish 316 Stainless Steel
Cord Length 6 Feet
Voltage 208-240 Volts
Amps 7.2-8.3 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 108 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is wet operation only, and water is required for even heating.
No. It includes a 6-foot cord with a NEMA 6-15P plug.
It accepts full-size and fractional pans up to 6 inches deep, with two 12" x 20" wells.
The required cutout size is 27-1/2" W x 25-1/4" D, and the cutout must have a 7/8" corner radius.
The unit comes with a two-year warranty against defects in materials and workmanship.
Yes. The stainless steel control panel has a 4-foot tethered connection for flexible mounting locations.
