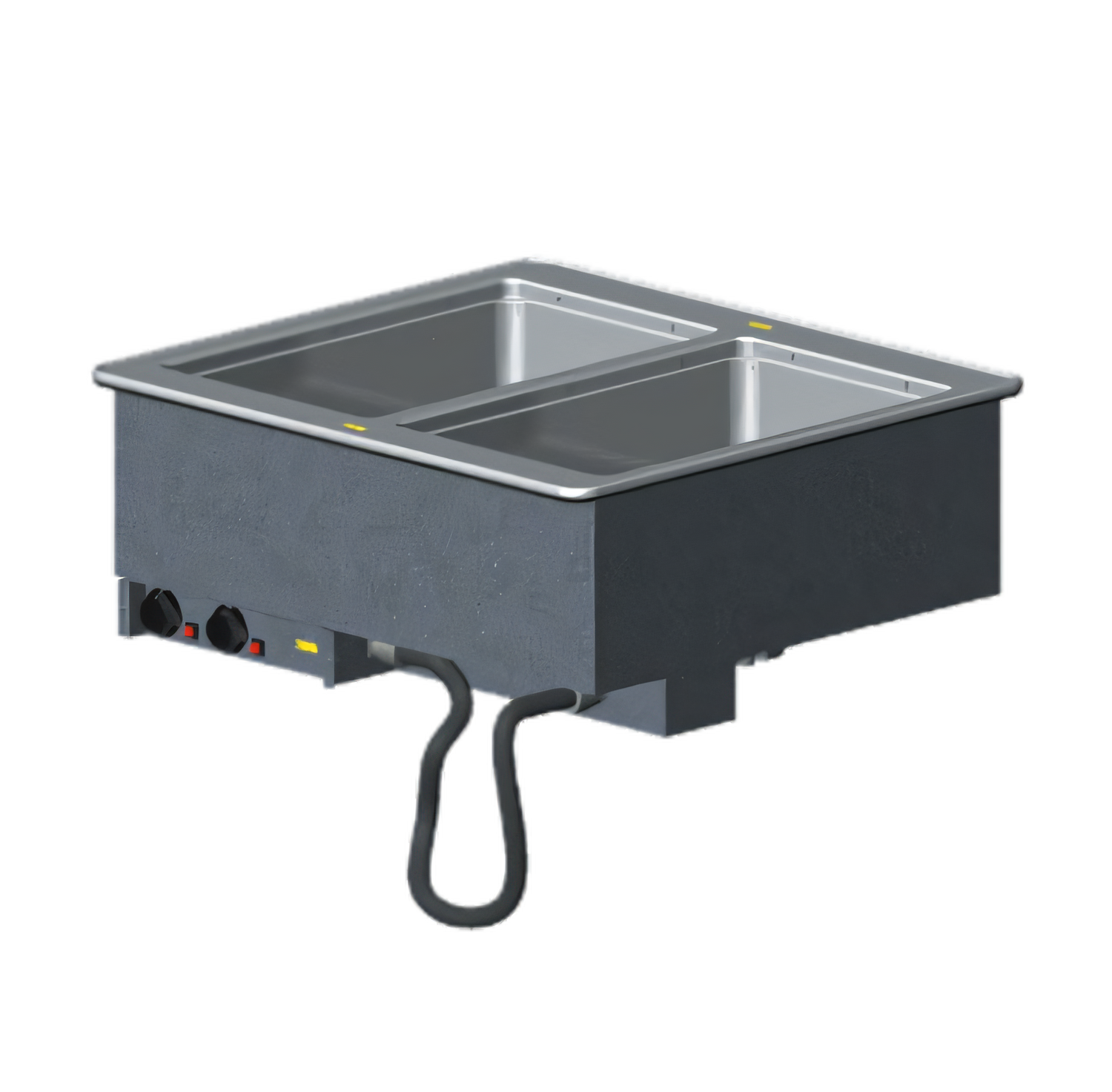

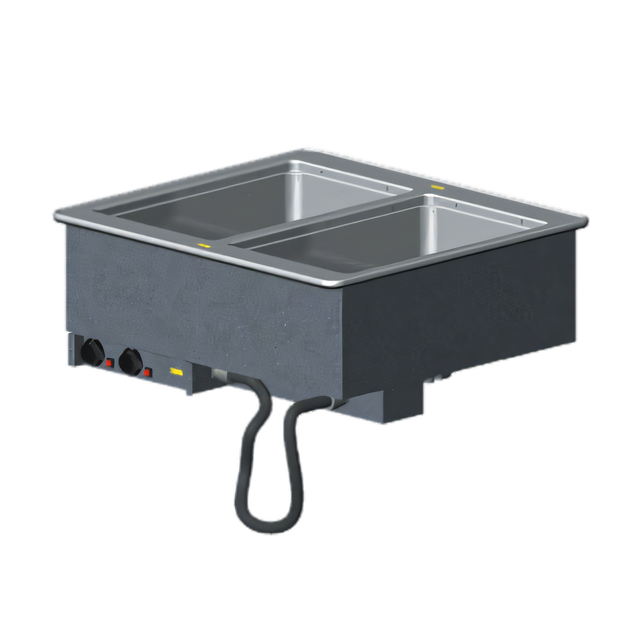

Vollrath Two-Well Drop-In Electric Hot Food Well Unit with Manifold Drain, 208-240V

SKU: 3640051
$2,115.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Two-Well Drop-In Electric Hot Food Well Unit with Manifold Drain, 208-240V

Wet Operation Only, Infinite Controls, Full-Size 12 x 20 Pans

Keep two full-size pans hot and ready with a wet-operation drop-in well that combines independent infinite controls, a manifold drain, and easy plug-in installation.

  • Holds two full-size 12 x 20 pans in individual insulated wells.
  • Wet operation only for even heating and reliable food holding.
  • Independent infinite controls let you manage each well separately.
  • Manifold drain design includes individual well shutoffs and a master shutoff.
  • Drop-in, top-mount installation includes gasket, mounting clips, and a cord with plug.
  • Stainless steel top and wells help provide durable, commercial-grade performance.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

108.0 lb

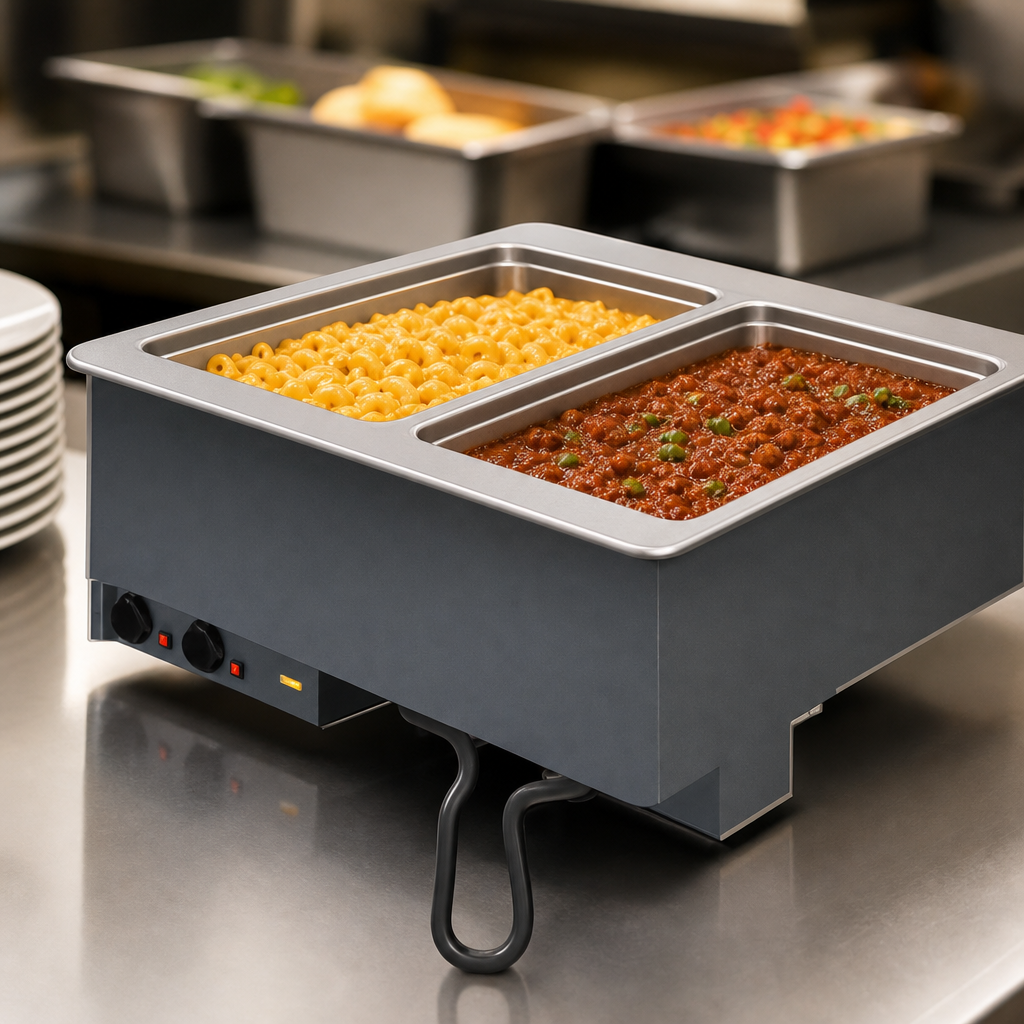

Two Individual Wells

Designed to hold two separate full-size 12 x 20 pans for organized food holding.

Wet Operation Only

Water is required for even heating and moist-heat serving performance.

Infinite Individual Controls

Each well has its own infinite control and power indicator light for independent temperature management.

Manifold Drain System

Includes a 1 inch copper manifold drain with individual well shutoffs and a manifold shutoff for easier drainage.

Drop-In Top-Mount Design

Built for top-mount installation and includes positioning clips, a drip-free flange, and gasket support.

Plug-In Electrical Connection

Includes a cord with plug and does not require hard-wiring.

Stainless Steel Construction

Features a stainless steel top and stainless steel wells for commercial durability.

Fractional Pan Compatibility

Accepts full-size pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 2
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Voltage 208-240 Volts
Watts 2 kW
Amps 7.2-8.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 108 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Wet operation only. Water is required for even heating and proper food holding performance.
It accepts two full-size 12 x 20 pans, and pans up to 6 inches deep.
No. It includes a cord and plug and does not require hard-wiring.
It uses 208-240 Volts, 60 Hz, 1-phase power with a NEMA 6-15P plug.
It has a 1 inch copper manifold drain with individual well shutoffs and a master manifold shutoff.
The cutout size is 27-1/2 inches wide by 25-1/4 inches deep, with a 7/8 inch corner radius.
