Vollrath 3640050HD Steam Tables & Food Wells
Description

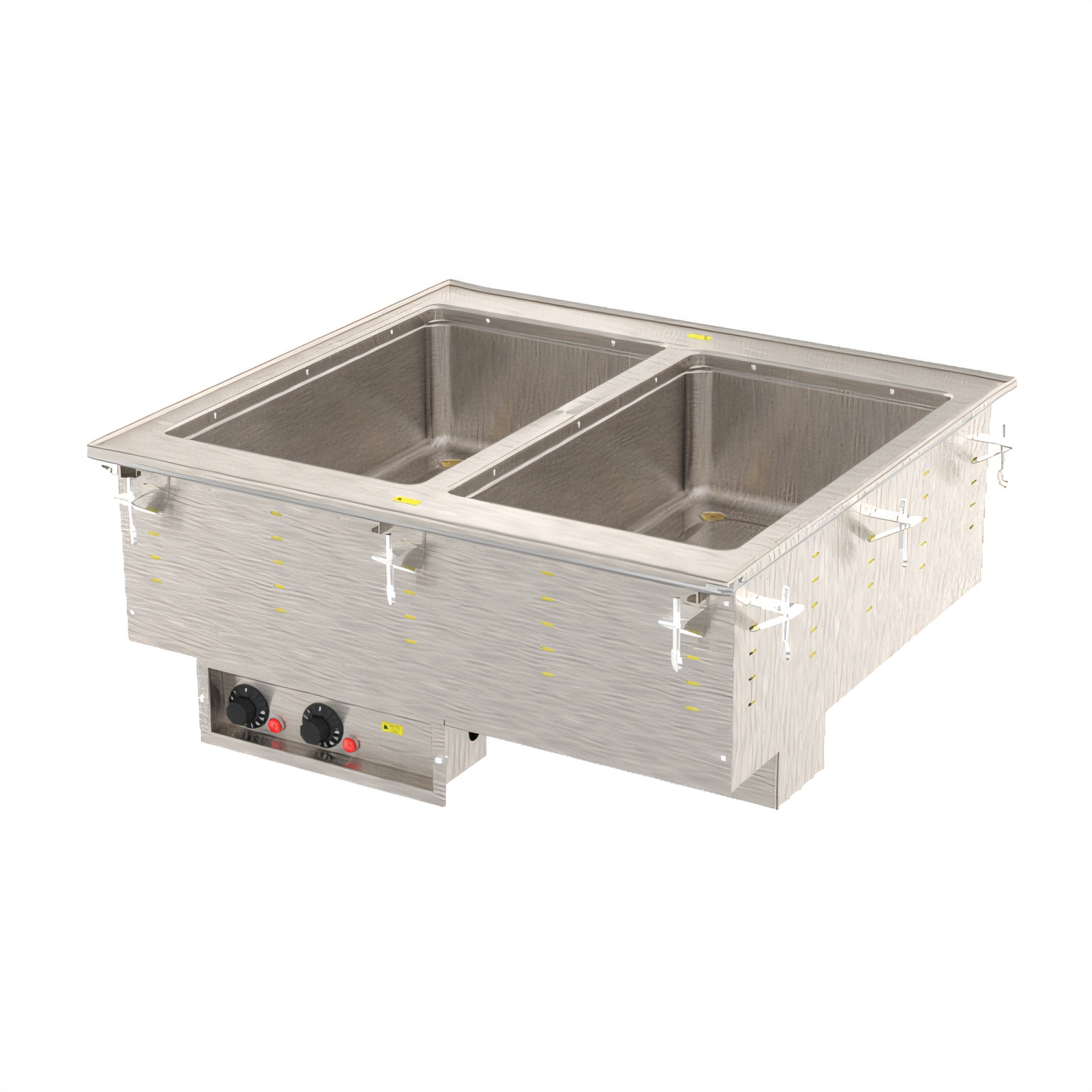

Vollrath Two-Well Marine-Grade Hot Drop-In (208 V)
Model 3640050HD – 625 W per well • Manifold drain • Infinite controlsBuilt for demanding commercial kitchens, this U.S-made Vollrath drop-in keeps two full-size pans of food at safe serving temperatures while standing up to the harshest, high-salt environments. Marine-grade 316 stainless wells, a drip-free full-perimeter flange, and a 1 inch copper manifold drain make operation clean, efficient, and worry-free.
Why You’ll Love It
- Two independent 12" × 20" wells formed from 20-ga 316 marine-grade stainless steel for superior corrosion resistance.
- Wet-heat operation delivers even holding temperatures that meet NSF 4 performance standards.
- Individual infinite controls and power indicator lights—dial in each well separately from the stainless control panel.

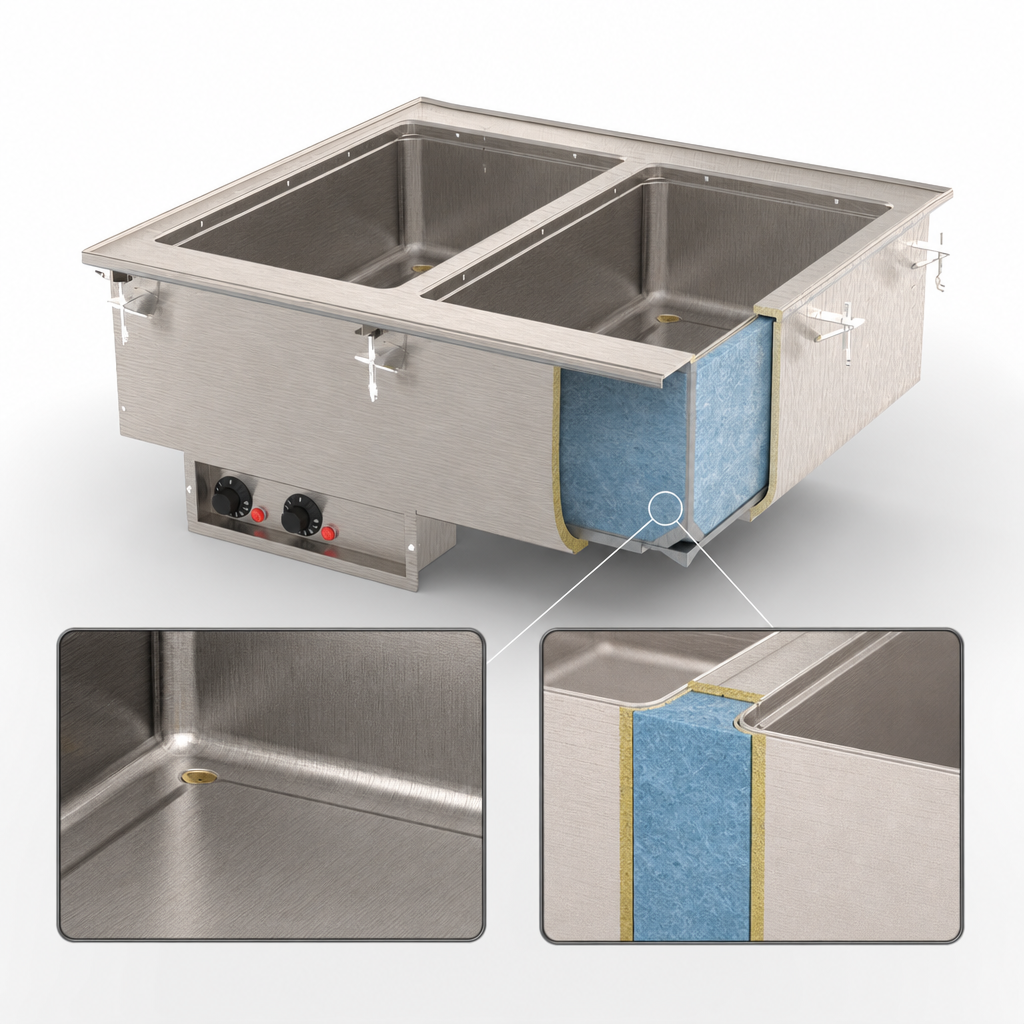

- Fully insulated body (including between wells) allows zero-clearance installation and improved energy efficiency.
- 1" copper manifold drain with master shut-off plus individual ball valves for each well—quick, no-mess water removal.
- 6 ft (1.8 m) cord with NEMA 6-15P; no hard-wiring required.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep; adapter bars recommended for fractional pans.
- Includes mounting clips for counters up to 3" (7.6 cm) thick and a factory-installed gasket under the drip edge.
- NSF & cULus listed; Made in the USA; 2-year limited warranty.
Technical Specifications
| Number of wells | 2 (individually controlled) |
|---|---|
| Well size | 12" × 20" each; 6" max pan depth |
| Operation | Wet heat only |
| Total wattage | 1,250 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase, 6.0 A |
| Plug | NEMA 6-15P, 6 ft cord |
| Overall dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 27-1/2" W × 25-1/4" D, 7/8" corner radius |
| Top material | 18-ga stainless steel |
| Exterior housing | Stainless steel |
| Drain | 1" copper manifold with master & individual shut-offs |
| Certifications | NSF 4 (wet), cULus |
| Warranty | 2-year limited (see vollrathfoodservice.com for details) |
Modular drop-ins are built to order and cannot be cancelled or returned. Do not modify the factory-installed cord or plug.
