Description

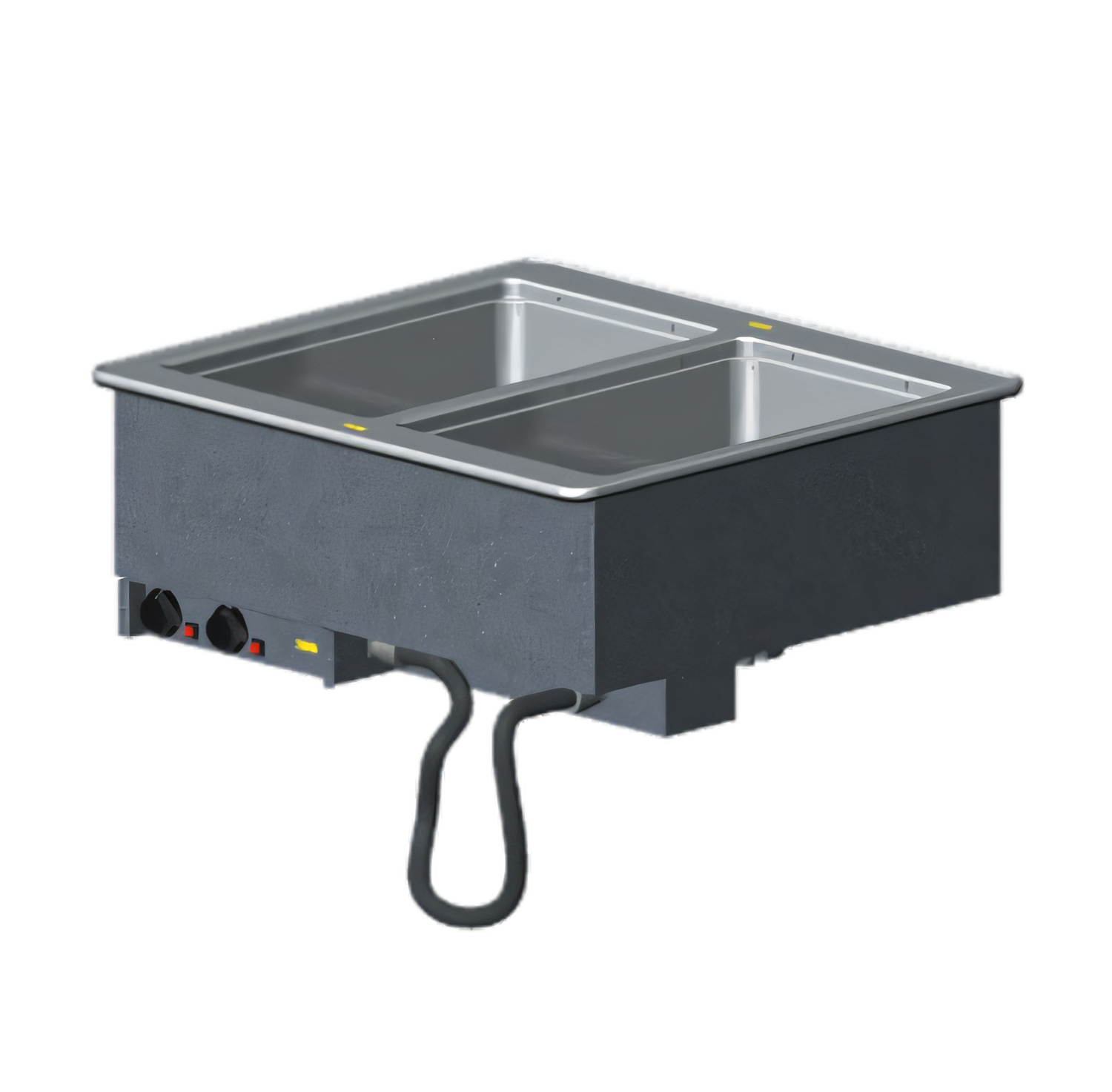

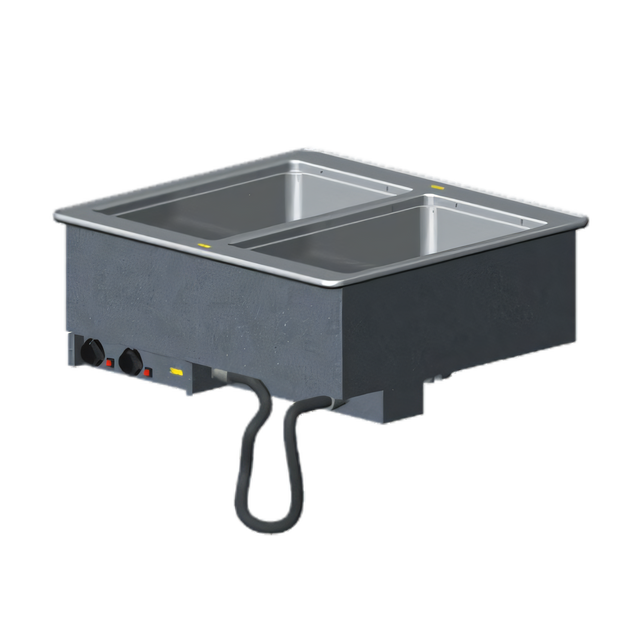

Vollrath Two-Well Hot Drop-In – 208 V / Infinite Control

Manifold drain • 625 W per well • Made in the USA

Keep entrées, sides and sauces at safe, appetizing temperatures with this NSF-listed, commercial-grade two-well drop-in from Vollrath. Designed for quick, cord-and-plug installation, the unit slides into a standard 27-1/2" × 25-1/4" countertop cut-out and delivers precise wet-heat holding without the need for hard-wiring.

Key features

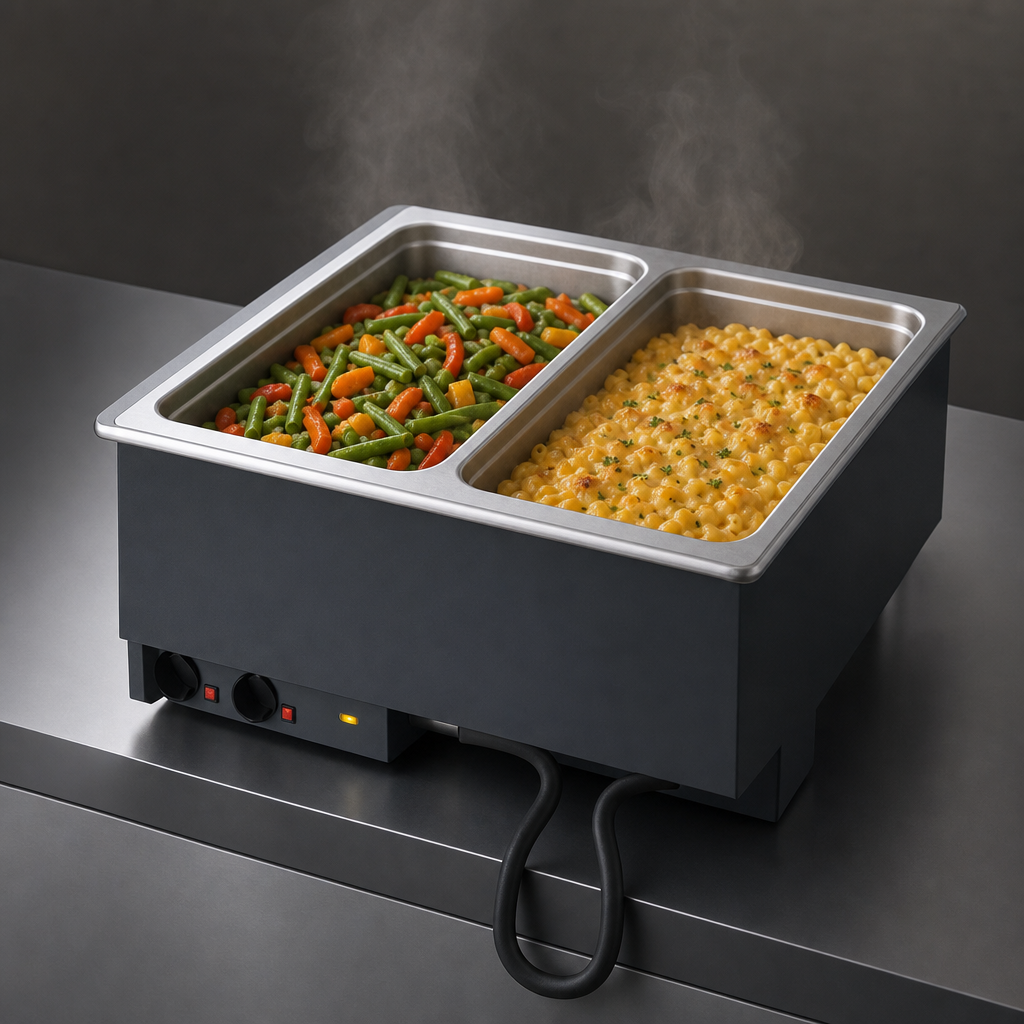

  • (2) full-size 12" × 20" wells formed from rugged 20-gauge stainless steel
  • Wet operation only – meets NSF 4 performance standards for even, gentle heating
  • Individual infinite controls with power indicator lights on a stainless-steel panel (4 ft tether)
  • 1" copper manifold drain with master shut-off plus individual ball valves at each well
  • Full-perimeter, drip-free flange keeps spills and condensation below counter level
  • Fully insulated on all sides, including between wells, for maximum energy efficiency
  • Accepts full-size or fractional pans up to 6" (adapter bars recommended for fractional pans)
  • Zero-clearance design; includes mounting clips for counters up to 3" thick
  • 18-ga stainless-steel top and 18-ga galvanized exterior housing stand up to daily use
  • 6 ft (1.8 m) cord with NEMA 6-15P plug – simply plug into a dedicated 208 V outlet

Technical specifications

Number of wells 2 (individually insulated)
Well size 12" × 20" (full size)
Operation Wet heat only
Control type Individual infinite controls
Total power 1,250 W (625 W per well)
Electrical 208 V / 60 Hz / 1-phase, 6.0 A, NEMA 6-15P
Overall dimensions 28-1/4" W × 26" D × 21-1/2" H
Counter cut-out 27-1/2" W × 25-1/4" D (7/8" corner radius required)
Drain 1" copper manifold with individual well shut-offs & master shut-off
Certifications NSF, cULus
Country of origin USA

What’s included

  • Two-well drop-in unit with factory-installed manifold drain
  • Remote stainless-steel control panel (4 ft tether)
  • Mounting/positioning clips

Warranty

Covered by Vollrath’s one-year limited warranty against defects in materials and workmanship. Visit vollrathfoodservice.com for complete details.

Important: Unit must be operated with water in each well. Do not modify the cord or plug; connect only to the specified receptacle to avoid damage and loss of warranty coverage. Orders for drop-ins cannot be canceled or returned once placed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

103.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
