Vollrath  |  SKU: 3640011HD

Vollrath 3640011HD Steam Tables & Food Wells

$2,178.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

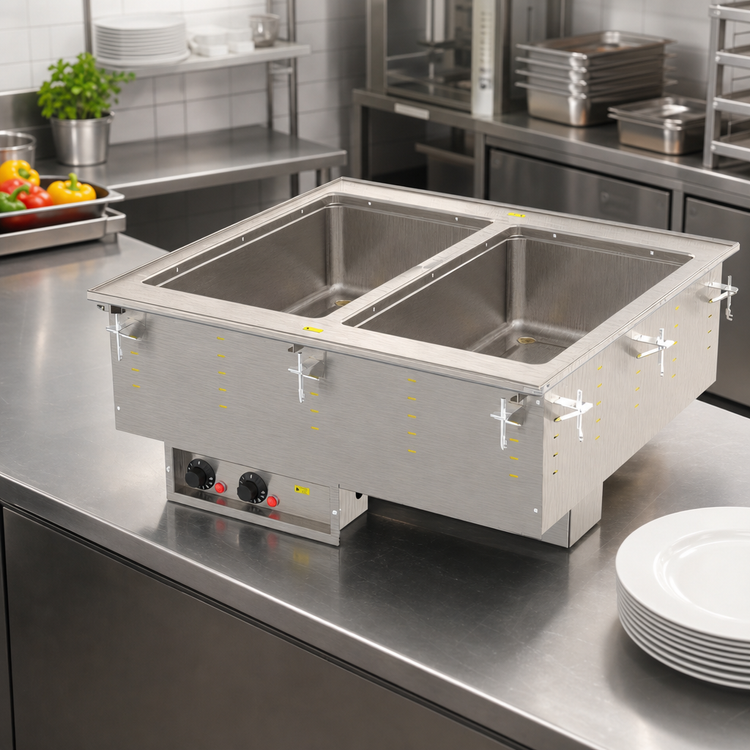

Vollrath Two-Well Modular Hot Drop-In (Marine-Grade)

Model 3640011HD | 208-240 V, 2000 W Total, Standard Drain

Built for demanding commercial kitchens and corrosive coastal environments, the Vollrath 3640011HD drop-in keeps two full-size hotel pans of food hot, fresh and ready for service—all without hard-wiring. Simply drop it in, fill with water and plug it in.

Key Benefits

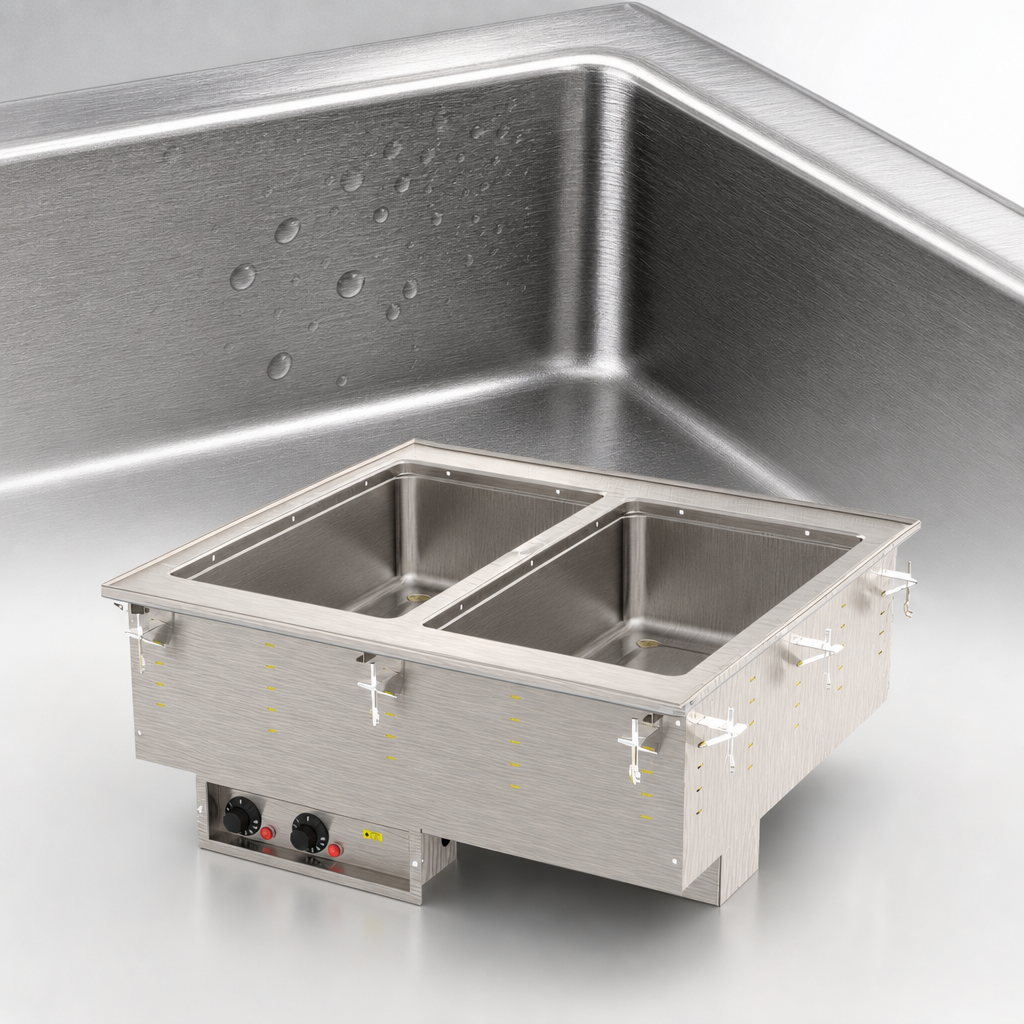

  • Two individual 12" × 20" wells drawn from 20-gauge 316 marine-grade stainless steel—maximum resistance to salt and cleaning chemicals.
  • Wet-operation design delivers even, gentle heat that meets NSF 4 performance standards.
  • Independent thermostatic controls (0-11 settings) with power indicator lights—dial in the perfect holding temperature for each menu item.
  • Fully insulated on all sides, including between wells, for energy-efficient operation and cooler exterior surfaces.
  • 18-gauge stainless steel top with full-perimeter drip-free flange contains spills and condensation.
  • Individual ½″ NPT drains with built-in ball valves—no mess when changing water.
  • 6 ft (1.8 m) cord and NEMA 6-15P plug—no electrician required.
  • Includes mounting/positioning clips for counters up to 3″ (7.6 cm) thick—fast, secure installation.
  • Accepts full-size or fractional pans up to 6″ (15.2 cm) deep; adapter bars recommended for fractional pans.
  • NSF, cULus listed and proudly Made in the USA.

Specifications

Capacity (2) full-size 12″ × 20″ pans (or fractional equivalent)
Overall Dimensions 28-1/4″ W × 26″ D × 15″ H (71.8 × 66 × 38.1 cm)
Counter Cutout 27-1/2″ W × 25-1/4″ D (69.9 × 64.1 cm) – 7/8″ corner radius required
Electrical 208-240 V / 60 Hz / 1-ph, 2000 W (1000 W per well), 7.2-8.3 A, NEMA 6-15P cord & plug
Controls Individual thermostatic knobs with power indicator lights (remote panel, 4′ tether)
Drain ½″ NPT drain per well with individual shut-off valves
Construction Wells: 20-ga 316 SS | Top: 18-ga SS | Exterior housing: stainless steel
Warranty 2-year parts & labor (see vollrathfoodservice.com for full policy)
Certifications NSF 4 (wet operation), cULus
Important: This unit is designed for wet operation only. Always keep wells filled with water during use to ensure even heating and to maintain NSF compliance.

Modular drop-ins are custom-built to order and cannot be canceled or returned. Do not modify the factory-installed cord or plug; doing so will void the warranty.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

114.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
