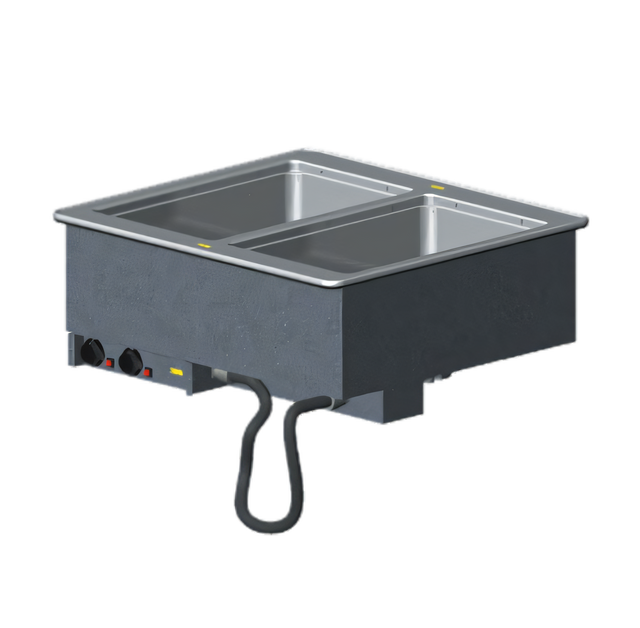

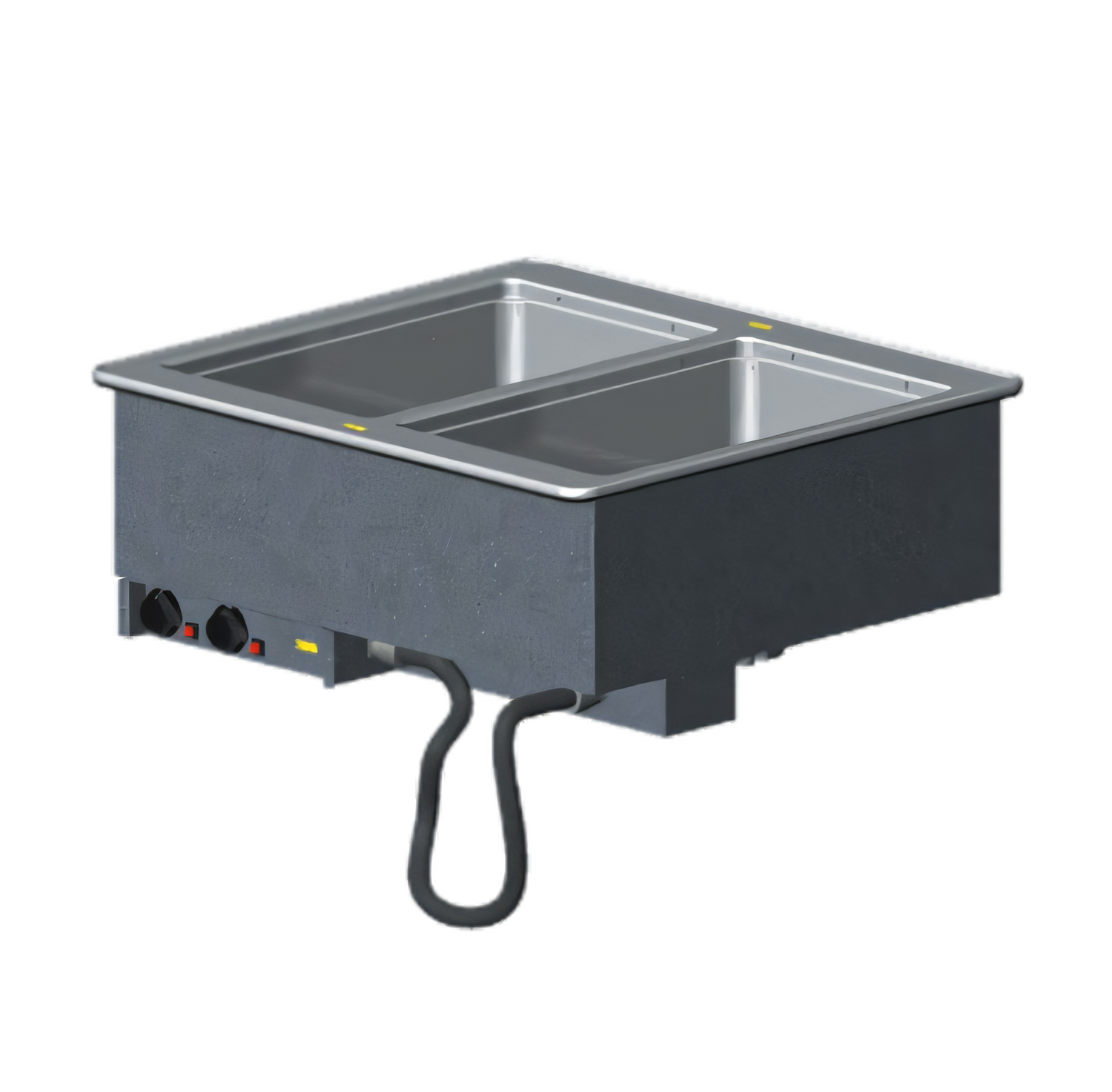

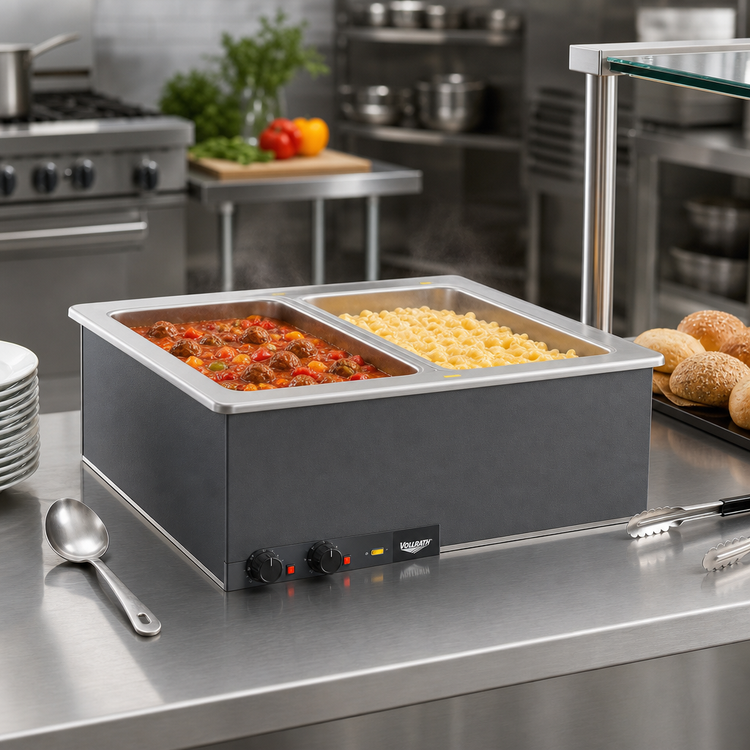

Vollrath Two-Well Drop-In Electric Hot Food Well Unit, Thermostatic Controls, 2 Full-Size Pans

208-240 Volts, Wet Operation Only, NEMA 6-15P

Keep two full-size menu items hot and ready with an insulated drop-in hot well designed for reliable moist-heat holding and easy countertop installation.

  • Two independent 12 inch x 20 inch wells let you hold multiple hot foods at the same time.
  • Individual thermostatic controls and power indicator lights make temperature management simple.
  • Wet-operation design helps maintain even serving temperatures; water is required for proper heating.
  • Drop-in, top-mount installation includes a drip-free flange, gasket, and mounting clips.
  • Cord-and-plug power connection reduces install complexity and does not require hard-wiring.
  • Stainless steel construction and insulated wells support durable, efficient commercial use.

Overall Dimensions:

28.25"W x 26.0"D x 15.0"H

Product Weight:

114.0 lb

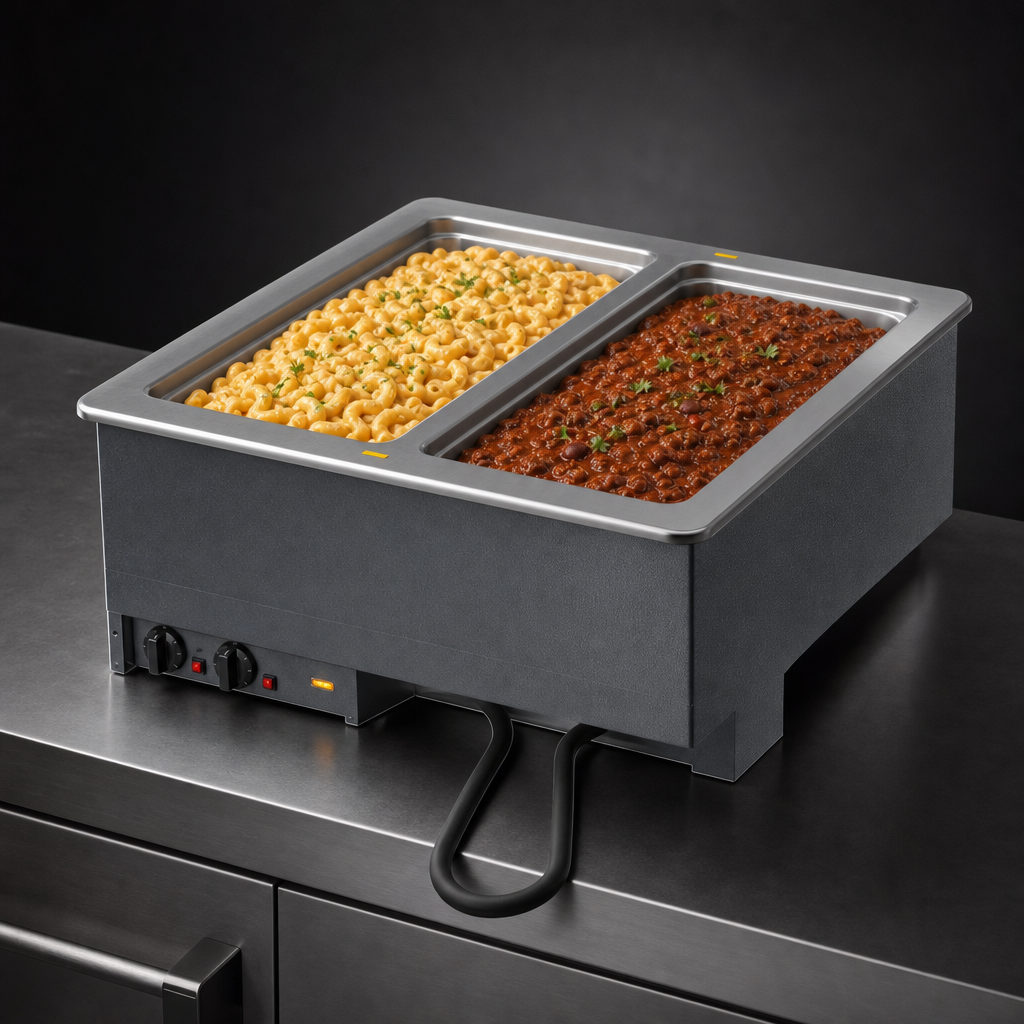

Two Independent Wells

Holds two separate full-size pans so different menu items can be served at the same time.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light for simple, independent temperature management.

Wet Operation Only

Designed for moist-heat operation; water is required for even heating and proper food holding.

Insulated Stainless Steel Construction

Insulated 20-gauge stainless steel wells and an 18-gauge stainless steel top help retain heat, while the galvanized exterior housing adds durability.

Drop-In Counter Installation

Top-mount design includes a drip-free flange, gasket, and standard mounting clips for easier installation.

Cord-and-Plug Connection

Includes a 6-foot cord with a NEMA 6-15P plug and does not require hard-wiring.

Drain System

Individual drain shutoffs and a 1/2 inch MPT drain connection help simplify draining and cleanup.

Pan Flexibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Compartments 2
Pan Capacity 2 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Voltage 208-240 Volts
Amps 7.2-8.3 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Required
Drain Connection Size 1/2 Inch MPT
Cutout Size 27-1/2 Inches x 25-1/4 Inches
Corner Radius 7/8 Inch
Country of Origin USA
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 114 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Frequently Asked Questions

It is wet operation only. Water is required for even heating and proper food holding.
No. It includes a cord and plug connection and does not require hard-wiring.
It operates on 208-240 Volts, 60 Hz, single phase power and uses a NEMA 6-15P plug.
It accepts full-size 12 inch x 20 inch pans and fractional pans up to 6 inches deep.
The required cutout is 27-1/2 inches wide by 25-1/4 inches deep, with a 7/8 inch corner radius.
Yes. Standard mounting clips are included for countertop installation.
