Vollrath  |  SKU: 3640010HD

Vollrath 3640010HD Steam Tables & Food Wells

$2,178.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

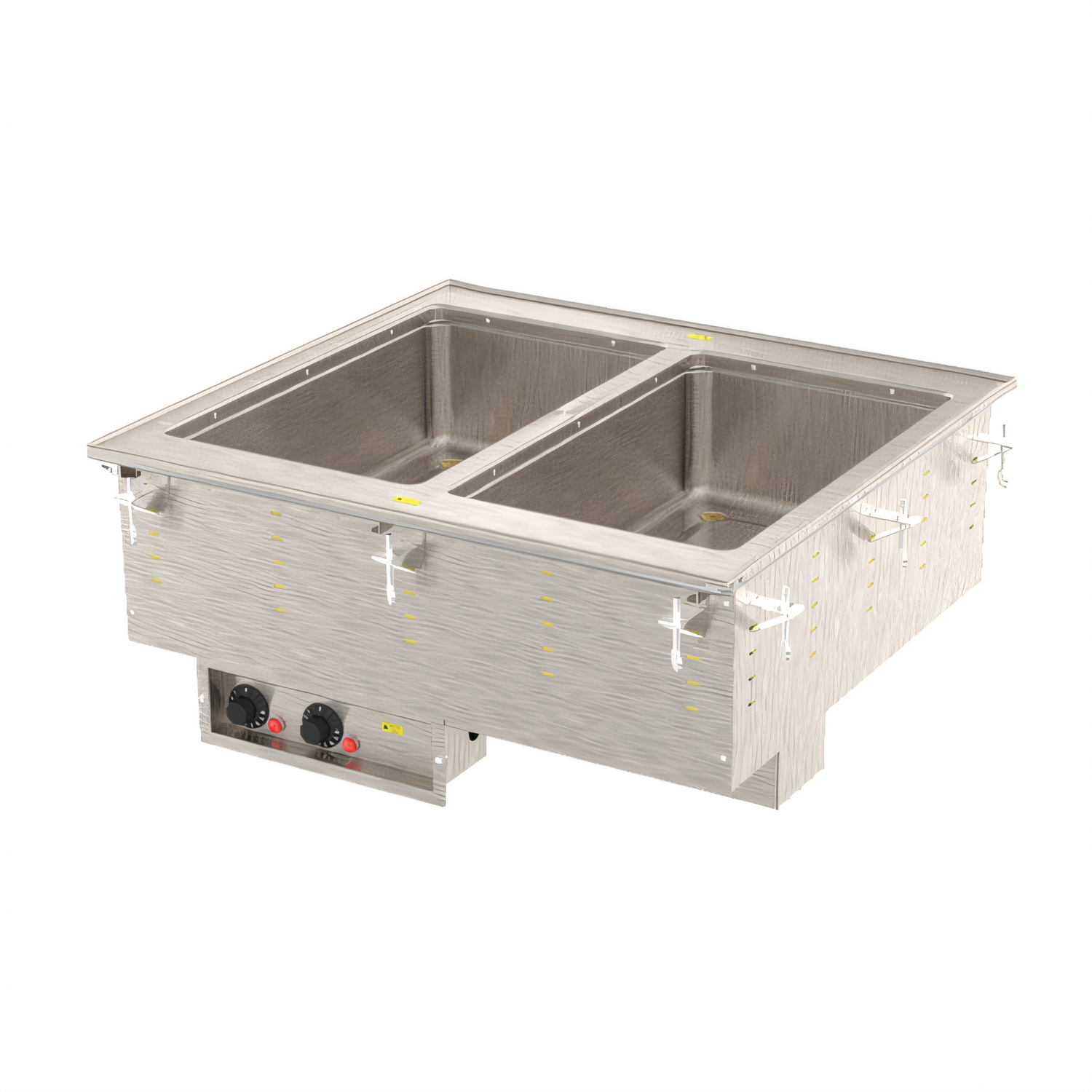

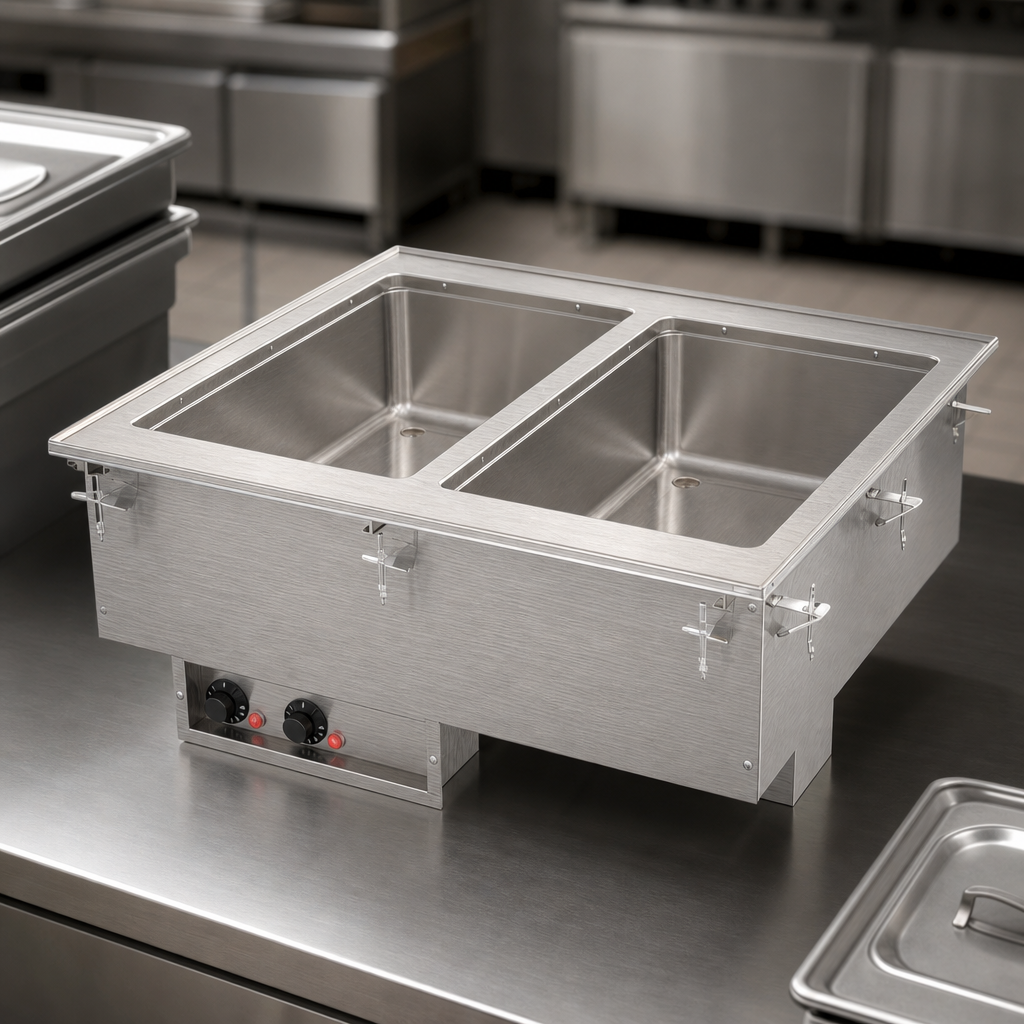

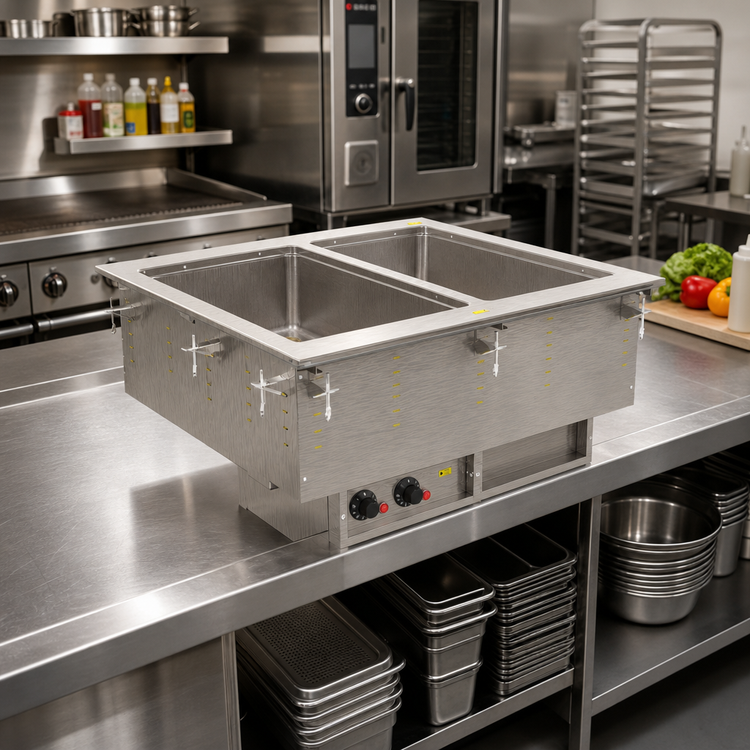

Vollrath Two-Well Modular Hot Food Drop-In, Marine-Grade

Model 3640010HD  |  208 V Single-Phase  |  Thermostatic Controls

Keep entrées, sides and sauces at safe serving temperatures with the durability of 316 marine-grade stainless steel. Vollrath’s 2-well drop-in arrives ready to install—no hard-wiring, no guesswork, just consistent wet-bath heat in a compact footprint.

Why you’ll love it

  • Two independent 12" × 20" wells—each accepts full-size or fractional pans up to 6" deep.
  • Marine-grade (SAE 316) 20 ga stainless steel resists corrosion from salt, acids and cleaning chemicals.
  • Individual thermostatic controls with power indicator lights for precise holding.
  • Full-perimeter drip-free flange contains spills and condensation, keeping counters clean.
  • 1/2" MPT drains with ball-valve shutoffs on each well for fast, mess-free water removal.
  • Factory-installed 6 ft (1.8 m) cord & NEMA 6-15P plug—no electrician required.
  • Zero-clearance design and included mounting clips simplify drop-in installation.
  • NSF 4 & cULus listed; proudly made in the USA.

Built to last

  • 18 ga stainless steel top & exterior housing.
  • High-density insulation on all sides—including between wells—for energy efficiency.
  • Removable bottom access panels speed up service and maintenance.
  • 4 ft (121.9 cm) tethered control panel lets you locate controls where staff can reach them easily.

At-a-glance specs

Model 3640010HD
Well capacity (2) full-size 12" × 20" pans, up to 6" deep
Operation Wet heat only (water bath required for NSF 4 compliance)
Controls Independent thermostatic dials with power lights
Wattage 625 W per well  /  1,250 W total
Electrical 208 V  /  60 Hz  /  1-phase  •  6.0 A
Plug type NEMA 6-15P (pre-wired, 6 ft cord)
Overall dimensions 28 ¼" W × 26" D × 15" H (71.8 × 66 × 38.1 cm)
Counter cut-out 27 ½" W × 25 ¼" D (69.9 × 64.1 cm) with 7⁄8" corner radius
Drain connection ½" MPT (one per well)
Certifications NSF 4, cULus
Warranty 2 years limited (see VollrathFoodservice.com for details)

Quick tips

  • Fill each well with hot water before powering on for fastest heat-up.
  • Use adapter bars (sold separately) when running fractional pans.
  • Indoor use only; ambient room temperature will affect holding performance.
Note: Operation with water is required for even heating and to maintain NSF performance. Modular drop-ins may not be canceled or returned once ordered.

Looking for additional technical info? Visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

86.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
