Vollrath  |  SKU: 3640001HD

Vollrath 3640001HD Steam Tables & Food Wells

$2,057.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

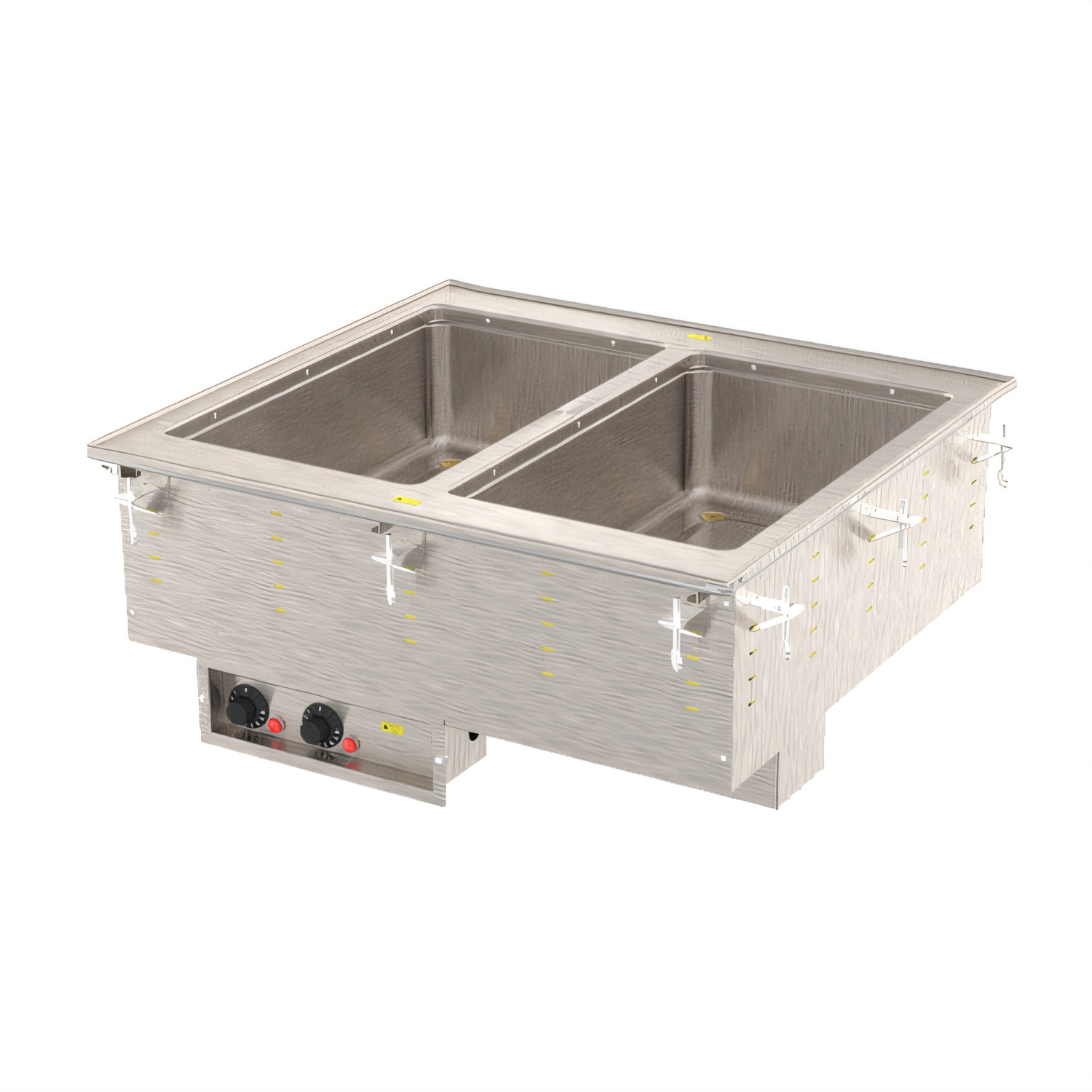

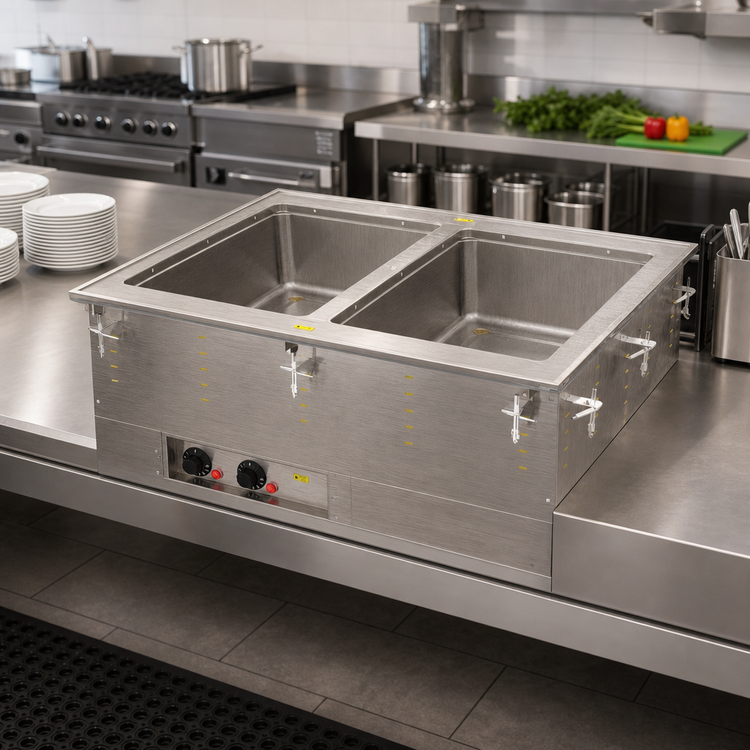

Vollrath Two-Well Hot Drop-In Unit – Marine-Grade 316 Stainless

28-1/4" W x 26" D | 208-240 V | Wet operation only

Designed for demanding food-service environments, this Vollrath drop-in keeps two full-size pans of product hot, fresh and ready for service. Marine-grade 316 stainless steel wells resist corrosion from salt, acidic sauces and cleaning chemicals, while individual infinite controls let you dial in the perfect holding temperature for each well.

Built for performance & longevity

  • (2) independent 12" x 20" wells – 1000 W each (2000 W total)

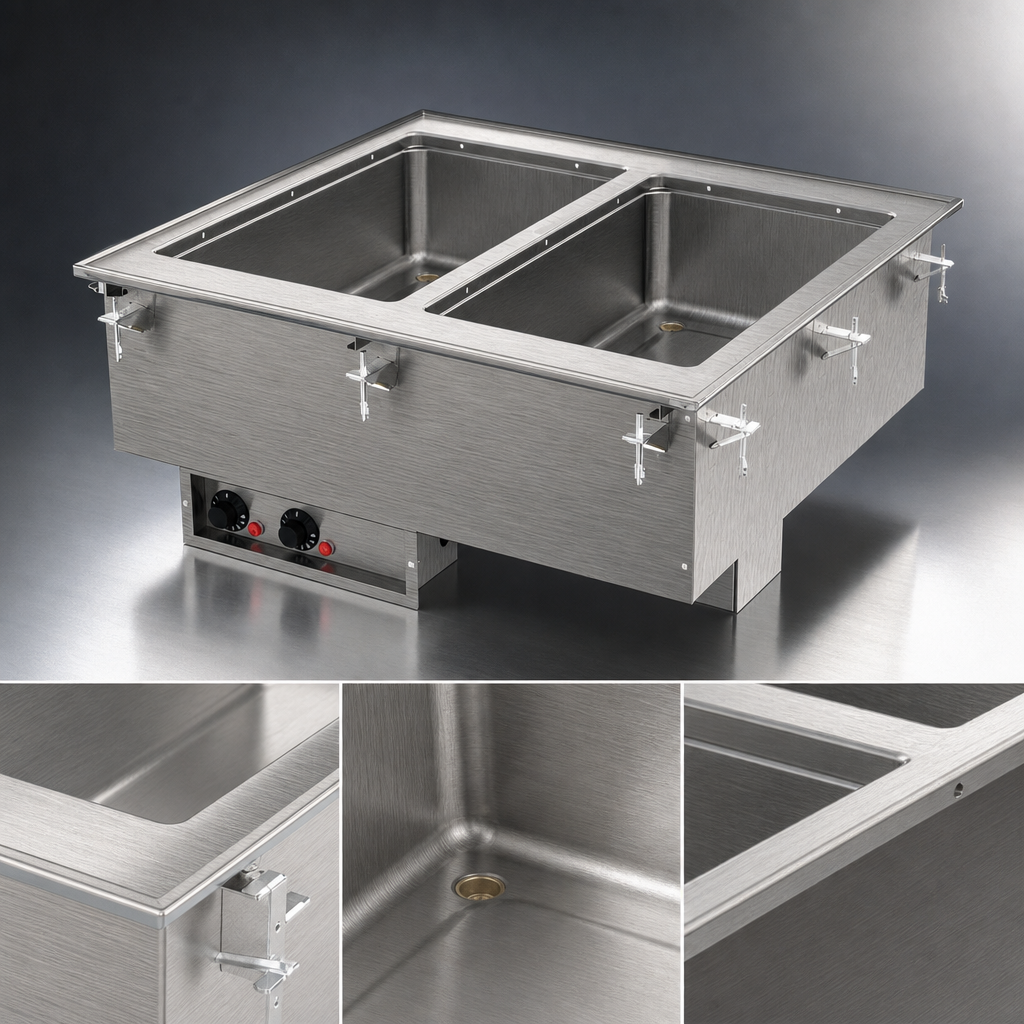

  • 20-gauge, 316 stainless steel wells with fully welded, drip-free flange
  • 18-gauge stainless steel top and rugged exterior housing
  • Fully insulated on all sides, including between wells, for maximum energy efficiency
  • Wet-operation design meets NSF 4 performance standards for even heat
  • Individual infinite controls with power indicator lights on a 4' tethered panel
  • ½" drains with individual ball-valve shut-offs for quick well emptying and cleanup
  • Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans)
  • Zero-clearance, drop-in installation – includes mounting/positioning clips for counters up to 3" thick
  • 6' factory-installed cord and NEMA 6-15P plug – no hardwiring required
  • NSF & cULus listed | Made in the USA

Technical Specifications

Wells / Capacity (2) full-size 12" x 20" wells  |  6" pan depth max
Construction 20 ga 316 stainless wells, 18 ga stainless top, insulated housing
Operation Wet heat only  |  Individual infinite controls
Power 2000 W total (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph  |  7.2 – 8.3 A  |  NEMA 6-15P
Overall Dimensions 28-1/4" W × 26" D × 15" H (71.8 × 66 × 38.1 cm)
Counter Cut-Out 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm)  |  7/8" corner radius
Drain Connections ½" MPT per well with individual shut-offs
Cord Length 6' (1.8 m)
Certifications NSF 4 (wet), cULus
Country of Origin USA
Warranty 2-year limited (see vollrathfoodservice.com for details)
Important: This unit is engineered for wet operation only. Always maintain the recommended water level to ensure even heating and to comply with NSF requirements.

For full warranty terms, installation guides and service information, please visit the Vollrath Foodservice website or contact Technical Services.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

65.0lbs

Construction

stainless steel construction

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
