Vollrath  |  SKU: 3640001

Vollrath 3640001 Steam Tables & Food Wells

$1,758.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

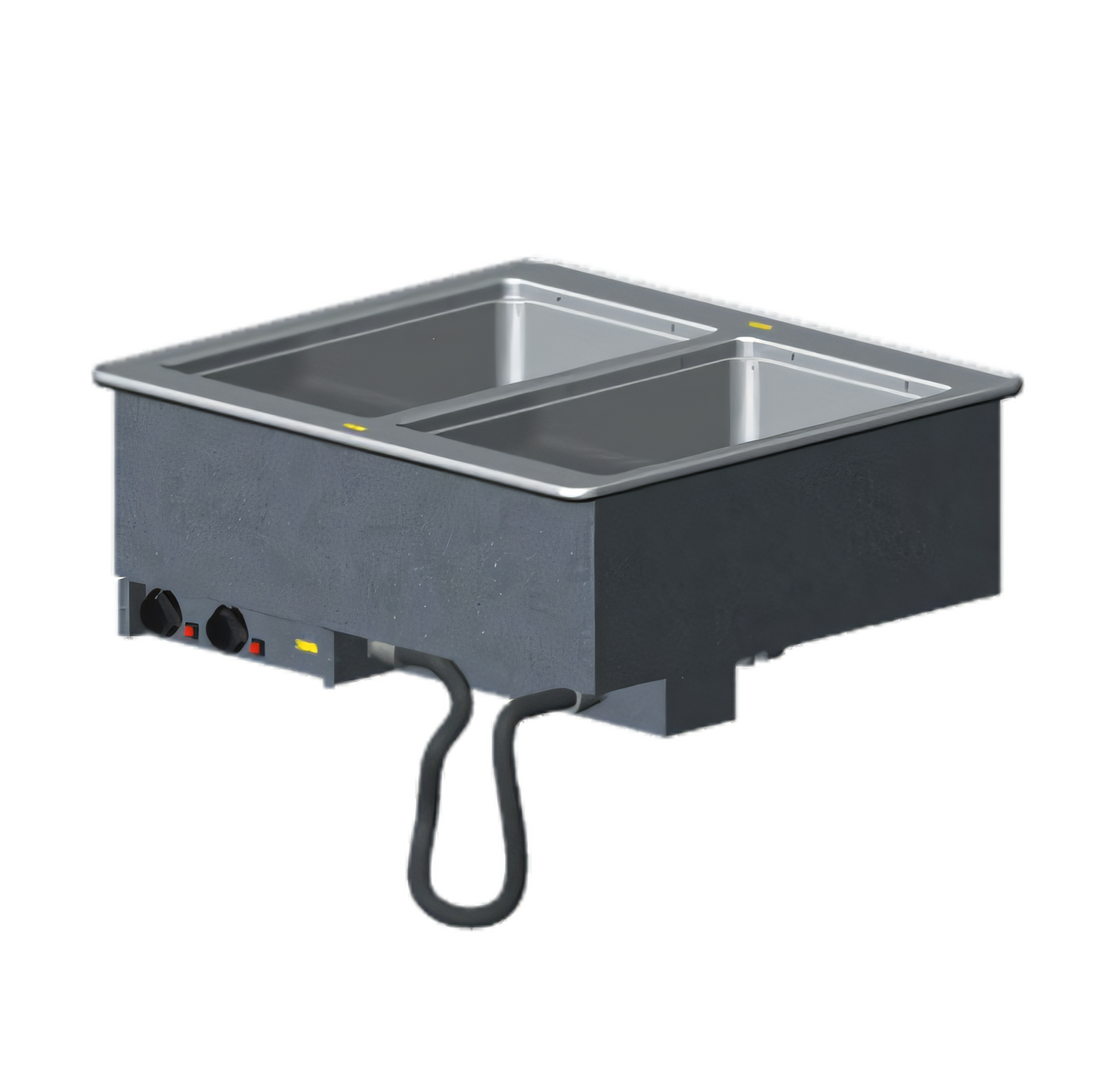

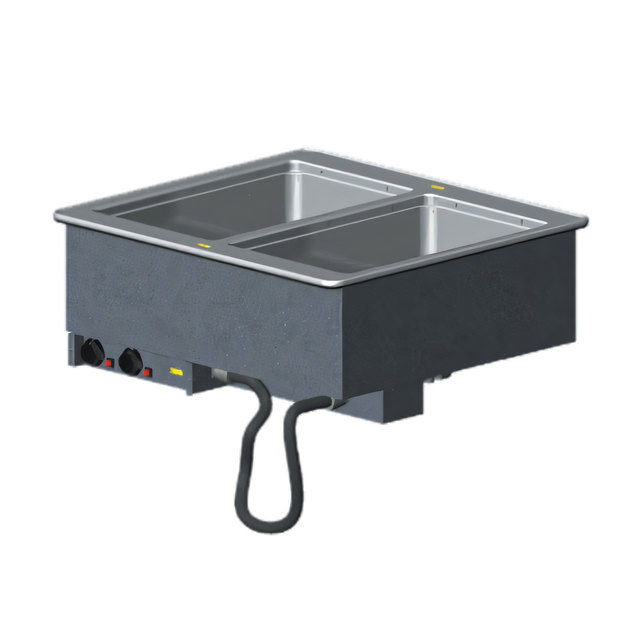

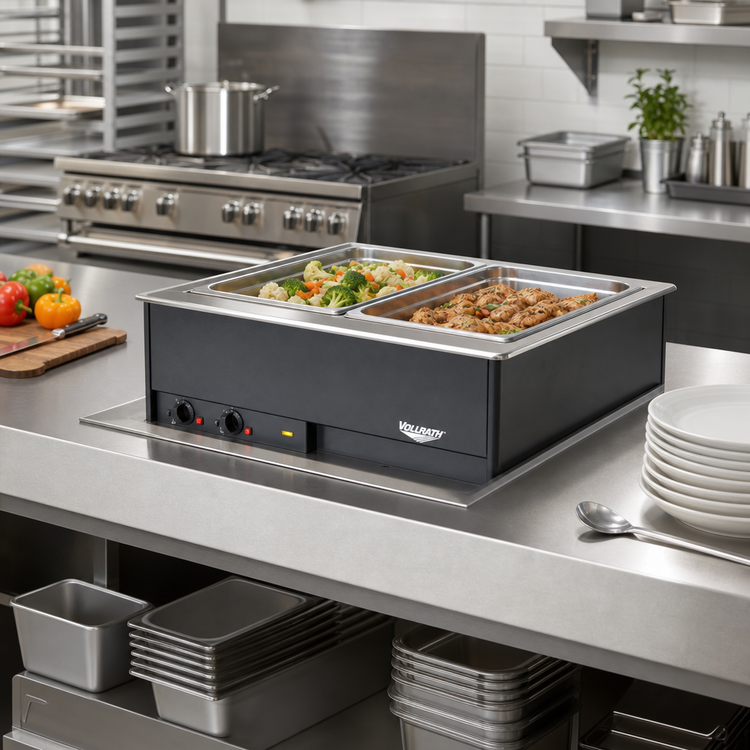

Vollrath 2-Well Electric Drop-In Hot Food Well — 208-240 V, Infinite Control

Model 3640001 | Standard Drain | 1000 W per well

Engineered for busy commercial kitchens, this Vollrath drop-in module delivers consistent, wet-heat holding without the need for hard-wiring. Simply drop it in, plug it in and keep entrées, sauces and sides at safe serving temperatures throughout every service.

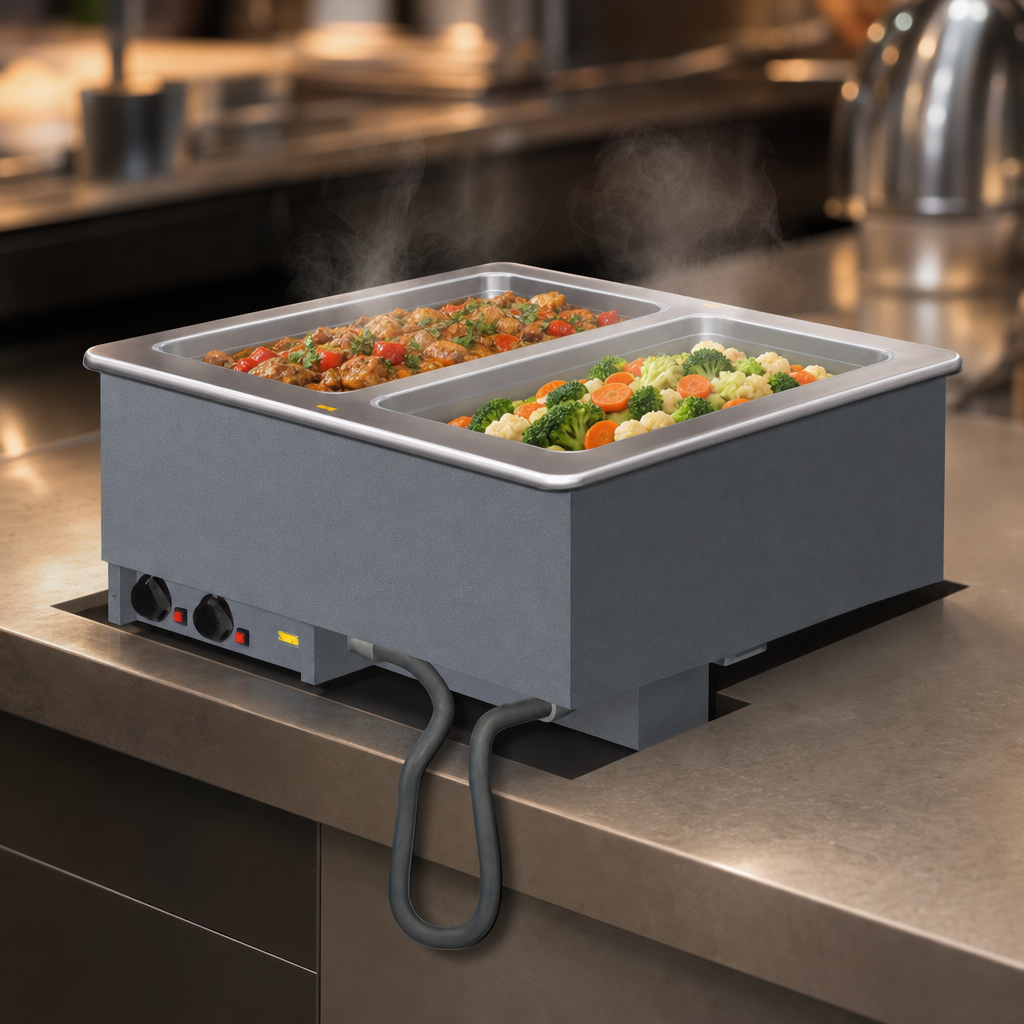

  • Two independently controlled 12" × 20" full-size wells — 1000 W each, 2000 W total.
  • Wet-only operation with full-perimeter drip edge to contain condensation and spills.
  • 20-gauge, 300-series stainless wells fully insulated on all sides (including between wells).
  • Durable 18-gauge stainless top flange and 18-gauge galvanized exterior housing.
  • Remote stainless control panel (4 ft tether) with individual infinite dials and power indicator lights.
  • ½" MPT drains with individual ball-valve shut-offs for quick, mess-free water removal.
  • Factory-installed 6 ft cord with NEMA 6-15P plug — no electrician required.
  • Zero-clearance installation; mounting clips fit counters up to 3" thick (included).
  • Accepts pans up to 6" deep; adapter bars and sheet-pan adapter (Item 19186) sold separately.
  • NSF & cULus listed; proudly made in the USA.
Technical Specifications
Overall dimensions (W × D × H) 28-1/4" × 26" × 15" (71.8 × 66 × 38.1 cm)
Counter cutout (W × D) 27-1/2" × 25-1/4" (69.9 × 64.1 cm)  •  7/8" corner radius
Well capacity (2) full-size 12" × 20" pans — up to 6" deep
Operation Wet heat only
Controls (2) Infinite temperature dials with pilot lights
Output 1000 W per well / 2000 W total
Electrical 208-240 V / 60 Hz / 1-ph  •  7.2-8.3 A
Power connection 6 ft cord, NEMA 6-15P plug
Drain connection ½" MPT individual drains with ball valves
Construction 20-ga stainless wells, 18-ga stainless top, 18-ga galvanized exterior
Certifications NSF 4 (wet operation), cULus
Country of origin USA
Important: Fill each well with water before energizing the unit. Operating dry will damage the heating elements and void NSF 4 compliance.

Modular drop-ins are non-cancelable and non-returnable.
See VollrathFoodservice.com for complete warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

65.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
