Vollrath  |  SKU: 36400

Vollrath 36400 Steam Tables & Food Wells

$1,758.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

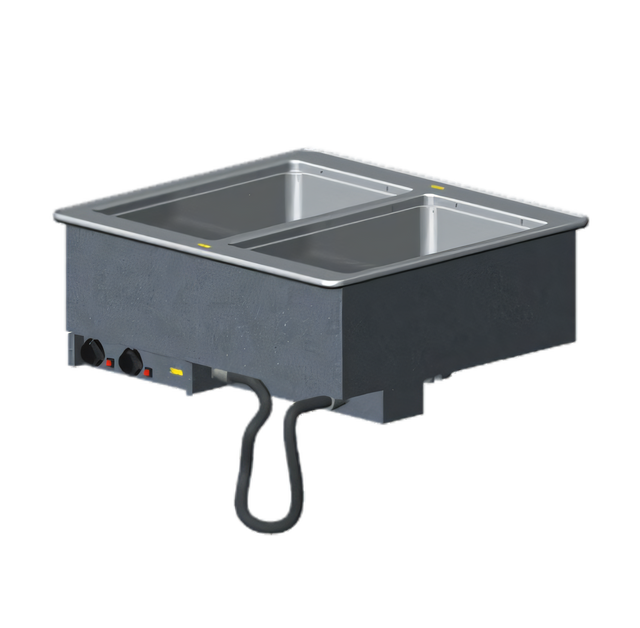

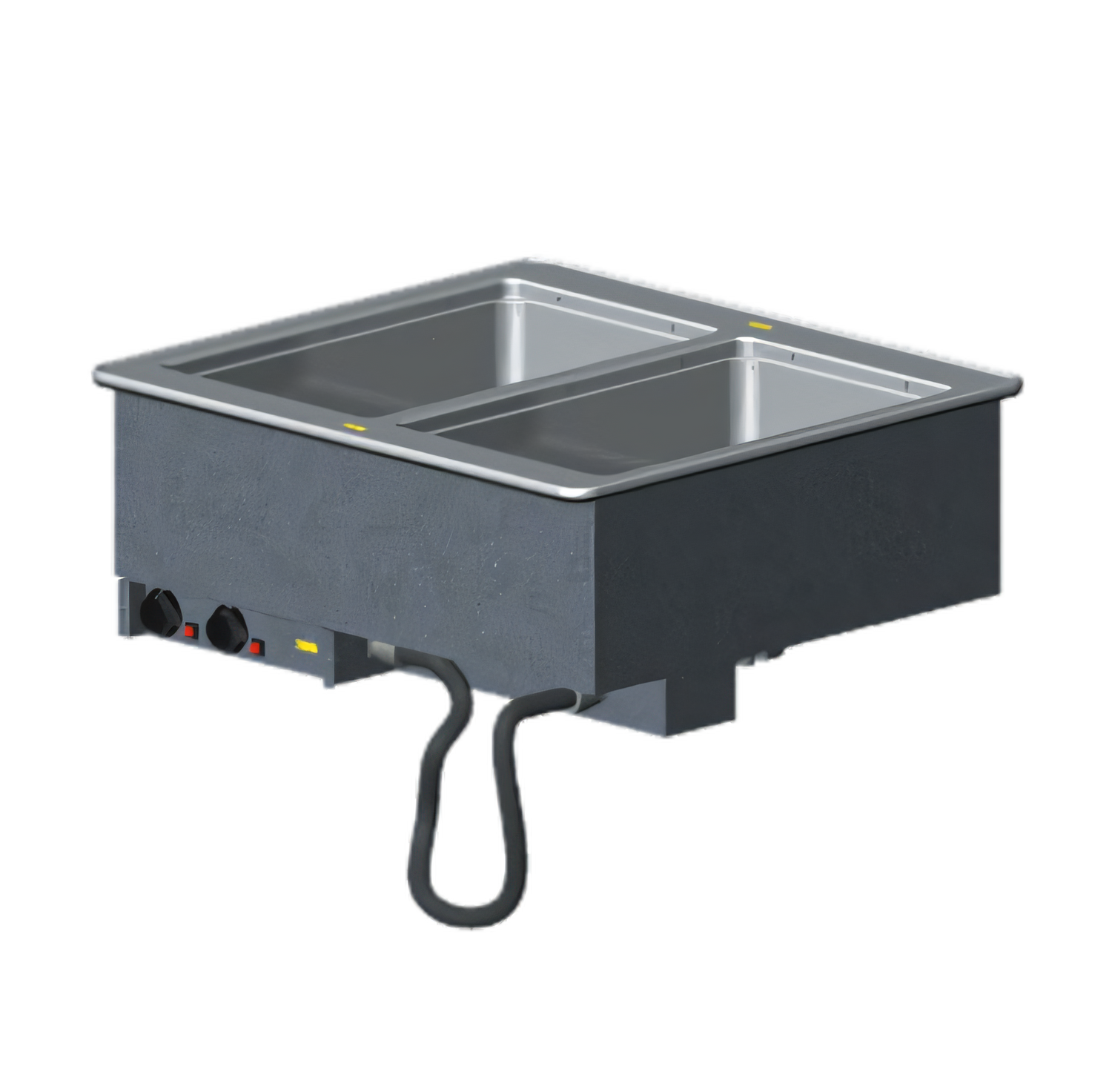

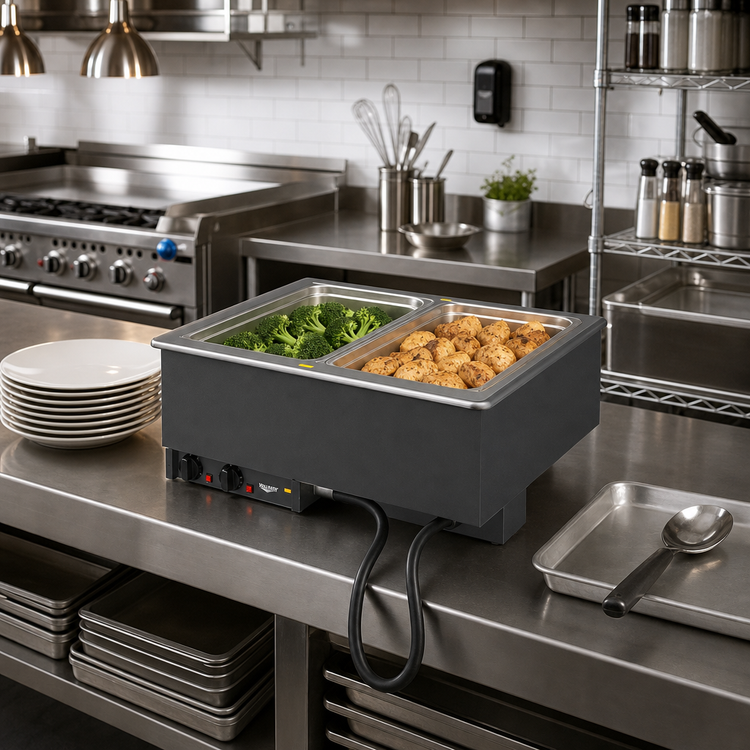

Vollrath 2-Well Electric Drop-In Hot Food Well – 208 V

28¼" W × 26" D | Infinite Controls | NSF & cULus Listed

Built for busy serving lines, this Made-in-USA drop-in keeps two full-size pans of food at safe, appetizing temperatures without the need for hard-wiring. Each insulated well is individually controlled for maximum menu flexibility and energy efficiency.

Key Features
  • Wet-heat design provides gentle, even holding and meets NSF 4 performance standards.

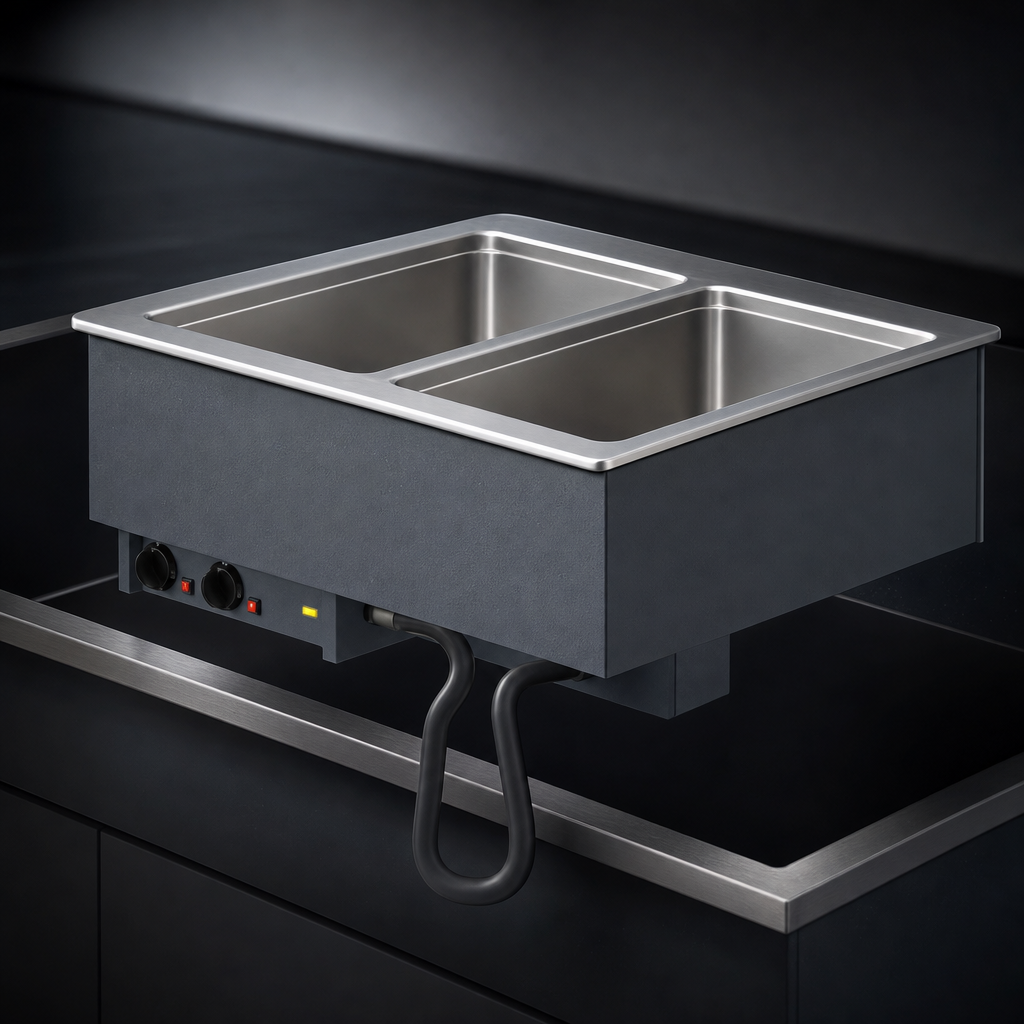

  • (2) 12" × 20" wells formed from 20-gauge stainless steel with high-density insulation on all sides.
  • 18-gauge stainless steel top with full-perimeter drip-free flange contains spills and condensation.
  • Independent infinite control knobs and power indicator lights mounted on a stainless panel (4 ft tether).
  • ½" drains with individual ball-valve shutoffs for safe, mess-free emptying.
  • Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
  • Ships with 6 ft cord and NEMA 6-15P plug—no electrician or hard-wiring required.
  • Zero-clearance, top-mount installation; mounting clips for counters up to 3" thick included.
  • NSF, cULus listed and proudly manufactured in Sheboygan, Wisconsin.
Specifications
Operation Wet heat only
Number of wells 2 (individually controlled)
Well size 12" × 20" (full-size steam table pans)
Overall dimensions 28¼" W × 26" D × 15" H (71.8 × 66 × 38.1 cm)
Recommended cut-out 27½" W × 25¼" D with 7⁄8" corner radius
Construction 20 ga stainless wells, 18 ga stainless top, 18 ga galvanized exterior housing
Controls Individual infinite switches with indicator lights
Drain ½" MPT drains with individual ball valves
Electrical 208 V / 60 Hz / 1-phase, 6 A, 1 250 W total (≈ 625 W per well)
Power cord & plug 6 ft cord, NEMA 6-15P
Certifications NSF 4, cULus
Country of origin USA
Perfect For
  • Buffet lines & cafeterias
  • Healthcare tray make-up stations
  • Quick-service & convenience stores
  • Any operation needing reliable, built-in hot holding without hard-wiring
Important: This unit is engineered for wet operation only. Keep water in each well at all times for even heating and to maintain NSF compliance. All modular drop-ins are built to order and cannot be canceled or returned.

Refer to Vollrath’s full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

98.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
