Vollrath 36399HD Steam Tables & Food Wells
Description

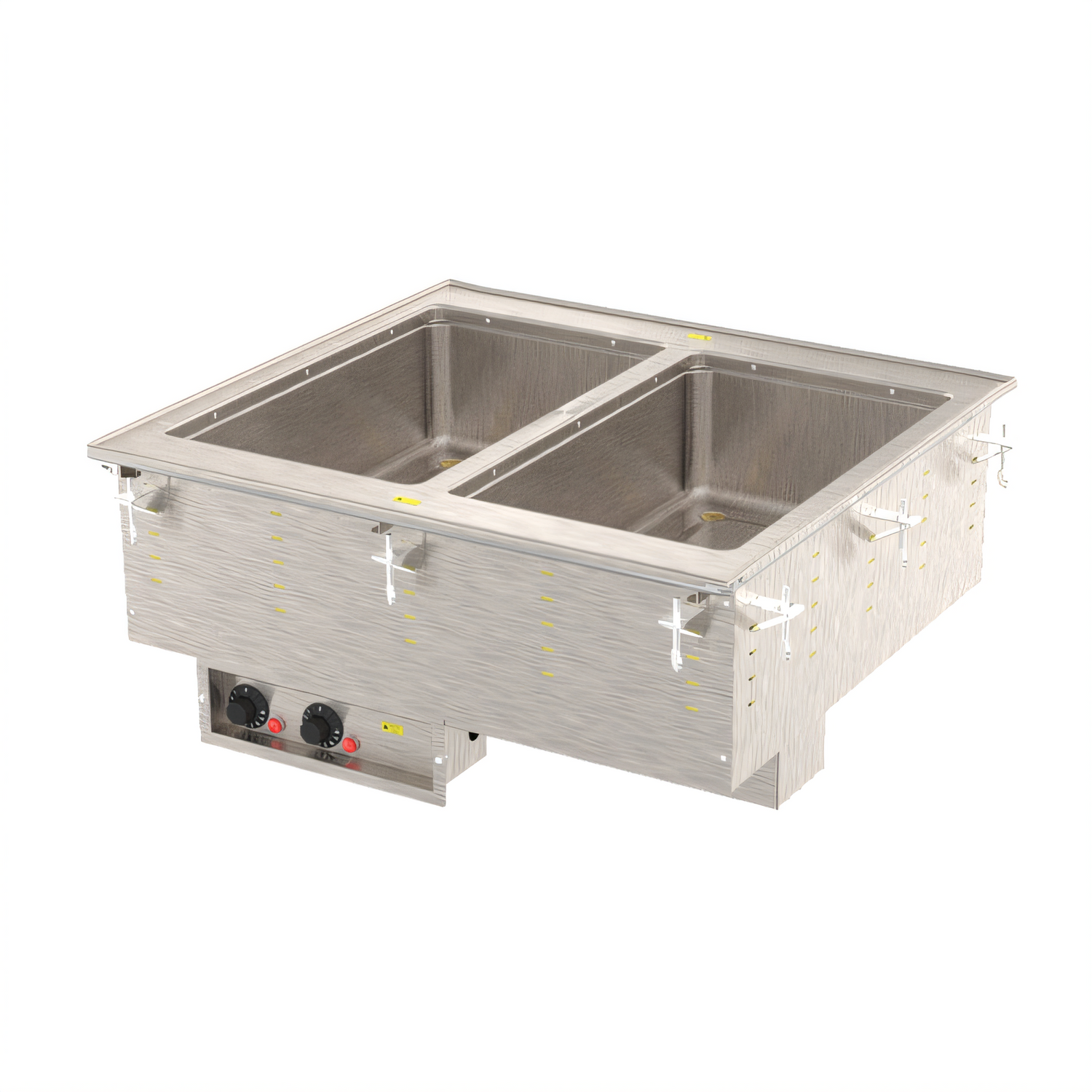

Vollrath Two-Well Marine-Grade Electric Drop-In Hot Food Well
Model 36399HD • 120 V • Infinite ControlsKeep entrées, sides, and sauces at safe serving temperatures with the rugged reliability of Vollrath’s U.S-made two-well hot drop-in. Built with 316 marine-grade stainless steel and wrapped in full insulation, this wet-operation unit stands up to harsh kitchen and buffet environments while delivering even, energy-efficient heat.
Why you’ll love it

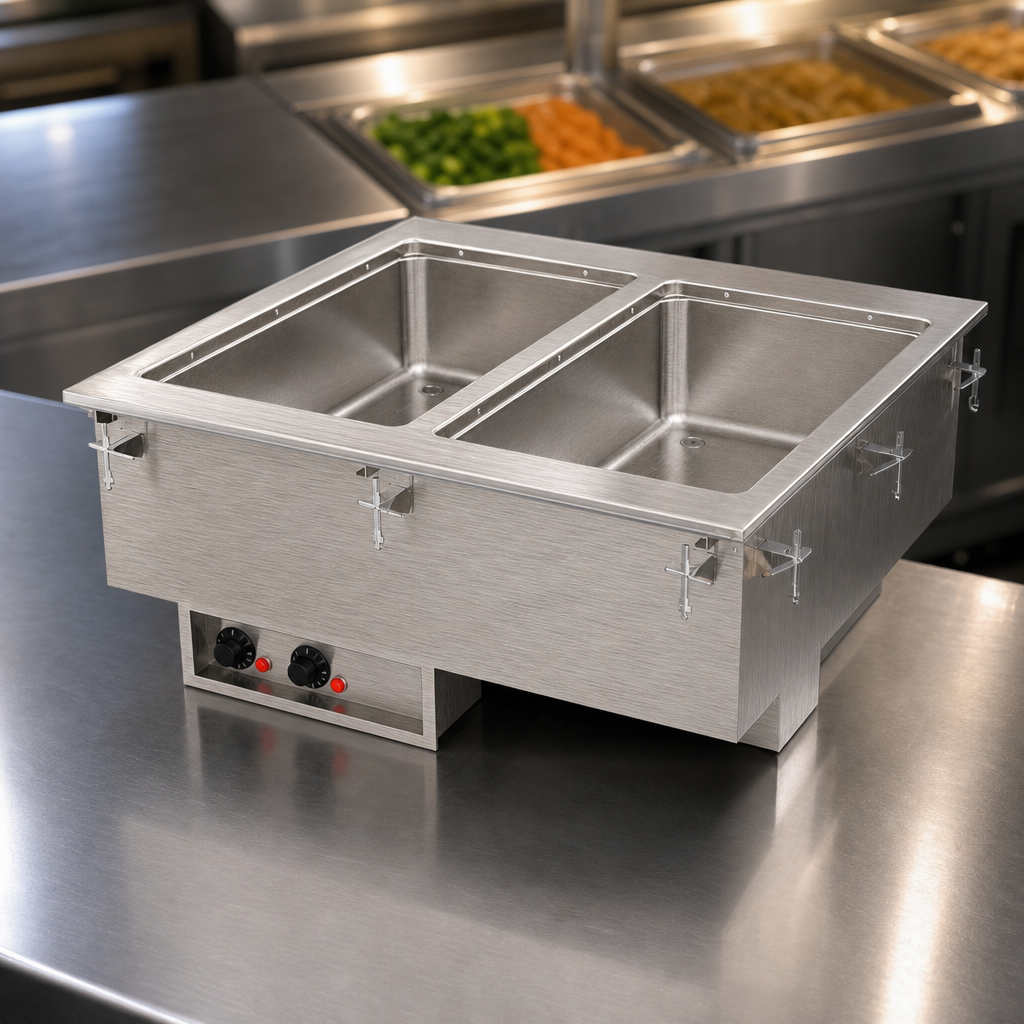

- Two independent 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance.
- 625 W per well (1,250 W total) with individual infinite controls and power indicators—fine-tune each well separately.
- Wet-operation design meets NSF 4 standards for safe, uniform heating.
- Full-perimeter drip-free flange and included gasket protect counters from spills and condensation.
- ½" individual drains with ball-valve shutoffs for fast, mess-free cleanup.
- Removable bottom service panels speed maintenance.
- Ships ready to install: 18-gauge stainless top, exterior housing, mounting clips for counters up to 3" (7.6 cm) thick, and a 6' (1.8 m) cord with NEMA 5-15P plug—no hard-wiring required.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep; adapter bars recommended for fractional pans.
- Zero-clearance drop-in design maximizes valuable serving-line space.
- NSF & cULus listed; backed by a 2-year Vollrath warranty.
Technical specifications
| Overall dimensions | 28-1/4" W × 26" D × 15" H (71.8 × 66 × 38.1 cm) |
|---|---|
| Counter cut-out | 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm) • 7/8" (2.2 cm) corner radius |
| Well size (each) | 12" × 20" full-size steam-table pan |
| Construction | 20-ga 316 stainless wells, 18-ga stainless top & housing, fully insulated |
| Electrical | 120 V / 60 Hz / 1-ph, 1,250 W, 10.4 A, cord & NEMA 5-15P plug |
| Controls | Two infinite switches, remote stainless panel, 4' (122 cm) tether, power lights |
| Drain | ½" (1.3 cm) NPT per well, individual ball valves |
| Certifications | NSF 4 (wet operation), cULus, Made in USA |
| Warranty | 2-year limited parts & labor (see vollrathfoodservice.com for details) |
Installation notes
Unit is intended for indoor, wet operation only and must be filled with water during use to ensure even heating. Zero-clearance construction permits installation in tight counters; however, proper ventilation of the surrounding cabinetry is recommended.
Need to convert a sheet-pan opening? Add Vollrath sheet-pan adapter #19186 (sold separately).
