Vollrath  |  SKU: 3639981

Vollrath 3639981 Steam Tables & Food Wells

$2,741.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

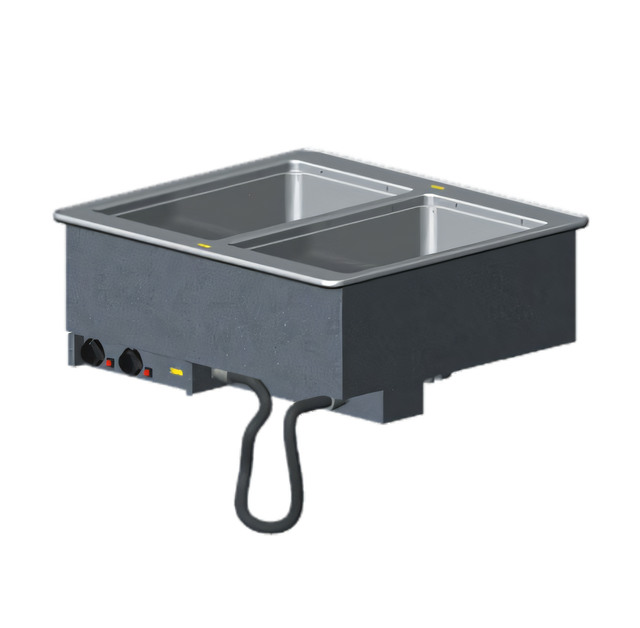

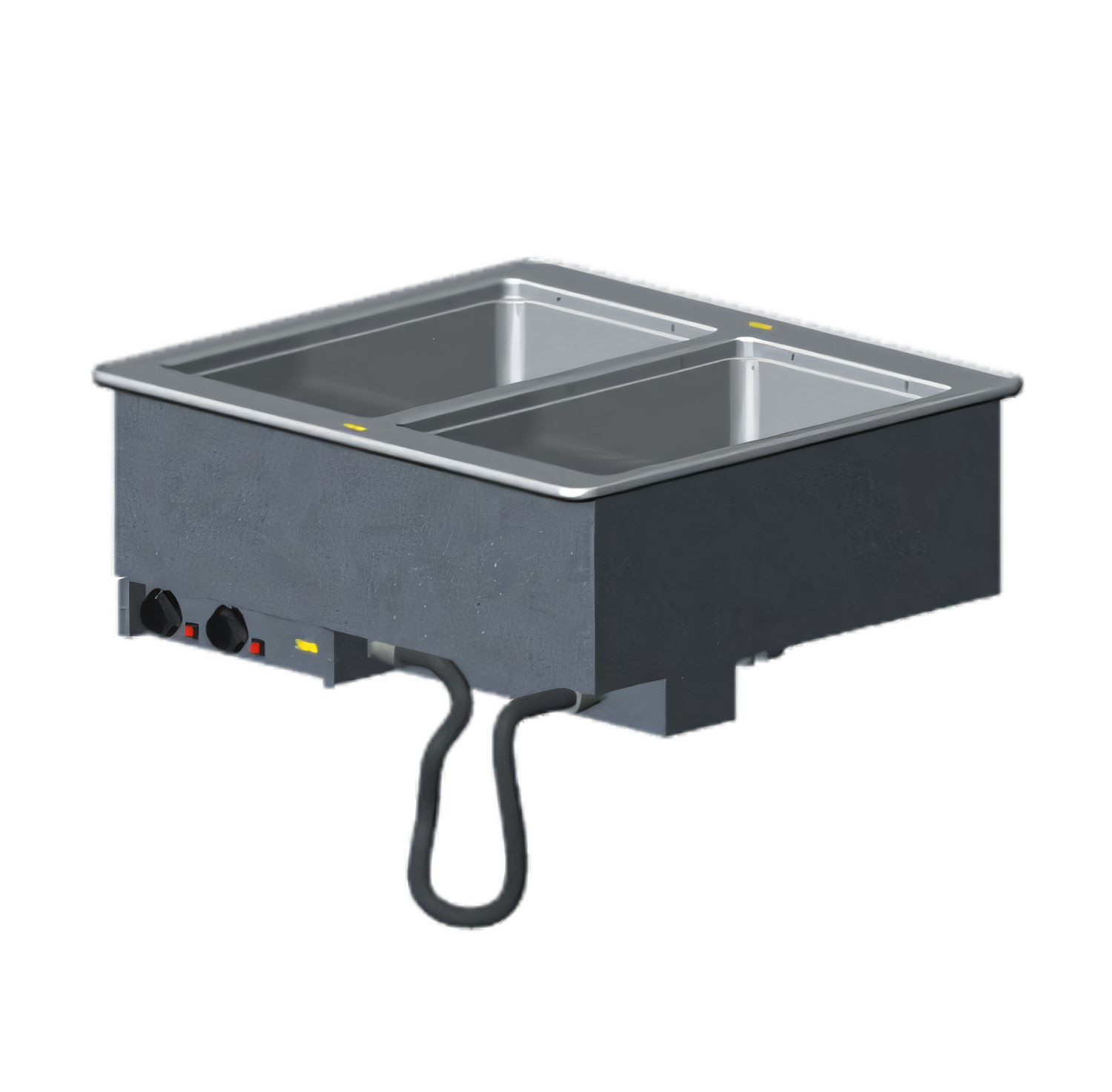

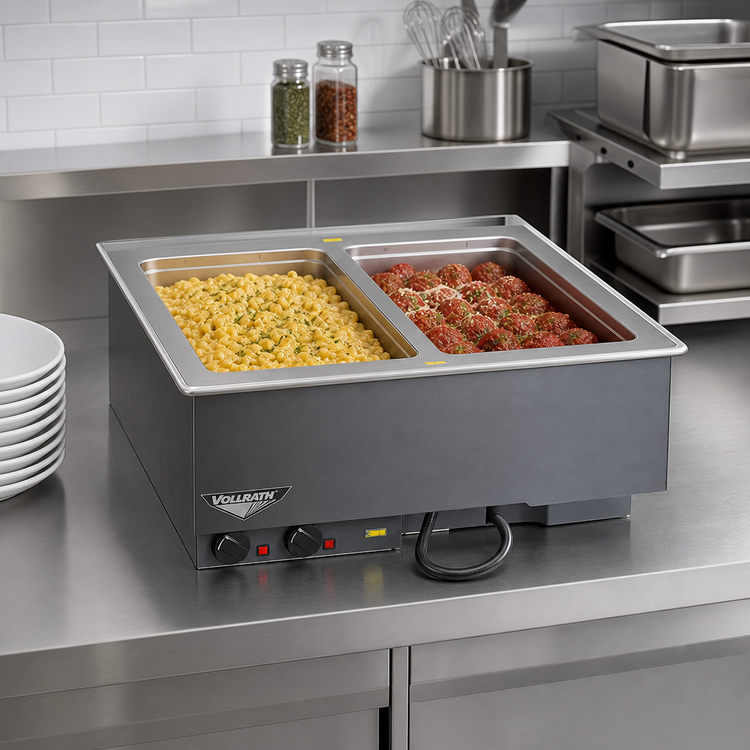

Vollrath 2-Well Hot Drop-In with Auto-Fill & Thermostatic Controls

Model 3639981 • 1000 W per well • 120 V

Serve hot foods safely and efficiently with Vollrath’s Made-in-USA two-well drop-in. Independent thermostatic controls, automatic water fill and a drip-free perimeter flange make this NSF-listed unit a smart, labor-saving addition to any buffet, cafeteria line or cook-serve station.

Why you’ll love it

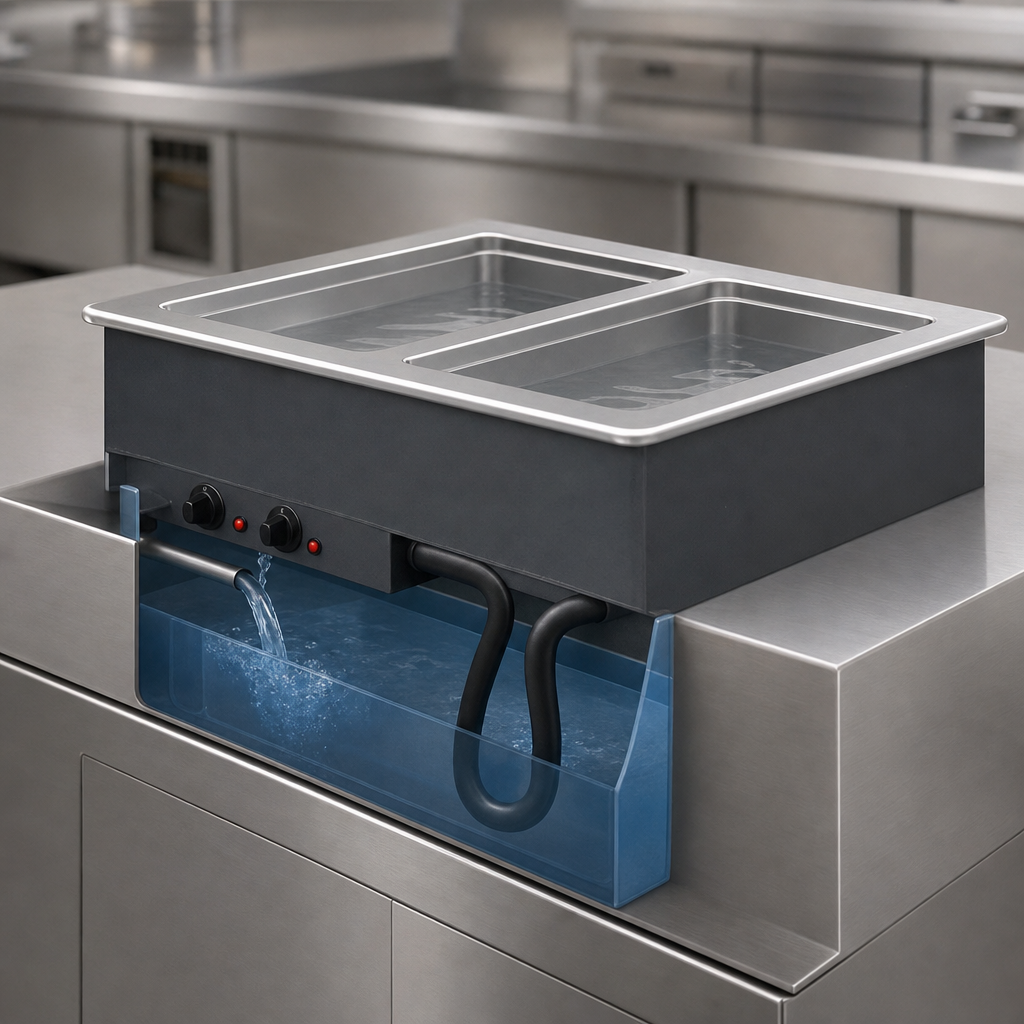

  • Wet-operation design with integrated auto-fill keeps water at the ideal level for consistent holding temps.
  • (2) full-size 12 × 20 in. wells formed from 20-gauge stainless steel and insulated on every side—including between wells.
  • Independent thermostatic dial for each well plus illuminated power indicator for instant status checks.
  • Full-perimeter, drip-free flange contains condensation and spills beneath the counter surface.
  • 1 in. copper manifold drain with individual ball valves and master shut-off speeds end-of-day cleanup.
  • Ships ready to use—6 ft (1.8 m) cord with NEMA 5-30P plug eliminates hard-wiring.
  • Zero-clearance installation; positioning clips secure to counters up to 3 in. (7.6 cm) thick.
  • NSF 4 & cULus listed for peace of mind; rugged 18-gauge stainless top and galvanized exterior housing built to last.

Technical specifications

Overall dimensions 28 1/4" W × 26" D × 21 1/2" H (71.8 × 66 × 54.6 cm)
Counter cut-out 27 1/2" W × 25 1/4" D (69.9 × 64.1 cm); 7/8" corner radius required
Pan capacity Accepts pans up to 6" (15.2 cm) deep
Construction 20 ga. wells, 18 ga. top, 18 ga. galvanized exterior
Drain 1" copper manifold with well shut-offs & master shut-off
Controls Two independent thermostatic dials, stainless panel (4 ft tether)
Electrical 2000 W total (1000 W per well), 120 V / 60 Hz / 1-ph, 16.7 A, NEMA 5-30P
Certifications NSF 4, cULus, Made in USA
Warranty 1-year limited warranty (see VollrathFoodservice.com for details)

What’s in the box

  • Two-well drop-in unit with factory-installed auto-fill assembly
  • Stainless-steel control panel with mounting hardware
  • 6 ft (1.8 m) power cord & NEMA 5-30P plug
  • Gasket & positioning clips for counters up to 3 in. thick
Important: This unit is designed for wet operation only. Always maintain water in each well to achieve NSF hot-holding performance and prevent damage.

Modular drop-ins are made to order and cannot be canceled or returned.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

120.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2000 watts, 120v/60/1-ph, 16.7 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
