Vollrath | SKU:
3639980
Vollrath 3639980 Steam Tables & Food Wells
$2,741.60
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3639980 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3639980 Steam Tables & Food Wells
$2,741.60
Unit price
/
Unavailable
Description

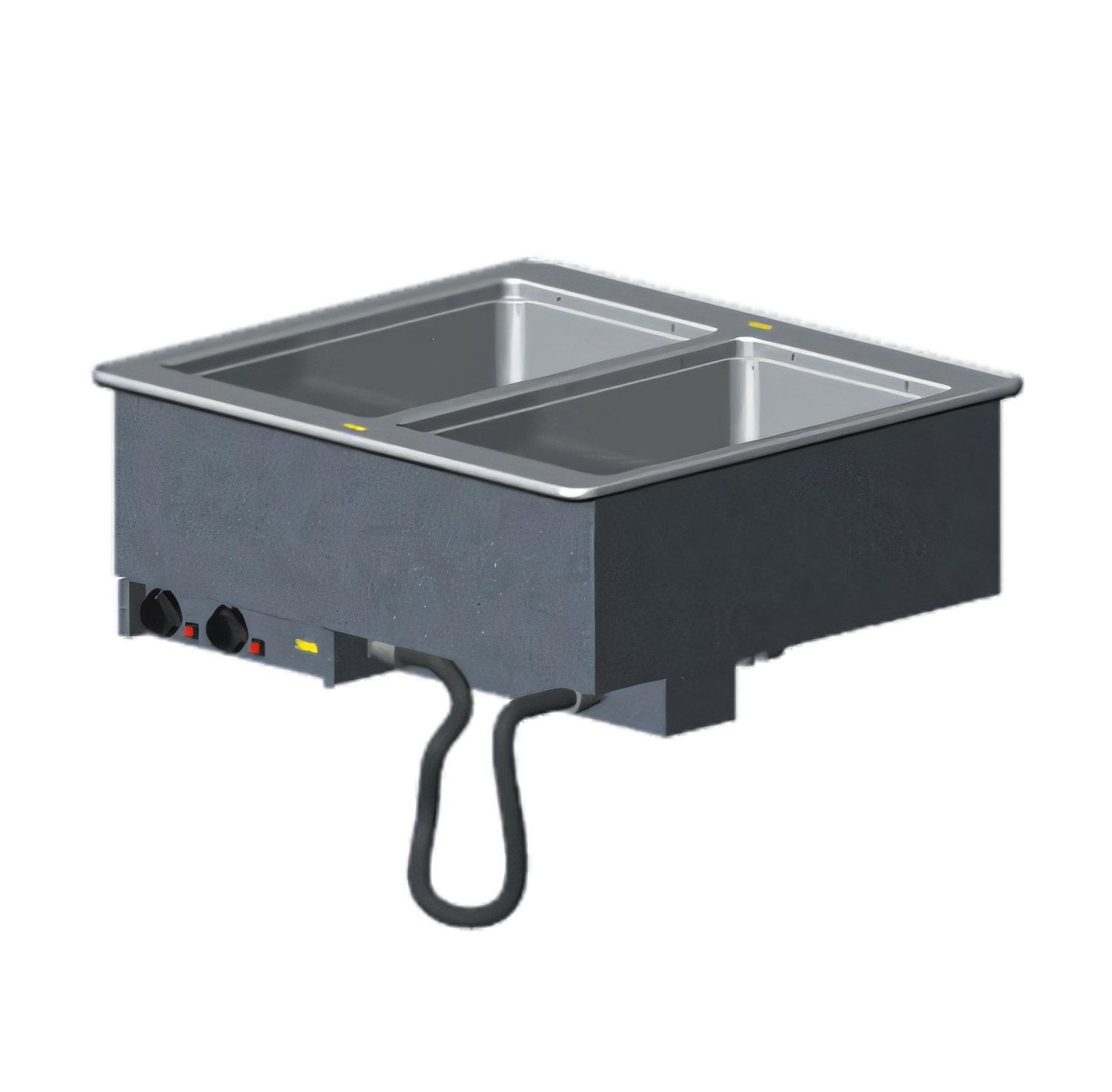

Vollrath 2-Well Drop-In Hot Food Unit – Auto-Fill, Thermostatic, 120 V (Model 3639980)
Serve hot, fresh and food-safe meals from a compact, plug-and-play well.Designed for busy cafeterias, buffets and catering lines, this Made-in-USA module keeps two full-size pans at just-right serving temperatures—all day, every day. Simply drop it into your counter cut-out, fill the wells once and let the built-in auto-fill system handle the rest.
Why You’ll Love It
- Two individually insulated 12" × 20" stainless-steel wells (20 ga) for even, energy-efficient heat.
- Thermostatic dial for each well plus power indicator lights for effortless, independent control.

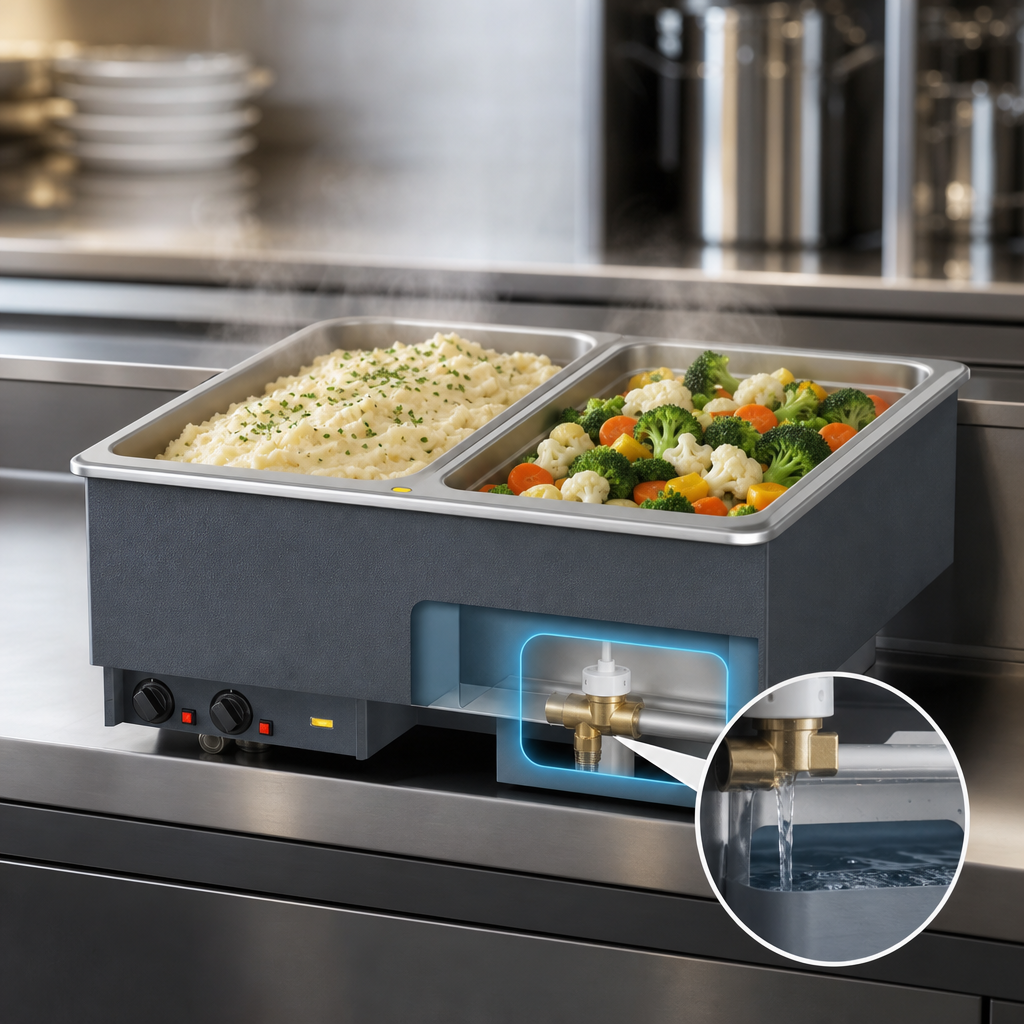

- Auto-fill maintains the correct water level for consistent wet-heat performance and NSF compliance.
- 1" copper manifold drain with master shut-off and individual ball valves—empty either well without mess.
- Full-perimeter drip-free flange contains condensation and spills below counter level.
- Ships with mounting clips; zero-clearance design installs in counters up to 3" thick—no hard-wiring required.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- 6 ft (1.8 m) cord with NEMA 5-15P plug—just drop in and plug in.
- NSF & cULus listed for peace of mind in any commercial kitchen.
At-a-Glance Specs
| Item number | 3639980 |
|---|---|
| Wells / size | 2 × 12" × 20" (full-size); up to 6" pan depth |
| Operation | Wet heat only | Auto-fill water system |
| Controls | 2 independent thermostatic dials with indicator lights (remote 4' tethered panel) |
| Total power | 1,250 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1 ph | 10.4 A | NEMA 5-15P cord & plug |
| Overall dimensions | 28 1/4" W × 26" D × 21 1/2" H |
| Counter cut-out | 27 1/2" W × 25 1/4" D | 7/8" corner radius required |
| Construction | 18 ga stainless-steel top, 18 ga galvanized exterior housing; fully insulated |
| Drain system | 1" copper manifold, individual well shut-offs + master shut-off |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
| Warranty | 1-year parts & labor (see vollrathfoodservice.com for full policy) |
Wet operation only: Add water before energizing the unit and maintain the auto-fill connection to prevent damage and ensure even heating.
Drop-in units are built to order and cannot be cancelled or returned. Always verify cut-out dimensions prior to purchase.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
114.0lbs
Style
individual pans
Controls
thermostatic controls
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 120v/60/1-ph, 10.4 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
