Vollrath 3639971HD Steam Tables & Food Wells
$2,374.65
Unit price
/
Unavailable
Description

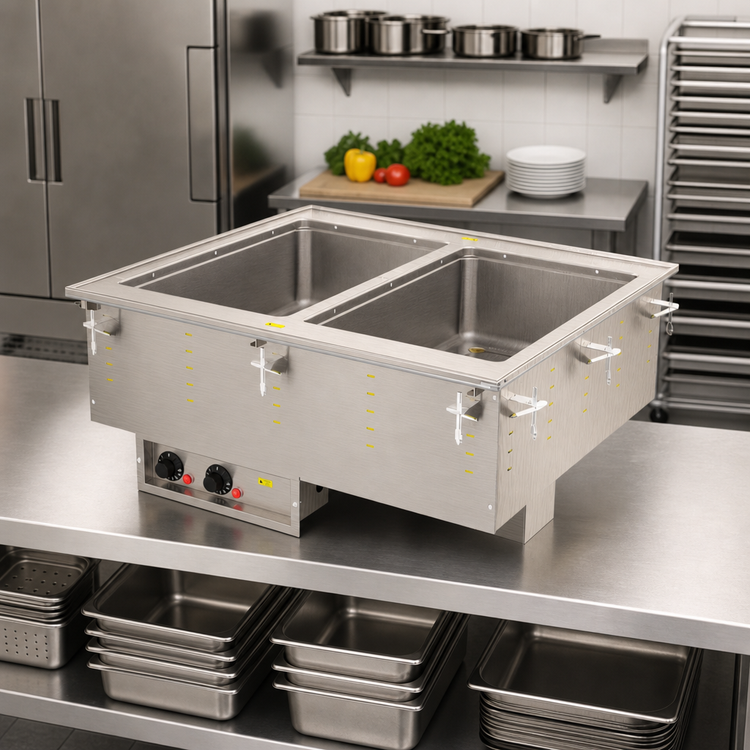

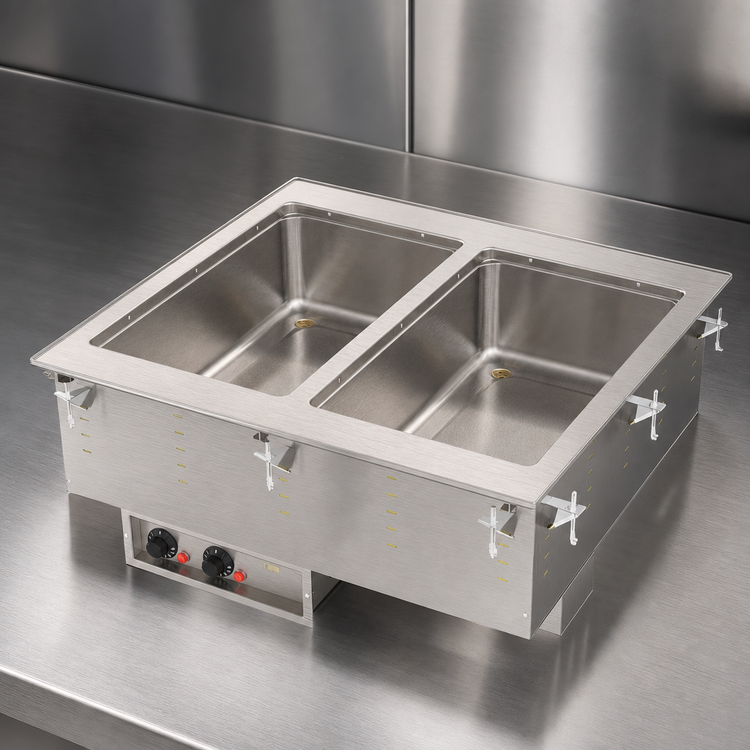

Vollrath Two-Well Marine-Grade Drop-In Hot Food Well – 120 V Thermostatic

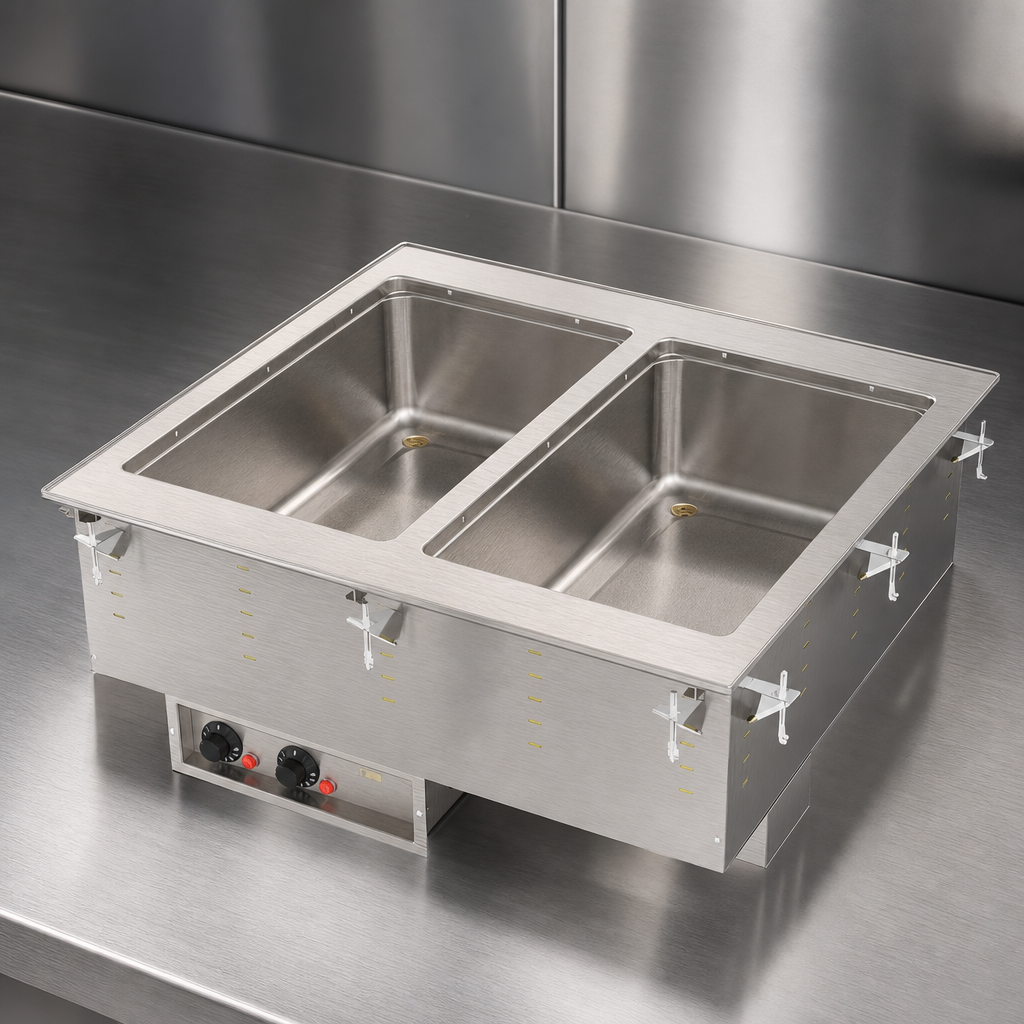

28 ¼ in W × 26 in D – 1000 W per wellEngineered for demanding commercial kitchens, this Vollrath two-well drop-in keeps entrées, sides and sauces at food-safe serving temperatures while saving valuable counter space. Each 12 × 20 in well is fabricated from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance—ideal for high-salt or high-moisture environments.
Key advantages
- Wet-heat operation delivers even, gentle warming (water required).
- Independent thermostatic controls with power indicator lights for precise temperature regulation.
- Full-perimeter drip-free flange and included gasket contain spills and condensation.
- 1 in copper manifold drain with master shut-off plus individual ball valves for each well.
- Thick insulation on every side—including between wells—boosts efficiency and keeps surrounding surfaces cool.
- Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; adapter bars recommended for fractional pans.
- 18-gauge stainless steel top and stainless exterior housing stand up to heavy commercial use.
- Ships ready to install: 6 ft (1.8 m) cord with NEMA 5-30P, mounting/positioning clips and 4 ft (1.22 m) tethered control panel.
- Zero-clearance design simplifies drop-in mounting; no hard-wiring required.
- NSF 4 & cULus listed; proudly Made in the USA.
Technical specifications
| Wells / Size | 2 × 12 × 20 in (full-size), 6 in max pan depth |
|---|---|
| Construction | 20-ga 316 marine-grade SS wells, 18-ga SS top, insulated |
| Overall dimensions | 28 ¼ in W × 26 in D × 21 ½ in H (71.8 × 66 × 54.6 cm) |
| Counter cut-out | 27 ½ in W × 25 ¼ in D (69.9 × 64.1 cm) – 7/8 in corner radius |
| Power | 1000 W per well (2000 W total) |
| Electrical | 120 V / 60 Hz / 1-phase, 16.7 A, cord & NEMA 5-30P plug |
| Controls | Dual thermostatic dials, remote stainless panel with 4 ft tether |
| Drain | 1 in copper manifold with master shut-off; ½ in individual valves |
| Certifications | NSF 4, cULus |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for details) |
Installation requirements
- Indoor use only; room HVAC can affect holding temperatures.
- Fits countertops up to 3 in (7.6 cm) thick with included clips.
- Provide a dedicated 120 V, 30 A straight-blade receptacle.
- Do not modify cord or plug—doing so voids warranty.
What’s in the box
- Two-well drop-in unit with factory-installed 6 ft cord & plug
- Remote stainless steel control panel (tethered)
- Mounting/positioning clips & gasket
- Operator’s manual
Important: This unit is designed for wet operation only. Use with water at all times to meet NSF 4 performance standards and prevent damage.
Orders for drop-ins cannot be canceled or returned.
Orders for drop-ins cannot be canceled or returned.
Looking for pan adapters, auto-fill kits or other accessories? Contact us and we’ll help you customize your food-service line.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
93.0lbs
Style
individual pans
Controls
thermostatic controls
Insulated or Non-Insulated
insulated
Construction
stainless steel construction
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2000 watts, 120v/60/1-ph, 16.7 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
