Vollrath 3639971 Steam Tables & Food Wells
Description

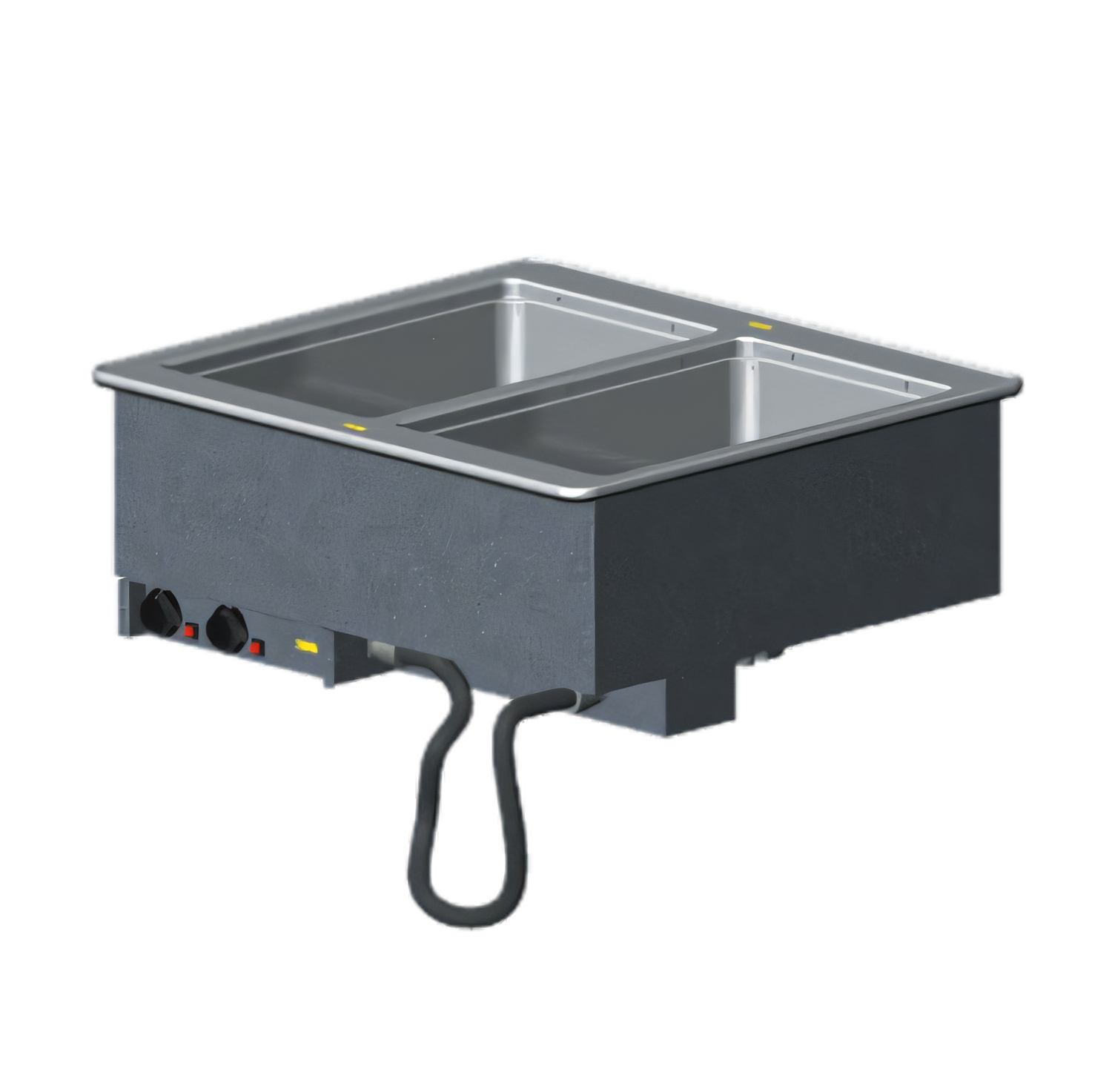

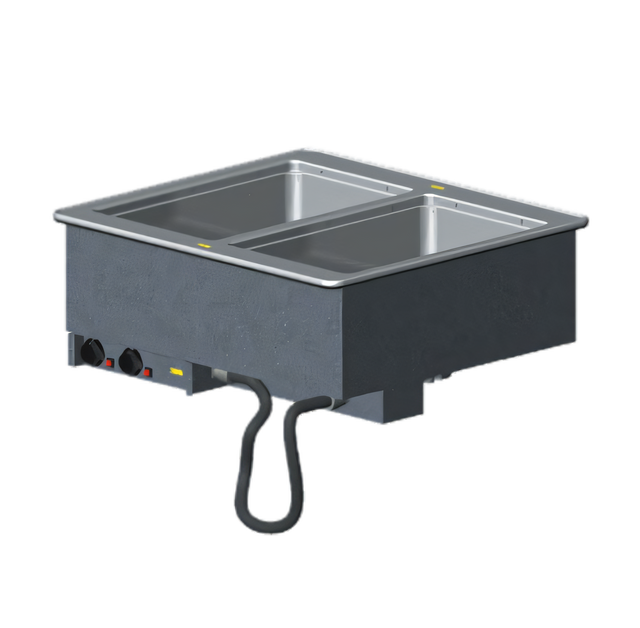

Vollrath Two-Well Drop-In Hot Food Well — 120 V Thermostatic, Manifold Drain
Item 3639971 • Made in USA • NSF ListedKeep soups, sauces and sides at safe serving temperatures without the need for hard-wiring. This Vollrath 2-well hot module installs flush in your counter, provides independent wet-heat holding, and drains fast with an integrated copper manifold.
Key features
- (2) 12" × 20" full-size, 20 ga stainless steel wells — individually insulated for maximum efficiency.

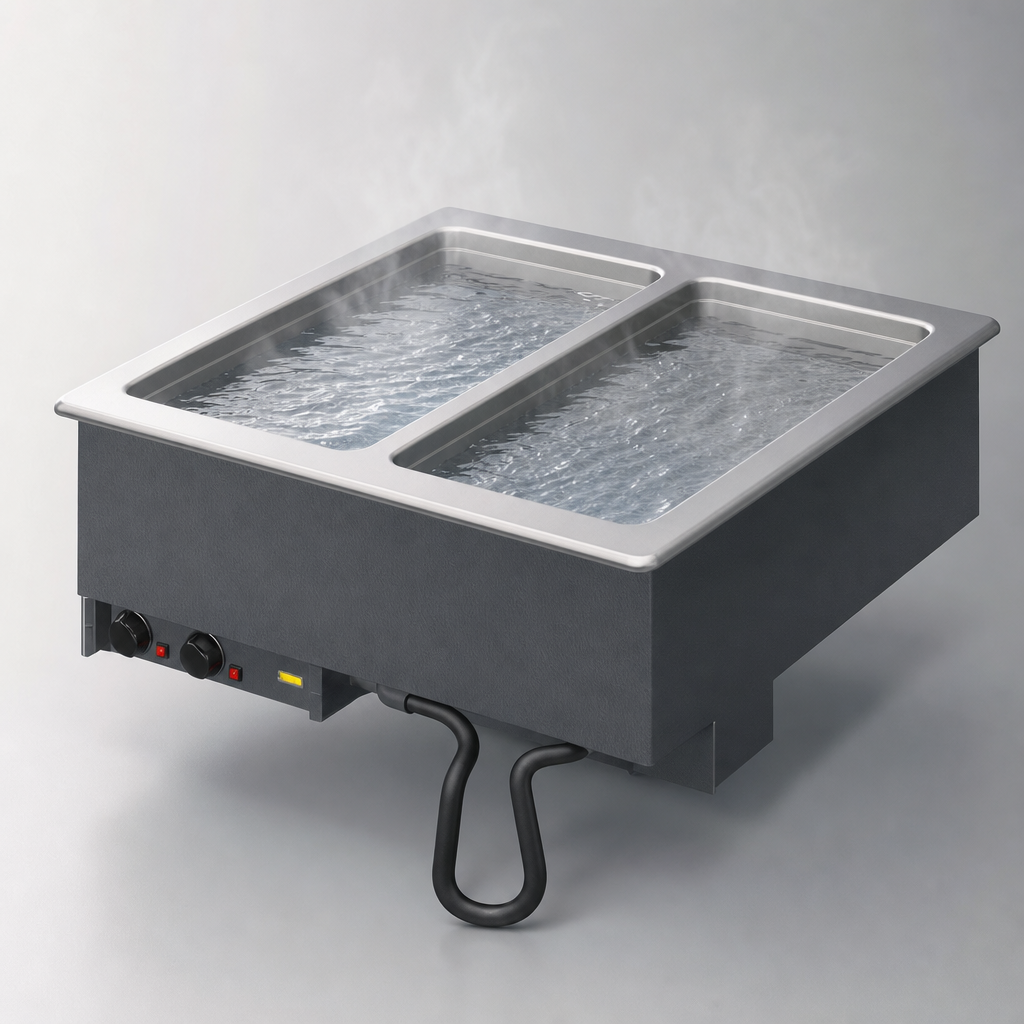

- Wet operation only for gentle, even heat; meets NSF ⁴ performance standards.
- 18 ga stainless steel top with full-perimeter drip-free flange contains spills and condensation.
- 1" copper manifold drain with individual ball valves for each well plus master shut-off for quick, mess-free emptying.
- Remote stainless steel control panel (4 ft tether) with separate thermostatic dial and power indicator light per well.
- 6 ft cord with NEMA 5-30P plug — no electrician required.
- Mounting clips included for counters up to 3" thick; zero-clearance installation.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- NSF and cULus listed; proudly manufactured in Sheboygan, Wisconsin.
Technical specifications
| Item number | 3639971 |
|---|---|
| Wells | 2 full-size (12" × 20") |
| Operation | Wet heat only |
| Control type | Individual thermostatic |
| Total wattage | 2,000 W (1,000 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 16.7 A, NEMA 5-30P |
| Overall dimensions | 28 ¼" W × 26" D × 21 ½" H |
| Counter cut-out | 27 ½" W × 25 ¼" D, 7/8" corner radius |
| Max pan depth | 6" (15.2 cm) |
| Drain | 1" copper manifold with individual well shut-offs & master shut-off |
| Construction | 18 ga stainless top, 20 ga stainless wells, 18 ga galvanized exterior |
| Cord length | 6 ft (1.8 m) |
| Certifications | NSF ⁴, cULus |
| Origin | USA |
Modular drop-ins are built to order and cannot be canceled or returned once production has begun.
Full warranty information available at vollrathfoodservice.com. Any modification to the factory-installed cord or plug will void the warranty.
