Vollrath | SKU:
3639970HD
Vollrath 3639970HD Steam Tables & Food Wells
$2,443.80
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3639970HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3639970HD Steam Tables & Food Wells
$2,443.80
Unit price
/
Unavailable
Description

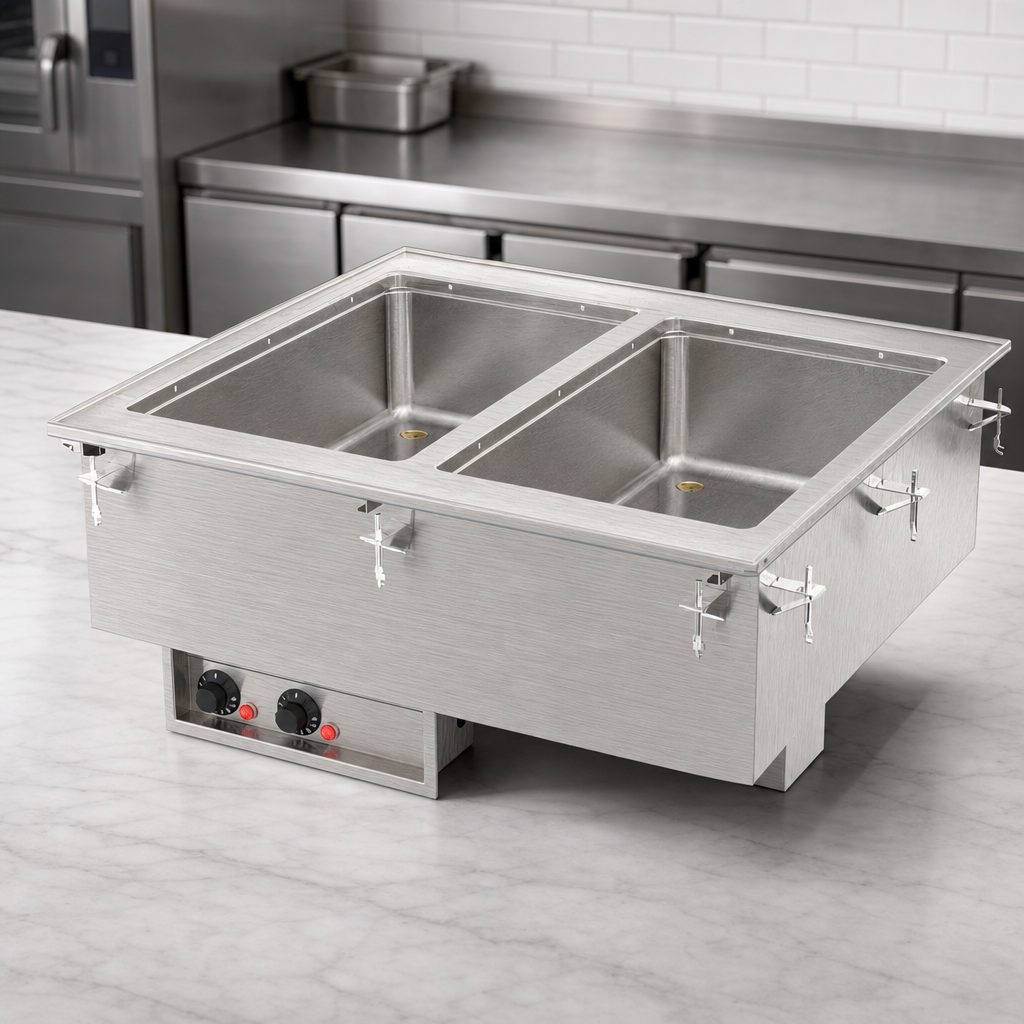

Vollrath 2-Well Marine-Grade Hot Drop-In, 120 V
Dual 12" × 20" wet wells • Independent thermostatic controls • Plug-and-play installationBuilt for demanding buffet lines and cafeteria counters, this Vollrath drop-in keeps two full-size pans of food hot, safe and ready to serve—without sacrificing counter space or requiring hard-wiring.
Why you’ll love it
- Two 20-gauge, 316 marine-grade stainless steel wells resist corrosion from salt and acidic foods.
- Wet operation only for even heat distribution that meets NSF 4 standards.
- Fully insulated on all sides, including between wells, to improve efficiency and hold temps.
- Independent thermostatic controls with bright power indicators let you dial in each well separately.
- 4 ft tethered stainless steel control panel offers flexible mounting options.
- Drip-free, full-perimeter flange with included gasket keeps condensation off your counter.
- 1" copper manifold drain with master shut-off plus individual ½" ball valves for each well speeds cleanup.
- 18-gauge stainless steel top and rugged exterior housing stand up to daily service.
- Includes positioning clips for counters up to 3" thick—zero-clearance installation.
- Accepts full-size or fractional pans up to 6" deep (use adapter bars for fractional pans).
- NSF & cULus listed; Made in the USA.
Technical specifications
| Number of wells | 2 (full-size, 12" × 20" × 6") |
|---|---|
| Well construction | 20-ga 316 marine-grade stainless steel |
| Operation | Wet only |
| Controls | Independent thermostatic, panel-mounted with power lights |
| Heat output | 625 W per well (1,250 W total) |
| Electrical | 120 V / 60 Hz / 1-ph, 10.4 A, 6 ft cord with NEMA 5-15P |
| Overall dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Cutout size | 27-1/2" W × 25-1/4" D, 7/8" corner radius |
| Drain system | 1" copper manifold, master and individual well shut-offs |
| Certifications | NSF 4 (wet), cULus |
| Warranty | 2-year limited warranty (see Vollrath for full policy) |
Important: Unit must be operated with water in the wells at all times. Running the wells dry will damage the equipment and void the warranty.
Drop-ins are built to order and cannot be cancelled or returned. For complete installation instructions and warranty details, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
107.0lbs
Style
individual pans
Construction
stainless steel construction
Wet or Dry operation
wet
Controls
thermostatic controls
Pan Capacity
(2) full size (12" x 20")
Insulated or Non-Insulated
insulated
Drain
with drain
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 120v/60/1-ph, 10.4 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
