Vollrath 3639970 Steam Tables & Food Wells
$2,072.10
Unit price
/
Unavailable
Description

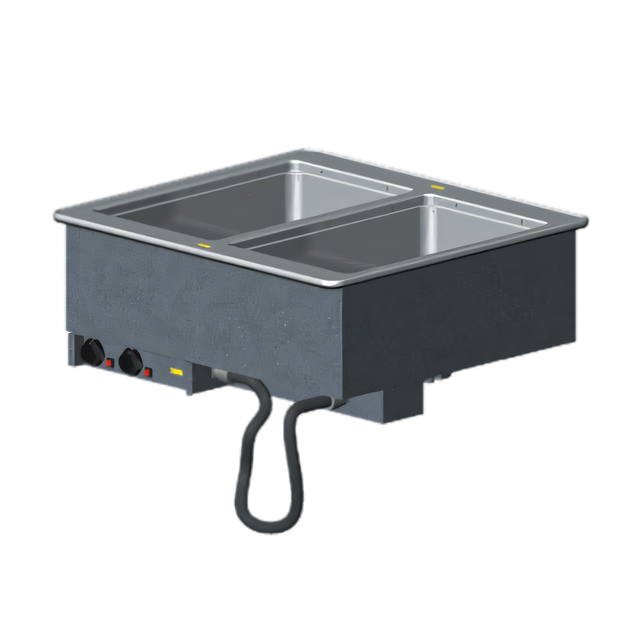

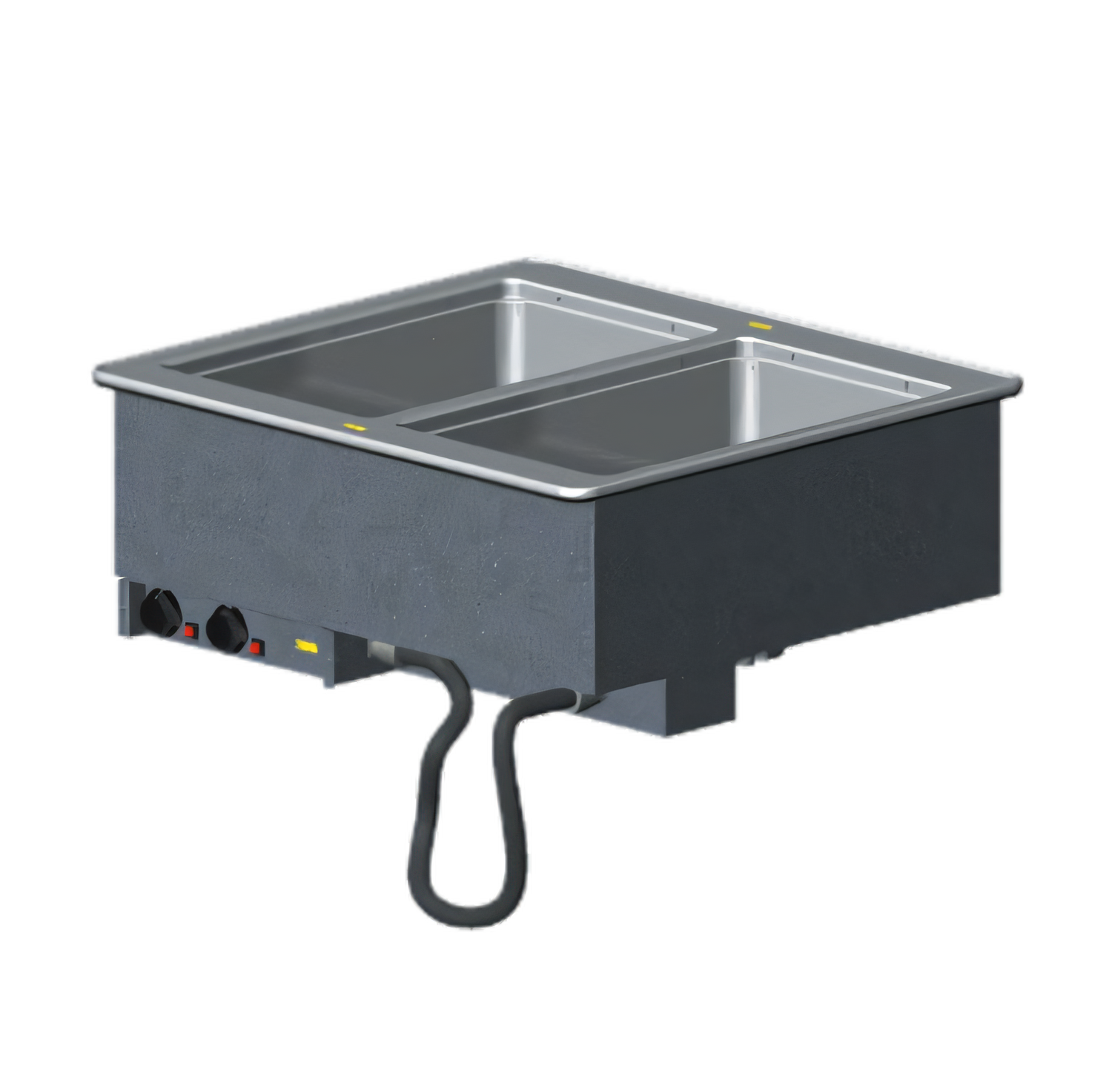

Vollrath Two-Well Hot Drop-In Module – Manifold Drain, Thermostatic
Model 3639970 • 625 W per well (1,250 W total)Keep service moving and food safe with Vollrath’s plug-and-play two-well hot module. Built for wet operation, each individually controlled well delivers gentle, even heat while the 1" copper manifold drain streamlines end-of-day clean-up.
Why you’ll love it
- Wet-heat design maintains consistent holding temps and food quality.

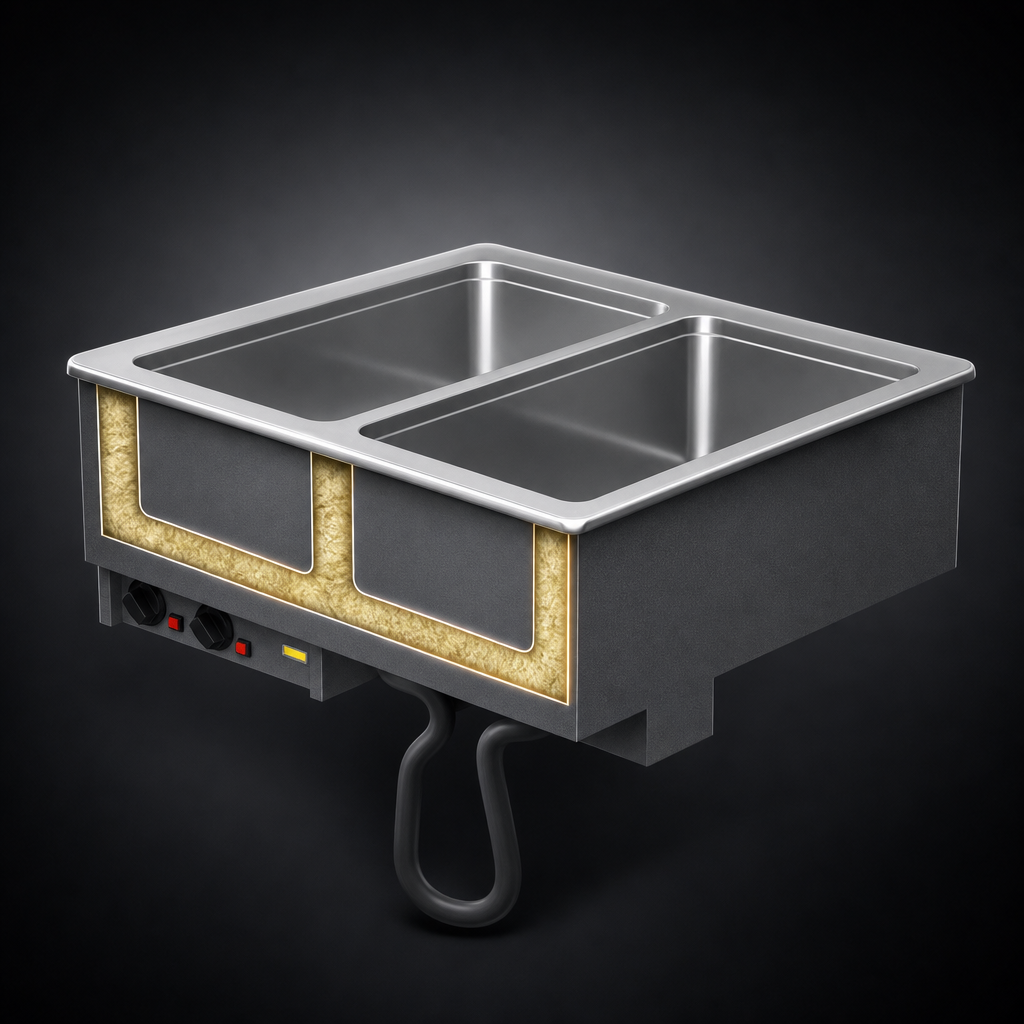

- 20-gauge stainless steel wells, insulated on all sides — including between wells — for superior efficiency.
- Full-perimeter drip-free flange in 18-gauge stainless steel keeps counters dry.
- 1" copper manifold drain with individual ball-valve shut-offs per well plus master shut-off.
- Separate thermostatic knobs & power lights on a 4' tethered stainless control panel.
- Factory-installed 6' cord with NEMA 5-15P; no hard-wiring required.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended).
- Zero-clearance, top-mount installation with heavy-duty mounting clips (counters ≤ 3").
- NSF 4 (wet use), cULus listed & proudly Made in the USA.
Technical specifications
| Number of wells | 2 (12" × 20" full-size) |
|---|---|
| Operation | Wet heat only |
| Overall dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 27-1/2" W × 25-1/4" D (7/8" corner radius required) |
| Heat output | 625 W per well (1,250 W total) |
| Electrical | 120 V / 60 Hz / 1-ph • 10.4 A • NEMA 5-15P cord |
| Controls | Individual thermostatic dials with indicator lights |
| Drainage | 1" copper manifold; individual & master shut-offs |
| Top / exterior | 18 ga stainless top • 18 ga galvanized housing |
| Certifications | NSF 4 (wet), cULus |
What’s in the box
- Two-well drop-in module with attached control panel
- Mounting / positioning clips
- 6' power cord & plug
- Operator’s manual
Important: Unit is engineered for wet operation only.
Maintain proper water level to meet NSF performance standards and prevent damage.
Drop-in modules are built to order and cannot be cancelled or returned.
For full warranty terms, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
107.0lbs
Style
individual pans
Controls
thermostatic controls
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 120v/60/1-ph, 10.4 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
