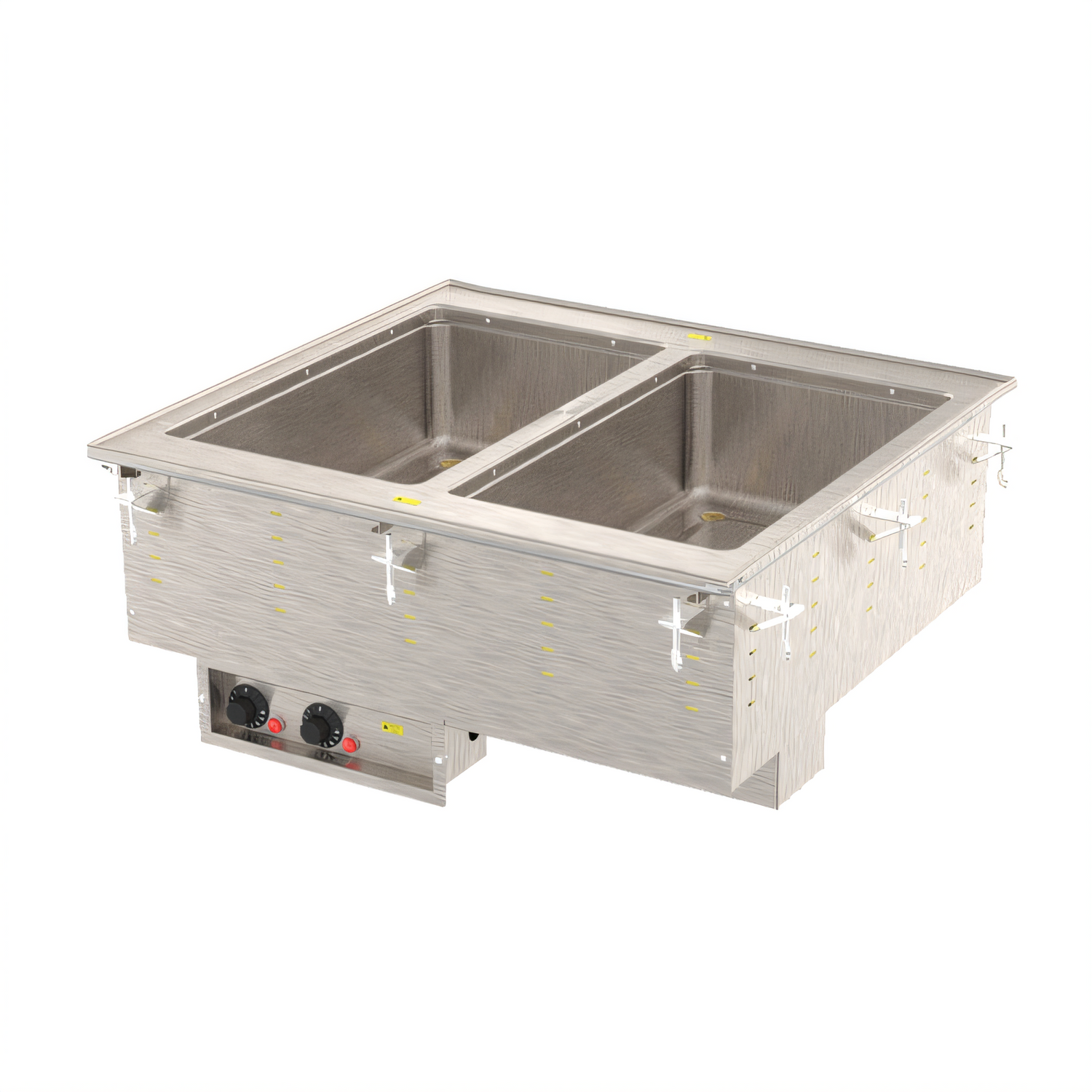

Vollrath Two-Well Modular Hot Food Well Drop-In with 12 x 20 Full-Size Pan Wells, Auto-Fill, and Infinite Controls

316 Marine Grade Stainless Steel, 120V, Wet Operation Only

A compact two-well hot food drop-in built for wet holding applications, with marine-grade stainless steel wells, auto-fill convenience, and independent infinite controls.

  • Two 12 x 20 full-size wells provide flexible hot holding for buffet and serving line use.
  • Marine-grade 316 stainless steel construction is built to handle demanding wet-operation service.
  • Auto-fill and wet-operation design help keep foods evenly heated with water.
  • Independent infinite controls and power indicator lights let you fine-tune each well.
  • Insulated on all sides, including between wells, to help retain heat.
  • Includes cord, plug, and mounting clips for faster installation and easier setup.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

120.0 lb

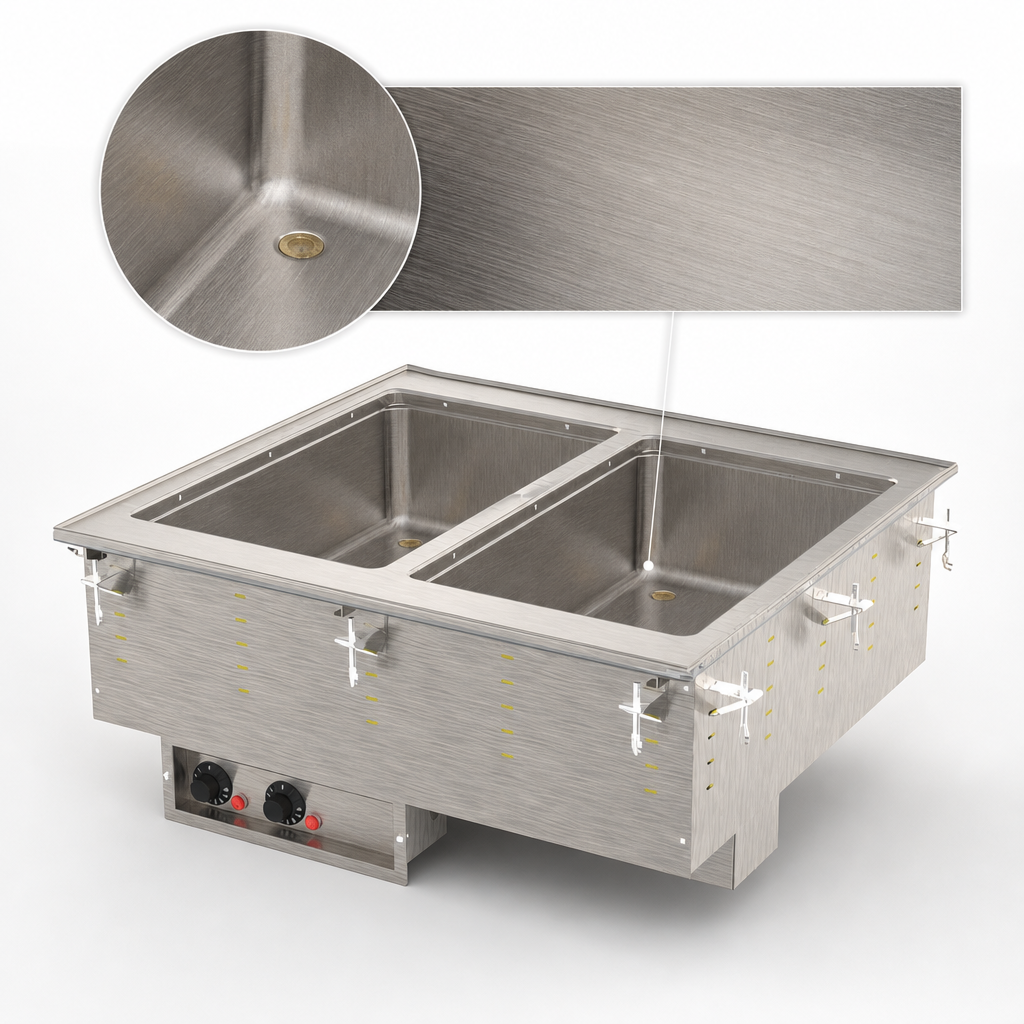

316 Marine-Grade Stainless Steel Wells

Drawn wells are SAE Type 316 stainless steel, with a stainless steel top and exterior housing for durability.

Auto-Fill Wet Operation

This configuration includes auto-fill control and is intended for wet operation only.

Independent Infinite Controls

Each well has its own infinite control and power indicator light.

Insulated All Around

Insulation on all sides, including between wells, helps retain serving temperatures.

1-Inch Copper Manifold Drain

Manifold drain with master shutoff simplifies draining and cleanup.

Plug-In Power

Includes a 6-foot cord with a NEMA 5-30P plug; hard-wiring is not required.

Top-Mount Drop-In Installation

Designed for top-mount, zero-clearance installation and includes a drip-free flange, gasket, and standard mounting clips.

Full-Size and Fractional Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Removable Service Panels

Removable bottom panels provide service access for each well.

Type Hot Food Well
Style Two-Well Modular
Installation Type Drop-In
Compartments 2
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish 316 Stainless Steel
Drain Connection Required
Drain Connection Size 1 Inch
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 120 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Wet operation only; water is required for even heating.
No. It includes a 6-foot cord with plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
The cutout is 27-1/2 x 25-1/4 inches and requires a 7/8-inch corner radius.
Vollrath provides a two-year warranty against defects in materials and workmanship. Refer to Vollrath's website for full details.
Yes, a sheet pan adapter is available, item 19186.
