Vollrath  |  SKU: 3639960HD

Vollrath 3639960HD Steam Tables & Food Wells

$2,951.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

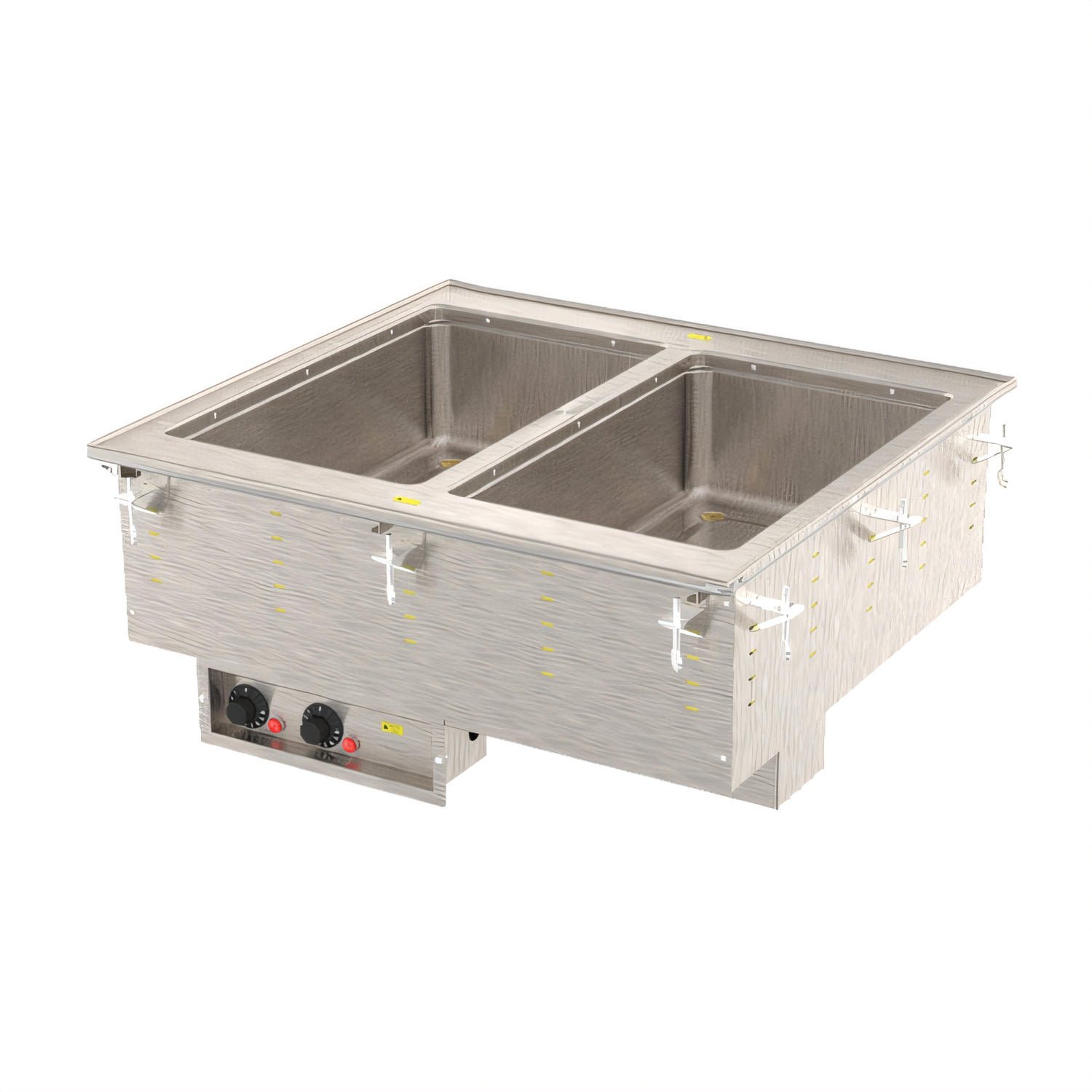

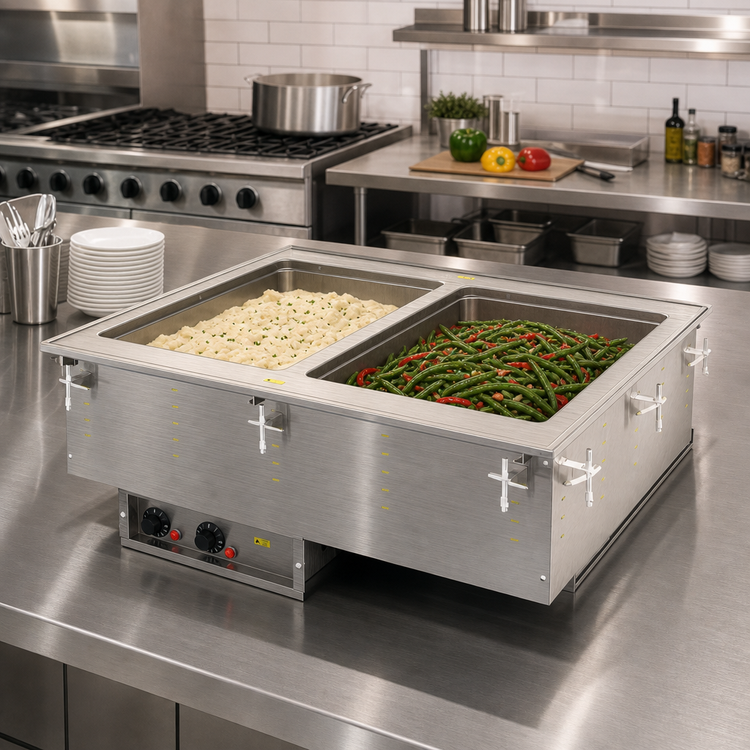

Vollrath Two-Well Modular Hot Drop-In – Marine-Grade, Auto-Fill (120 V)

Model 3639960HD • 625 W per well • NEMA 5-15P

Keep entrées, sides and sauces at perfect serving temperature with Vollrath’s premium marine-grade two-well hot food well. Designed for quick, zero-clearance drop-in installation, it delivers reliable moisture-based holding in even the toughest commercial kitchens – from cruise ships to coastal resorts.

Why you’ll love it

  • Drawn 20-gauge, 316 marine-grade stainless-steel wells resist corrosion from salt, acidic foods and harsh cleaners.

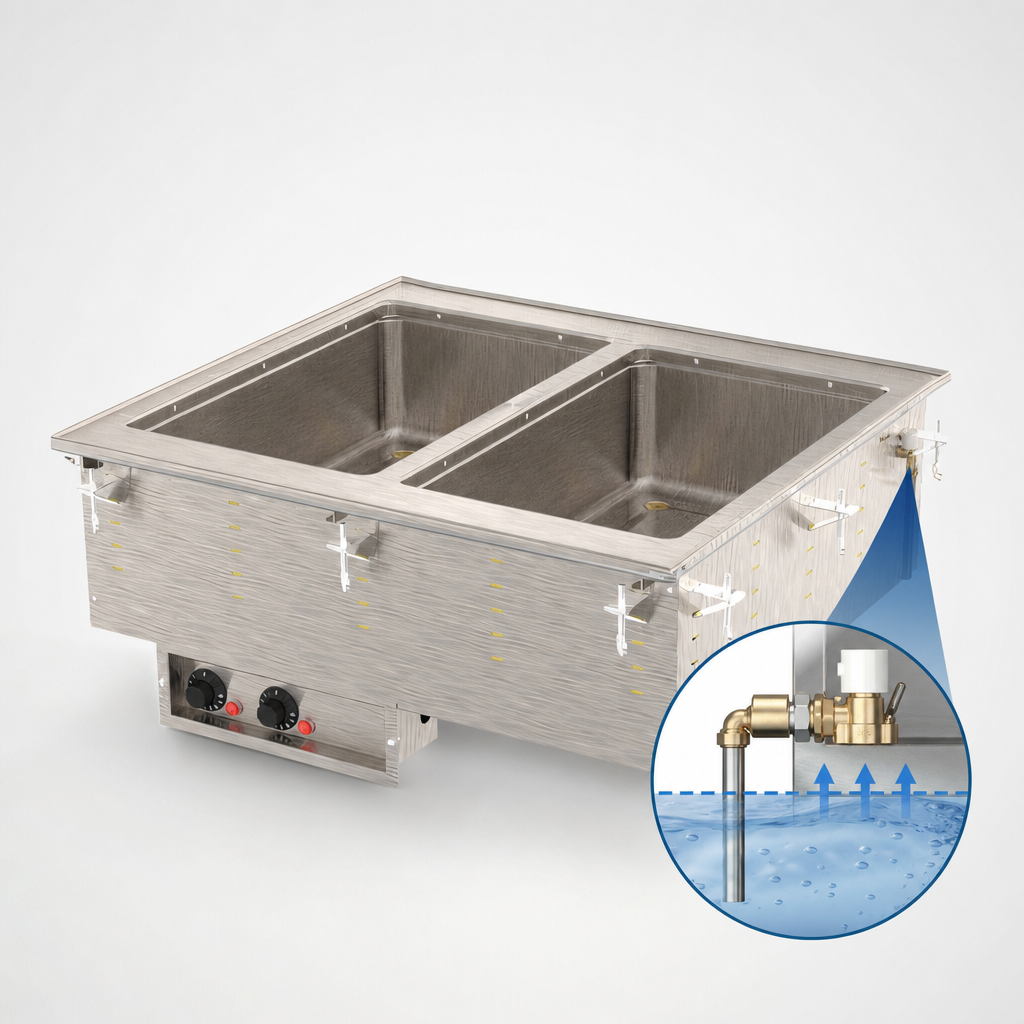

  • Auto-fill system keeps water at the optimal level for consistent, even heat without babysitting.
  • Individual infinite controls with power indicator lights let you dial-in holding temperature for each well.
  • Full-perimeter drip-free flange contains condensation and spills underneath the counter surface.
  • 1 in. copper manifold drain with master shut-off plus ball valves at each well for fast, mess-free draining.
  • Fully insulated—including between wells—for energy efficiency and cooler counter surfaces.
  • Accepts any combination of full-size or fractional pans up to 6 in. (15.2 cm) deep.
  • Ships ready to install: 18-gauge S/S top, S/S exterior housing, 6 ft (1.8 m) cord & plug, mounting clips and gasket.
  • NSF 4 & cULus listed; Made in the USA.

Technical specifications

Wells (2) 12 in. × 20 in. (full-size), 6 in. depth max
Construction 20-ga 316 S/S wells, 18-ga S/S top & exterior
Operation Wet heat only • Auto-fill water connection
Total wattage 1,250 W  (625 W per well)
Electrical 120 V / 60 Hz / 1-ph, 10.4 A, 6 ft cord with NEMA 5-15P
Overall size 28 1/4 W × 26 D × 21 1/2 H in. (71.8 × 66 × 54.6 cm)
Countertop cut-out 27 1/2 W × 25 1/4 D in. (69.9 × 64.1 cm)
7/8 in. (2.2 cm) corner radius required
Drain 1 in. copper manifold w/ master shut-off & individual well valves
Agency approvals NSF 4, cULus
Warranty 2-year limited parts & labor (see Vollrath for details)

Installation & use

  • Zero-clearance design – fits flush in counters up to 3 in. (7.6 cm) thick with included clips.
  • Indoor use only; maintain room temperatures within standard food-service ranges.
  • Operate with water in wells at all times for NSF-compliant performance and even heating.
Important: Drop-in units are built to order and cannot be canceled or returned. Modifying the factory cord or plug will void the warranty.

For complete warranty terms visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

28.25in

Depth

26.0in

Shipping Weight

102.0lbs

Style

individual pans

Controls

infinite controls

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 120v/60/1-ph, 10.4 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
