Vollrath 3639960 Steam Tables & Food Wells
Description

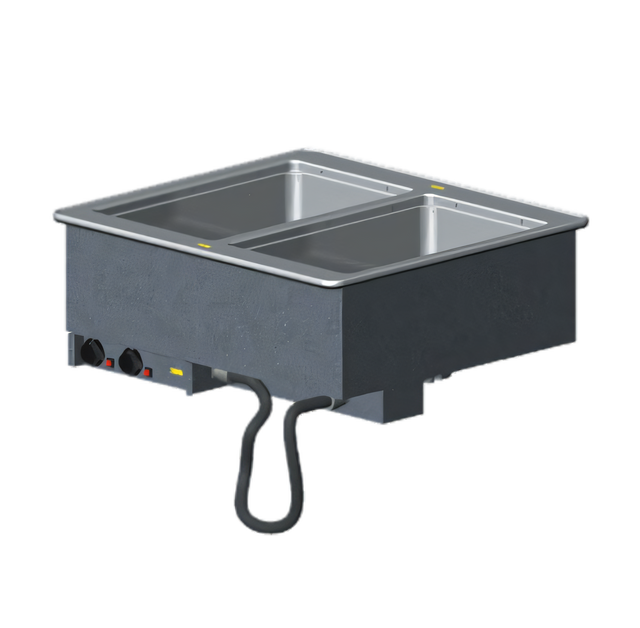

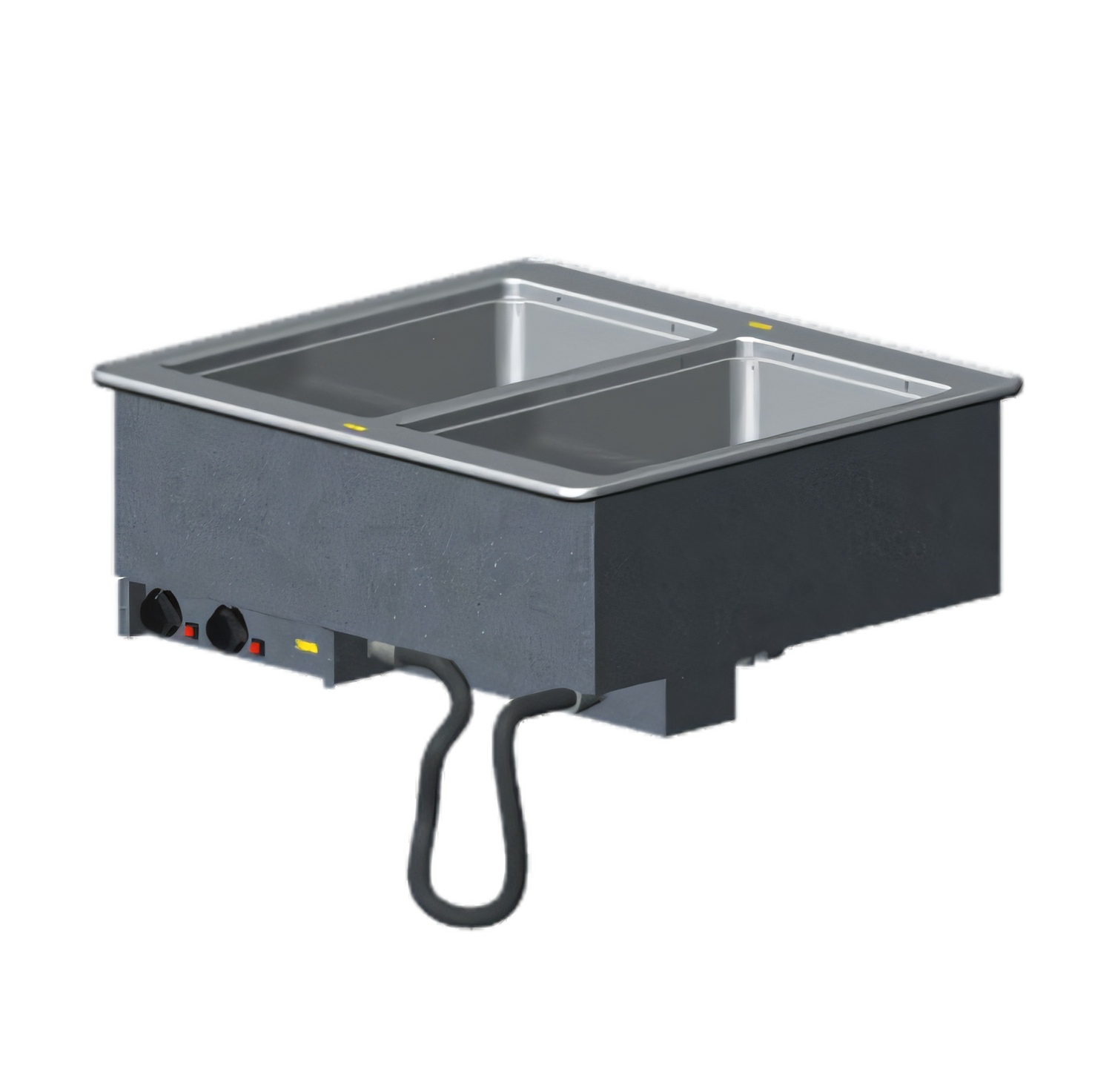

Vollrath 2-Well Drop-In Hot Food Well with Auto-Fill & Manifold Drain – 120 V
Item No. 3639960 • Made in USA • NSF & cULus ListedServe guests faster and safer with Vollrath’s fully insulated, two-well hot module. Designed for flush, top-mount installation, this plug-and-play unit keeps soups, sauces and entrées at the perfect serving temperature—all day—without the need for hard-wiring or constant monitoring.
Why Youʼll Love It
- (2) Independent 12 in × 20 in Wells – 20 ga stainless and fully insulated for even, energy-efficient heating.

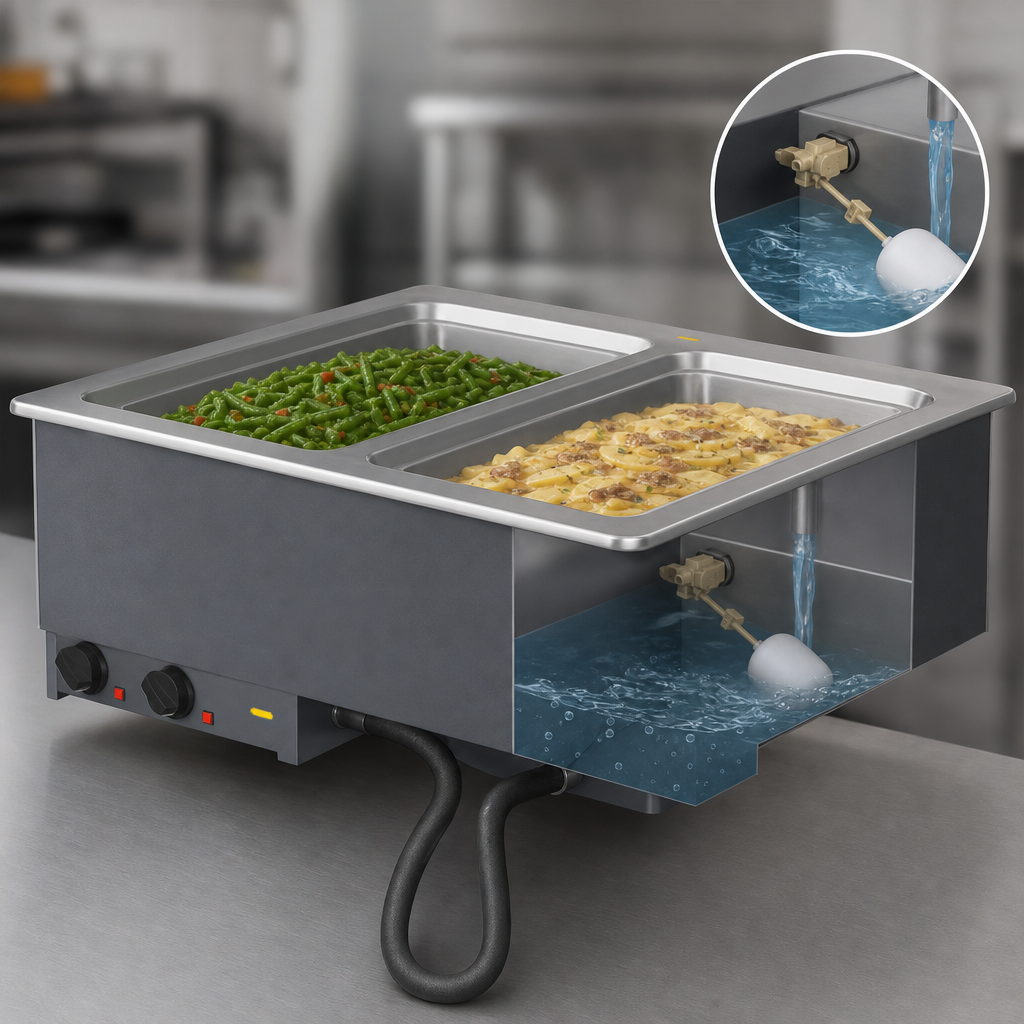

- Auto-Fill System – Maintains proper water level automatically for worry-free wet operation.
- 1 in Copper Manifold Drain – Individual ball-valve shut-offs for each well plus a master manifold shut-off simplify cleaning.
- Infinite Temperature Controls – Separate knob and power light for each well on a 4 ft tethered stainless control panel.
- Drip-Free 18 ga Top Flange – Full-perimeter drip edge catches spills and condensation, keeping counters clean.
- Fast, No-Tools Installation – Includes mounting/positioning clips for counters up to 3 in (7.6 cm) thick; zero-clearance required.
- Pan Flexibility – Accepts full-size or fractional pans up to 6 in (15.2 cm) deep (use adapter bars for fractional pans).
- Plug-and-Play Convenience – 6 ft cord with NEMA 5-15P plug; no electrician needed.
Technical Specifications
| Wells (qty × size) | 2 × 12 in × 20 in (full-size) |
|---|---|
| Operation Mode | Wet only — auto-fill |
| Heating Output | 625 W per well (1,250 W total) |
| Controls | Individual infinite controls with power indicators |
| Overall Dimensions | 28 1⁄4 in W × 26 in D × 21 1⁄2 in H (71.8 × 66 × 54.6 cm) |
| Countertop Cutout | 27 1⁄2 in W × 25 1⁄4 in D | 7⁄8 in corner radius |
| Electrical | 120 V / 60 Hz / 1-ph | 10.4 A | NEMA 5-15P |
| Construction | 18 ga 300-series stainless top & flange; 20 ga drawn wells; 18 ga galvanized exterior housing |
| Agency Approvals | NSF 4 (wet), cULus |
| Warranty | 1-year limited (see Vollrath policy) |
Drop-in modules are built to order and cannot be canceled or returned. Indoor use only. Room temperature and HVAC conditions can affect holding performance.
