Vollrath 3639951HD Steam Tables & Food Wells
Description

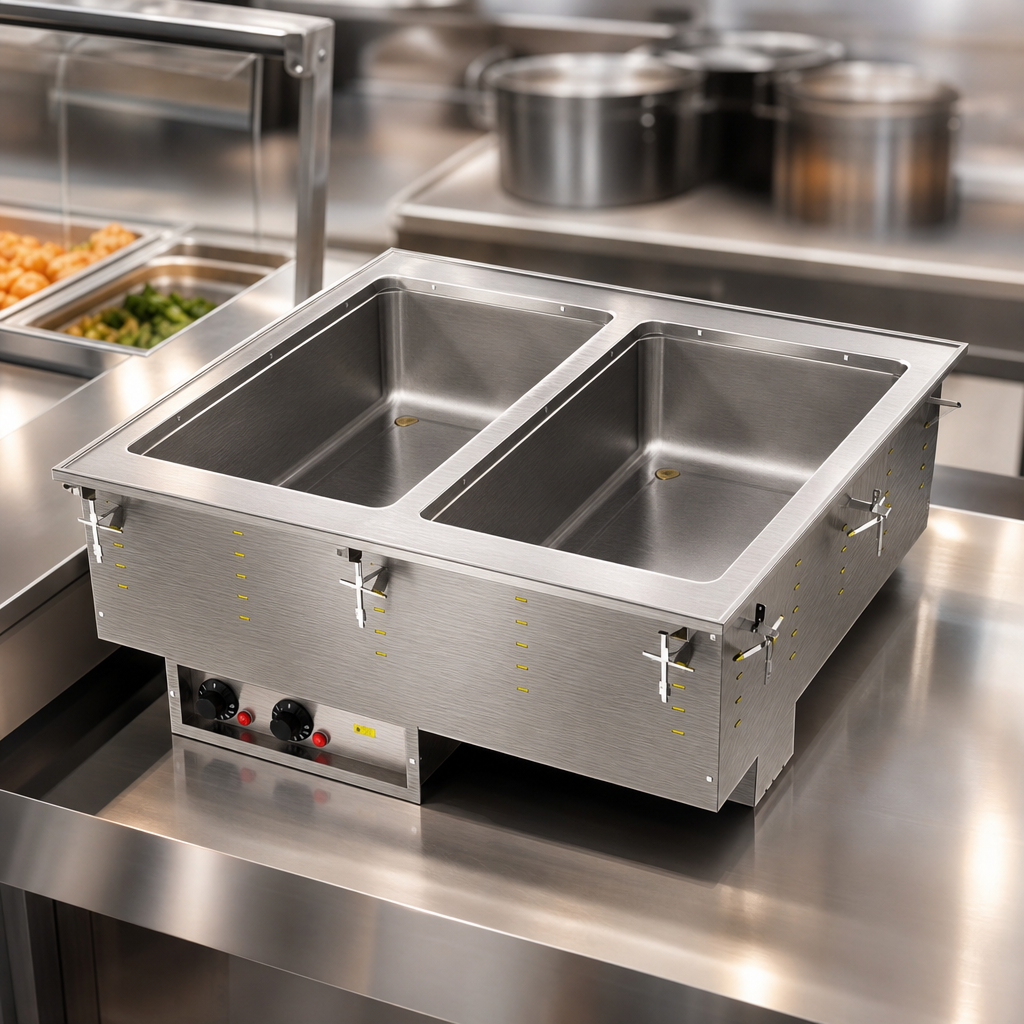

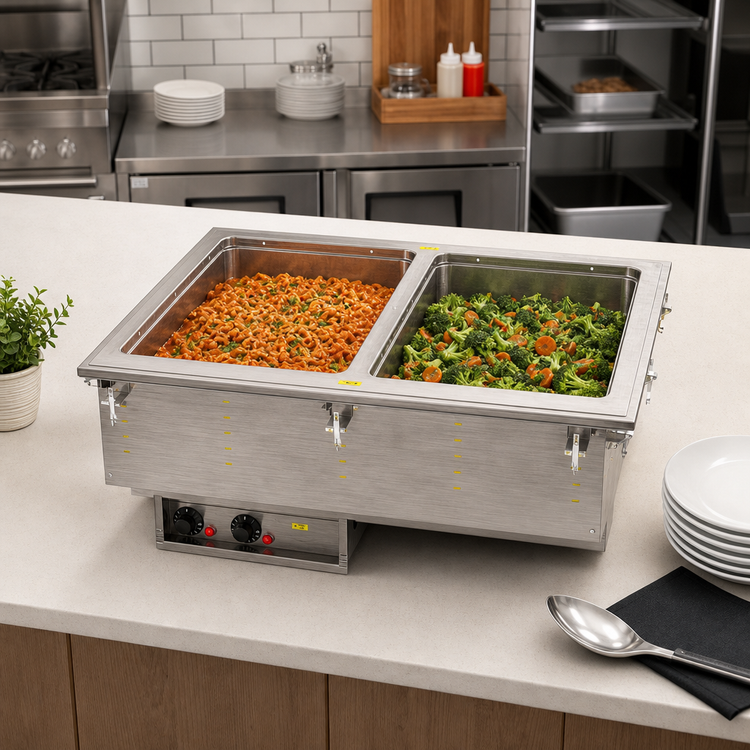

Vollrath 2-Well Modular Hot Drop-In with Marine-Grade Wells
Model 3639951HD • 120 V • 1,000 W per well • NEMA 5-30PKeep signature entrées hot, safe and ready for service with the reliability of Vollrath. This factory-wired, plug-and-play drop-in features two individually controlled, marine-grade stainless wells that stand up to the most demanding buffet, cafeteria and shipboard applications.
Key Benefits
- Two 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel—resists pitting from salt, acid and chemicals.
- Wet-heat operation provides even temperature distribution and NSF 4 compliance.
- Independent infinite controls with power indicator lights mounted on a stainless panel (4 ft tether) for flexible placement.
- 1" copper manifold drain with ball valves on each well plus master shut-off for fast, hygienic draining.
- Full-perimeter, drip-free flange keeps condensation and spills off your countertop.
- Fully insulated on all sides—including between wells—for energy savings and cooler exterior surfaces.
- Rugged 18-gauge stainless top and stainless exterior housing built for years of commercial use.
- Ships ready to install with 6' (1.8 m) cord and NEMA 5-30P plug—no hard-wiring required.
- Includes mounting clips for counters up to 3" (7.6 cm) thick; zero-clearance installation.
- Made in the USA and listed by NSF & cULus.
Perfect For
- Restaurant & hotel buffets
- Cafeteria and healthcare tray lines
- Marine & coastal operations where corrosion resistance is critical
Specifications
| Capacity | (2) full-size 12" × 20" pans, up to 6" deep |
|---|---|
| Heating Type | Wet operation only |
| Power | 1,000 W per well / 2,000 W total |
| Controls | Independent infinite knobs with pilot lights |
| Drain System | 1" copper manifold with individual well shut-offs & master shut-off |
| Construction | 316 marine-grade wells, 18-ga stainless top, stainless exterior housing |
| Overall Dimensions | 28-1/4" W × 26" D × 21-1/2" H (71.8 × 66 × 54.6 cm) |
| Counter Cut-Out | 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm), 7/8" corner radius |
| Electrical | 120 V / 60 Hz / 1-ph, 16.7 A, cord with NEMA 5-30P plug |
| Certifications | NSF-4 (moist heat), cULus |
| Origin / Warranty | Made in USA • 2-year limited warranty on marine-grade wells |
Operation reminder: This equipment is engineered for wet heat only. Keep water in each well during use to ensure proper performance.
For complete warranty details, visit vollrathfoodservice.com.
