Vollrath

Vollrath Two-Well Drop-In Electric Hot Food Well with Marine-Grade 316 Stainless Steel Wells, Infinite Controls, and Manifold Drain

SKU: 3639950HD
$2,392.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Two-Well Drop-In Electric Hot Food Well with Marine-Grade 316 Stainless Steel Wells, Infinite Controls, and Manifold Drain

120V, Wet Operation Only, 2 Full-Size Pans

Built for busy buffet lines and serving stations, this two-well drop-in hot well keeps food ready to serve with insulated marine-grade stainless steel wells and independent infinite controls.

  • Two-well drop-in hot food well designed for top-mount buffet and serving line installations.
  • Marine-grade 316 stainless steel wells and stainless steel exterior help deliver long-lasting durability.
  • Wet-operation design provides even heating and is intended for use with water.
  • Independent infinite controls and power indicator lights let you manage each well separately.
  • 1-inch copper manifold drain with shutoffs helps simplify drainage and cleanup.
  • Includes cord-and-plug connection plus mounting clips for easier installation; no hard-wiring required.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

105.0 lb

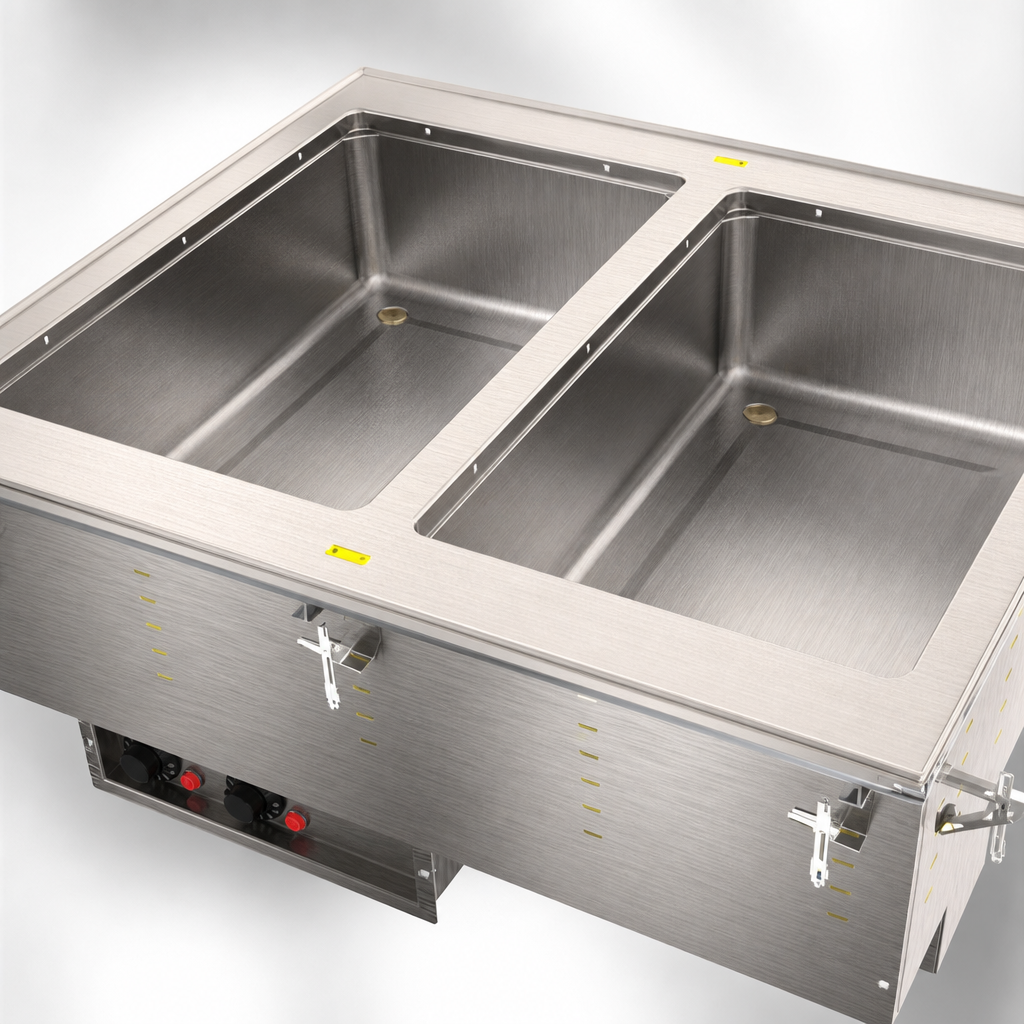

Marine-Grade Stainless Steel Wells

Drawn wells are made from SAE Type 316 stainless steel for durability in demanding foodservice environments.

Insulated Construction

Insulated on all sides, including between wells, to help maintain serving temperatures.

Independent Infinite Controls

Each well has its own infinite control and power indicator light for separate temperature management.

Wet-Operation Design

Designed for wet operation only; water is required for even heating of the food product.

Manifold Drain With Shutoffs

Includes a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.

Cord-and-Plug Connection

Supplied with a 6-foot cord and plug and does not require hard-wiring.

Easy Top-Mount Installation

Includes standard mounting clips and a gasket for under the drip edge to support installation.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 2
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Stainless Steel
Drain Connection Required
Voltage 120 Volts
Amps 10.4 Amps
Watts 1.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 105 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended for fractional pans.
No. It includes a 6-foot cord with plug and does not require hard-wiring.
It is wet operation only, and water is required for even heating.
The unit operates on 120V, 60 Hz, single-phase power and draws 10.4 amps with a NEMA 5-15P plug.
The cutout size is 27-1/2 inches wide by 25-1/4 inches deep, with a 7/8-inch corner radius.
Yes. A sheet pan adapter is available as item 19186.
