Vollrath

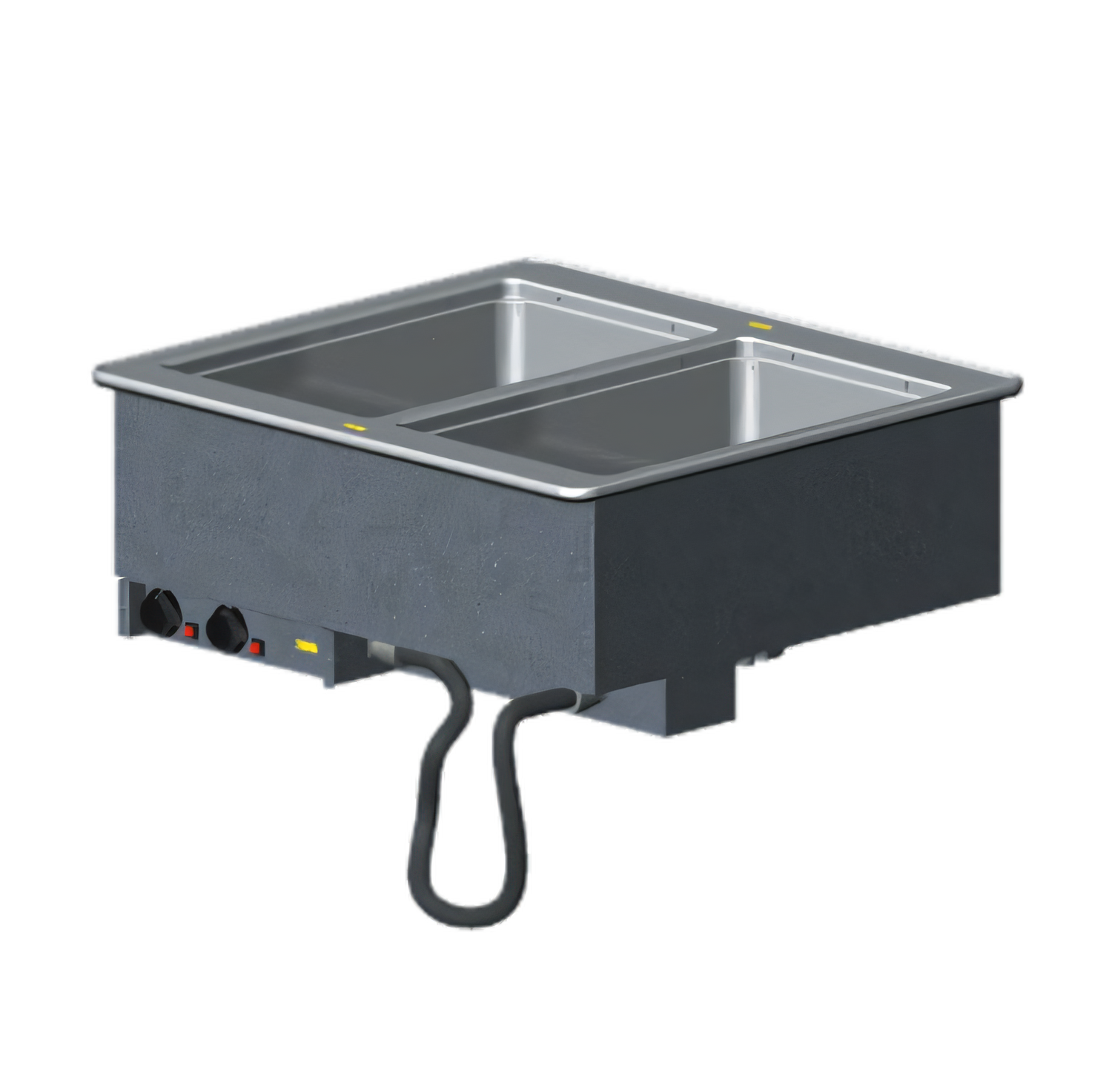

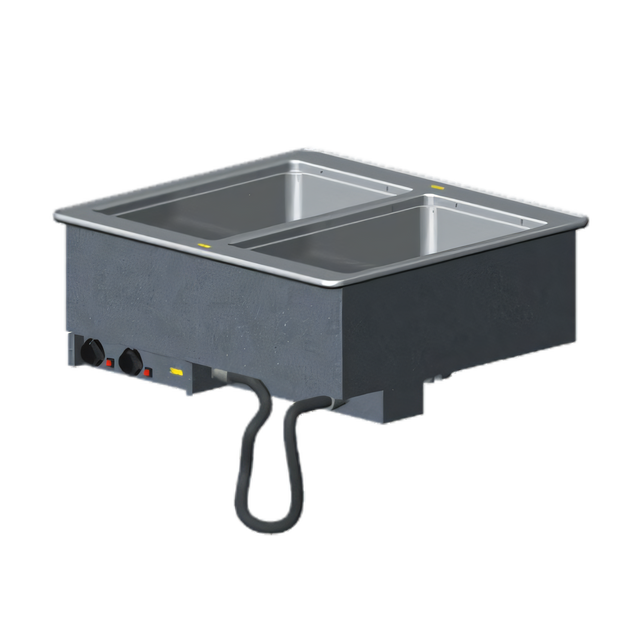

Vollrath Two-Well Drop-In Electric Hot Food Well, Wet Operation Only, Full-Size Pan Capacity, Infinite Controls, 120V, Manifold Drain

SKU: 3639950
$2,153.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath Two-Well Drop-In Electric Hot Food Well, Wet Operation Only, Full-Size Pan Capacity, Infinite Controls, 120V, Manifold Drain

Insulated stainless steel wells with plug-in installation and individual well shutoffs

Maintain hot foods at safe serving temperatures with an insulated, plug-in drop-in well built for wet operation and easy counter installation.

  • Two insulated 12" x 20" wells help retain heat efficiently for attractive food presentation.
  • Wet operation only design uses moist heat; water is required for even heating.
  • Individual infinite controls and power indicator lights let you manage each well independently.
  • 1" copper manifold drain includes individual well shutoffs and a master manifold shutoff.
  • Includes a 6-foot cord with NEMA 5-15P plug, so hard-wiring is not required.
  • Mounting clips and drip-edge flange support faster, more secure drop-in installation.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

105.0 lb

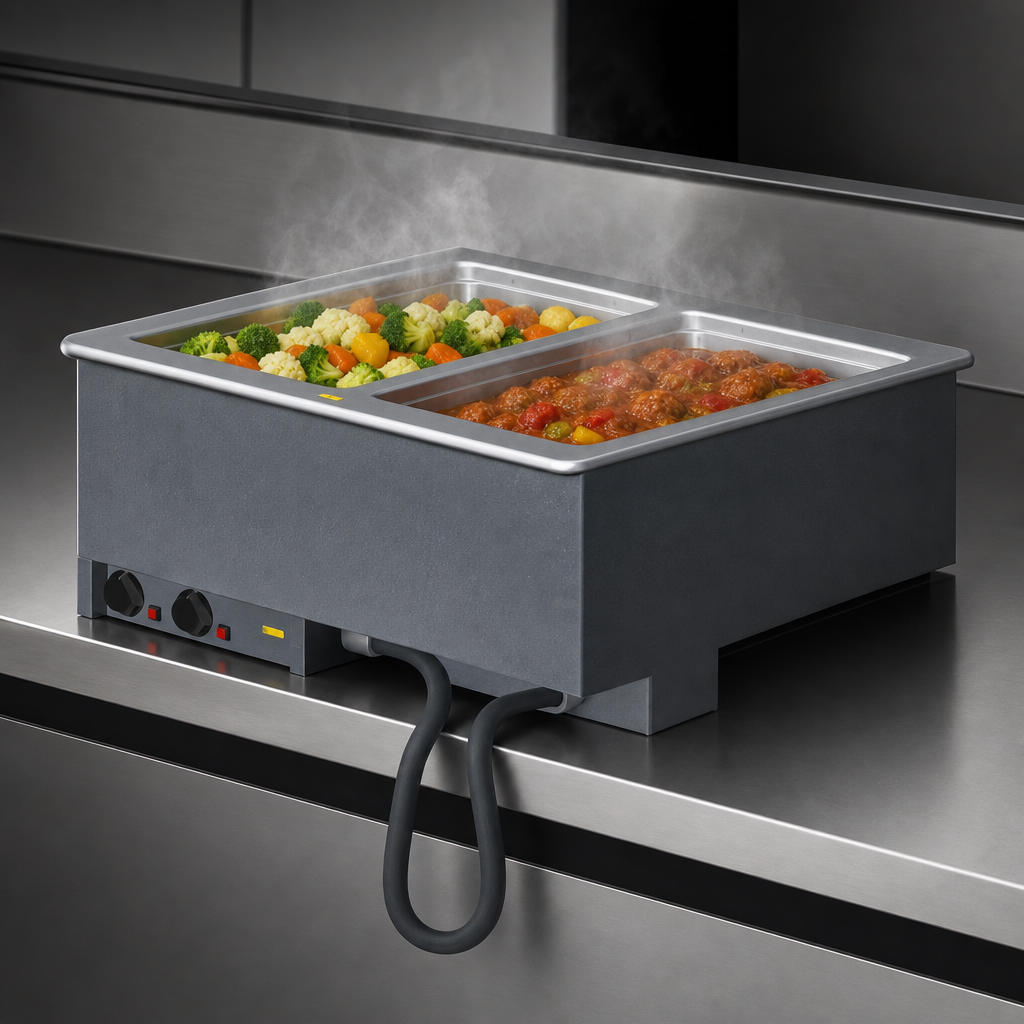

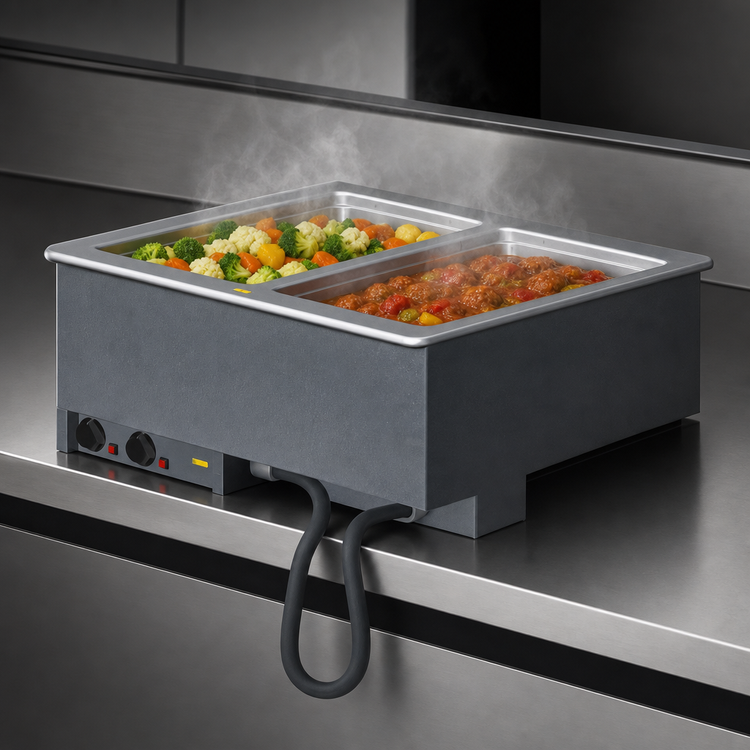

Two Insulated Wells

Two individual full-size wells are insulated on all non-exposed sides to help maintain serving temperature.

Wet Operation Only

Designed for moist-heat holding; water is required for even heating and proper food holding.

Independent Infinite Controls

Each well has its own infinite control and power indicator light for separate temperature management.

Manifold Drain System

Features a 1" copper manifold drain with individual well shutoffs and a manifold shutoff for easier handling.

Plug-In Power Connection

Includes a 6-foot cord with NEMA 5-15P plug and does not require hard-wiring.

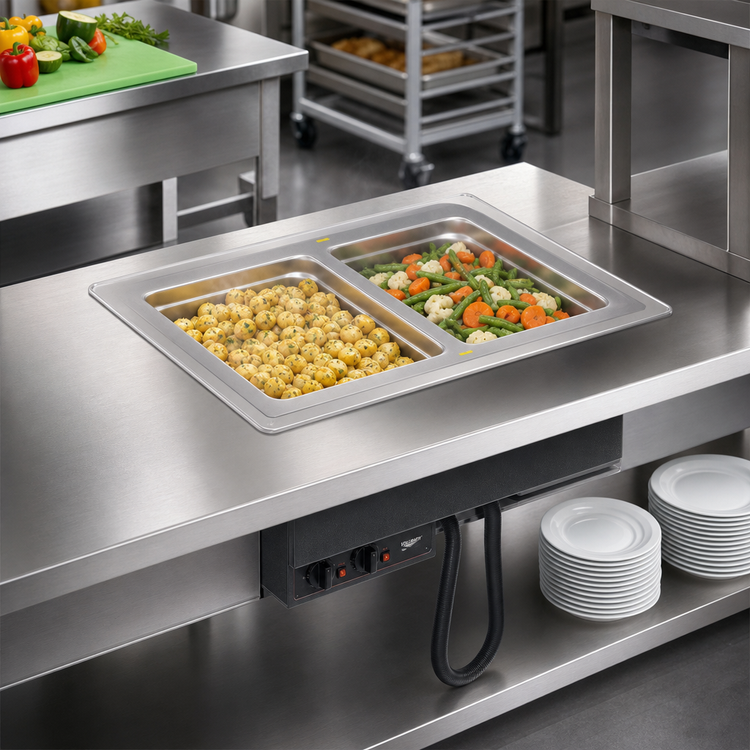

Drop-In Installation

Supplied with mounting clips and a drip-free flange for top-mount installation.

Pan Flexibility

Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended for fractional pans.

Durable Commercial Construction

Built with a stainless steel top and wells plus a galvanized exterior housing for long-lasting service.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Controls Infinite
Pan Capacity 2 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized
Voltage 120 Volts
Amps 10.4 Amps
Watts 1.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Drain Connection Required
Water Connection Not Required
Country of Origin USA
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 105 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Frequently Asked Questions

Yes. It is designed for wet operation only, and water is required for even heating.
No. It includes a 6-foot cord with a NEMA 5-15P plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended for fractional pans.
The cutout size is 27-1/2 inches by 25-1/4 inches, and the cutout must have a 7/8 inch corner radius.
It has a 1-inch copper manifold drain with individual well shutoffs and a manifold shutoff.
