Vollrath

Vollrath Two-Well Drop-In Electric Hot Food Well with Thermostatic Controls, 120V, 12 x 20 Pans

SKU: 3639911HD
$2,243.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath Two-Well Drop-In Electric Hot Food Well with Thermostatic Controls, 120V, 12 x 20 Pans

Insulated 316 stainless steel wells; wet operation only

Keep two full-size pans hot and ready with a durable, plug-in drop-in well featuring individual thermostatic controls and marine-grade stainless steel construction.

  • Two insulated wells hold full-size 12 x 20 pans for buffet or serving line use.
  • Individual thermostatic controls and power indicator lights let you manage each well separately.
  • Marine-grade 316 stainless steel wells and stainless steel housing are built for demanding commercial use.
  • Wet-operation design requires water/moist heat for even heating and reliable food holding.
  • Includes a 6-foot cord with NEMA 5-30P plug plus mounting clips for easier drop-in installation.
  • Accepts fractional pans up to 6 inches deep; individual drain shutoffs and removable bottom panels aid cleanup and service.

Overall Dimensions:

28.25"W x 26.0"D x 15.0"H

Product Weight:

95.0 lb

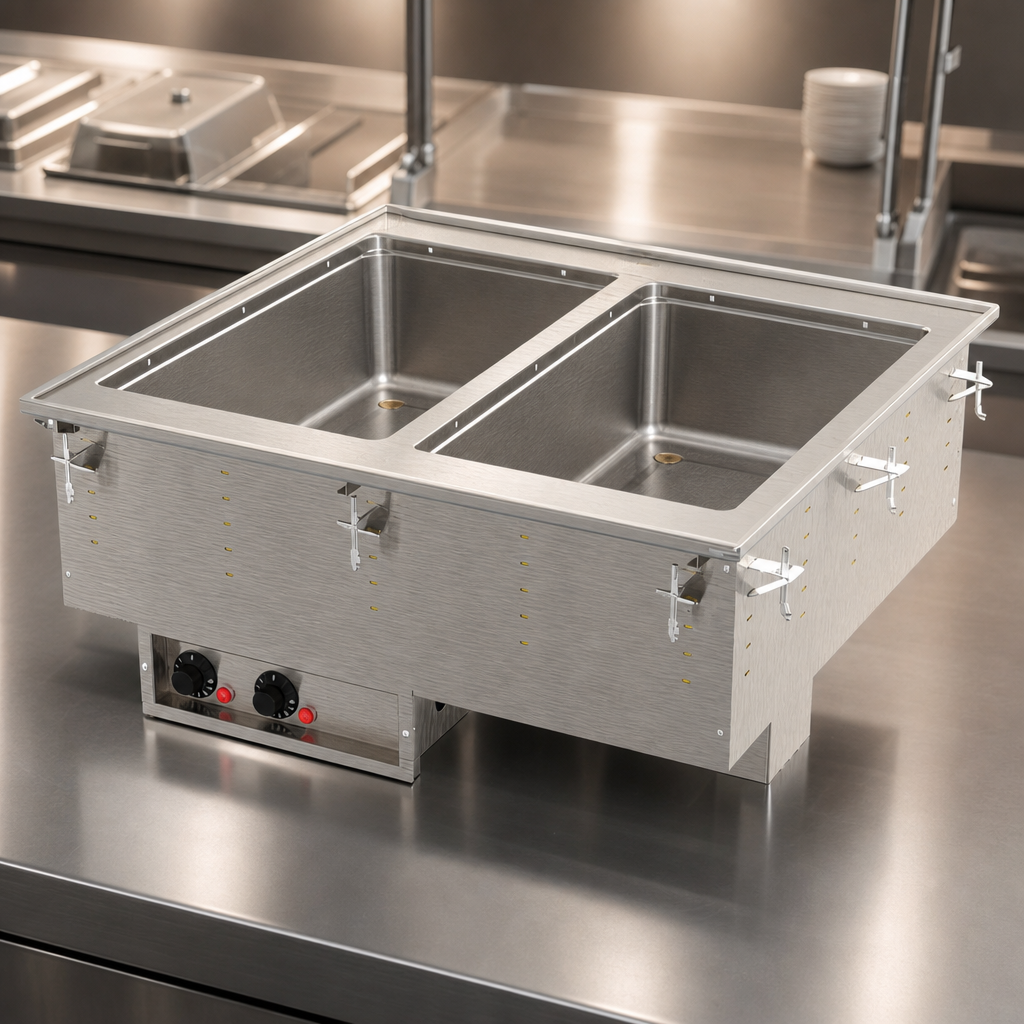

Marine-Grade 316 Stainless Steel Wells

Drawn 20-gauge SAE Type-316 stainless steel wells resist corrosion and stand up to commercial service.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light.

Wet Operation Only

Designed for moist heat; water is required for even heating and food holding.

Insulated On All Sides

Insulation on all non-exposed sides, including between wells, helps retain heat.

Corded Plug-In Design

Includes a 6-foot cord with NEMA 5-30P plug and does not require hard-wiring.

Removable Bottom Panels

Removable bottom panels provide service access for maintenance.

Mounting Clips Included

Standard mounting clips help secure the drop-in on counters up to 3 inches thick.

Accepts Full-Size and Fractional Pans

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Individual Drain Shutoffs

Each well has a 1/2-inch drain with individual ball valves for easier emptying.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Compartments 2
Pan Size 12 x 20 Inches
Pan Capacity 2 Full-Size Pans
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Stainless Steel
Country of Origin USA
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Drain Connection Size 1/2 Inch MPT
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 95 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Frequently Asked Questions

This unit has two individual insulated wells.
It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended when using fractional pans.
No. It includes a 6-foot cord with a NEMA 5-30P plug and does not require hard-wiring.
Wet operation only. Water is required for even heating and proper moist-heat performance.
The cutout size is 27-1/2 inches by 25-1/4 inches, and the cutout must have a 7/8-inch corner radius.
All models shown come with a two-year warranty against defects in materials and workmanship. Refer to Vollrath.com for full warranty details.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
