Vollrath 3639901HD Steam Tables & Food Wells
Description
Vollrath 2-Well Modular Hot Drop-In – Marine-Grade
Model 3639901HD | 1000 W per well | 120 V | Infinite ControlGive every menu item the perfect holding environment with Vollrath’s U.S.-made two-well hot drop-in. Crafted from corrosion-resistant 316 stainless steel, each full-size (12" × 20") well delivers consistent, wet-heat performance while a drip-free flange protects your countertop. Arrives pre-wired with a 6-ft cord—just drop it in, plug it in, and start serving.
Key features & benefits

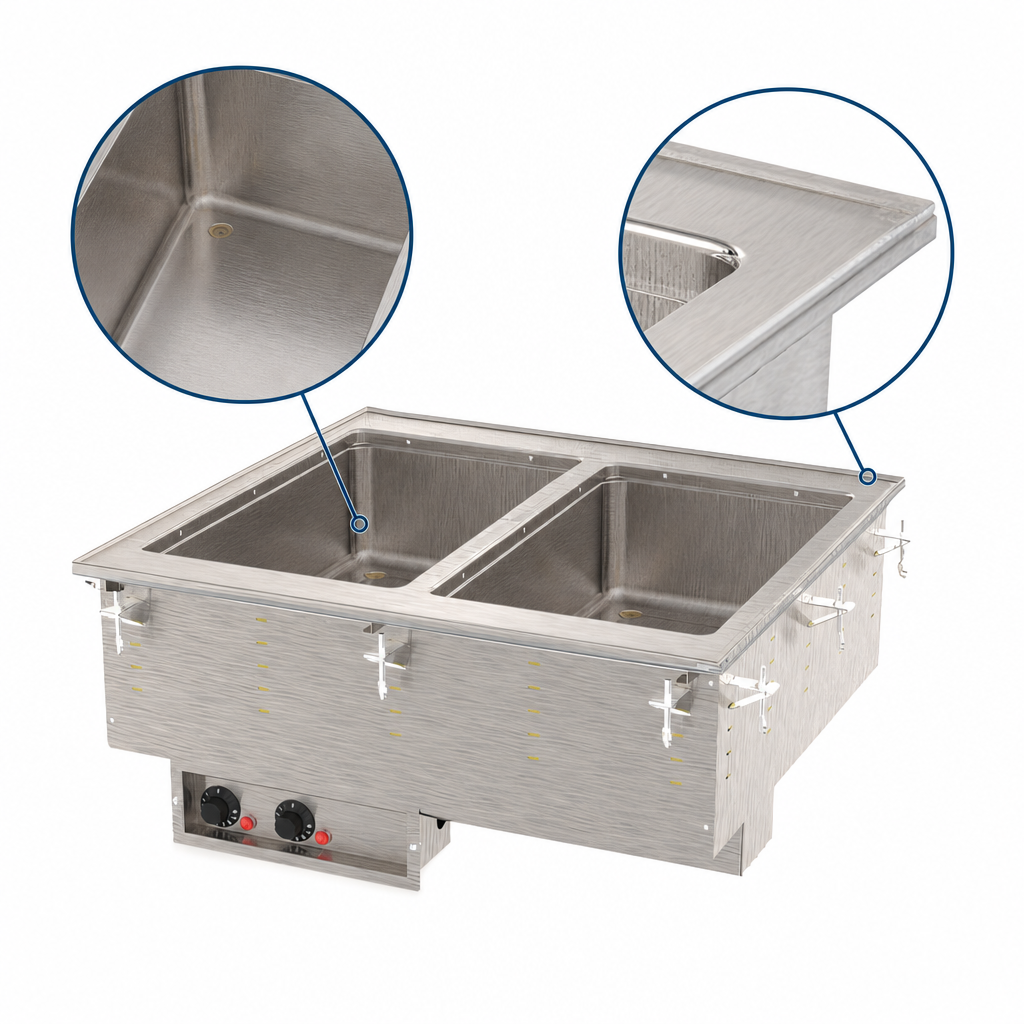

- 20 ga SAE 316 marine-grade wells resist salt & acidic foods.
- Individual infinite controls with power lights for precise holding.
- Fully insulated—including between wells—for energy-efficient operation.
- Wet operation meets NSF 4 for even, gentle heat.
- ½" MPT drains with separate ball valves for mess-free cleaning.
- 18 ga stainless top with full-perimeter drip edge contains spills.
- Remote stainless control panel (4 ft tether) mounts where you need it.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- Zero-clearance, top-mount design installs easily with included gasket & clips (up to 3" thick counters).
- Made in the USA and listed to NSF & cULus standards.
Perfect for
- Cafeteria and buffet service lines
- Seafood bars & coastal operations where corrosion resistance matters
- QSR make-up stations
- Catering venues needing a flush, built-in look
Technical specifications
| Manufacturer | Vollrath |
|---|---|
| Model No. | 3639901HD (Marine-Grade “HD” Series) |
| Capacity | (2) full-size 12" × 20" wells; up to 6" pan depth |
| Operation | Wet heat only |
| Controls | Individual infinite, mechanical; power indicator lights |
| Wattage | 2,000 W total (1,000 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 16.7 A, 6 ft cord with NEMA 5-30P |
| Overall size | 28-1/4" W × 26" D × 15" H |
| Counter cutout | 27-1/2" W × 25-1/4" D, 7/8" corner radius |
| Construction | 20 ga 316 stainless wells, 18 ga stainless top & housing |
| Drain | (2) ½" MPT drains with individual shut-off valves |
| Certifications | NSF, cULus |
| Warranty | 2-year limited parts & labor (full policy) |
| Country of origin | USA |
To achieve listed performance, maintain water level as specified in the user manual.
