Vollrath  |  SKU: 3639901

Vollrath 3639901 Steam Tables & Food Wells

$1,758.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

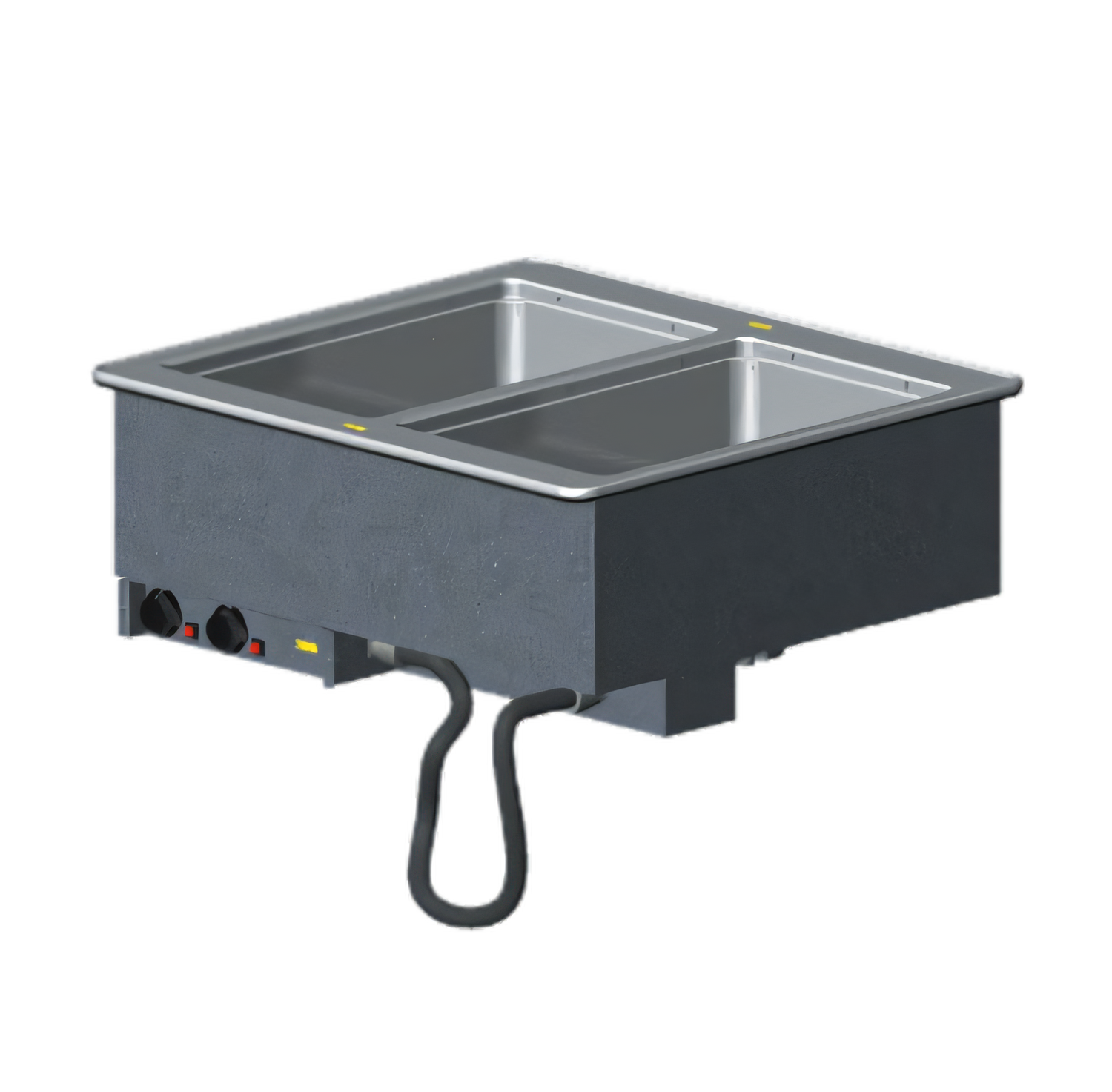

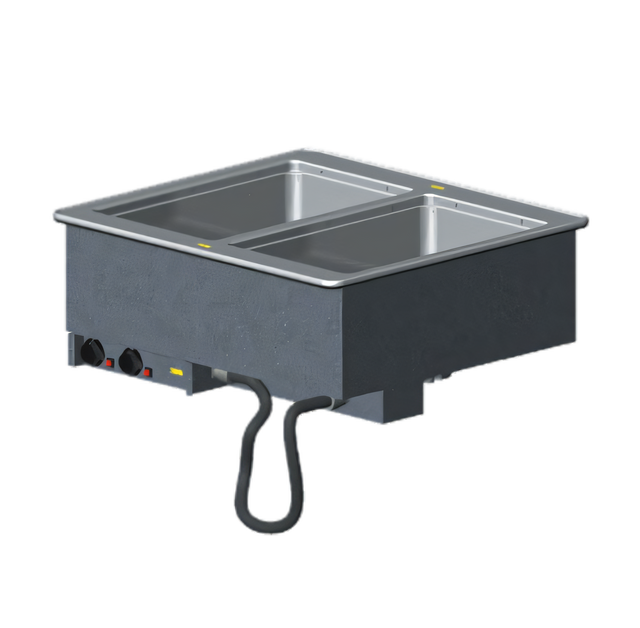

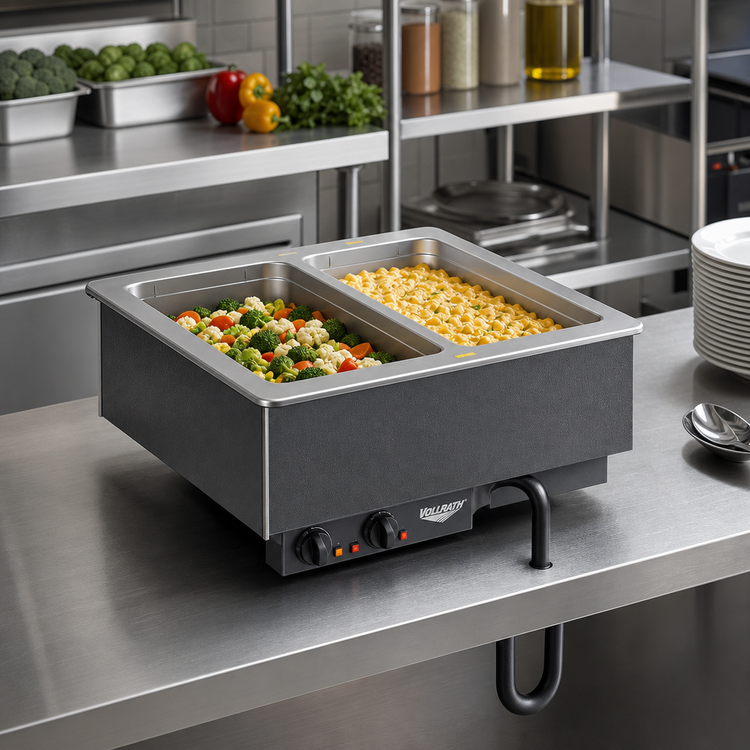

Vollrath Two-Well Drop-In Hot Food Well – 120 V, Infinite Control

Model 3639901 | Standard Drain | Made in USA

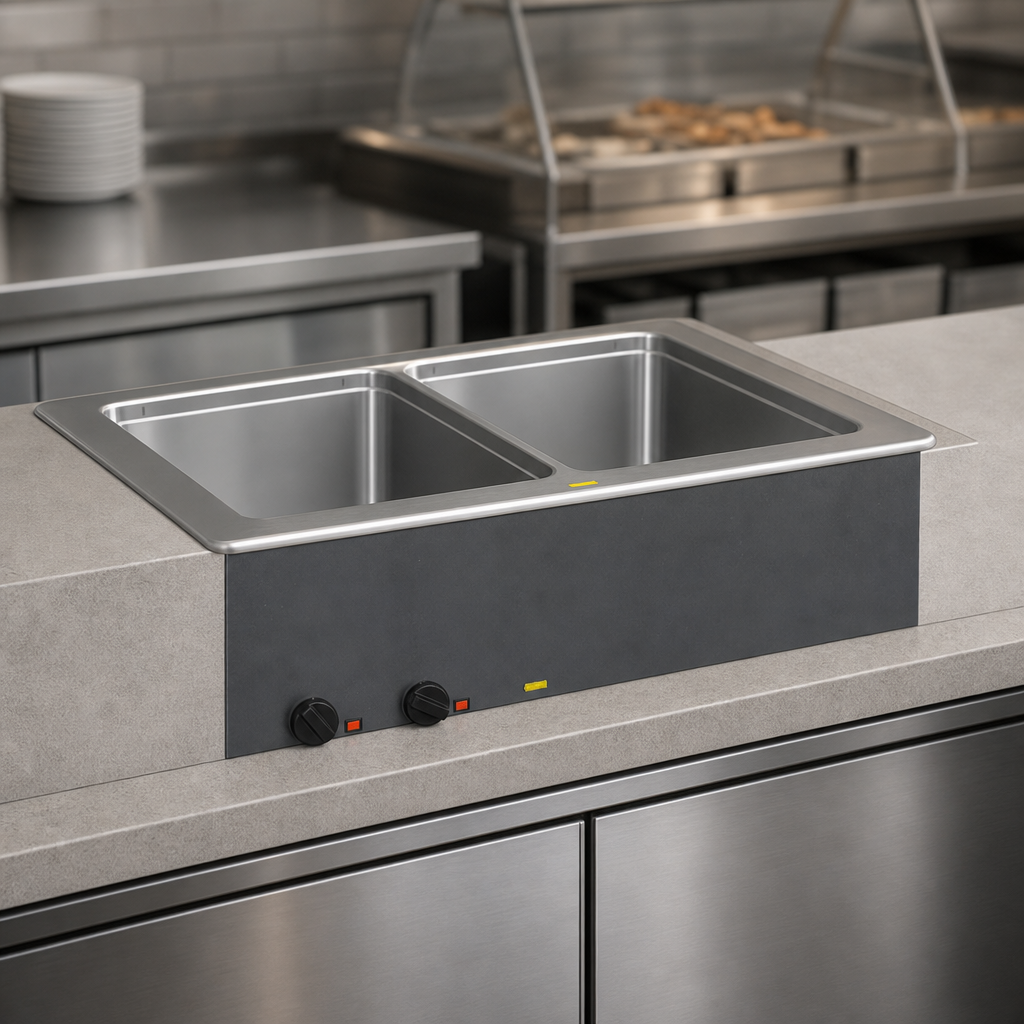

Keep soups, sides, and entrées at perfect serving temperature with this heavy-duty, plug-and-play hot well module. Sized for two full-size pans, the unit drops neatly into a 27½ × 25¼ in countertop opening and delivers even, wet-well heat without the need for hard-wiring.

Why You’ll Love It
  • (2) individually insulated 12 × 20 in wells fabricated from rugged 20-gauge stainless steel.
  • Independent infinite controls with power indicator lights—hold two different menu items with pinpoint accuracy.
  • Wet-well operation paired with a full-perimeter, drip-free flange keeps condensation off the counter.
  • Factory-installed ½ in drains with dedicated ball-valve shut-offs for fast water changes.
  • 6 ft cord and NEMA 5-30P plug; simply drop in, plug in, and start serving.
  • Accepts full-size or fractional pans up to 6 in (152 mm) deep; adapter bars recommended for fractional pans.
  • Zero-clearance installation; includes mounting clips for counters up to 3 in (76 mm) thick.
  • NSF 4 (wet operation) and cULus listed for sanitation and safety.
Technical Specifications
Wells (2) 12 × 20 in, 20-ga stainless
Operation Wet only
Controls Independent infinite, remote stainless panel (4 ft tether)
Total Power 2,000 W (1,000 W per well)
Electrical 120 V / 60 Hz / 1-ph, 16.7 A, NEMA 5-30P
Overall Size 28¼ W × 26 D × 15 H in (718 × 660 × 381 mm)
Counter Cut-Out 27½ W × 25¼ D in (699 × 641 mm)
7/8 in (22 mm) corner radius required
Top Material 18-ga stainless steel with drip-free flange
Exterior Housing 18-ga galvanized steel
Drain ½ in MPT, individual ball valves
Cord Length 6 ft (1.8 m)
Certifications NSF, cULus
Country of Origin USA
Installation & Use Tips
  • Maintain the specified cut-out dimensions and corner radius for a proper seal and secure fit.
  • No side or rear clearance is required—ideal for tight serving lines.
  • Intended for indoor use; ambient room temperature and HVAC can affect holding performance.
  • Always operate with water in each well to meet NSF standards and ensure even heating.
  • Do not modify or replace the factory-supplied cord or plug.
Optional Accessories
  • Sheet-pan adapter bar – item 19186 (sold separately).
Important: Modular drop-ins are built to order and cannot be cancelled or returned once production begins.

Refer to vollrathfoodservice.com for full warranty policy details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

104.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2000 watts, 120v/60/1-ph, 16.7 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
