Vollrath  |  SKU: 36399

Vollrath 36399 Steam Tables & Food Wells

$1,758.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

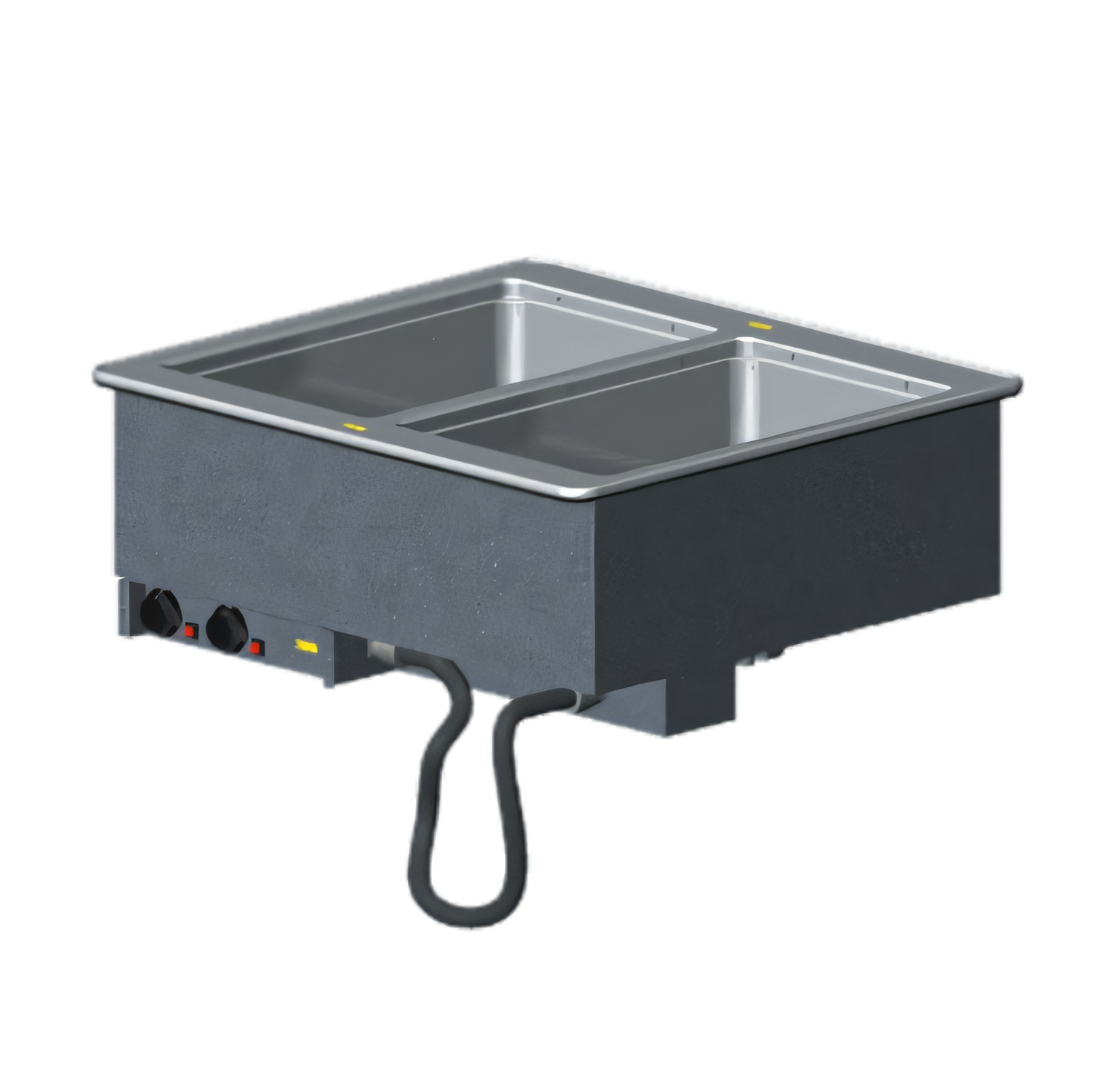

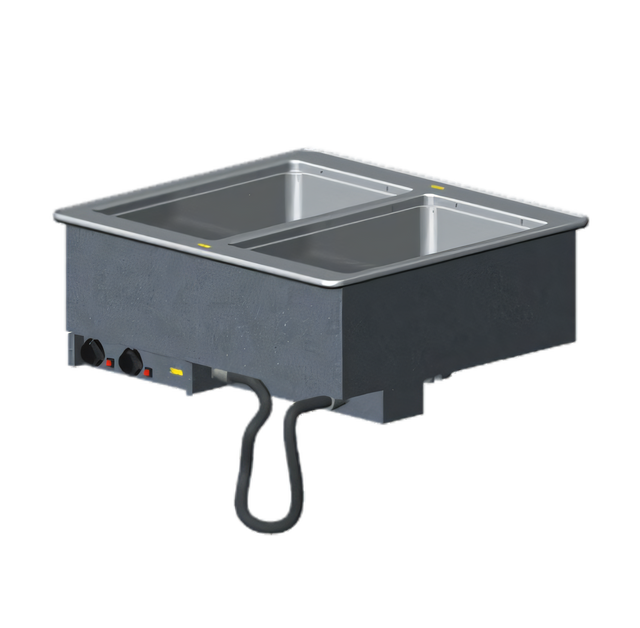

Vollrath Two-Well Hot Food Drop-In – 120 V / 1,250 W Total

Model 36399 • Standard Drain • Made in USA

Keep entrées, sides and sauces at safe serving temperatures with this NSF-listed, two-well hot module from Vollrath. Designed for quick top-mount, zero-clearance installation, it drops neatly into your counter, plugs into a standard 5-15R outlet and is ready for wet operation—no hardwiring required.

Key features & benefits

  • Two individual 12" × 20" wells, each fully insulated and operator-drained.
  • 18 ga stainless top with a full-perimeter drip-free flange to catch spills and condensation.
  • Individual infinite controls with power indicator lights on a stainless panel (4' tether lets you mount the panel where it’s easiest to reach).
  • Separate ½" MPT ball-valve drain for each well—no messy manifold to clean.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep; adapter bars recommended for fractional pans.
  • Factory-installed gasket under the drip edge and mounting clips for counters up to 3" (7.6 cm) thick.
  • 6' (1.8 m) cord with NEMA 5-15P plug; draws only 10.4 A on a single 120 V circuit.
  • Wet-heat design delivers consistent, even warming that meets NSF 4 performance standards.
  • Indoor, zero-clearance installation aids drop-in design flexibility.

Technical specifications

Number of wells 2 (independent)
Well opening 12" × 20" (full-size steam-table pan)
Operation Wet heat only
Controls Infinite, one per well + power lights
Total wattage 1,250 W (625 W per well)
Electrical 120 V / 60 Hz / 1-ph  •  10.4 A  •  NEMA 5-15P
Exterior dimensions 28 ¼" W × 26" D × 15" H (71.8 × 66 × 38.1 cm)
Counter cutout 27 ½" W × 25 ¼" D (69.9 × 64.1 cm)  •  7⁄8" corner radius
Drain size (2) ½" MPT individual ball valves
Cord length 6' (1.8 m)
Construction 18 ga stainless top, 20 ga stainless wells, 18 ga galvanized exterior housing
Insulation Foam-in-place on all sides, including between wells
Certifications NSF 4 (wet), cULus
Origin Made in the USA
Important: This unit is engineered for wet operation only. Always add water to each well before turning on the heat to ensure even temperature distribution and to maintain NSF compliance.

What’s in the box

  • Vollrath model 36399 two-well drop-in hot module
  • Remote stainless steel control panel (pre-wired)
  • Mounting/positioning clips and under-counter gasket
  • Factory-installed 6' power cord with NEMA 5-15P plug
  • Operator’s manual & warranty information

Warranty

Backed by Vollrath’s 1-year limited warranty against defects in materials and workmanship. For full terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

105.0lbs

Insulated or Non-Insulated

insulated

Controls

infinite controls

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 120v/60/1-ph, 10.4 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
