Vollrath

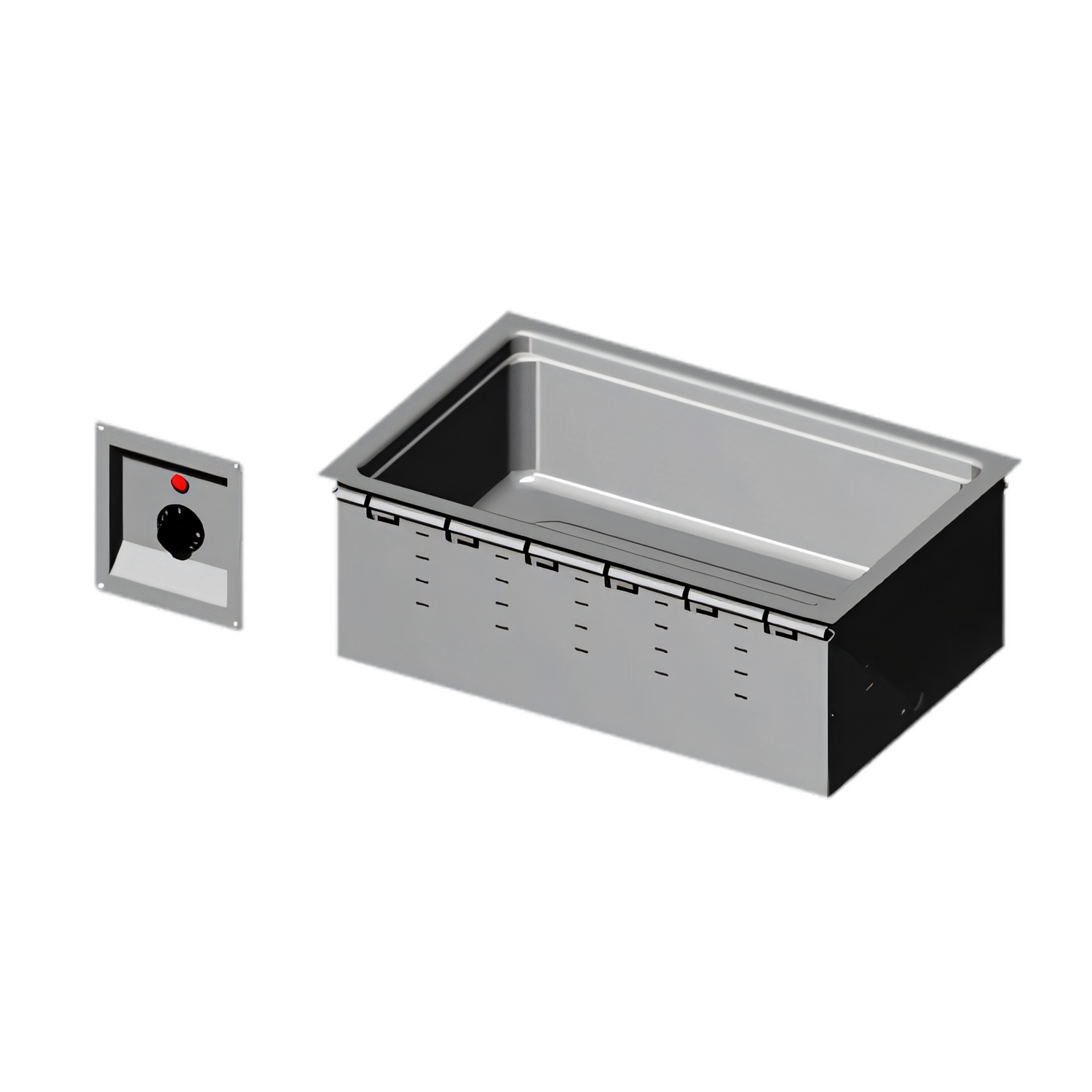

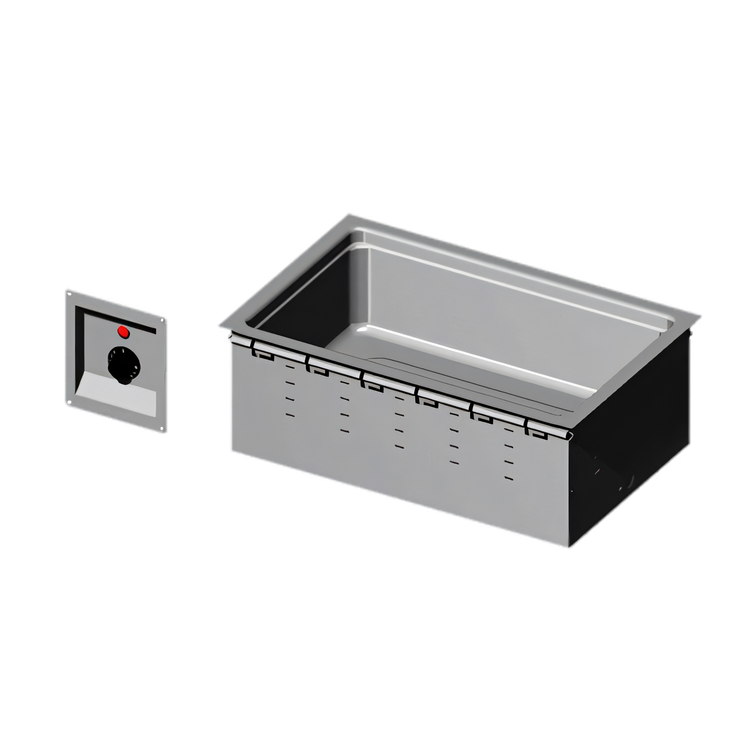

Vollrath 36354 Bottom-Mount Wet Hot Food Well Drop-In, Single Well, 1 Full-Size Pan, 208-240V, 1000W

SKU: 36354
$580.70
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath 36354 Bottom-Mount Wet Hot Food Well Drop-In, Single Well, 1 Full-Size Pan, 208-240V, 1000W

36-Inch Wired Remote Thermostatic Control

A fully insulated wet-operation drop-in well that keeps food hot with a 1,000-watt element and flexible wired remote temperature control.

  • Bottom-mount drop-in design is sized to retrofit most industry fabricator well openings.
  • Wet operation supports moist heat holding for hot foods.
  • Fully insulated construction helps retain heat and improve holding performance.
  • Stainless steel top and interior liner provide a durable, easy-to-clean food-contact surface.
  • 36-inch wired remote thermostatic control offers flexible control placement.
  • 208-240V, 60 Hz, single-phase hard-wired power with a 1/2-inch drain.

Overall Dimensions:

20.0"W x 13.0"D x 7.88"H

Product Weight:

27.42 lb

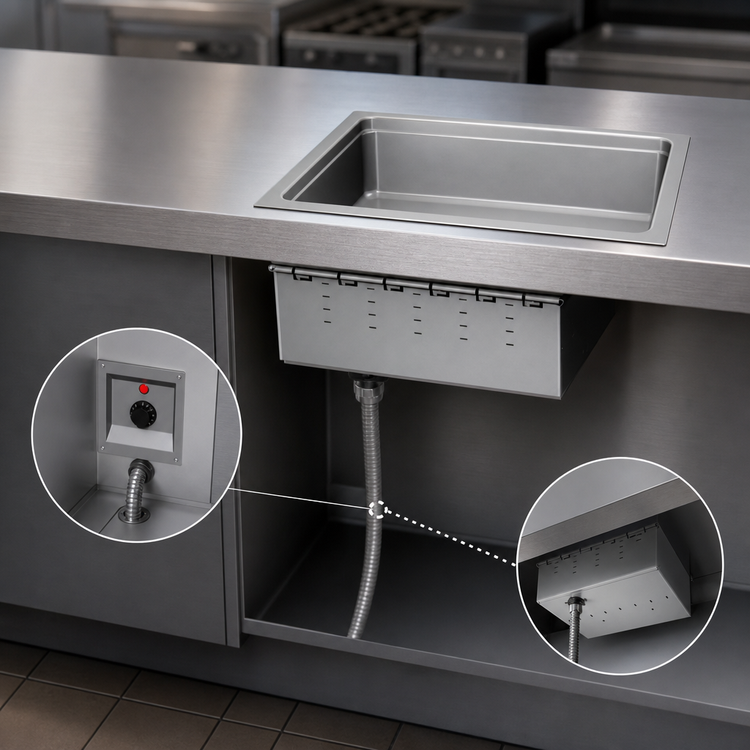

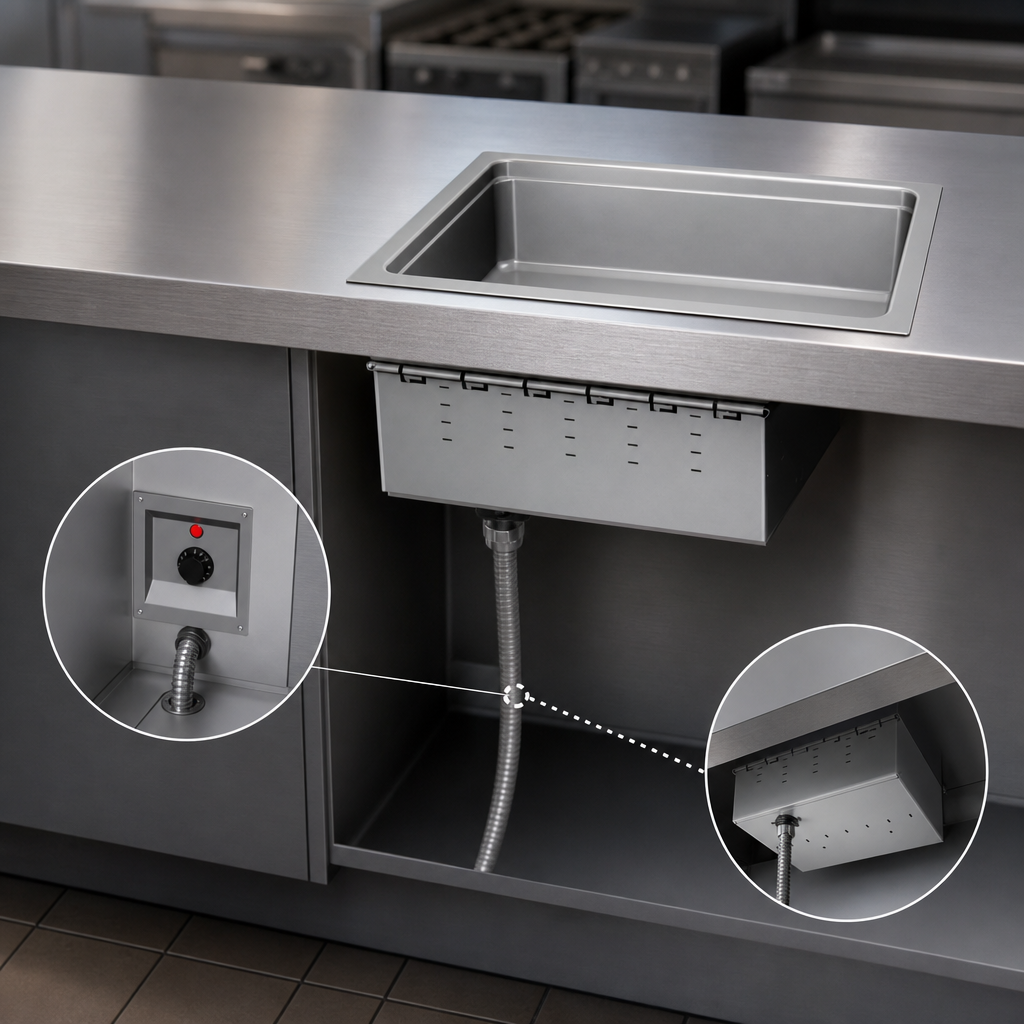

Bottom-Mount Installation

Designed for bottom-mount installation and hard wiring.

Wet Operation

Built for moist-heat holding applications.

Fully Insulated Construction

Helps retain heat and support efficient hot food holding.

Stainless Steel Top and Interior Liner

Durable food-contact surfaces that are easy to clean.

Galvanized Exterior Housing

Corrosion-resistant outer housing for the unit.

Wired Remote Thermostatic Control

Includes a 36-inch remote control lead for flexible installation.

1/2-Inch Drain

Provides drainage for cleaning and water removal.

Retrofit-Friendly Size

Sized to retrofit most industry fabricator well openings; contact Vollrath for engineering drawings.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In (Bottom Mount)
Compartments 1
Pan Capacity 1 Full-Size Pan
Pan Size 12 Inches x 20 Inches
Controls Wired Remote Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized
Voltage 208-240 Volts
Watts 1 kW
Amps 3.6-4.2 Amps
Phase 1-Phase
Hertz 60 Hz
Drain Connection Required
Drain Connection Size 1/2 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 13 Inches
Shipping Height 8 Inches
Shipping Weight 27.42 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

Wet operation.
One full-size 12" x 20" pan.
208-240V, 60 Hz, 1-phase, 1000W, drawing 3.6-4.2 amps.
Yes, it includes a 1/2-inch drain.
A 36-inch wired remote thermostatic control.
It is sized to retrofit most industry fabricator well openings; contact Vollrath for engineering drawings.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
