Vollrath 36295 4-Series Signature Server® Serving Counters
Description

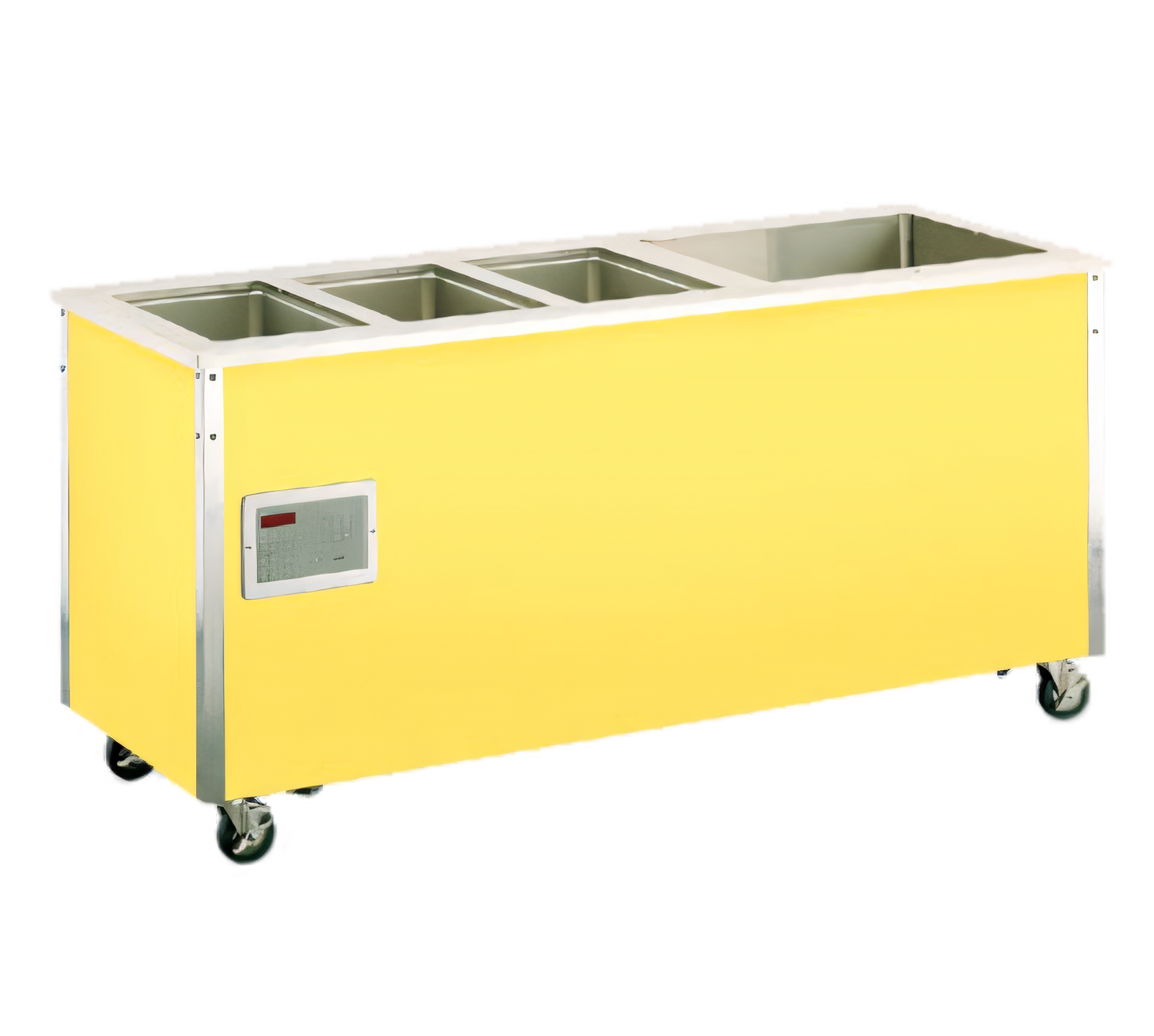

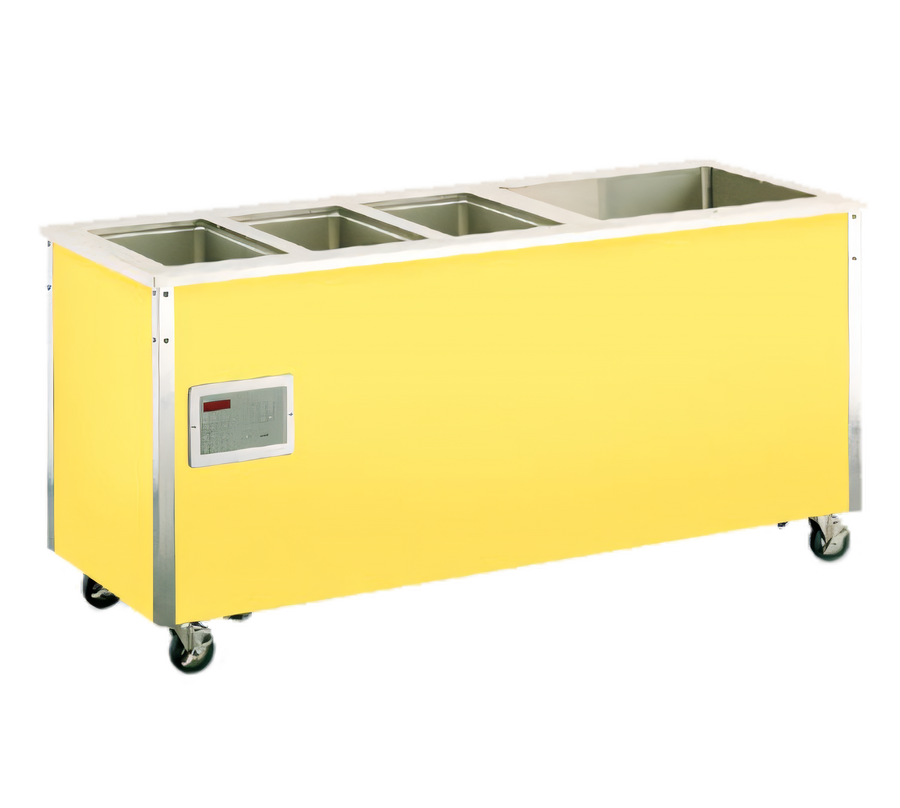

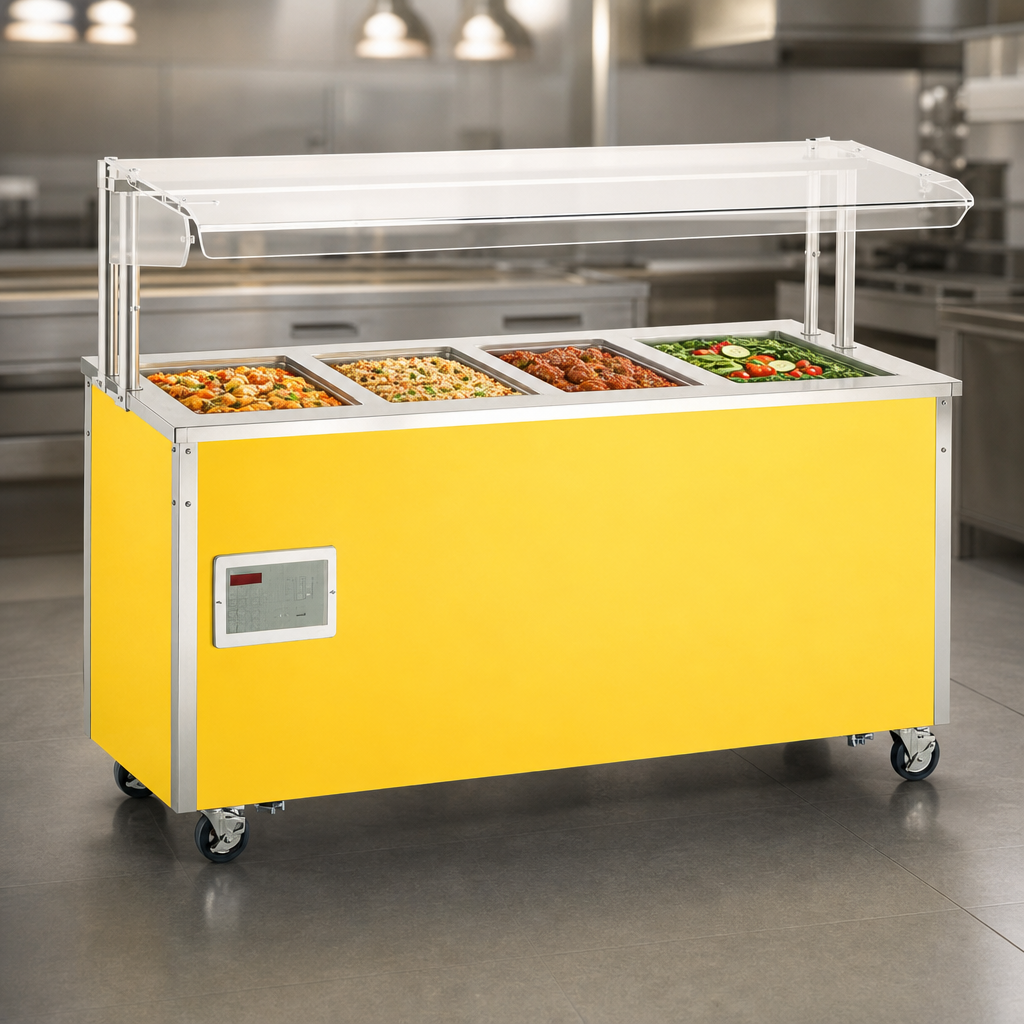

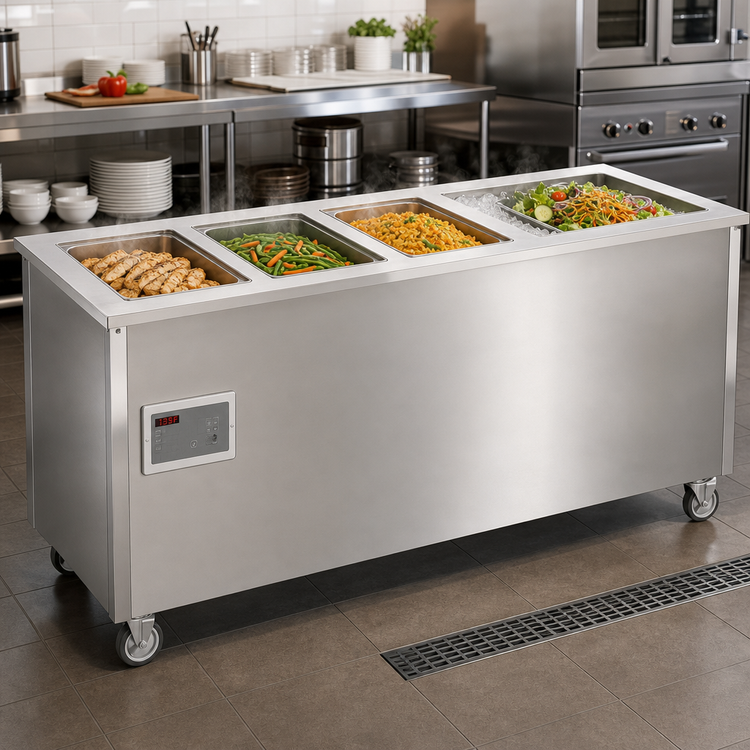

4-Series Signature Server® Hot/Cold Food Station – 74"
Vollrath Model 36295 • Stainless Steel • 27" Low-Profile BaseServe sizzling entrées and chilled sides from one compact, mobile station. The Vollrath 4-Series Signature Server® pairs three individually-controlled hot wells with a refrigerated cold pan, all housed in a rugged stainless-steel chassis that rolls effortlessly anywhere on the line.
Key Features
- Three full-size hot wells (11 ⅞" × 19 ⅞" × 6 ⅜") with energy-efficient 625 W elements.
- One refrigerated cold pan opening (24" × 19 ⅞") cooled with eco-friendly R513A refrigerant.
- Touch-Temp® electronic control panel delivers precise, independent temperature management for each hot well.
- One-piece 18 ga 300-series stainless-steel countertop/wells for superior sanitation and fast wipe-downs.
- Reinforced unibody base (18 ga 400-series stainless steel) and 4" heavy-duty locking casters built for daily mobility.
- High-density fiberglass insulation around hot wells; foamed-in-place polyurethane insulation around cold pan boosts efficiency.
- Manifold drains on hot wells plus a dedicated 1" drain for the cold pan—cleanup done in minutes.
- Ships ready to plug in with 8 ft (2.4 m) cord & NEMA plug; UL & NSF listed for sanitation.
Technical Specifications
| Overall dimensions (W × D × H) | 74" × 28" × 27" (188 cm × 71 cm × 69 cm) |
|---|---|
| Hot wells | 3 × full-size, 625 W each |
| Cold pan opening | 1 × 24" × 19 ⅞" (refrigerated) |
| Refrigerant / charge | R513A • 7 oz |
| Drains | (3) manifold drains (hot) + 1" drain (cold) |
| Construction | 18 ga 300-series SS top & wells; 18 ga 400-series SS enclosed base |
| Mobility | (4) 4" swivel casters with brakes |
| Electrical | 120 V, single-phase, NEMA 5-20P (other voltages available) |
| Certifications | NSF/ANSI 2 • UL Listed |
| Warranty | Standard Vollrath warranty (5 yr compressor / 1 yr parts & labor). See vollrathfoodservice.com. |
Refrigerated Signature Server® units are NSF 2 for sanitation but have not been performance-tested for storage of potentially hazardous foods. Check local health codes before use.
