Vollrath 36275 4-Series Signature Server® Serving Counters
Description

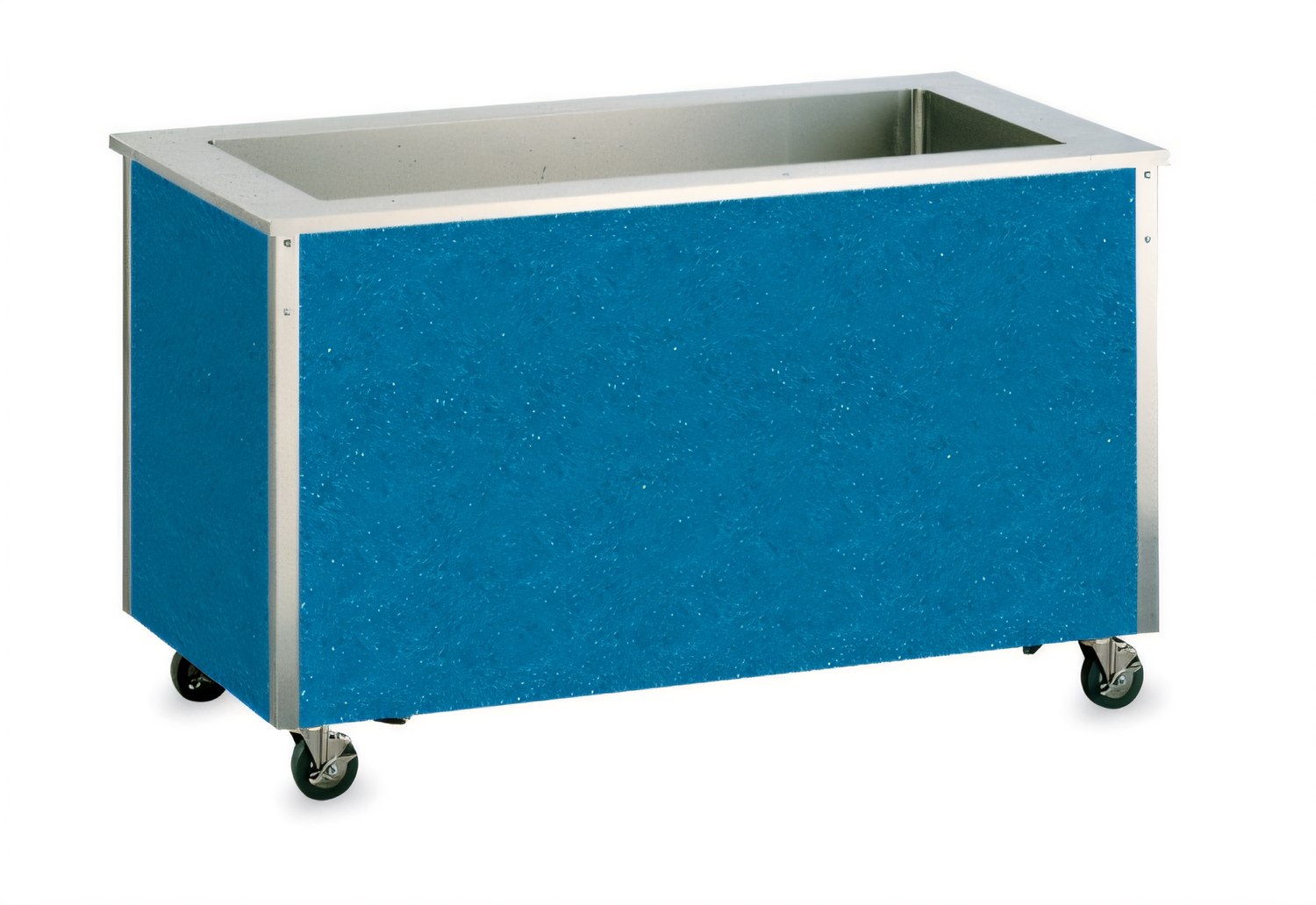

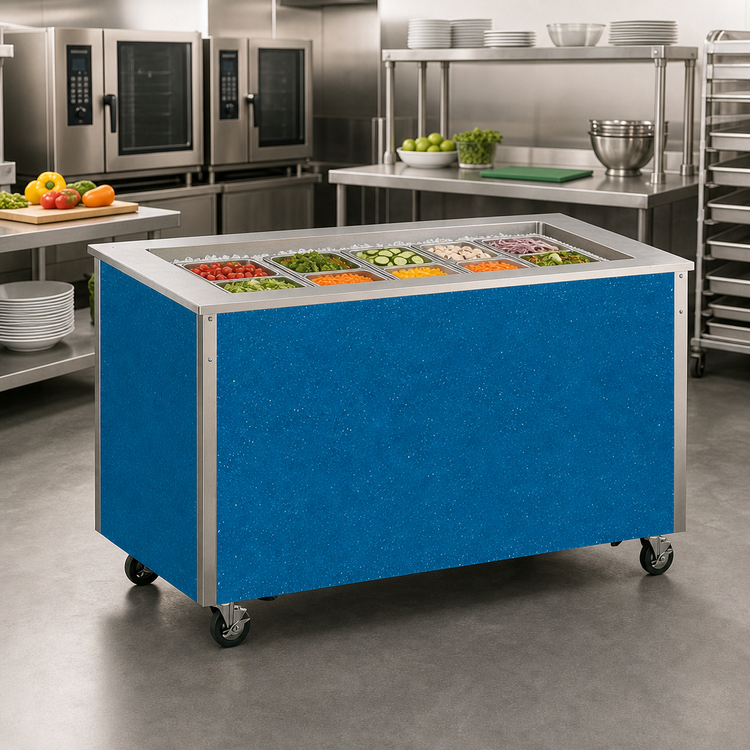

Vollrath 4-Series Signature Server® Cold Food Station – 74" Refrigerated, 5-Pan
Stainless Steel Countertop • Self-Contained R290 Refrigeration • 27" Low-Profile BaseGive your guests fresh, perfectly chilled offerings all service long. Designed for demanding commercial environments, the Vollrath 4-Series Signature Server® Cold Food Station delivers reliable NSF-7 performance in a sleek, mobile package that integrates into any Signature Server® lineup.
Key features

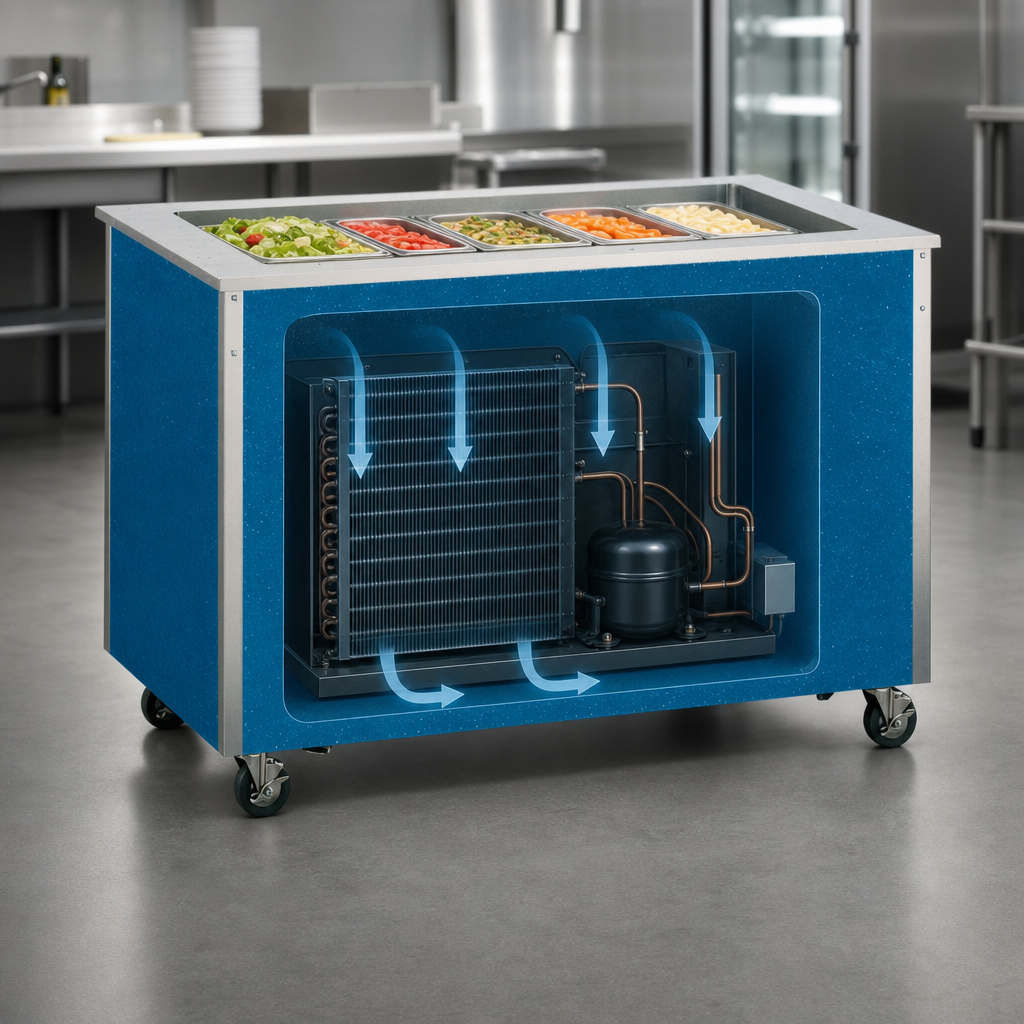

- Self-contained 1/3 hp refrigeration system uses eco-friendly R290 to hold foods below 41 °F (5 °C) without ice or remote compressors.
- Generous 19 7/8" × 63" × 8" deep stainless well fits five full-size steam pans or assorted fractional pans.
- Foamed-in-place polyurethane insulation boosts energy efficiency and cold retention.
- Durable 18-gauge 400-series stainless base with a one-piece 300-series well/top stands up to daily wear and tear.
- Operator-side drain hose and valve speed cleanup while preserving a clean customer view.
- 4" swivel casters (two locking) and an 8 ft (2.4 m) cord provide true plug-and-play mobility.
- Part of the modular Signature Server® system—mix and match with Vollrath hot, utility or cashier stations for a seamless serving line.
- Made in the USA and certified NSF 2 & cULus for sanitation and safety.
Specifications
| Model | 4-Series Signature Server® Cold Food Station (refrigerated) |
|---|---|
| Overall dimensions | 74" W × 28" D × 27" H (188 cm × 71 cm × 69 cm) |
| Well dimensions | 19 7/8" W × 63" L × 8" D (50.5 cm × 160 cm × 20 cm) |
| Pan capacity | 5 full-size 12" × 20" pans (or equivalent fractional pans) |
| Compressor | 1/3 hp, self-contained |
| Refrigerant | R290 (60 g charge) |
| Electrical | 120 V / 60 Hz / 5.2 A • NEMA 5-15P • 8 ft cord |
| Heat of rejection | Approx. 4,800 BTU/hr |
| Mobility | 4" swivel casters, two with brakes |
| Drain | Operator-side hose & valve |
| Ventilation clearance | Minimum 3" (7.6 cm) in front of vents |
| Construction | 18 ga 400-series stainless base • 300-series stainless well & top |
| Certifications | NSF 2, cULus |
| Country of origin | Made in USA |
Breath guards, pans and decorative end panels are sold separately.
Compressor carries a 5-year limited warranty; remaining components carry a 1-year parts & labor warranty. See vollrathfoodservice.com for complete warranty details.
