Vollrath 36270 4-Series Signature Server® Serving Counters
Description

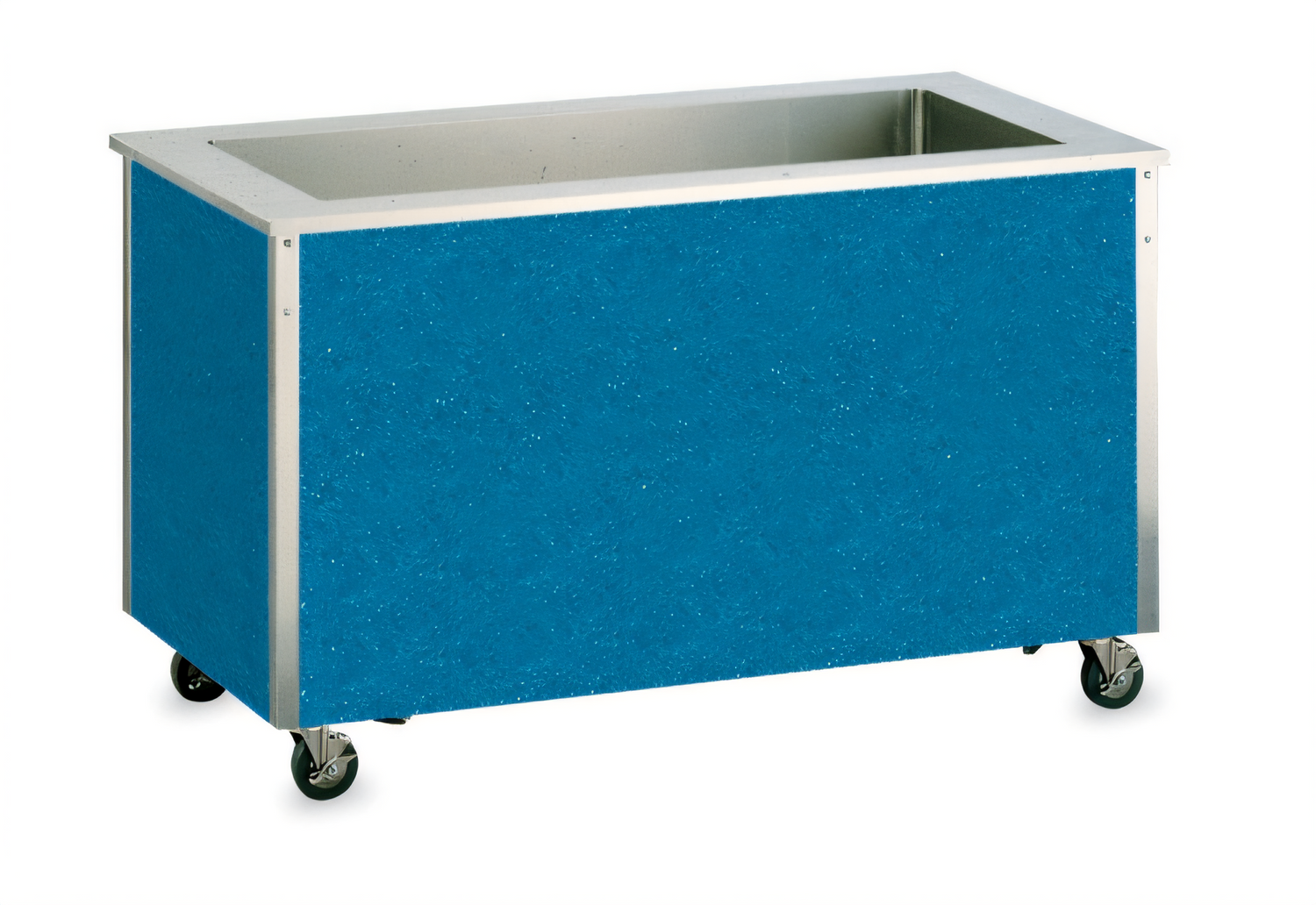

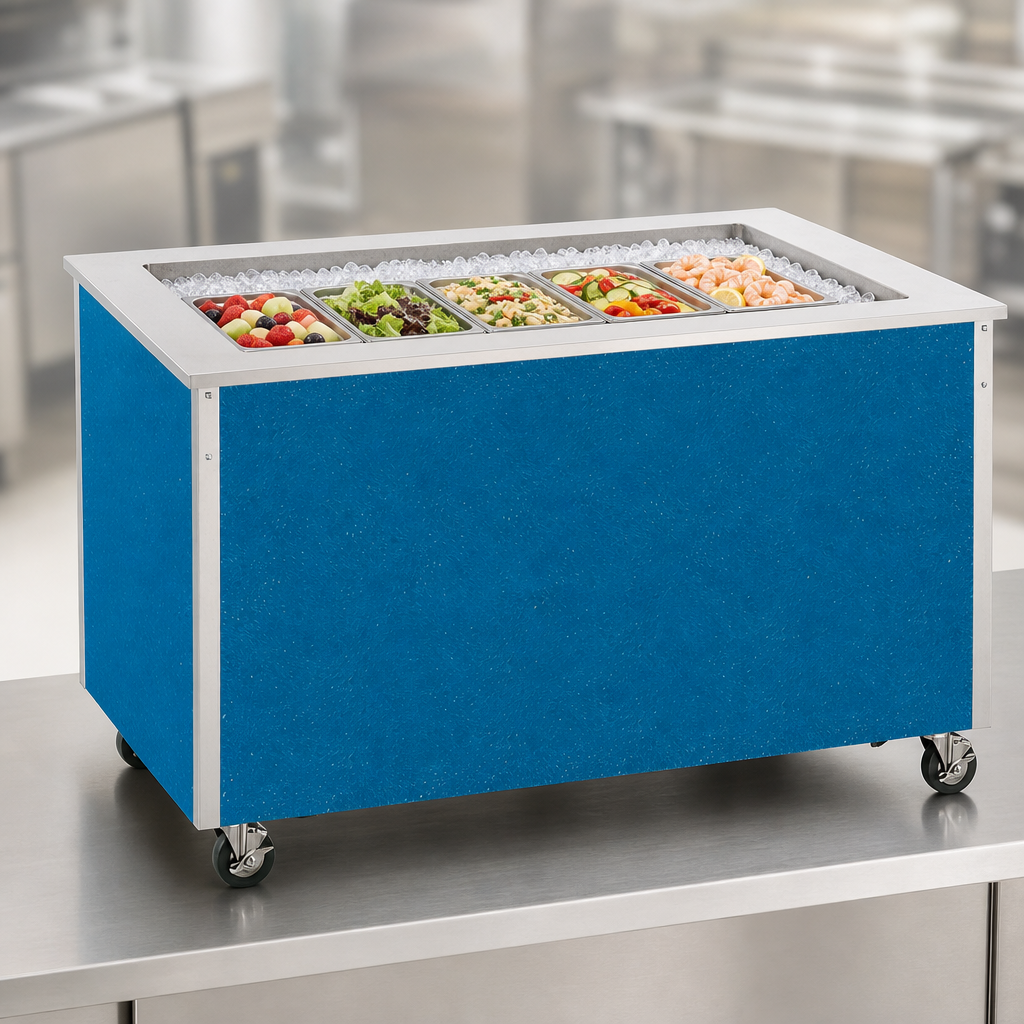

4-Series Signature Server® Stainless Steel Cold Food Station – 74 in
Ice-cooled countertop unit • 5-pan well • Low-profile 27 in heightDesigned for school cafeterias, corporate cafés and any operation that needs maximum cold-holding power in minimal space, the Vollrath 4-Series Signature Server® delivers rock-solid durability, easy mobility and worry-free food safety—all in a sleek, stainless steel package that stands just 27 in (69 cm) tall.
Why you’ll love it
- Rugged build – 18-ga 400-series stainless steel base and one-piece 300-series stainless top withstand daily commercial use.
- Generous 5-pan well – 19 7⁄8 in × 63 in × 8 in deep, pitched to a rear drain for fast ice melt removal.
- Ice-cooled performance – Foamed-in-place polyurethane insulation keeps product between 33 – 41 °F without mechanical refrigeration.
- Operator-side drain hose & valve – Empty, rinse and refill the well without disturbing guests.
- Easy to move, easy to lock – 4 in swivel casters with brakes provide smooth rolling and rock-solid stability.
- Clean, enclosed base – Hides plumbing and stores backup pans, utensils or ice buckets.
- 8 ft (2.4 m) cord with NEMA 5-15P plug – Standard 120 V connection, no hardwiring required.
- Proudly made in the USA; NSF 2 and cULus listed for sanitation and safety.
Technical specifications
| Item # / Model | 36275 • 4-Series Signature Server® |
|---|---|
| Overall dimensions | 74 W × 28 D × 27 H in (188 × 71 × 69 cm) |
| Well dimensions | 63 W × 19 7⁄8 D × 8 H in (160 × 50 × 20 cm) |
| Pan capacity | 5 full-size 12 × 20 in pans (or equivalent fractional pans) |
| Cooling method | Ice-cooled, pitched stainless steel well with rear drain |
| Electrical | 120 V / 60 Hz • 5.2 A • NEMA 5-15P plug • 8 ft cord |
| Mobility | 4 in (10 cm) swivel casters, 2 with brakes |
| Construction | 18-ga 400-series stainless base • 300-series stainless well & top |
| Certifications | NSF 2 • cULus • Made in USA |
Installation & operation tips
- Provide at least 3 in (7.6 cm) clearance in front of the side vents for unobstructed airflow.
- Position the unit away from direct drafts or ceiling fans to maintain ideal holding temperatures.
- Always empty the drain before relocating the station.
Warranty
Covered by Vollrath’s standard limited warranty against defects in materials and workmanship. See vollrathfoodservice.com for full terms.
